3-1618382-7

Description
TRIGGER OUTPUT SOLID STATE RELAY
CategoryLED optoelectronic/LED    photoelectric
File Size129KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

3-1618382-7 Online Shopping

Suppliers Part Number Price MOQ In stock
3-1618382-7 - - View Buy Now

3-1618382-7 Overview

TRIGGER OUTPUT SOLID STATE RELAY

3-1618382-7 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codecompliant
Optoelectronic device typesTRIGGER OUTPUT SSR
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center
Home > Products > Relays > Product Feature Selector > Product Details

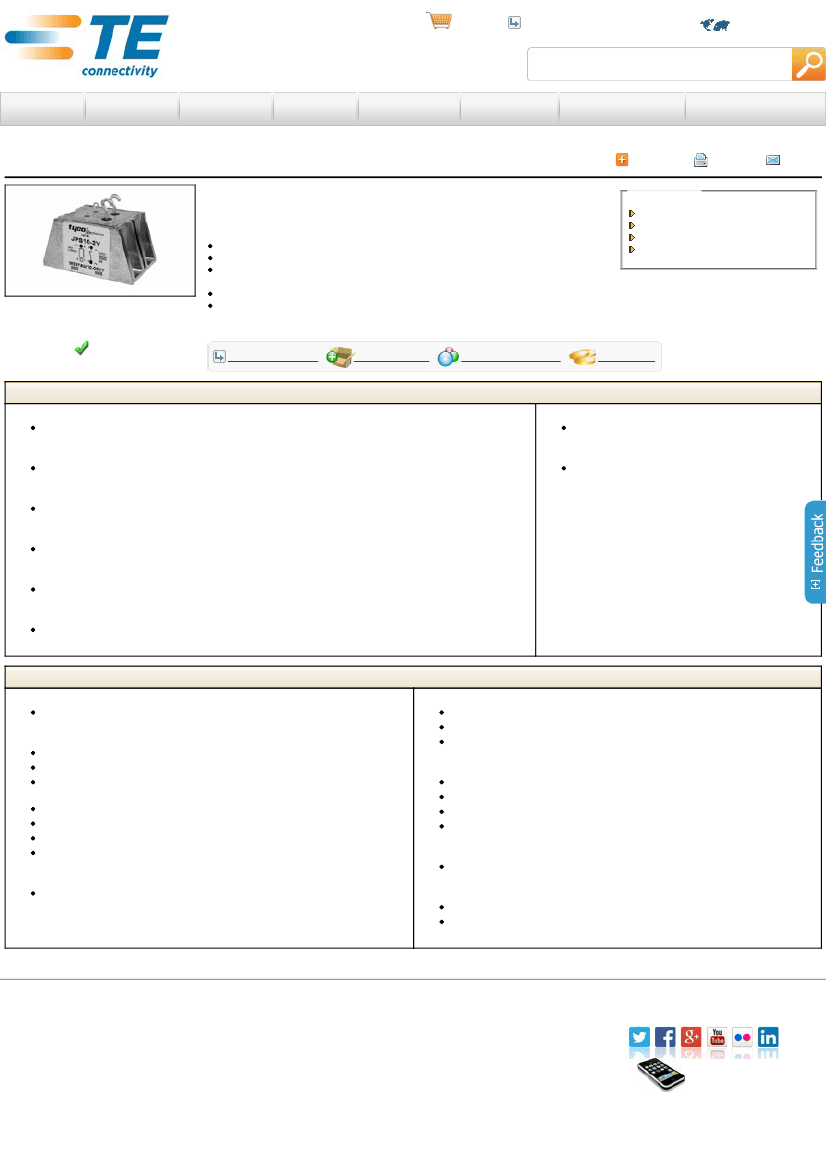

JPS10­2Y Product Details
High Performance Solid State Relays
Not EU RoHS or ELV Compliant
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
JPS10­2Y
(3­1618382­7)
TE Internal Number: 3­1618382­7
Product Highlights:
Output Voltage Rating (AC Relays) = 250 V rms
Output Current Rating = 25 A
Insulation ­ Initial Dielectric Between Contacts and Coil
= 1500 V rms
Input Voltage = 3.8 ­ 32 VDC
Input Current Max. @ 5Vdc = 16 VDC
View all Features
 Active
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Product Drawings:
None Available
Catalog Pages/Data Sheets:
None Available
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files:
None Available
Additional Information:
Product Line Information
Related Products:
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Mechanical Attachment:
Mounting Options = Panel Mount
Electrical Characteristics:
Output Voltage Rating (AC Relays) (V rms) = 250
Output Current Rating (A) = 25
Insulation ­ Initial Dielectric Between Contacts and Coil (V rms) =
1500
Input Voltage (VDC) = 3.8 – 32
Input Current Max. @ 5Vdc (VDC) = 16
Shock = 1500G's, 0.5ms
Vibration = 30G's, 10 to 3000Hz
Termination Features:
Termination Type = Solder Hooks
Body Features:
Screening Level = Y
Enclosure Type = Sealed
Packaging Style = Panel Mount
Industry Standards:
Government/Industry Qualification = Yes
Government/Industry Part Number = M28750/10­002Y
RoHS/ELV Compliance = Not ELV/RoHS compliant
Lead Free Solder Processes = Wave solder capable to 240°C
Environmental:
Operating Temperature Range (°C) = ­55 – +110
Other:
Additional Features = None
Brand = CII
