Restricted to: General Release
©§ ¥ ¥ £ ¡
¨¦¤¤¢
L
0.11-0.17m
0.25m Max
C
C
Label 1
Label 2
#
!
"

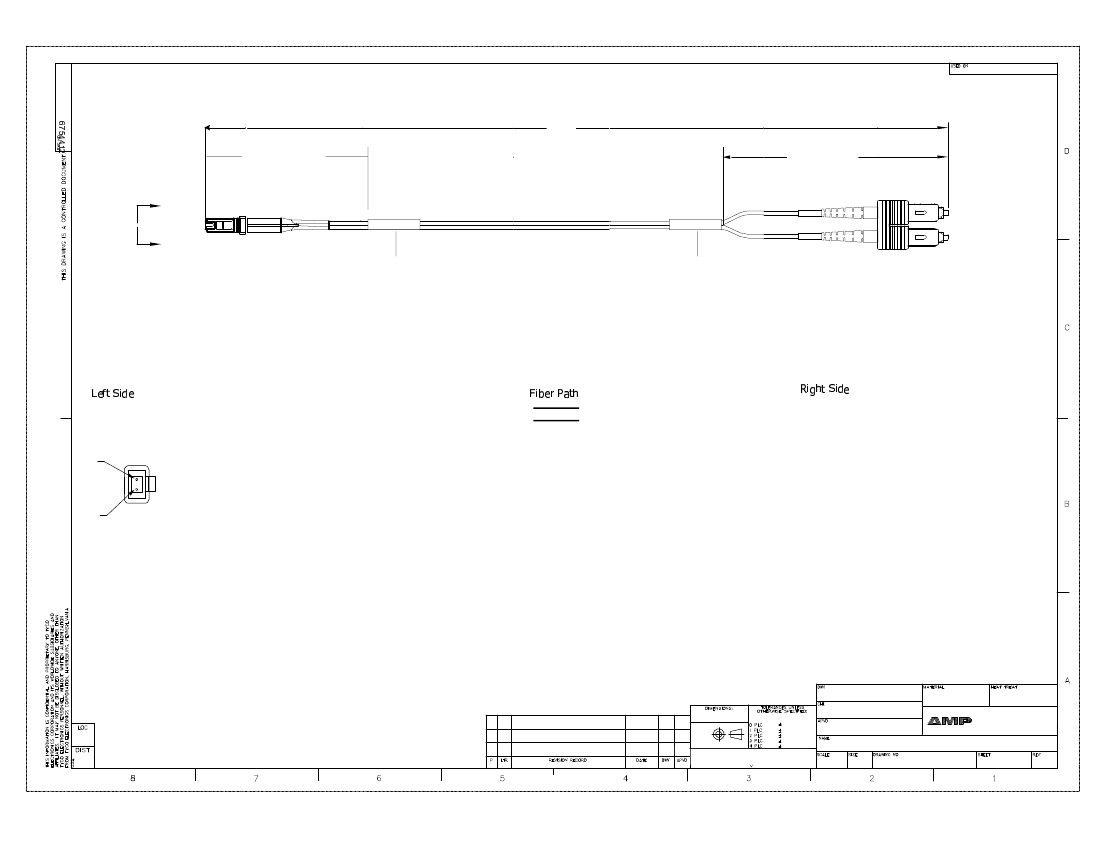

Connector(s): MT-RJ SECURE (No Pins)
Mode: MM
Housing Color: Green
Geom. Spec: 115-1215
A
Connector(s): SC-Duplex
Fiber A
Fiber B
Notes:
1 Product and Processing must meet requirements of Tyco Electronics
Standard 230-702
2 Label 2 will not be present on any cable assembly less than 5 meters long.
3 Includes dust caps (not shown on print).
-
-
-
-
B
A
Mode: MM
Housing Color: Beige
Geom. Spec: N/A
B
VIEW C-C
NOT T O SCALE
Cable Assy Configurator
meters
#
% $
"
-
-
Tyco Electronics, Inc.
Harrisburg, PA 17105-3608
Michael Kepko
-
-
-
-
-
Michael Kepko
CE
B
Rev Per EC#
ECR-06-020123
8/21/2006
-
MK
FO C/A - 2 fiber, XG - 50/125, OFNR (Riser) jacket, MT-RJ
SECURE (No Pins) to SC-Duplex
16
CAC Customer Layout Rev: D
Customer Print
NTS
A2
C- 6754412
1 of 3
B
Restricted to: General Release
Part #
0-6754412-1
0-6754412-2
0-6754412-3
0-6754412-4
0-6754412-5
0-6754412-6
0-6754412-7
0-6754412-8
0-6754412-9
1-6754412-0
1-6754412-1
1-6754412-2
1-6754412-3
1-6754412-4
1-6754412-5
1-6754412-6
1-6754412-7
1-6754412-8
1-6754412-9
2-6754412-0
2-6754412-1
2-6754412-2
2-6754412-3
2-6754412-4
2-6754412-5
2-6754412-6
2-6754412-7
2-6754412-8
2-6754412-9
3-6754412-0
3-6754412-1
3-6754412-2
3-6754412-3
3-6754412-4
3-6754412-5
3-6754412-6
3-6754412-7
3-6754412-8
3-6754412-9
4-6754412-0
5-6754412-0
L (meters)
0.950 - 1.050
1.950 - 2.050
2.950 - 3.050
3.920 - 4.080
4.920 - 5.080
5.920 - 6.080
6.920 - 7.080
7.920 - 8.080
8.850 - 9.150
9.850 - 10.150
10.850 - 11.150
11.850 - 12.150
12.850 - 13.150
13.850 - 14.150
14.850 - 15.150
15.840 - 16.160
16.830 - 17.170
17.820 - 18.180
18.810 - 19.190
19.800 - 20.200
20.790 - 21.210
21.780 - 22.220
22.770 - 23.230
23.760 - 24.240
24.750 - 25.250
25.740 - 26.260
26.730 - 27.270
27.720 - 28.280
28.710 - 29.290
29.700 - 30.300
30.690 - 31.310
31.680 - 32.320
32.670 - 33.330
33.660 - 34.340
34.650 - 35.350
35.640 - 36.360
36.630 - 37.370
37.620 - 38.380
38.610 - 39.390
39.600 - 40.400
49.500 - 50.500
L (feet)
3.11 - 3.44
6.39 - 6.72
9.67 - 10.00
12.86 - 13.38
16.14 - 16.66
19.42 - 19.94
22.70 - 23.22
25.98 - 26.50
29.03 - 30.01
32.31 - 33.30
35.59 - 36.58
38.87 - 39.86
42.15 - 43.14
45.43 - 46.42
48.72 - 49.70
51.96 - 53.01
55.21 - 56.33
58.46 - 59.64
61.71 - 62.95
64.96 - 66.27
68.20 - 69.58
71.45 - 72.90
74.70 - 76.21
77.95 - 79.52
81.20 - 82.84
84.44 - 86.15
87.69 - 89.46
90.94 - 92.78
94.19 - 96.09
97.44 - 99.40
100.68 - 102.72
103.93 - 106.03
107.18 - 109.35
110.43 - 112.66
113.68 - 115.97
116.92 - 119.29
120.17 - 122.60
123.42 - 125.91
126.67 - 129.23
129.92 - 132.54
162.40 - 165.68
MT-RJ SECURE (No
Pins), Green
IL
(dB) RL (dB)
0.5
0.5
0.5
0.51
0.51
0.51
0.51
0.51
0.51
0.52
0.52
0.52
0.52
0.52
0.52
0.52
0.53
0.53
0.53
0.53
0.53
0.53
0.53
0.54
0.54
0.54
0.54
0.54
0.54
0.55
0.55
0.55
0.55
0.55
0.55
0.55
0.56
0.56
0.56
0.56
0.58
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
SC-Duplex, Beige
Qty
IL
(dB)
0.5
0.5
0.5
0.51
0.51
0.51
0.51
0.51
0.51
0.52
0.52
0.52
0.52
0.52
0.52
0.52
0.53
0.53
0.53
0.53
0.53
0.53
0.53
0.54
0.54
0.54
0.54
0.54
0.54
0.55
0.55
0.55
0.55
0.55
0.55
0.55
0.56
0.56
0.56
0.56
0.58
RL
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
(dB)
1
1
1
1
1
1
2
1
2
2
AR
1
2
2
2
2
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
meter
piece
piece
piece
piece
piece
DUST COVER, MT-RJ
SPRING, MT-RJ, 3.8 DESIGN
PIN KEEPER, 3.8MM
MT-RJ, SPRING PUSH, UNIVERSAL
CRIMP EYELET, MT-RJ
MT-RJ Keyed Connector Housing - Green
LC, SC, FC Straight Boot, Beige
MT-RJ FERRULE, THERMOPLAST,MM
SC Simplex Housing, Beige
2.5mm ferrule cover
2 fiber, XG-50/125, 1.8mm, Twinzip, Aqua, OFNR (Riser)
MT-RJ TwinZip Bend Limiting Boot, Beige
SC Duplex Clip
Eyelet/Shrink tube assembly - White
CONN SUBASSY, MM, SC 1.6MM
Trace Label
U of M
Description
Item
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Cable Assy Configurator
meters
-
-
Tyco Electronics, Inc.
Harrisburg, PA 17105-3608
Michael Kepko
-
-
-
-
-
Michael Kepko
CE
B
Rev Per EC#
ECR-06-020123
8/21/2006
-
MK
FO C/A - 2 fiber, XG - 50/125, OFNR (Riser) jacket, MT-RJ
SECURE (No Pins) to SC-Duplex
16
CAC Customer Layout Rev: D
Customer Print
NTS
A2
C- 6754412
2 of 3
B
Restricted to: General Release

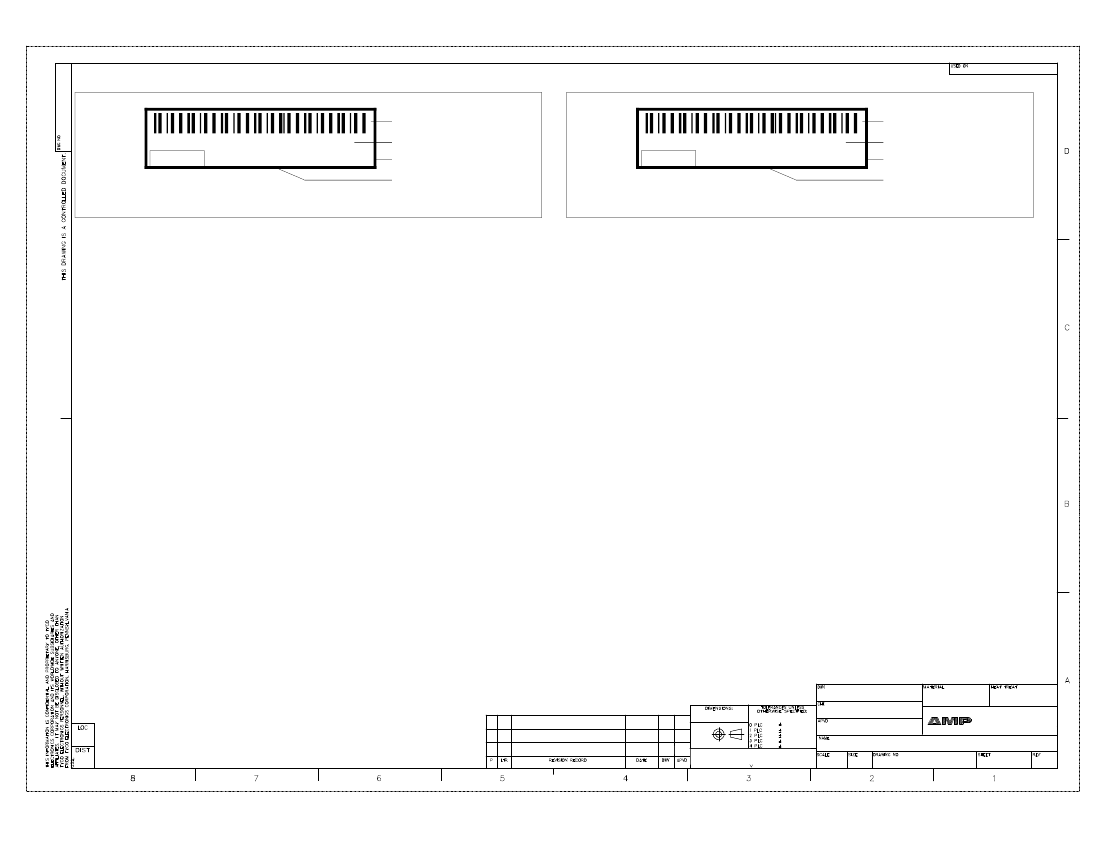

Label 1
Per specification 107-1645-1
Trace # - Bar Code
XXXXXXXXXXXXXXX
Tyco logo
Made in XXXX
X-XXXXXXX-X
Trace # - Human Readable
Part Number
Country of Origin
This label is used on all lengths on this drawing.
Label 2
Per specification 107-1645-1
Trace # - Bar Code
XXXXXXXXXXXXXXX
Tyco logo
Made in XXXX
X-XXXXXXX-X
Trace # - Human Readable
Part Number
Country of Origin
This label is used on all lengths on this drawing.
Cable Assy Configurator
meters
-
-
Tyco Electronics, Inc.
Harrisburg, PA 17105-3608
Michael Kepko
-
-
-
-
-
Michael Kepko
CE
B
Rev Per EC#
ECR-06-020123
8/21/2006
-
MK
FO C/A - 2 fiber, XG - 50/125, OFNR (Riser) jacket, MT-RJ
SECURE (No Pins) to SC-Duplex
16
CAC Customer Layout Rev: D
Customer Print
NTS
A2
C- 6754412
3 of 3
B
