Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/180G | SL-SMT 5.08/180G Box
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Fitted to PCB
Outgoing elbow
Pitch
Pitch in inch
No. of poles
Solder pin length
Can be coded
No. of solder pins per pole
L1 in mm
L1 in inch
Material data
Insulating material
Colour
1776022001
SL-SMT5.08/12/180G 1.5SN

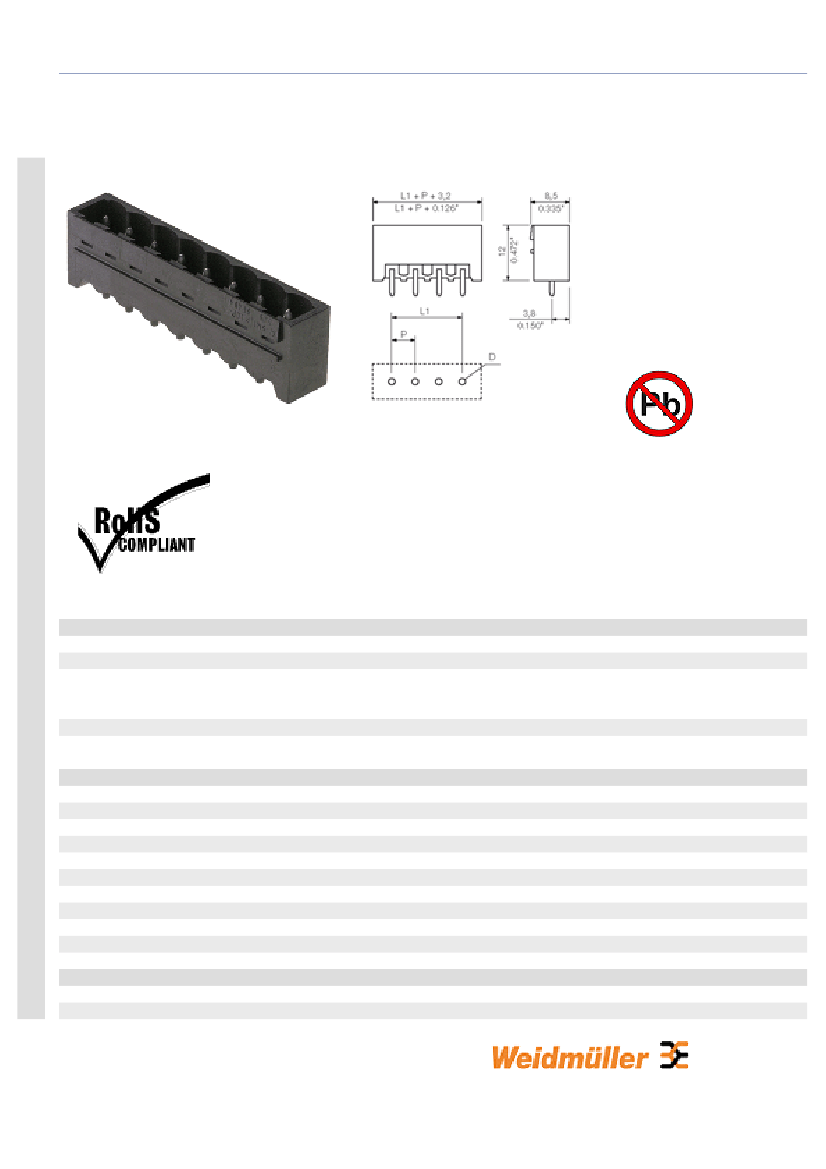

PCB plug-in connector, Male connectors, Reflow
solder connection, Pitch: 5.08 mm, No. of poles:
12, 180°, Box
4032248159017
50 pc(s).
Reflow solder connection
180°
5.08 mm
0.2 inch
12
1.5 mm
Yes
1
55.88 mm
2.2 inch
LCP GF
black
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/180G | SL-SMT 5.08/180G Box
Material data
colour chart
Insulating material group
Flammability class UL 94
Contact base material
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
Similar to RAL 9011
IIIa
V-0
CuSn
tinned
-25 °C
100
-25 °C
55 °C
80 %
19 A
15 A
16 A
13 A
250 V
4 kV
320 V
4 kV
400 V
4 kV
300 V
10 A
300 V
10 A
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/180G | SL-SMT 5.08/180G Box
Approvals
Approvals institutes
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1775922001
1838210000
1775932001
1838220000
1775942001
1838230000
1775952001
1838240000
1775962001
1838250000
1775972001
1838260000
Part designation
SL-SMT5.08/2/180G 1.5SN
SL-SMT5.08/2/180G 3.2SN SW
BOX
SL-SMT5.08/3/180G 1.5SN
SL-SMT5.08/3/180G 3.2SN SW
BOX
SL-SMT5.08/4/180G 1.5SN
SL-SMT5.08/4/180G 3.2SN SW
BOX
SL-SMT5.08/5/180G 1.5SN
SL-SMT5.08/5/180G 3.2SN SW
BOX
SL-SMT5.08/6/180G 1.5SN
SL-SMT5.08/6/180G 3.2SN SW
BOX
SL-SMT5.08/7/180G 1.5SN
SL-SMT5.08/7/180G 3.2SN SW
BOX
Version
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 7, 180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/180G | SL-SMT 5.08/180G Box
1775982001
1838270000
1775992001
1838280000
1776002001
1838290000
1776012001
1838300000
1838310000
1776242001
1838320000
1776252001
1838330000
1776262001
1838340000
1776272001
1838350000
1776282001
1838360000
1776292001
1838370000
1776302001
1838380000
1776312001
1838390000
1776322001
SL-SMT5.08/8/180G 1.5SN
SL-SMT5.08/8/180G 3.2SN SW
BOX
SL-SMT5.08/9/180G 1.5SN
SL-SMT5.08/9/180G 3.2SN SW
BOX
SL-SMT5.08/10/180G 1.5SN
SL-SMT5.08/10/180G 3.2SN SW
BOX
SL-SMT5.08/11/180G 1.5SN
SL-SMT5.08/11/180G 3.2SN SW
BOX
SL-SMT5.08/12/180G 3.2SN SW
BOX
SL-SMT5.08/13/180G 1.5SN
SL-SMT5.08/13/180G 3.2SN SW
BOX
SL-SMT5.08/14/180G 1.5SN
SL-SMT5.08/14/180G 3.2SN SW
BOX
SL-SMT5.08/15/180G 1.5SN
SL-SMT5.08/15/180G 3.2SN SW
BOX
SL-SMT5.08/16/180G 1.5SN
SL-SMT5.08/16/180G 3.2SN SW
BOX
SL-SMT5.08/17/180G 1.5SN
SL-SMT5.08/17/180G 3.2SN SW
BOX
SL-SMT5.08/18/180G 1.5SN
SL-SMT5.08/18/180G 3.2SN SW
BOX
SL-SMT5.08/19/180G 1.5SN
SL-SMT5.08/19/180G 3.2SN SW
BOX
SL-SMT5.08/20/180G 1.5SN
SL-SMT5.08/20/180G 3.2SN SW
BOX
SL-SMT5.08/21/180G 1.5SN
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 11, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 11, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 13, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 13, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 15, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 15, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 17, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 17, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 19, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 19, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 20, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 20, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 21, 180°, Box
-4-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/180G | SL-SMT 5.08/180G Box
1838400000
1776332001
1838410000
1776342001
1838420000
1776352001
1838430000
SL-SMT5.08/21/180G 3.2SN SW PCB plug-in connector, Male connectors, Reflow solder connection,
BOX
Pitch: 5.08 mm, No. of poles: 21, 180°, Box
SL-SMT5.08/22/180G 1.5SN
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 22, 180°, Box
SL-SMT5.08/22/180G 3.2SN SW PCB plug-in connector, Male connectors, Reflow solder connection,
BOX
Pitch: 5.08 mm, No. of poles: 22, 180°, Box
SL-SMT5.08/23/180G 1.5SN
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 23, 180°, Box
SL-SMT5.08/23/180G 3.2SN SW PCB plug-in connector, Male connectors, Reflow solder connection,
BOX
Pitch: 5.08 mm, No. of poles: 23, 180°, Box
SL-SMT5.08/24/180G 1.5SN
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 24, 180°, Box
SL-SMT5.08/24/180G 3.2SN SW PCB plug-in connector, Male connectors, Reflow solder connection,
BOX
Pitch: 5.08 mm, No. of poles: 24, 180°, Box
-5-
