5512BL15B100: Description5.5 GHz Balun; CategoryPower management transformer; File Size114KB，2 Pages; ManufacturerJohanson Technology; Websitehttp://www.johansontechnology.com

Download Datasheet Parametric View All

5512BL15B100 Overview

5.5 GHz Balun

5512BL15B100 Parametric

Parameter Name	Attribute value
Maker	Johanson Technology
Reach Compliance Code	unknow
ECCN code	EAR99
maximum cutoff frequency	5875 MHz
minimum cutoff frequency	5150 MHz
high	0.85 mm
Insertion loss	1 dB
length	2 mm
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
physical size	L2XB1.25XH0.85 (mm)
surface mount	YES
Transformer type	RF TRANSFORMER
width	1.25 mm
Base Number Matches	1

Preview

Download Datasheet

View All

“High Frequency Ceramic Solutions”

5.5 GHz Balun

Detail Specification: 01/03/03

P/N 5512BL15B100

Page 1 of 2

Part

Number

5512BL15B100_

Frequency

(MHz)

5150 - 5875

Impedance

Unbal. / Bal.

50/100

Ω

Insertion

Loss

1.0 dB max.

Return

Loss

9.5 dB min.

Phase

Difference

180°±10°

Amplitude

Difference

2.0 dB max.

Input Power

3 Watts max

Impedance

50 /100

Ω

Operating Temperature Range

-40 to +85°C

Reel Qty

4,000

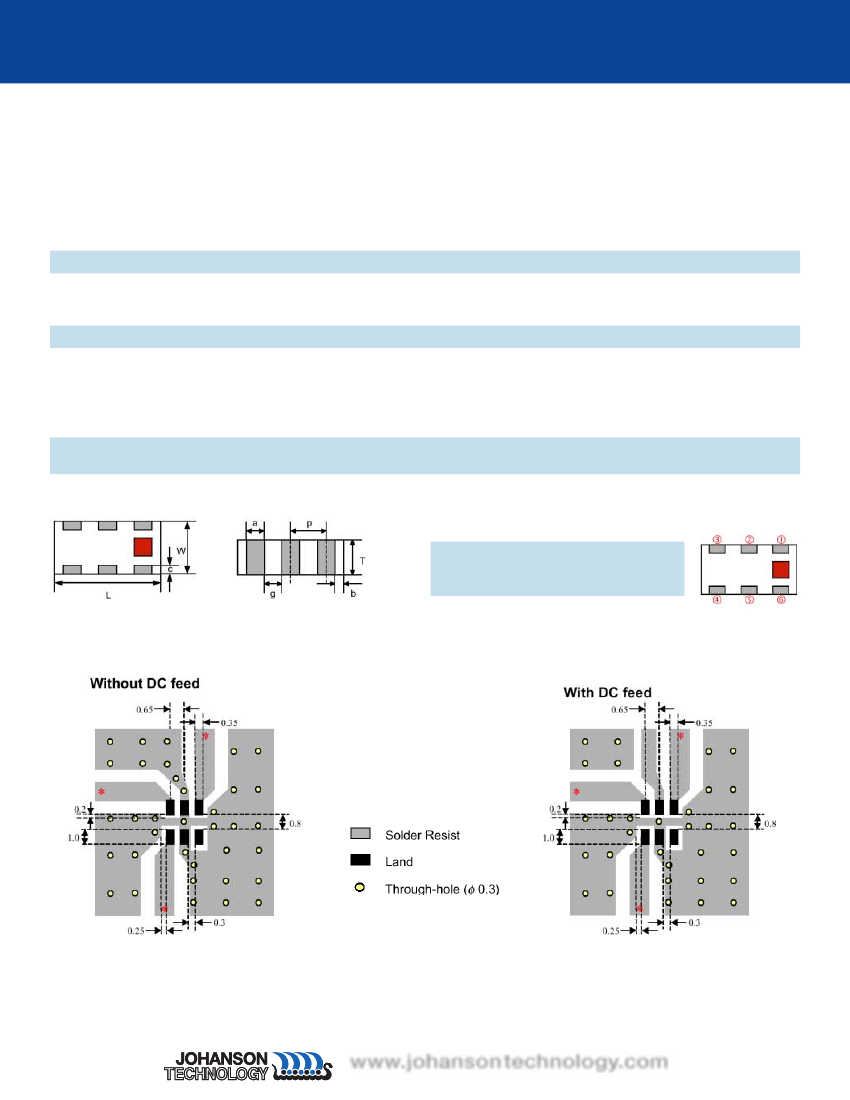

Mechanical Dimensions

L

Inches

mm

0.079 ± .004

2.0 ± 0.1

W

0.049± .004

1.25 ± 0.1

T

0.034 ± .004

0.85 ± 0.1

a

0.012 ± .004

0.30 ± 0.1

b

0.008 ± .004

0.20 ± 0.1

c

0.012 + .004/-.008

0.30+0.1/-0.2

g

0.014 ± .004

0.35 ± 0.1

p

0.026 ±.002

0.65 ± 0.05

Terminal Configuration

1

2

3

Unbalanced Port

GND or DC Feed

Balanced Port

4

5

6

Balanced Port

GND

NC

Mounting Considerations

Mount devices with colored mark facing up.

*

Line width should be designed to

provide 50Ω impedance matching

characteristics.

Units: mm

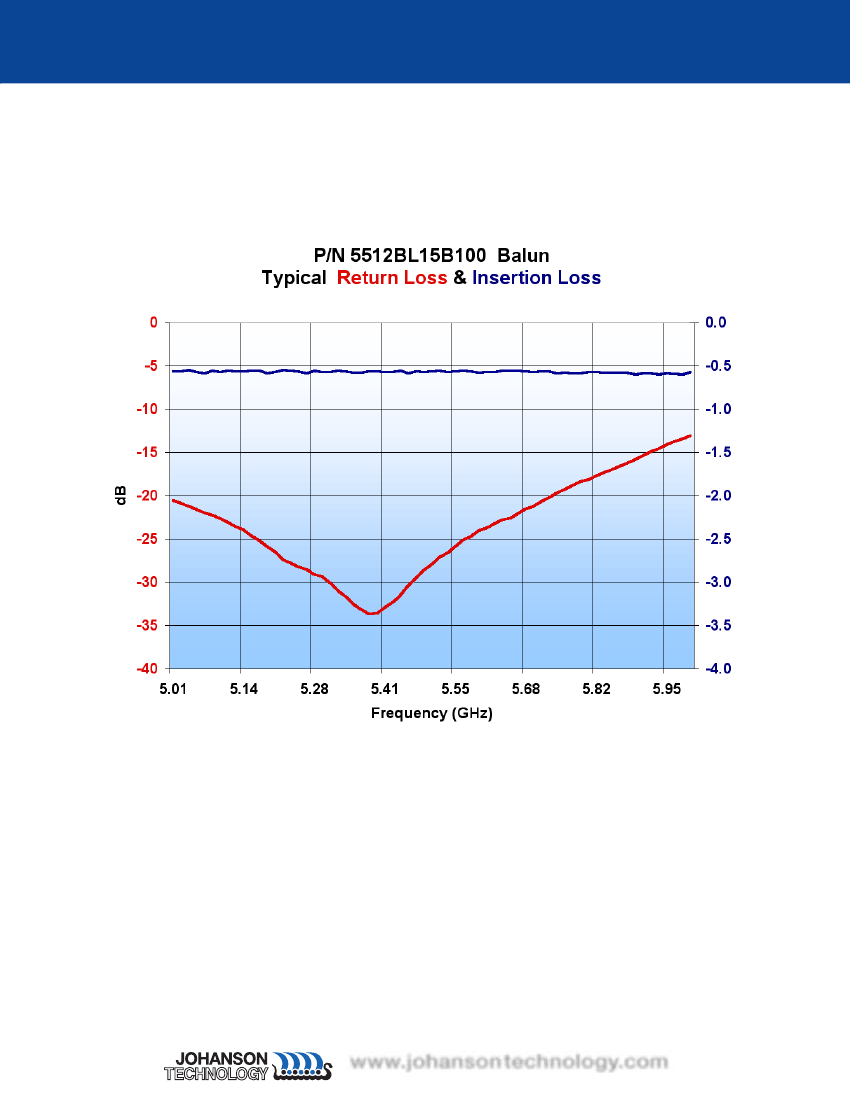

Johanson Technology, Inc. reserves the right to make design changes without notice.

All sales are subject to Johanson Technology, Inc. terms and conditions.

www.johanson technology.com

931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
