TMP82C54 datasheet, PDF - EEWORLD Datasheet

TMP82C54: Description3 TIMER(S), PROGRAMMABLE TIMER, PDSO24; Categorysemiconductor The embedded processor and controller; File Size565KB，26 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

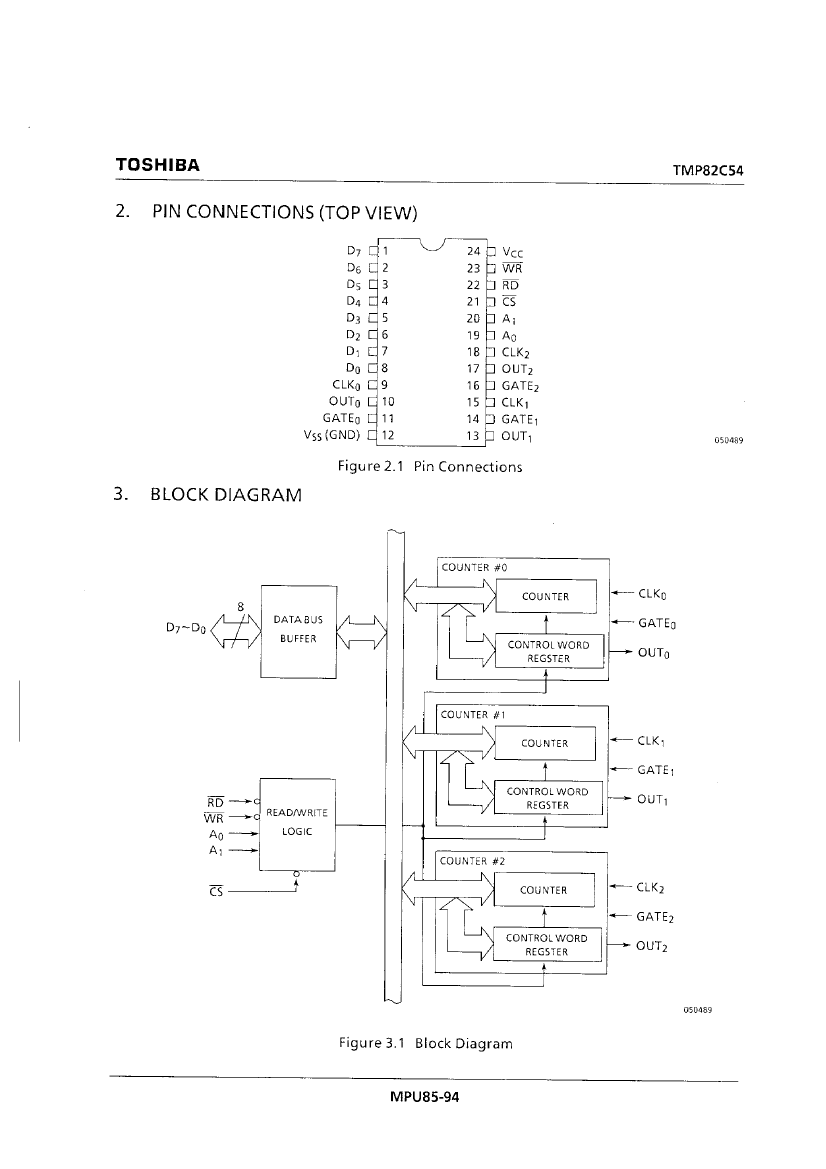

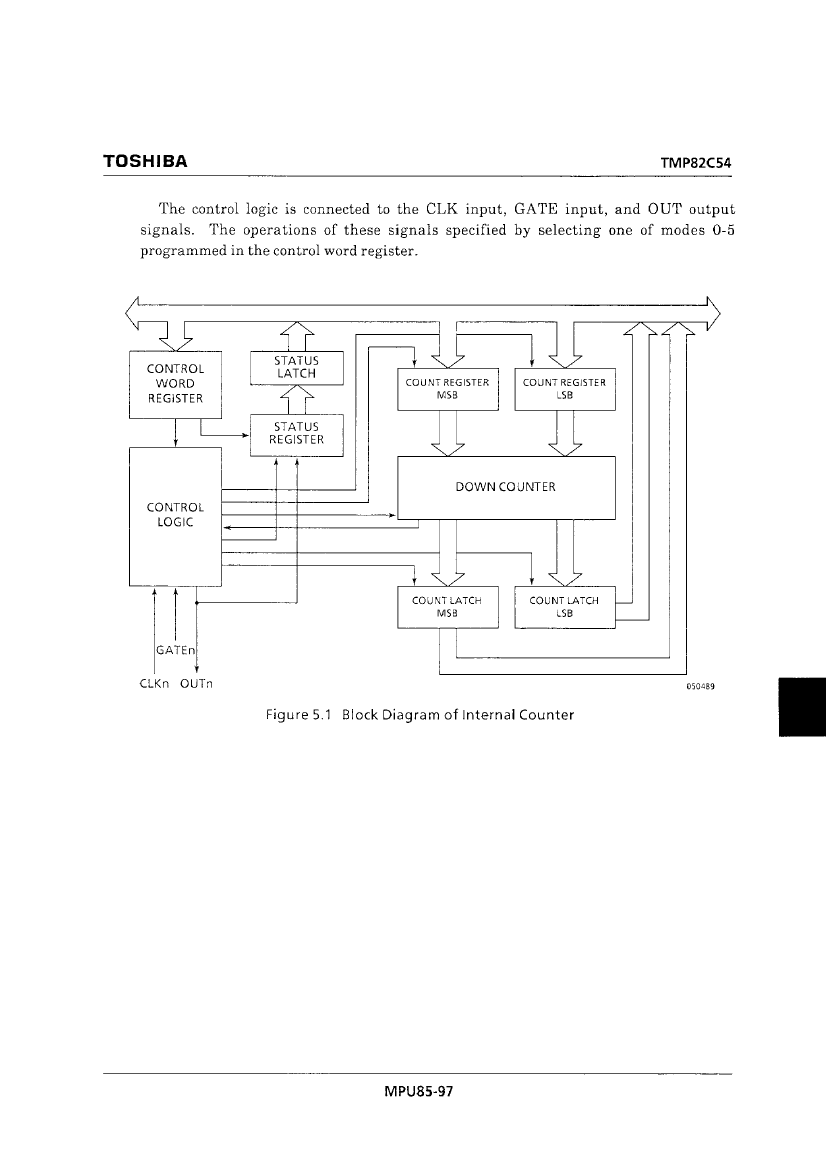

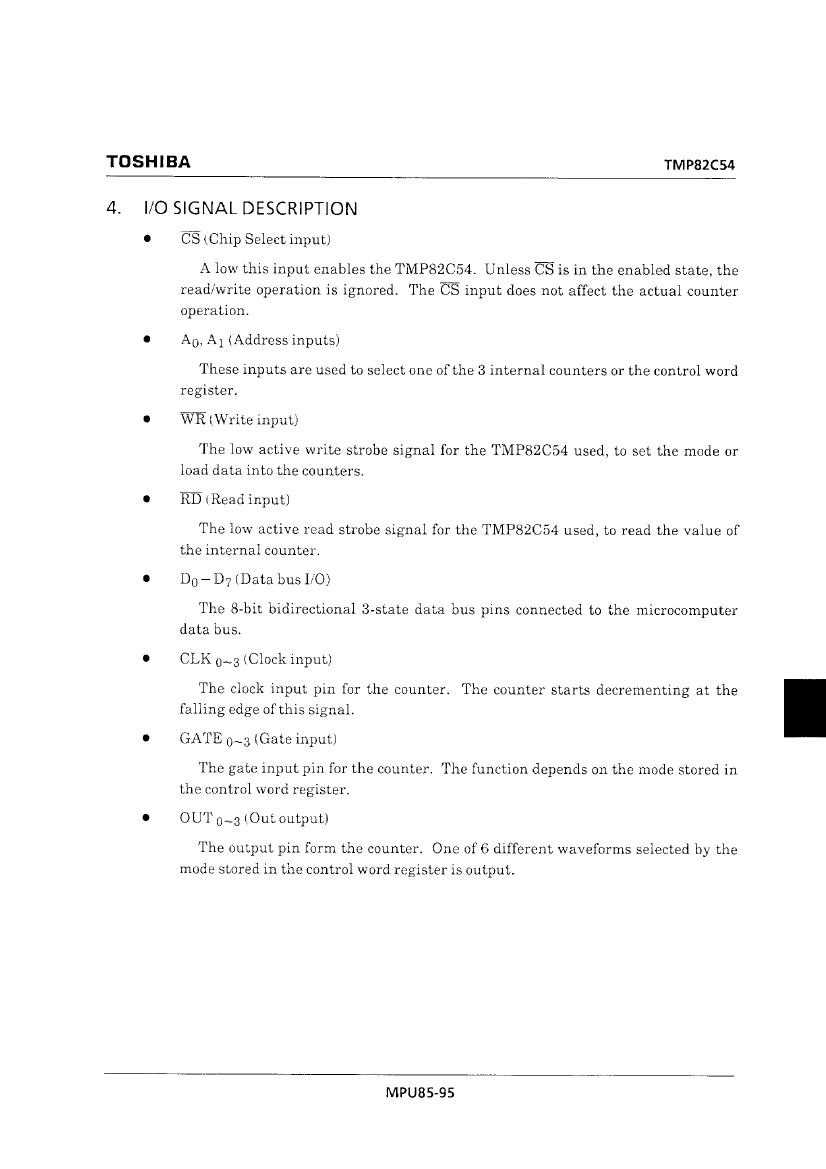

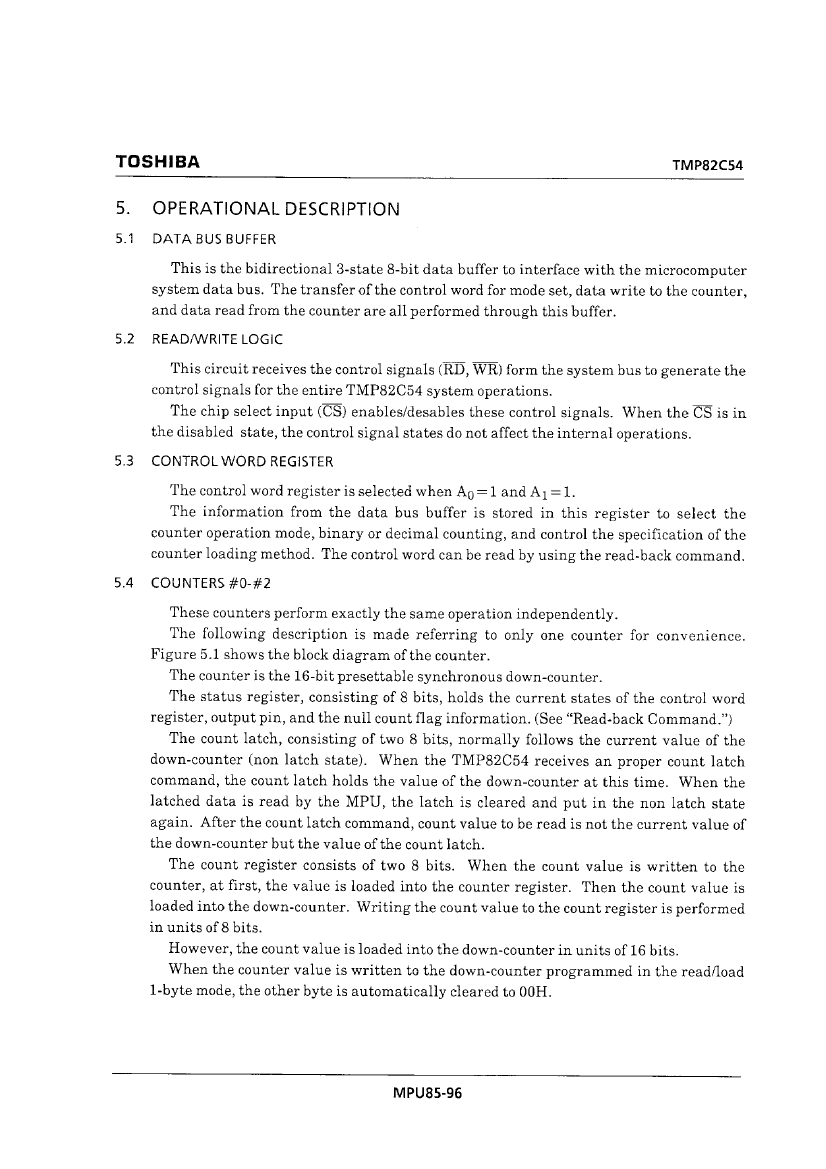

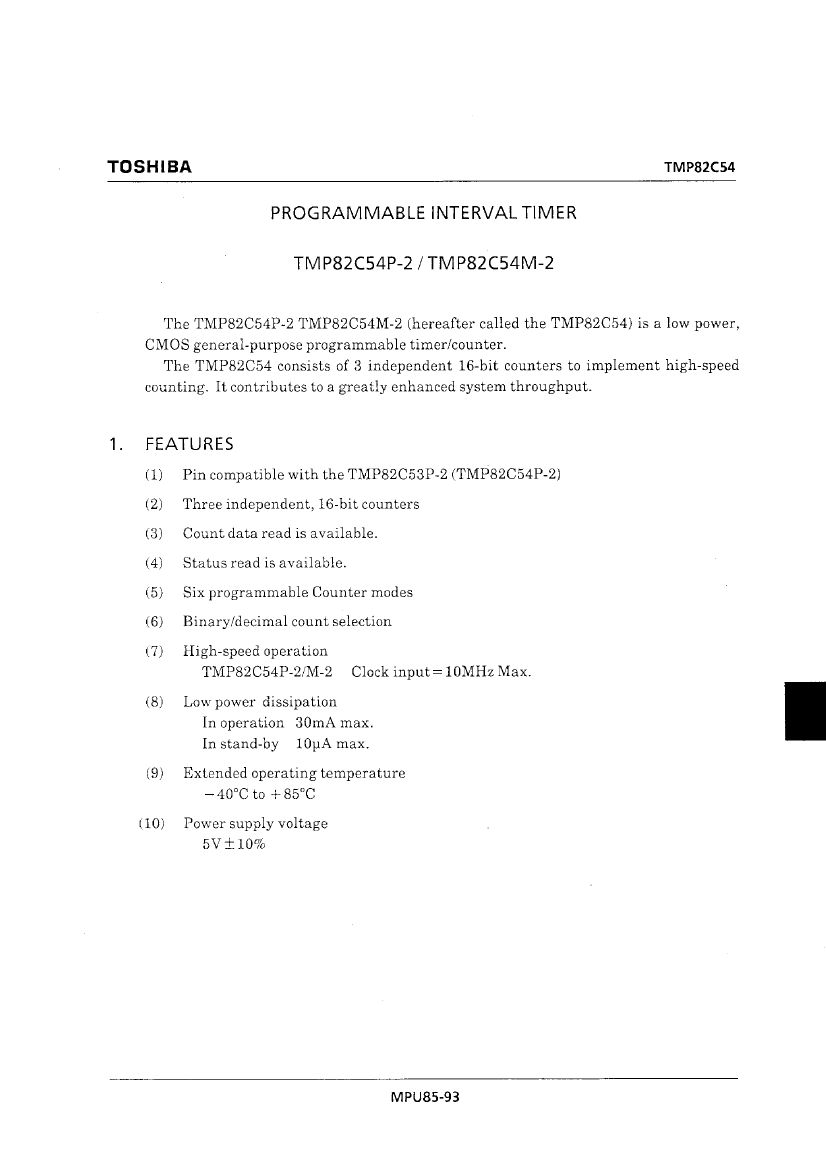

TMP82C54 Overview

3 TIMER(S), PROGRAMMABLE TIMER, PDSO24

Parameter Name	Attribute value
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Maximum supply/operating voltage	5.5 V
Minimum supply/operating voltage	4.5 V
Rated supply voltage	5 V
External data bus width	8
Processing package description	0.450 INCH, Plastic, SOP-24
state	DISCONTINUED
Craftsmanship	CMOS
packaging shape	Rectangle
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	1.27 mm
terminal coating	tin lead
Terminal location	pair
Packaging Materials	Plastic/Epoxy
Temperature level	INDUSTRIAL
Information access methods	Parallel, direct address
Microprocessor type	Programmable timer
Number of timers	3

	TMP82C54	TMP82C54P-2	TMP82C54M-2
Description	3 TIMER(S), PROGRAMMABLE TIMER, PDSO24	3 TIMER(S), PROGRAMMABLE TIMER, PDSO24	3 TIMER(S), PROGRAMMABLE TIMER, PDSO24
Number of terminals	24	24	-
Maximum operating temperature	85 Cel	85 °C	-
Minimum operating temperature	-40 Cel	-40 °C	-
External data bus width	8	8	-
surface mount	Yes	NO	-
Terminal form	GULL WING	THROUGH-HOLE	-
Terminal location	pair	DUAL	-
Temperature level	INDUSTRIAL	INDUSTRIAL	-
Information access methods	Parallel, direct address	PARALLEL, DIRECT ADDRESS	-
Number of timers	3	3	-
Is it Rohs certified?	-	incompatible	incompatible
Maker	-	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	-	DIP	SOIC
package instruction	-	DIP,	0.450 INCH, PLASTIC, SOP-24
Contacts	-	24	24
Reach Compliance Code	-	unknow	unknow
