TMP47C25F datasheet, PDF - EEWORLD Datasheet

TMP47C25F: DescriptionCMOS 4-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size369KB，17 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

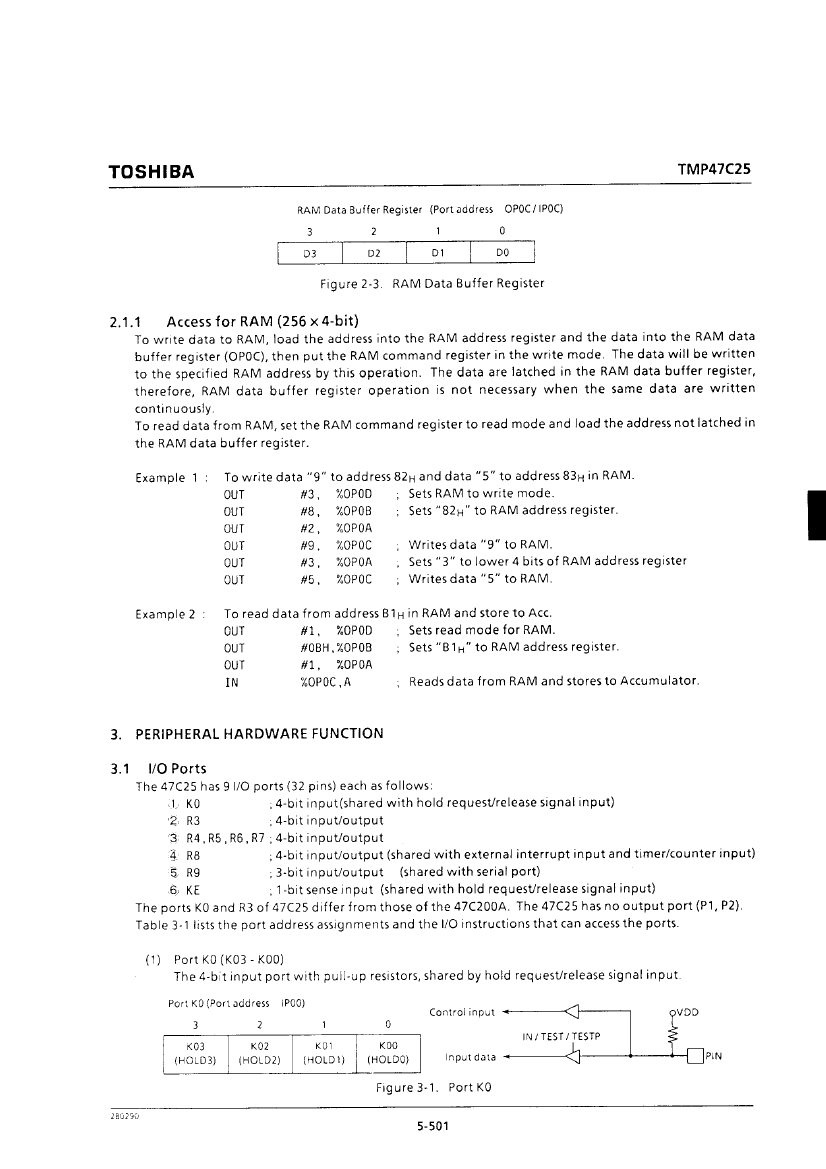

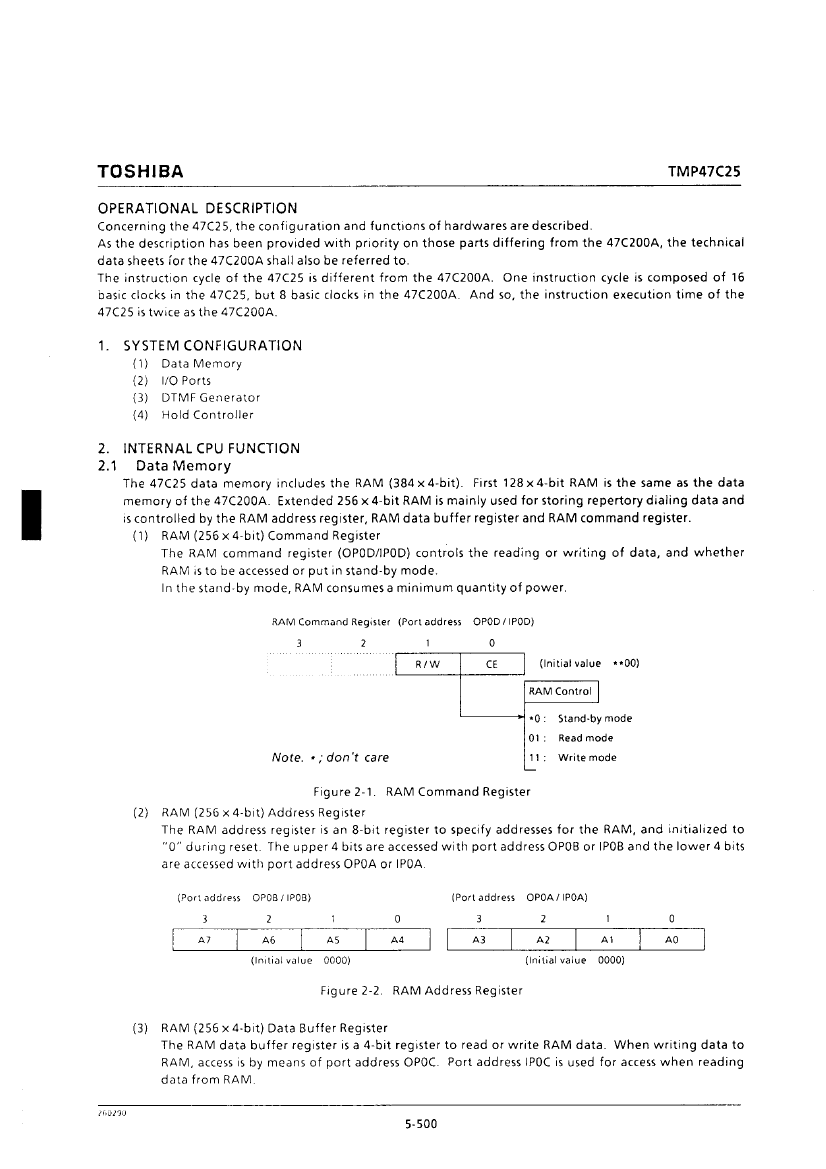

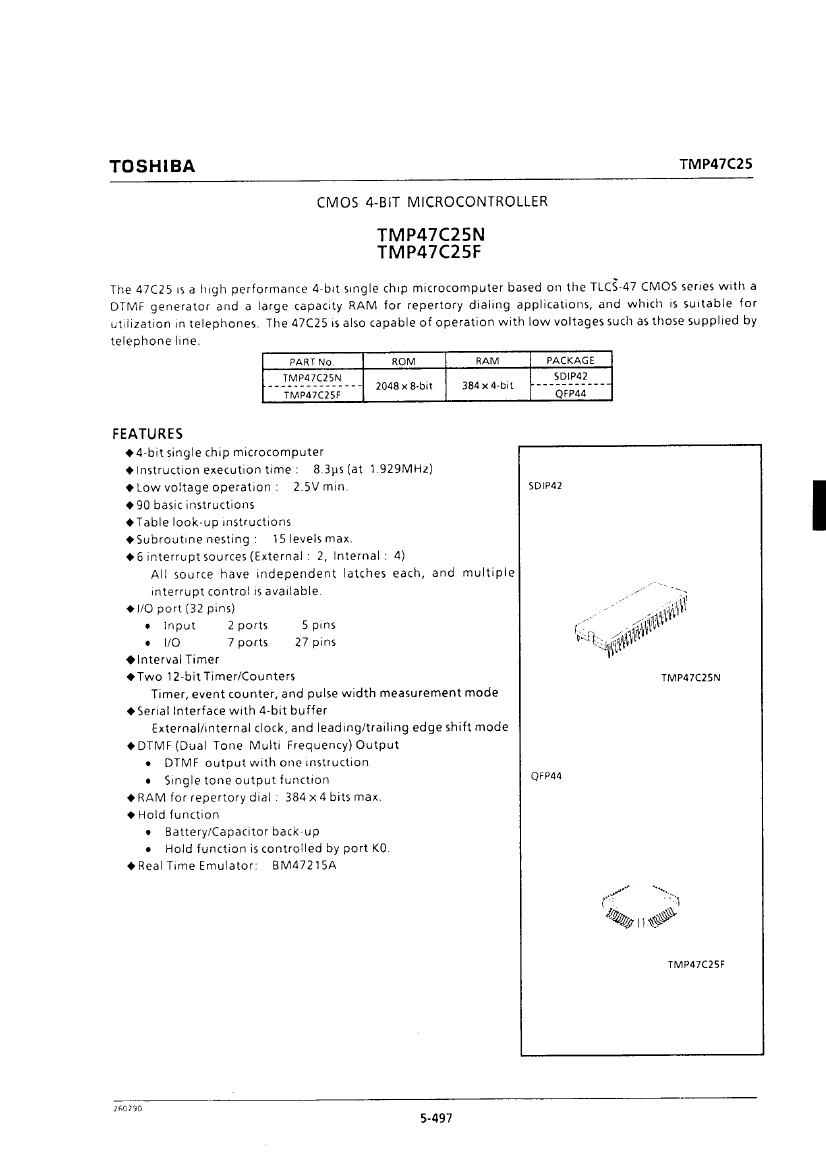

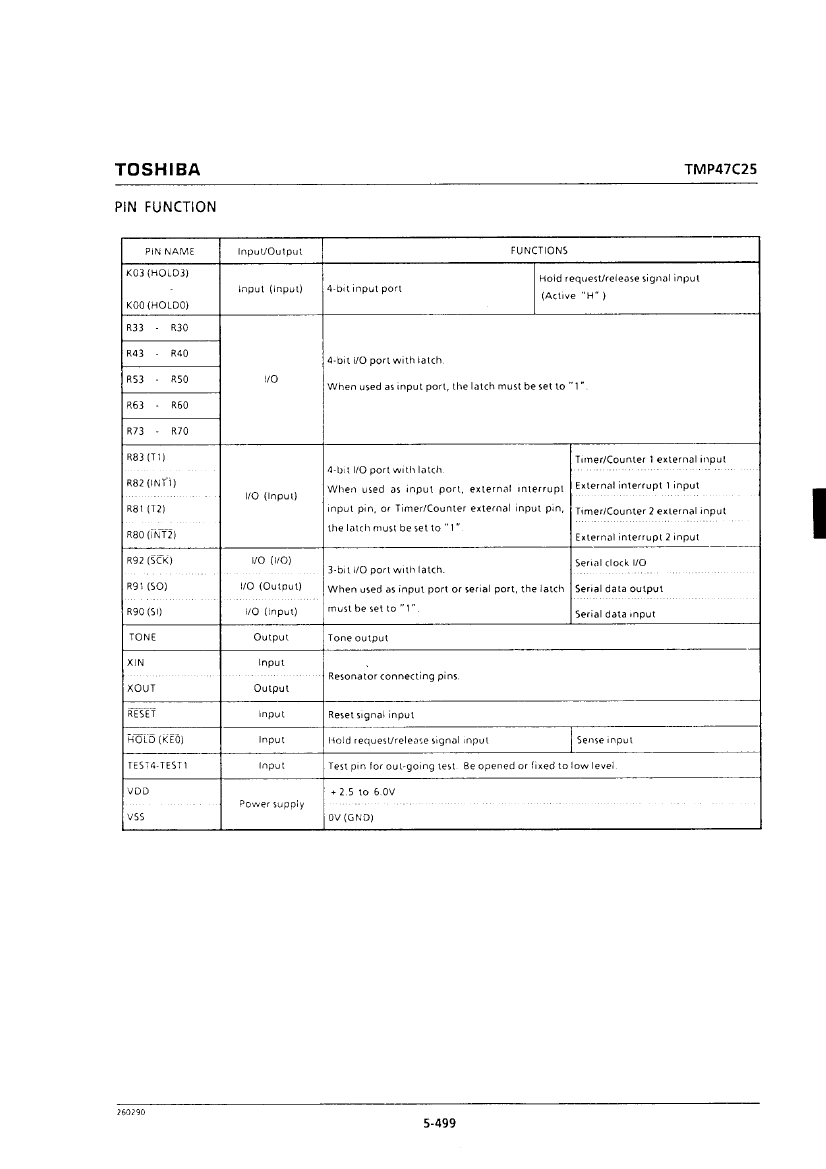

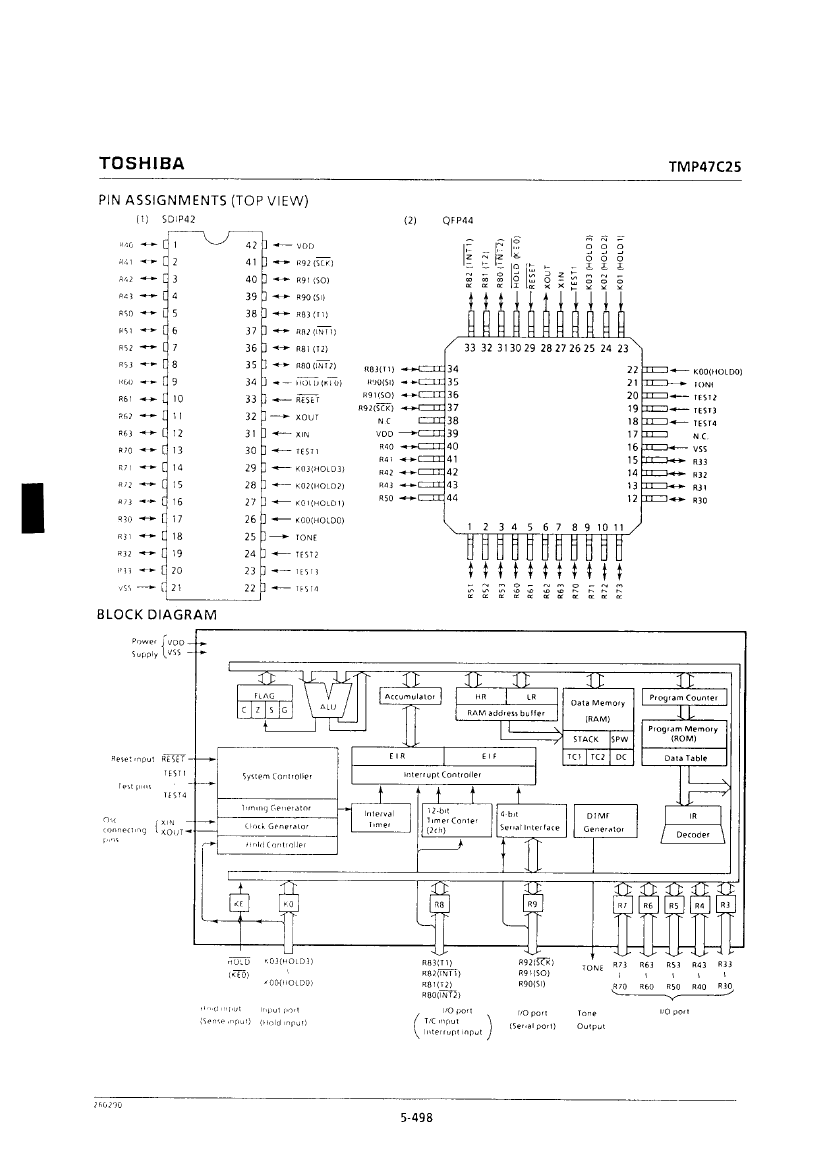

TMP47C25F Overview

CMOS 4-BIT MICROCONTROLLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Objectid	100835016
Reach Compliance Code	unknow
compound_id	182033175
Has ADC	NO
Address bus width
bit size	4
CPU series	TLCS-47
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G44
JESD-609 code	e0
length	14 mm
Number of I/O lines	37
Number of terminals	44
Maximum operating temperature	60 °C
Minimum operating temperature	-30 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Encapsulate equivalent code	QFP44,.7SQ,32
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	192
rom(word)	2048
ROM programmability	MROM
speed	1.929 MHz
Maximum slew rate	2.5 mA
Maximum supply voltage	6 V
Minimum supply voltage	2.5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULLWING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm

	TMP47C25F	TMP47C25N
Description	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER
Is it Rohs certified?	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor
Reach Compliance Code	unknow	unknow
Has ADC	NO	NO
bit size	4	4
CPU series	TLCS-47	TLCS-47
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	S-PQFP-G44	R-PDIP-T42
JESD-609 code	e0	e0
Number of I/O lines	37	35
Number of terminals	44	42
Maximum operating temperature	60 °C	60 °C
Minimum operating temperature	-30 °C	-30 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LQFP	SDIP
Encapsulate equivalent code	QFP44,.7SQ,32	SDIP42,.6
Package shape	SQUARE	RECTANGULAR
Package form	FLATPACK, LOW PROFILE	IN-LINE, SHRINK PITCH
power supply	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	192	192
rom(word)	2048	2048
ROM programmability	MROM	MROM
speed	1.929 MHz	1.929 MHz
Maximum slew rate	2.5 mA	2.5 mA
Maximum supply voltage	6 V	6 V
Minimum supply voltage	2.5 V	2.5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULLWING	THROUGH-HOLE
Terminal pitch	0.8 mm	1.78 mm
Terminal location	QUAD	DUAL
