Document 585-1

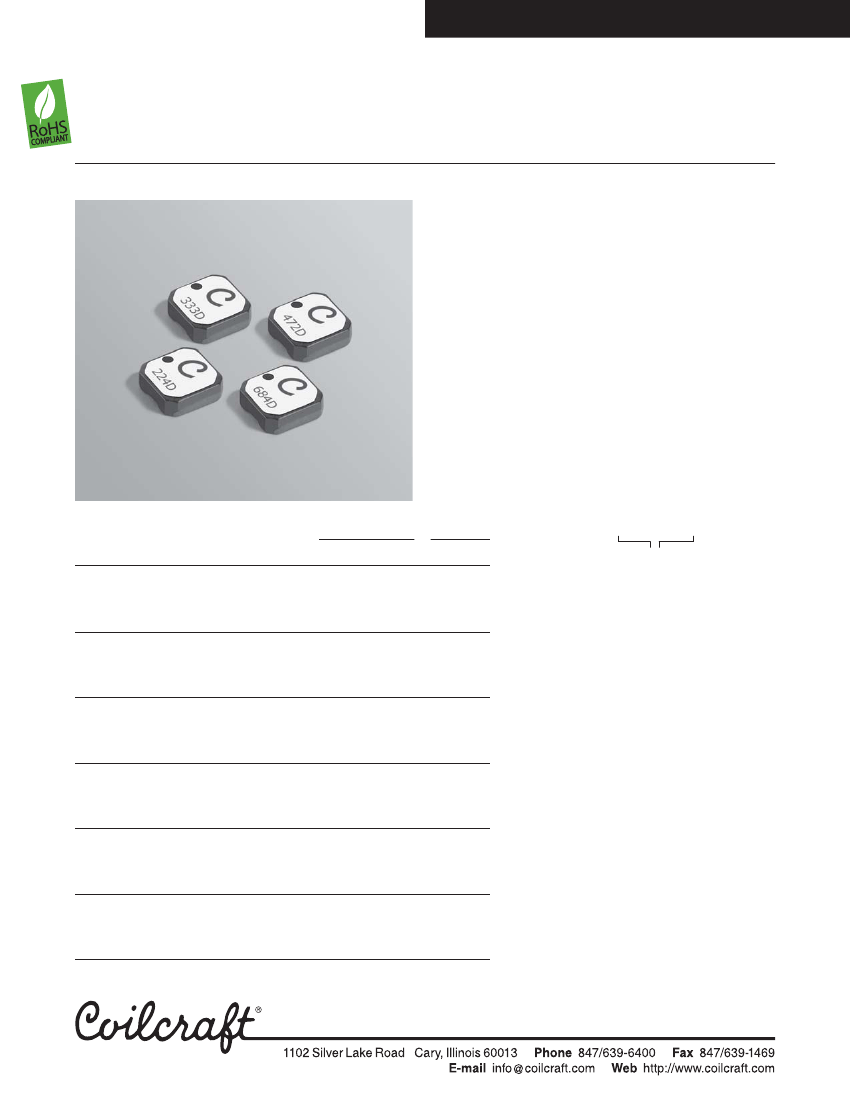

Shielded Power Inductors–LPS5015 Series
• Very low DCR; excellent current handling
• 5.0 × 5.0 mm footprint; less than 1.5 mm tall
Designer’s Kit C350
contains 3 each of all values
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Weight
102 – 107 mg
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
1000/7″reel; 3500/13″ reel Plastic tape: 12 mm wide,
0.3 mm thick, 8 mm pocket spacing, 1.57 mm pocket depth
Recommended pick and place nozzle
OD: 5 mm; ID:
≤
2.5 mm
PCB washing
Only pure water or alcohol recommended
Part number
1
LPS5015-102ML_
LPS5015-132ML_
LPS5015-182ML_
LPS5015-222ML_
LPS5015-332ML_
LPS5015-472ML_
LPS5015-562ML_
LPS5015-682ML_
LPS5015-822ML_
LPS5015-103ML_
LPS5015-123ML_
LPS5015-153ML_
LPS5015-183ML_
LPS5015-223ML_
LPS5015-333ML_
LPS5015-473ML_
LPS5015-563ML_
LPS5015-683ML_
LPS5015-104ML_
LPS5015-124ML_
LPS5015-154ML_
LPS5015-224ML_
LPS5015-334ML_
LPS5015-474ML_
LPS5015-564ML_
LPS5015-684ML_
LPS5015-105ML_
LPS5015-155ML_
LPS5015-185ML_
LPS5015-225ML_
LPS5015-335ML_
LPS5015-475ML_
DCR SRF
Inductance
2
max
3
typ
4
±20% (µH) (Ohms) (MHz)
1.0
1.3
1.8
2.2
3.3
4.7
5.6
6.8
8.2
10
12
15
18
22
33
47
56
68
100
120
150
220
330
470
560
680
1000
1500
1800
2200
3300
4700
0.050
0.065
0.075
0.090
0.125
0.150
0.175
0.225
0.280
0.300
0.350
0.360
0.550
0.675
0.750
1.00
1.13
1.45
1.95
2.50
3.40
4.50
7.40
7.50
8.50
10.6
15.0
25.0
28.0
36.0
55.0
80.0
183
150
128
116
88
73
67
57
49
44
40
38
35
31
24
18
17
15
12
10
9.3
7.3
5.7
4.9
4.3
4.0
3.2
2.5
2.2
2.1
1.7
1.4
Isat
(A)
5
10% 20% 30%
drop drop drop
3.6
2.5
2.6
2.4
1.9
1.6
1.6
1.3
1.3
1.2
1.0
0.80
0.75
0.70
0.55
0.46
0.40
0.33
0.30
0.25
0.23
0.20
0.15
0.12
0.10
0.10
0.080
0.080
0.078
0.072
0.064
0.062
3.8
2.6
2.8
2.6
2.0
1.7
1.6
1.4
1.3
1.3
1.1
0.84
0.77
0.73
0.59
0.48
0.43
0.38
0.33
0.28
0.25
0.21
0.17
0.12
0.11
0.11
0.090
0.086
0.083
0.078
0.072
0.069
3.9
2.8
2.9
2.7
2.0
1.8
1.6
1.5
1.4
1.3
1.2
0.86
0.80
0.75
0.60
0.49
0.45
0.39
0.34
0.30
0.26
0.22
0.18
0.13
0.12
0.11
0.093
0.088
0.086
0.080
0.076
0.072
Irms
(A)
6
20°C 40°C
rise rise
1.90
1.70
1.50
1.40
1.30
1.20
1.10
0.90
0.85
0.80
0.75
0.73
0.70
0.60
0.50
0.45
0.40
0.35
0.30
0.27
0.25
0.22
0.17
0.16
0.14
0.13
0.10
0.090
0.085
0.065
0.055
0.045
2.65
2.35
2.15
2.00
1.80
1.62
1.45
1.25
1.05
0.95
0.84
0.84
0.83
0.82
0.70
0.57
0.52
0.47
0.42
0.37
0.33
0.29
0.22
0.21
0.190
0.175
0.150
0.140
0.130
0.090
0.075
0.065
1. Please specify
termination
and
packaging
codes:
LPS5015-335MLC
Termination: L
= RoHS compliant silver-palladium-
platinum-glass frit.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: C=
7″ machine-ready reel. EIA-481
embossed plastic tape 1000 parts per
full reel).
B=
Less than full reel. In tape, but not
machine ready. To have a leader and
trailer added ($25 charge), use code
letter C instead.
D=
13″ machine-ready reel. EIA-481
embossed plastic tape. Factory order
only, not stocked (3500 parts per full
reel).
2. Inductance tested at 100 kHz, 0.1 Vrms using an
Agilent/HP 4192A.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using Agilent/HP 8753ES or equivalent.
5. DC current that causes the specified inductance drop
from its value without current.
6. Current that causes the specified temperature rise from
25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components”
before soldering.
Specifications subject to change without notice.
Please check our website for latest information.
Document 585-1
Revised 12/05/08
© Coilcraft, Inc. 2009
Document 585-2

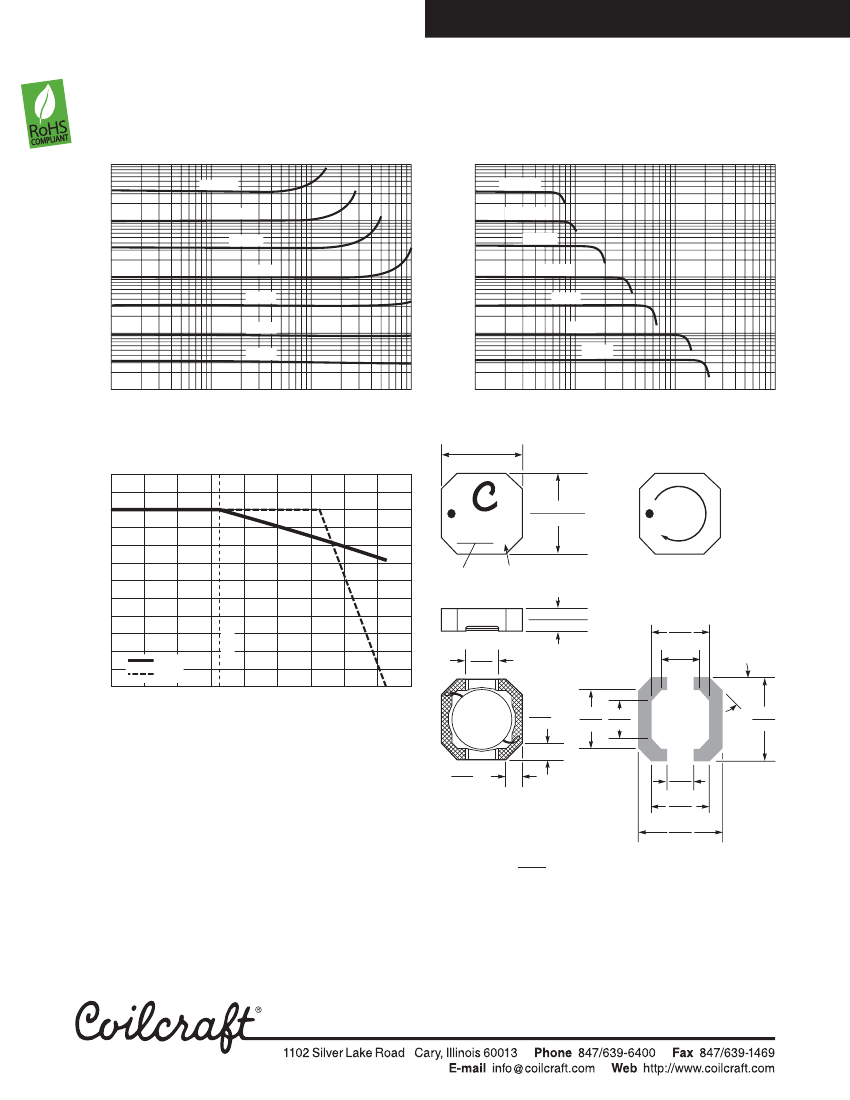

Shielded SMT Power Inductors – LPS5015 Series
Typical L vs Frequency
10000
3300 µH
1000 µH
330 µH
100 µH
33 µH
10 µH
3.3 µH
Typical L vs Current
10000
3300 µH
1000 µH
330 µH
100 µH
33 µH
10 µH
3.3 µH
1000
1000
Inductance (µH)
100
Inductance (µH)
1
10
100
10
10
1
0.01
0.1
1
0.01
0.1
1
10
Frequency (MHz)
Current (A)
0.189 ±0.003
*
4,80 ±0,076
Typical Current Derating
120
110
Percent of rated current
100
90
80
70
60
50
40
20
10
0
-40
-20
XXX X
Dash
number
Internal
code
0.189 ±0.003
*
4,80 ±0,076
Winding
direction
25°C
30
Isat
Irms
0
20
0.0551 ±0.004
1,4 ±0,1
0.060
1,50
Recommended
Land Pattern
0.138
3,50
0.090
2,30
45°
typ
40
60
80
100
120 140
0.039 typ
1,00
0.134 0.090
3,40 2,30
Ambient temperature (°C)
0.197
5,00
0.039 typ
1,00
*
Dimensions are of the case not
including the termination. For maximum
overall dimensions including the
termination, add 0.005 in / 0,13 mm.
0.060
1,50
0.134
3,40
0.197
5,00
Dimensions are in
inches
mm
Specifications subject to change without notice.
Please check our website for latest information.
Document 585-2
Revised 12/05/08
© Coilcraft, Inc. 2009
