MSS1048-682NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> MSS1048-682NL

MSS1048-682NL: Description1 ELEMENT, 10 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryThe sensor; File Size140KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric View All

MSS1048-682NL Overview

1 ELEMENT, 10 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

MSS1048-682NL Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 Cel
Minimum operating temperature	-40 Cel
Rated inductance	10 uH
self resonant frequency	24 MHz
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
isolation	Yes
core material	FERRITE
DC Resistance	0.0260 ohm
surface mount	Yes
Terminal shape	WRAPAROUND
terminal coating	MATTE TIN OVER NICKEL
Terminal layout	DUAL ENDED
Manufacturer Series	MSS1048
Inductor applications	POWER INDUCTOR
Shape and size description	RECTANGULAR PACKAGE
deviation	20 %
Inductor type	GENERAL PURPOSE INDUCTOR
1Rated value test frequency	0.1000 MHz

Preview

Download Datasheet

View All

Document 462 -1

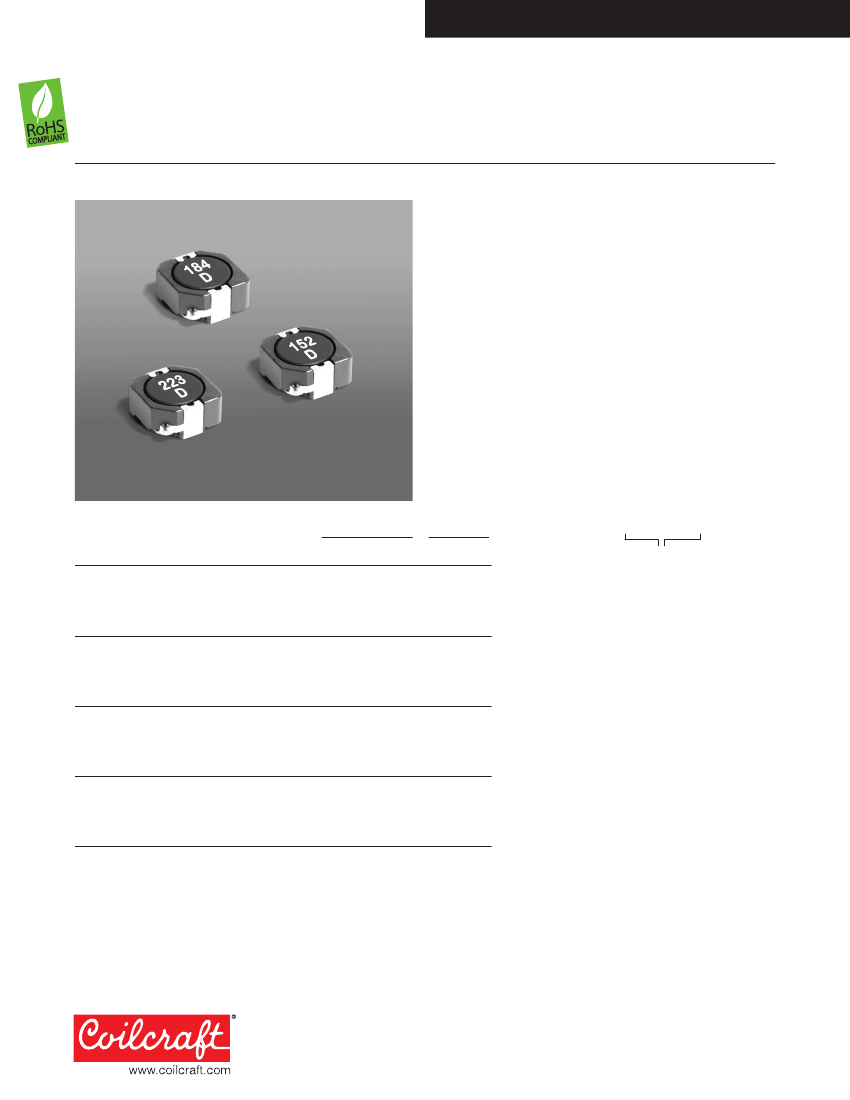

Shielded Power Inductors – MSS1048

• 10 × 10.2 mm footprint; 4.8 mm high shielded inductors

• Very low DCR and excellent current handling

Designer’s Kit C409

contains 3 each of all values.

Core material

Ferrite

Core and winding loss

See www.coilcraft.com/coreloss

Terminations

RoHS compliant matte tin over nickel over copper.

Other terminations available at additional cost.

Weight:

1.7 – 1.9 g

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +85°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

200/7″ reel; 800/13″ reel; Plastic tape: 24 mm wide,

0.35 mm thick, 16 mm pocket spacing, 5.1 mm pocket depth

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pdf

Part number

(µH)

MSS1048-801NL_ 0.8 ±30%

MSS1048-152NL_ 1.5 ±30%

MSS1048-222NL_ 2.2 ±30%

MSS1048-332NL_ 3.3 ±30%

MSS1048-472NL_ 4.7 ±30%

MSS1048-682NL_ 6.8 ±30%

MSS1048-822NL_ 8.2 ±30%

MSS1048-103ML_ 10 ±20%

MSS1048-153ML_ 15 ±20%

MSS1048-223ML_ 22 ±20%

MSS1048-333ML_ 33 ±20%

MSS1048-473ML_ 47 ±20%

MSS1048-563ML_ 56 ±20%

MSS1048-683ML_ 68 ±20%

MSS1048-823ML_ 82 ±20%

MSS1048-104ML_ 100 ±20%

MSS1048-154KL_ 150 ±10%

MSS1048-184KL_ 180 ±10%

MSS1048-224KL_ 220 ±10%

MSS1048-334KL_ 330 ±10%

MSS1048-474KL_ 470 ±10%

Inductance

DCR SRF

max typ

(m) (MHz)

4.3 180

5.1 90

7.2 70

10.0 50

11.5 38

16.3 35

20.0 28

23.0 24

36.0 20

50.0 12

68.0 11

120

126

176

7.0

196

6.0

224

6.0

330

5.0

360

4.5

394

4.5

748

3.0

886

2.7

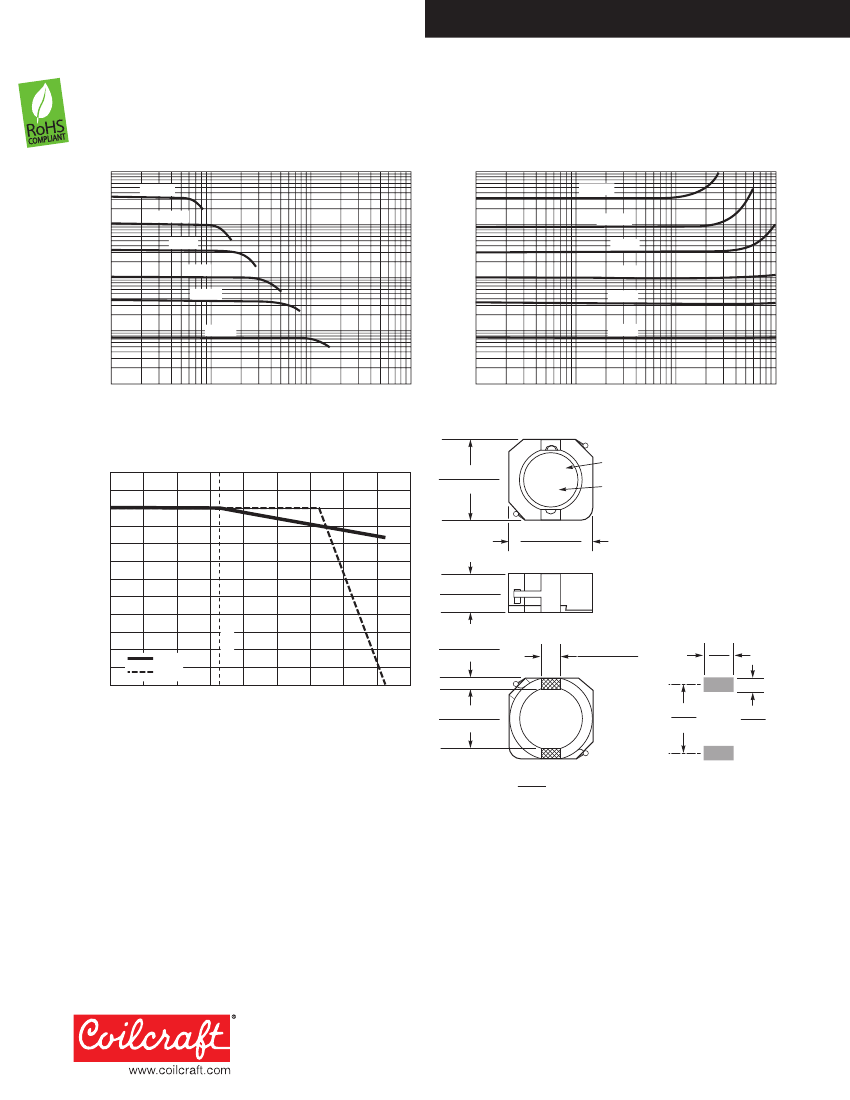

Isat

(A)

Irms

(A)

10% 20% 30% 20°C 40°C

drop drop drop

rise rise

9.60 12.0 14.1

8.19 12.0

5.44 7.80 10.5

7.41 10.8

4.92 6.62 8.40 6.63 9.78

4.62 6.32 7.38 5.04 7.22

4.36 5.62 6.46 4.90 6.90

3.60 5.00 5.94 4.52 6.01

3.14 4.14 4.84 4.38 5.71

3.08 3.84 4.32 3.99 4.79

2.46 3.06 3.44 3.51 4.26

2.36 2.90 3.28 2.86 3.58

1.66 2.14 2.42 2.12 2.80

1.44 1.86 2.20 1.83 2.42

1.36 1.70 1.90 1.71 2.28

1.28 1.60 1.70 1.39 1.88

1.08 1.44 1.64 1.23 1.67

0.99 1.20 1.36 1.09 1.48

0.79 1.02 1.16 0.97 1.33

0.75 0.92 1.02 0.89 1.24

0.67 0.84 0.95 0.85 1.18

0.57 0.69 0.76 0.57 0.82

0.43 0.52 0.62 0.50 0.72

1. Please specify

termination

and

packaging

codes:

MSS1048-334KLC

Termination: L

= RoHS compliant matte tin over nickel

over copper.

Special order:

= RoHS tin-silver-copper

(95.5/4/0.5) or

= non-RoHS tin-

lead (63/37).

Packaging: C

= 7″ machine-ready reel. EIA-481

embossed plastic tape (200 parts

per full reel).

= Less than full reel. In tape, but not

machine ready. To have a leader

and trailer added ($25 charge), use

code letter C instead.

= 13″ machine-ready reel. EIA-481

embossed plastic tape. Factory

order only, not stocked (800 parts

per full reel).

2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc

using an Agilent/HP 4263B LCR meter or equivalent.

3. SRF measured using an Agilent/HP 4192A impedance

analyzer or equivalent.

4. DC current at which the inductance drops the specified

amount from its value without current.

5. Current that causes the specified temperature rise

from 25°C ambient.

6. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components”

before soldering.

Document 462-1

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Revised 03/25/13

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
