Document 642-1

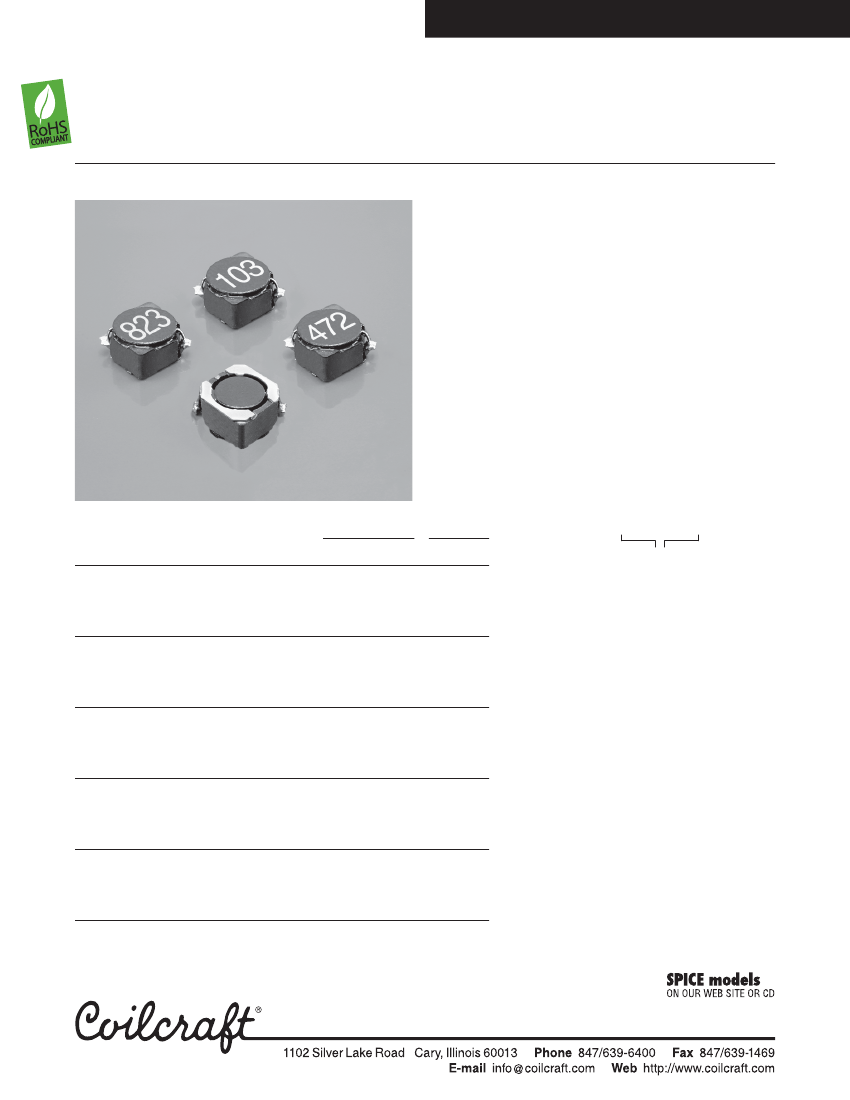

SMT Power Inductors – MSS5131
• 5.1 × 5.1 mm footprint; 3.1mm high shielded inductors
• Low DCR and excellent current handling
Designer’s Kit C362
contains 3 of each value
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant gold over nickel over phos bronze.
Other terminations available at additional cost.
Weight
0.20 – 0.24 g
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
600/7″ reel, 2500/13″ reel; Plastic tape: 12 mm wide,
0.35 mm thick, 8 mm pocket spacing, 3.25 mm pocket depth
PCB washing
Only pure water or alcohol recommended
Part number
1
MSS5131-222ML_
MSS5131-332ML_
MSS5131-472ML_
MSS5131-562ML_
MSS5131-682ML_
MSS5131-822ML_
MSS5131-103ML_
MSS5131-123ML_
MSS5131-153ML_
MSS5131-183ML_
MSS5131-223ML_
MSS5131-273ML_
MSS5131-333ML_
MSS5131-393ML_
MSS5131-473ML_
MSS5131-563ML_
MSS5131-683ML_
MSS5131-823ML_
MSS5131-104ML_
MSS5131-124ML_
MSS5131-154ML_
MSS5131-184ML_
MSS5131-224ML_
MSS5131-274ML_
MSS5131-334ML_
MSS5131-394ML_
DCR
Inductance
2
max
±20% (µH) (Ohms)
2.2
0.023
3.3
0.032
4.7
0.045
5.6
0.055
6.8
0.060
8.2
0.075
10
0.083
12
0.100
15
0.115
18
0.150
22
0.160
27
0.190
33
0.216
39
0.290
47
0.320
56
0.365
68
0.480
82
0.520
100
0.700
120
0.800
150
1.10
180
1.20
220
1.40
270
1.80
330
2.10
390
2.20
SRF
typ
3
(MHz)
65.0
60.0
48.0
44.0
42.0
40.0
38.0
35.0
32.0
26.0
22.0
19.0
18.0
17.0
16.0
15.0
12.5
12.0
11.5
11.0
10.0
9.0
8.0
7.5
6.8
5.4
Isat
(A)
4
10% 20% 30%
drop drop drop
1.76 2.08 2.30
1.33 1.58 1.73
1.08 1.32 1.42
1.00 1.20 1.30
0.98 1.14 1.24
0.90 1.04 1.18
0.85 0.98 1.13
0.72 0.85 0.94
0.67 0.78 0.86
0.61 0.72 0.79
0.54 0.64 0.70
0.48 0.56 0.62
0.44 0.52 0.58
0.42 0.50 0.55
0.38 0.46 0.51
0.34 0.42 0.47
0.31 0.38 0.42
0.27 0.32 0.35
0.26 0.30 0.33
0.23 0.27 0.30
0.21 0.26 0.28
0.19 0.23 0.25
0.18 0.21 0.23
0.15 0.18 0.20
0.13 0.17 0.19
0.12 0.15 0.16
Irms
(A)
5
20°C 40°C
rise rise
2.00 3.30
1.60 2.90
1.40 2.50
1.30 2.30
1.20 2.16
1.10 2.00
1.00 1.90
0.97 1.60
0.94 1.50
0.89 1.40
0.87 1.30
0.85 1.20
0.80 1.10
0.74 1.00
0.71 0.95
0.70 0.90
0.66 0.85
0.62 0.80
0.55 0.69
0.51 0.62
0.47 0.58
0.43 0.54
0.39 0.50
0.35 0.45
0.32 0.42
0.30 0.38
1. Please specify
termination
and
packaging
codes:
MSS5131-394MLC
Termination: L
= RoHS compliant gold over nickel over
phos bronze
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: C= 7″ machine-ready reel
EIA-481
embossed plastic tape (600 per
full reel).
B= Less than full reel
In tape, but not
machine-ready. To have a leader and
trailer added ($25 charge), use code
letter C instead.
D= 13″ machine-ready reel
EIA-481
embossed plastic tape. Factory order
only, not stocked (2500 per reel per
full reel).
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using
an
Agilent/HP 4263B LCR meter or equivalent
.
3. SRF measured using Agilent/HP 4191A or equilvalent.
4. DC current at which the inductance drops the specified
amount from its value without current.
5. Current that causes the specified temperature rise from
25°C ambient.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components”
before soldering.
Specifications subject to change without notice.
Please check our website for latest information.
Document 642-1
Revised 05/22/09
© Coilcraft, Inc. 2009
Document 642-2
SMT Power Inductors – MSS5131

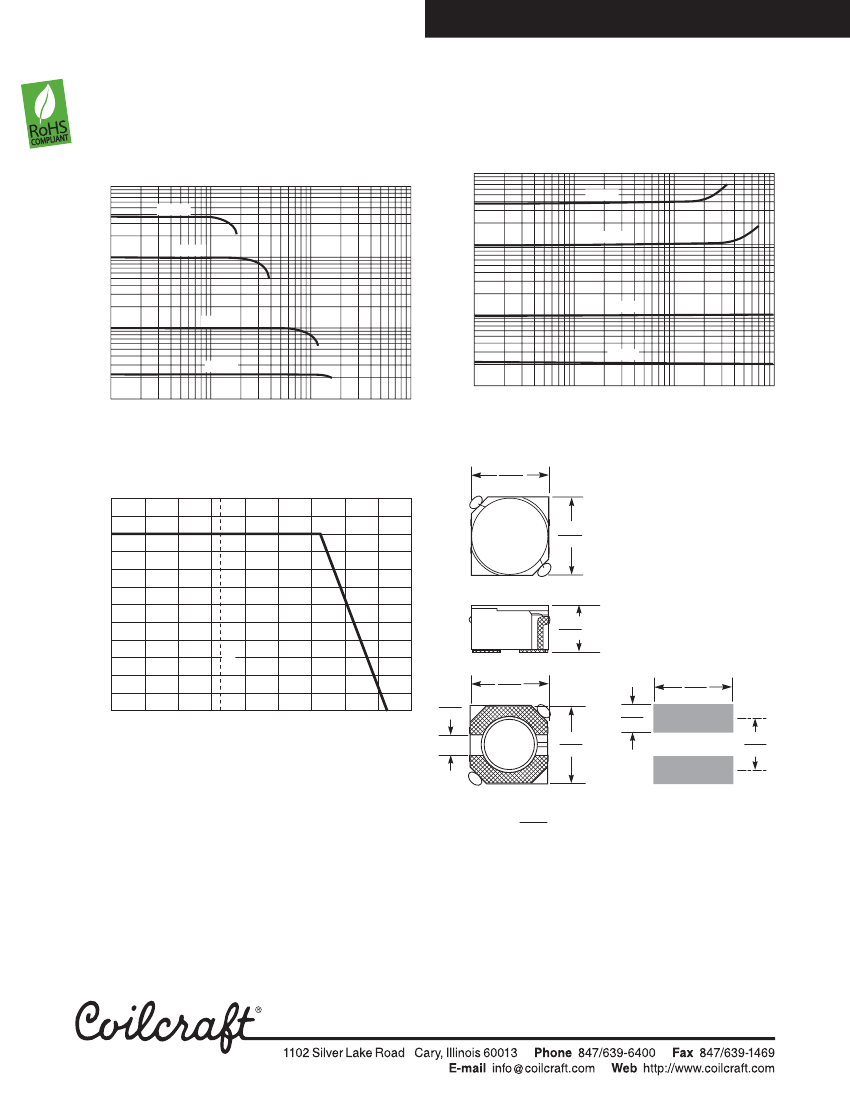

Typical L vs Current
1000
390 µH
Typical L vs Frequency
1000
390 µH
Inductance (µH)
Inductance (µH)
100
100 µH
100
100 µH
10
10 µH
10
10 µH
2.2 µH
2.2 µH
1
1
0.01
0.1
1
10
0.01
0.1
1
10
Frequency (MHz)
Current (A)
Irms Derating
120
110
100
0.200
*
5,1
Percent of rated
I
rms
90
80
70
60
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
120 140
0.063
1,6
123
25°C
0.200
*
5,1
*
Dimensions are of the case not
0.122
max
3,1
including the termination. For
maximum overall dimensions
including the termination, add
0.035 in / 0,9 mm.
0.181
4,6
0.069
1,74
0.181
4,6
0.200
5,08
Ambient temperature (°C)
0.131
3,34
Dimensions are in
inches
mm
Recommended
Land Pattern
Specifications subject to change without notice.
Please check our website for latest information.
Document 642-2
Revised 05/22/09
© Coilcraft, Inc. 2009
