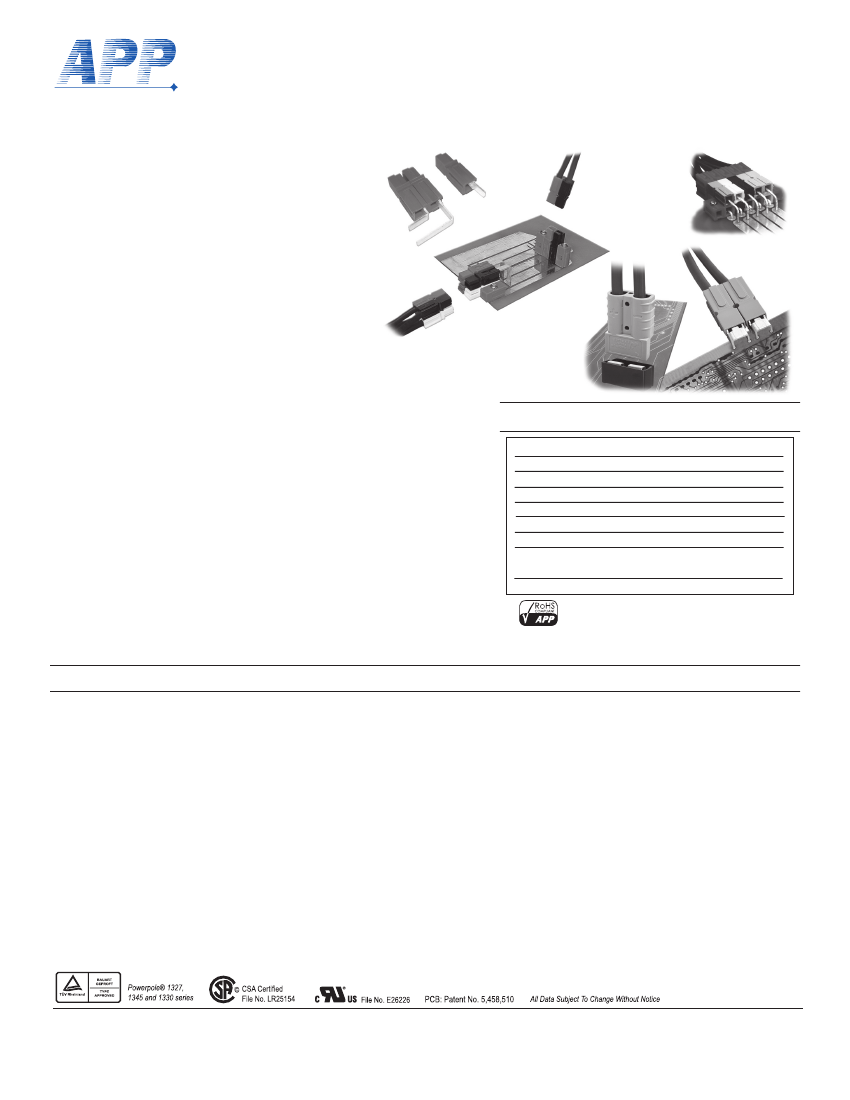

Anderson Power Products
®
Connector Family
PCB
FEATURES
• Vertical and right angle terminations
Allows for design flexibility
• Tin plated copper contacts
Minimal contact resistance at high currents
• Fits standard housing & accessories
Allows for configurations that can be color coded & polarized
• Two right angle stacking bends
Allows two rows parallel stacking of connectors on the PCB
• Quick disconnect
Avoids the need for unfastening ring type terminals
PRODUCT RANGE
UL Current Rating (Amperes)*
UL Voltage Ratings (Volts)
Housing Material
Contact Material
Contact Plating
Mating/Unmating Forces
Suggested Board Thickness
Operating Temperature Range °C**
°F
Flammability Rating of Housing Material
25 to 55
250 to 600
Polycarbonate
Copper Alloy
Tin or Silver
2 to15 lbf.
0.093 to 0.150" max.
-20° to 105°
-4° to 221°
UL94 V-0
• Snap-On interface
Ensures foolproof assembly and proper connection
• Vertical mini-powerclaw UL rated
For current interruption (hot-plug) so that equipment can be hot swapped
• Anti-static packaging
Meets electronics industry PCB requirements
• Vacuum packaging
Prevents tarnishing of contacts during shelf life
* See Temperature Rise Chart
* * Contact factory for higher temperature rated connectors
PRODUCT INFORMATION
The printed circuit board (PCB) contact series, when utilized with the Powerpole
®
15/45, PP75 and SB®50 connector housings, provides a reliable wire to
printed circuit board connection. It's rated at 25 to 55 amps, 600 volts, AC/DC. This contact is available in both straight (vertical) and right angle (horizontal)
terminations for perpendicular and parallel mounting.
The innovative design of our PCB family of connectors for the power electronics market makes connecting and disconnecting a snap, enabling
safe and convenient "hot swapping*" during equipment maintenance without the need to power down. Compact and robust, they're rated at 55
amps for singlepole and 50 amps for blocked connections.
Our mini horizontal and vertical PCB contacts offer the same high current capacity as our original, while providing the design engineer more
options when board real estate is at a minimum.
* Contact factory for ratings
DS-PCBFMLY REV03
