LD14AC104KAB1A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> LD14AC104KAB1A

LD14AC104KAB1A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 2225, CHIP; CategoryPassive components capacitor; File Size51KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric View All

LD14AC104KAB1A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LD14AC104KAB1A	-	-	View	Buy Now

LD14AC104KAB1A Overview

Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 2225, CHIP

LD14AC104KAB1A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	AVX
package instruction	, 2225
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	24 weeks
capacitance	0.1 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	2.54 mm
JESD-609 code	e0
length	5.72 mm
Manufacturer's serial number	LD14
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	1000 V
series	LD(HIGH VOLTAGE)
size code	2225
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	6.35 mm

Preview

Download Datasheet

View All

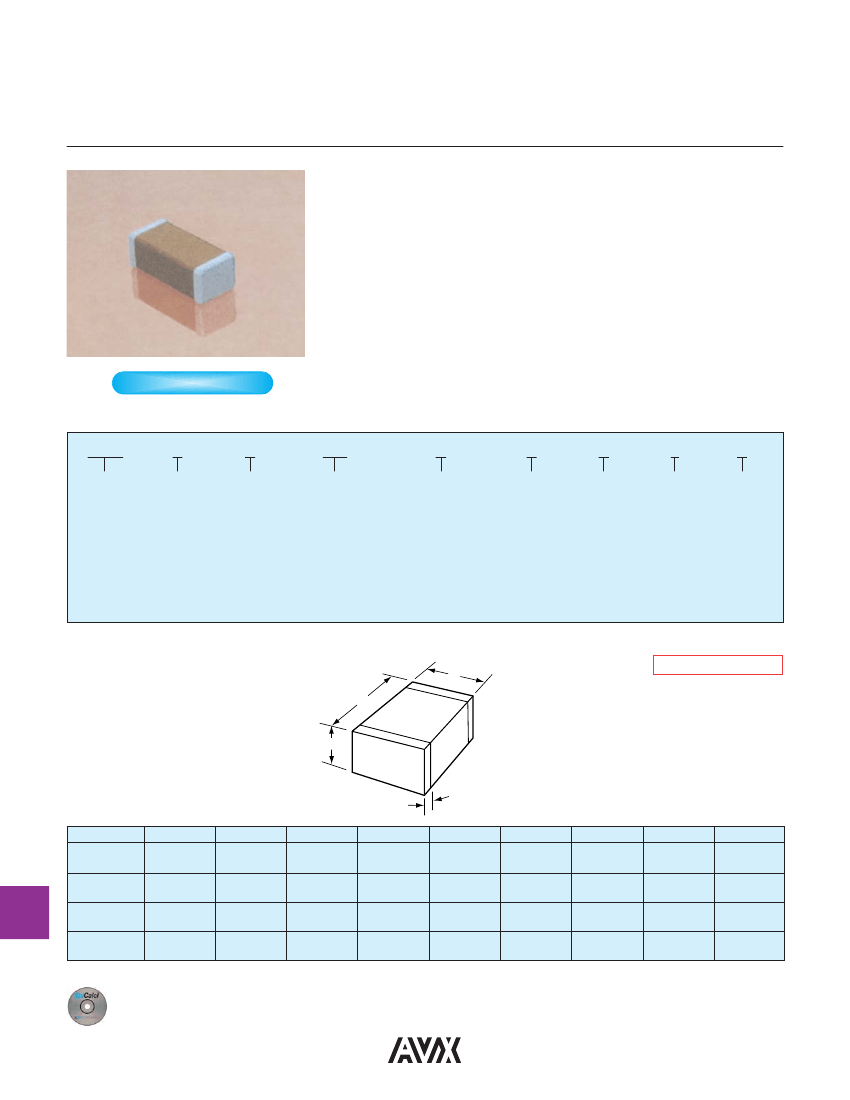

High Voltage MLC Chips

Tin/Lead Termination “B”

For 600V to 5000V Applications

AVX Corporation will support those customers for commercial and military Multi-

layer Ceramic Capacitors with a termination consisting of 5% minimum lead. This

termination is indicated by the use of a “B” in the 12th position of the AVX Cata-

log Part Number. This fulfills AVX’s commitment to providing a full range of prod-

ucts to our customers. AVX has provided in the following pages, a full range of

values that we are offering in this “B” termination.

Larger physical sizes than normally encountered chips are used to make high volt-

age MLC chip product. Special precautions must be taken in applying these chips

in surface mount assemblies. The temperature gradient during heating or cooling

cycles should not exceed 4ºC per second. The preheat temperature must be

within 50ºC of the peak temperature reached by the ceramic bodies through the

soldering process. Chip sizes 1210 and larger should be reflow soldered only. Ca-

pacitors may require protective surface coating to prevent external arcing.

For 1825, 2225 and 3640 sizes, AVX offers leaded version in either thru-hole or

SMT configurations (for details see section on high voltage leaded MLC chips).

NEW 630V RANGE

HOW TO ORDER

LD08

AVX

Style

LD05 - 0805

LD06 - 1206

LD10 - 1210

LD08 - 1808

LD12 - 1812

LD13 - 1825

LD20 - 2220

LD14 - 2225

LD40 - 3640

***

Voltage

600V/630V = C

1000V = A

1500V = S

2000V = G

2500V = W

3000V = H

4000V = J

5000V = K

Temperature

Coefficient

C0G = A

X7R = C

271

Capacitance Code

(2 significant digits

+ no. of zeros)

Examples:

10 pF = 100

100 pF = 101

1,000 pF = 102

22,000 pF = 223

220,000 pF = 224

1 μF = 105

Capacitance

Tolerance

C0G: J = ±5%

K = ±10%

M = ±20%

X7R: K = ±10%

M = ±20%

Z = +80%, -20%

Test

Termination

Packaging Special Code

Level

B = 5% Min Pb 2 = 7" Reel** A = Standard

A = Standard X = FLEXITERM

4 = 13" Reel

with 5% min.

Pb*

Notes: Capacitors with X7R dielectrics are not intended for applications across AC supply mains or AC line filtering with polarity reversal. Contact plant for recommendations.

Contact factory for availability of Termination and Tolerance options for Specific Part Numbers.

FLEXITERM is not available in the LD40 Style

The LD40 Style is not available on 7" Reels.

***

AVX offers nonstandard chip sizes. Contact factory for details.

Not RoHS Compliant

DIMENSIONS

SIZE

(L) Length

millimeters (inches)

LD12* (1812)

4.60 ± 0.50

(0.181 ± 0.020)

3.20 ± 0.30

(0.126 ± 0.012)

2.80

(0.110)

0.75 ± 0.35

(0.030 ± 0.014)

LD13* (1825)

4.60 ± 0.50

(0.181 ± 0.020)

6.30 ± 0.40

(0.248 ± 0.016)

3.40

(0.134)

0.75 ± 0.35

(0.030 ± 0.014)

LD20* (2220)

5.70 ± 0.50

(0.224 ± 0.020)

5.00 ± 0.40

(0.197 ± 0.016)

3.40

(0.134)

0.85 ± 0.35

(0.033 ± 0.014)

LD14* (2225) LD40* (3640)

5.70 ± 0.50

9.14 ± 0.25

(0.224 ± 0.020) (0.360 ± 0.010)

6.30 ± 0.40

10.2 ± 0.25

(0.248 ± 0.016) (0.400 ± 0.010)

3.40

2.54

(0.134)

(0.100)

0.85 ± 0.35

0.76 (0.030)

(0.033 ± 0.014) 1.52 (0.060)

LD05 (0805)

LD06 (1206)

LD10* (1210) LD08* (1808)

2.10 ± 0.20

3.30 ± 0.30

3.30 ± 0.40

4.60 ± 0.50

(0.083 ± 0.008) (0.130 ± 0.012) (0.130 ± 0.016) (0.181 ± 0.020)

(W) Width

1.25 ± 0.20

1.60

+0.30

2.50 ± 0.30

2.00 ± 0.20

-0.10

(0.049 ±0.008) (0.063

+0.012

) (0.098 ± 0.012) (0.079 ± 0.008)

-0.004

(T) Thickness

1.35

1.80

2.80

2.20

Max.

(0.053)

(0.071)

(0.110)

(0.087)

(t) terminal min. 0.50 ± 0.20

0.60 ± 0.20

0.75 ± 0.35

max. (0.020 ± 0.008) (0.024 ± 0.008) (0.030 ± 0.014) (0.030 ± 0.014)

* Reflow soldering only.

Performance of SMPS capacitors can be simulated by downloading SpiCalci software program - http://www.avx.com/SpiApps/default.asp#spicalci

Custom values, ratings and configurations are also available.
