830105961709 Overview

Quartz Crystal,

830105961709 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Wurth Elektronik
package instruction	SMD, 4 PIN
Reach Compliance Code	unknown
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	20 ppm
JESD-609 code	e4
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	18.432 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	3.4mm X 2.7mm X 0.8mm
Series resistance	70 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

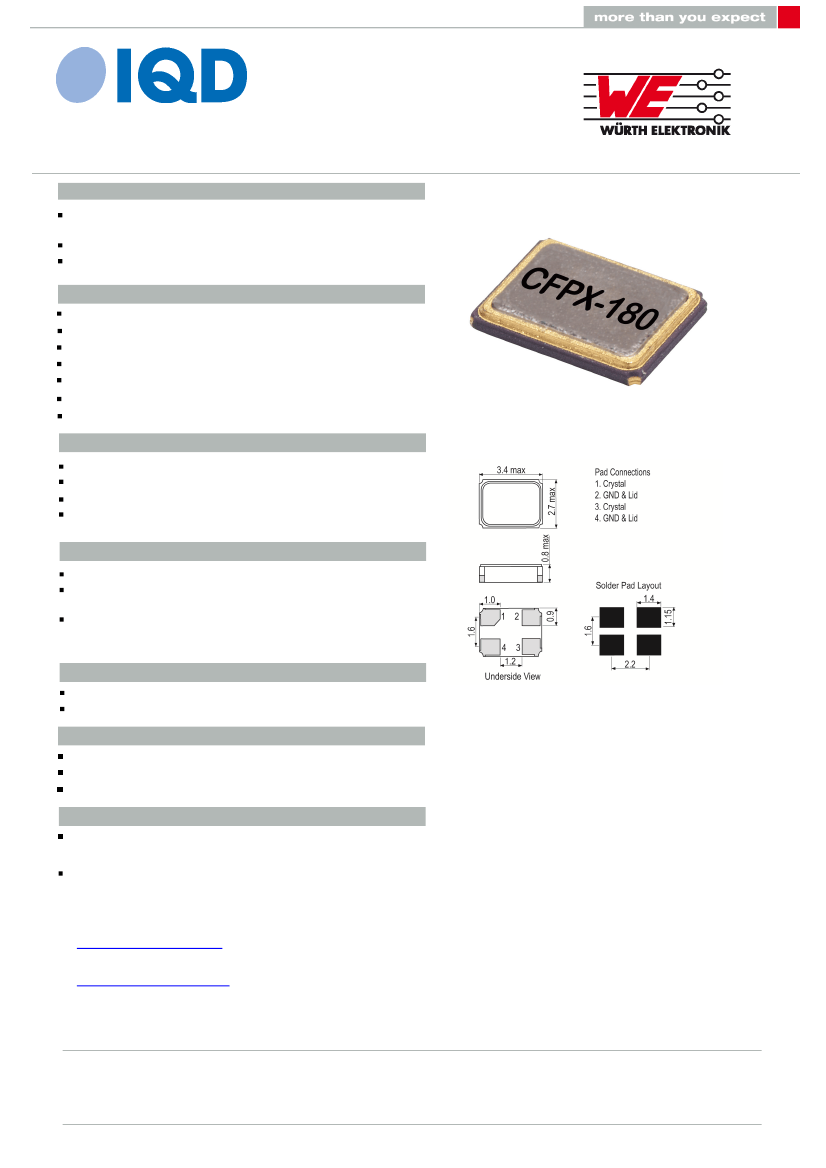

Quartz Crystal Specification

IQD Part No. + Packaging: LFXTAL059617RL3K

Wurth Part No.

830105961709

Description

Standard 3.2 x 2.5mm SMD crystal in a ceramic package with a

seam sealed metal lid, hermetically sealed.

Model

CFPX-180

Model Issue number

9

Frequency Parameters

Frequency

Frequency Tolerance

Tolerance Condition

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

18.4320MHz

±20.00ppm

@ 25°C

±30.00ppm

-40.00 to 85.00°C

Fundamental

±5ppm max per year @ 25°C

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

18.00pF

7pF max

100µW max

70.00Ω max

Storage Temperature Range: -55 to 125°C

Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine

wave

Vibration: MIL-STD-202F, Method 204D, Test Condition D:

20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes

(total 12hrs)

Manufacturing Details

RoHS Terminations

RoHS Reflow Temp

Compliance

NiAu

260degC 10s

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: RL3K

Pack Size: 3,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

USEFUL LINKS

Toolbox:

www.we-online.com/toolbox

Product Catalog:

www.we-online.com/products

CONTACT INFORMATION:

Würth Elektronik eiSos GmbH & Co. KG

Max-Eyth-Str. 1, 74638 Waldenburg, Germany

Tel: +49(0) 7942 945-0

Printed on 27 Jun 19 10:06 using WE Part Data Sheet V1.00019

Email: eiSos@we-online.de

Web: www.we-online.com

Page 1 of 1
