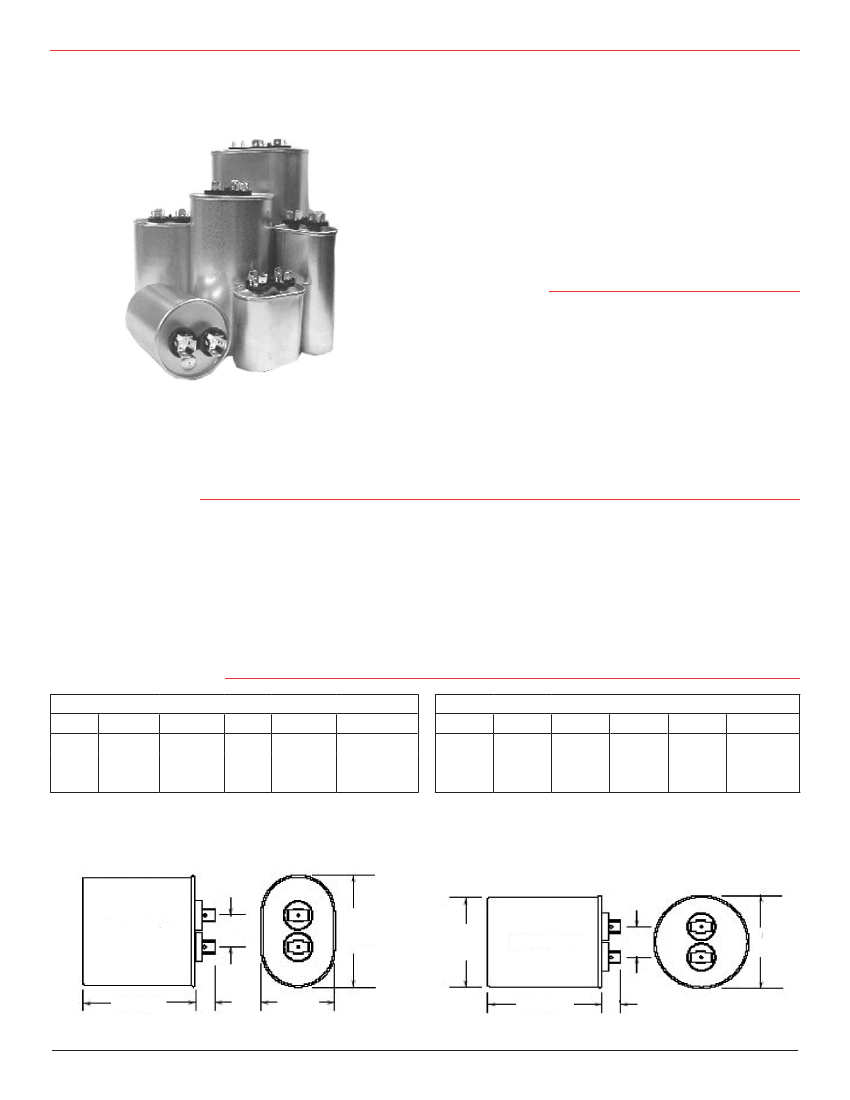

Type MPF
AC Motor Run Capacitors
Round and Flat Oval, Oil Filled, 70 ºC, Metallized Polypropylene Capacitors
Type MPF AC metallized polypropylene film dielectric
capacitors offer a reliable option for alternating current
applications. All devices are oil filled in metal cases
with 4-prong quick disconnect terminals for easy as-
sembly. These capacitors pack high capacitance and
voltage capabilities into a small, light-weight package.
The MPF is internally protected for fail-safe operation.
These capacitors have extremely low DF that is ideal
for AC motor-run applications.
Highlights
•
•
•
•
•
•
•
•
Low DF
Protected with a pressure sensitive interrupter
Small size and light weight
UL E233394
CSA 219950
Air conditioning and refrigeration applications
Power factor correction
Motors
Specifications
Capacitance Range:
Voltage Ratings:
Capacitance Tolerance:
Operating Temperature Range:
Operating Frequency:
Dissipation Factor:
1 to 80 µF
330 Vac, 370 Vac, 440 Vac
±10%
–40 ºC to +70 ºC
50 to 60 Hz
0.1% max @ 60 Hz
Outline Drawings
Flat Oval
Style
32
37
38
A
1 5/16
1 19/32
1 19/32
B
2 5/32
2 29/32
3 19/32
H
*
*
*
D
13/16
13/16
13/16
Industy Type
1¼ F.O.
1¾ F.O.
2 F.O.
Style
21
23
24
A
1¾
2
2½
B
1⅞
2½
2⅝
Round
H
*
*
*
D
13/16
13/16
13/16
Industy Type
1¾" Round
2" Round
2½" Round
*See Ratings Table for “H” dimension
*See Ratings Table for “H” dimension
Style 32, 37,38
D
B
±.030"
A
± .030"
Style 21, 23, 24
D
B
±.030"
H ±.250"
Style 32, 37,38
1/2"
A ±.030"
Style 21, 23, 24
H ±.250"
1/2"
21** Style round units are 3-prong
CDE
Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type MPF
AC Motor Run Capacitors

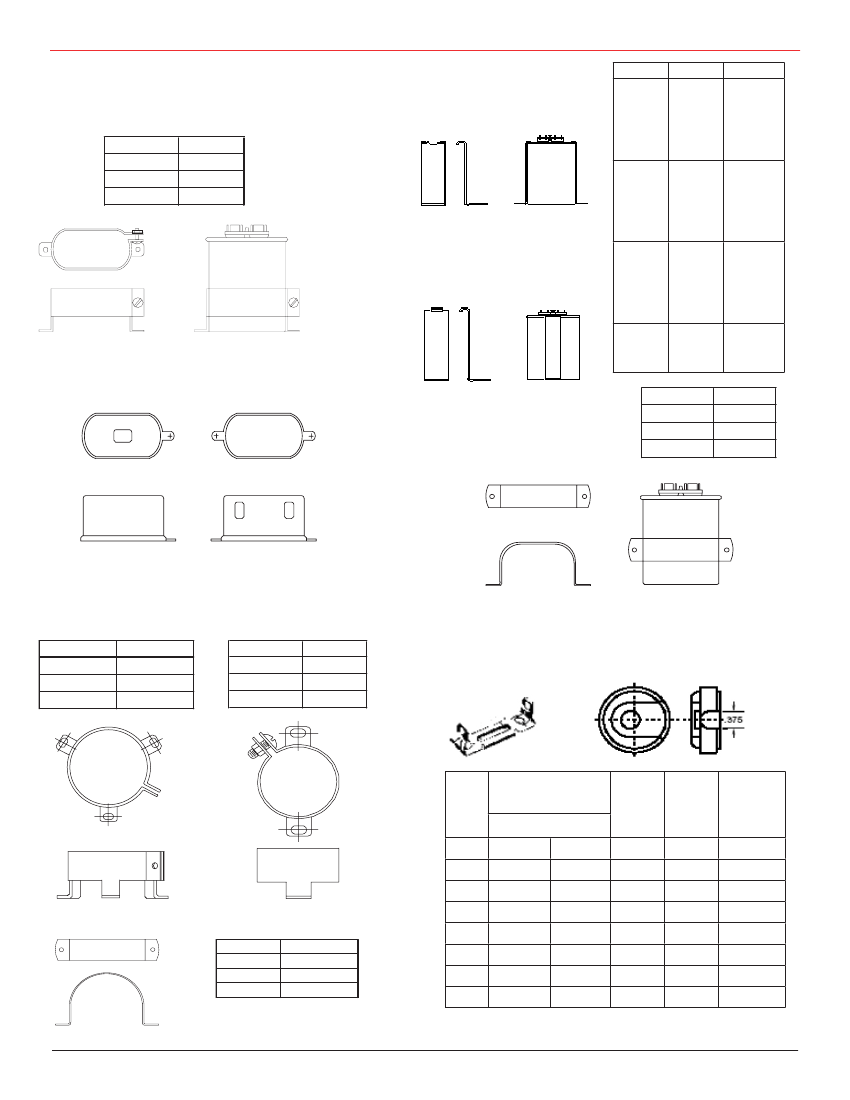

Oval Capacitor Hardware
Mounting Brackets #32107
Case Code
A
C
D
Bracket
32107-1
32107-2
32107-3
6-32 Screw
and Nut
Insulating Terminal Boots UL 465 Listed
44603
32108-2
Wrap Around Bracket #30393
Case Code
A
C
D
Bracket
30393-5
30393-9
30393-10
Round Capacitor Hardware
3 Footed Round
Mounting Bracket
Cas e Code
P
S
T
Br ack e t
VR 6B
VR 8B
VR 10B
2 Footed Round
Mounting Bracket
Case Code
P
S
T
Bracket
32107-6
32107-7
32107-8
Motor Start Mounting Hardware
Bracket
End C ap
Wrap Around Bracket
Case Code
P
S
T
Bracket
RB175
RB200
RB250
CDE
Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
