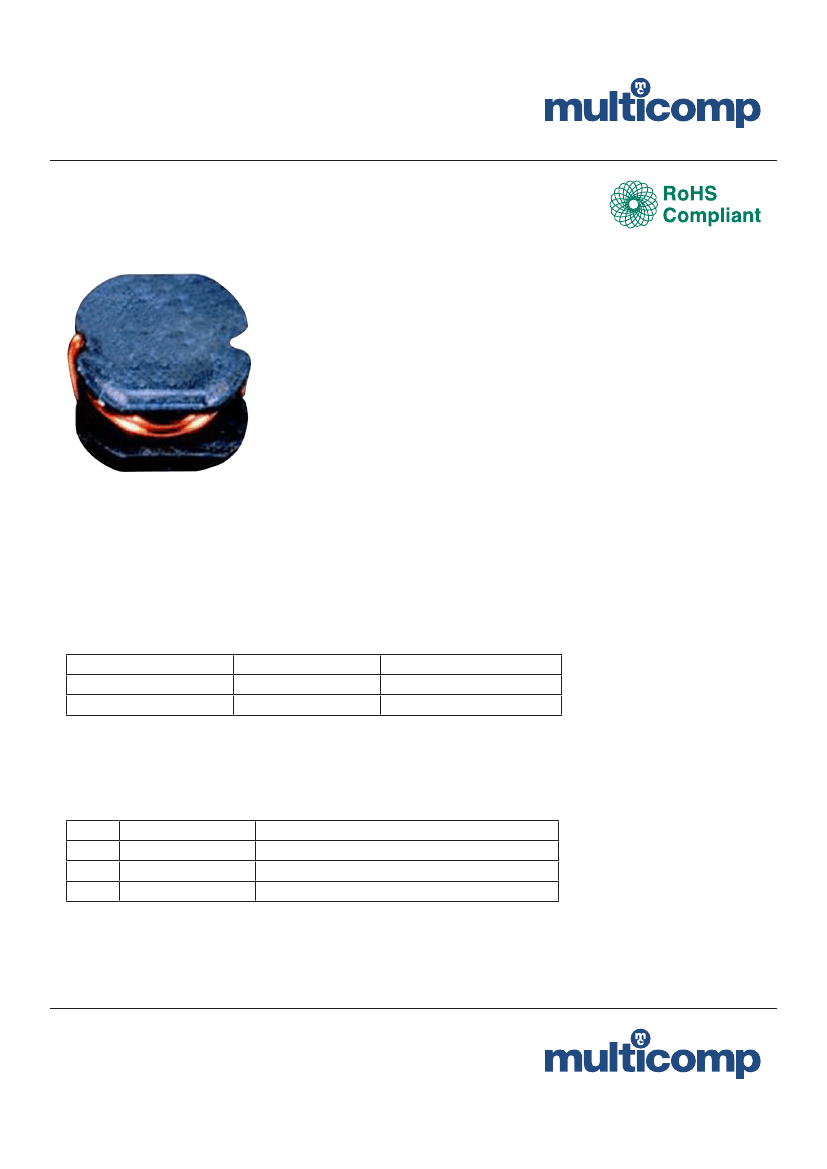

Inductor
Specifications:
Inductance
Inductance Tolerance
DC Resistance Max
DC Current Rating
Inductor Case Style
No. of Pins
Lead Spacing
Core Material
External Depth
External Length / Height
External Width
Resonant Frequency
Series
: 10µH
: ± 20%
: 0.1Ω
: 1.44A
: SMD
:2
: 2mm
: Ferrite
: 5.2mm
: 4.5mm
: 5.8mm
: 100kHz
: MCSD54
Electrical Characteristics (at 25°C)
100kHz 0.25V
at 25°C
100kHz 0.25V I
rms
= 1.44A
Operating temperature: -55°C to +130°C
L
DCR
Δ
T
10μH ±20%
100mΩ (Max.)
Temperature Rise 40°C (Max.)
Material List
No.
1
2
3
Item
Core
Wire
Solder (Lead Free)
Material Description
R5A CDR5.8 × 4.5(ST) B2.4 F2.3
Ø0.25mm × 1P 2UEWF 155°C
Sn99.3%/Cu0.7%
www.element14.com
www.farnell.com
www.newark.com
Page <1>
28/11/12
V1.0
Inductor
Configurations and Dimensions
A
B
C
D
E
5.2 ±0.3mm
5.8 ±0.3mm
4.5 ±0.35mm
2mm
5.8 ±0.5mm
-
-
-
(Reference)
-
Dimensions : Millimetres
Part Number Table
Description
Inductor, 10μH, 1.44A, 20%
Part Number
MCSD54-100MU
Important Notice :
This data sheet and its contents (the “Information”) belong to the members of the Premier Farnell group of companies (the “Group”) or are licensed to it. No licence is granted
for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change
without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any
error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any
assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the
Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence.
Multicomp is the registered trademark of the Group. © Premier Farnell plc 2012.
www.element14.com
www.farnell.com
www.newark.com
Page <3>
28/11/12
V1.0
