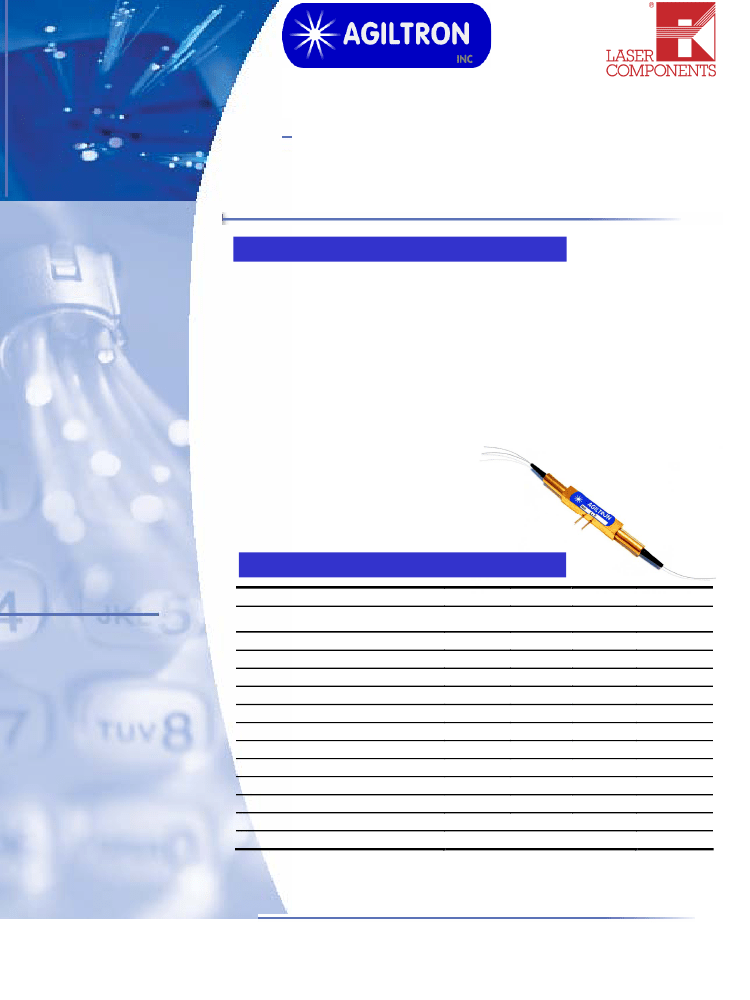

NanoSpeed
TM
High Power
1x2 Solid-State Fiberoptic PM Switch
(Protected by U.S. patent 7,403,677B1 and pending patents)
Product Description
The NS High Power Series 1x2 solid-state fiber optic PM switch connects
optical channels by redirecting an incoming optical signal into a selected
output optical fiber. This is achieved using patented non-mechanical
configurations with solid-state all-crystal designs, which eliminates the
need for mechanical movement and organic materials. The NS high power
fiberoptic PM switch is designed to meet the most demanding switching
requirements of ultra-high reliability, fast response time, and continuous
switching operation.
The device can be driven by a cost effective circuit with 12 V input voltage
and a 0-5 V control signal.
Features
•
Solid-State high speed
•
Ultra-high reliability
•
Low insertion loss
•
Compact size
•
Low cost
•
Simple driver
•
Low power consumption
Performance Specifications
NH Series 1x2 PM Switch
Operation Wavelength
Insertion Loss
IL Temperature Dependency
Cross Talk
Extinction ratio
Return Loss
Response Time (Rise, Fall)
Repetition Rate
Operating Temperature
Optical Power Handling
Storage Temperature
Fiber Type
Package Dimension
Min
400
0.4
Typical
0.6
0.25
25
25
50
Max
1800
Unit
nm
dB
dB
dB
dB
dB
ns
KHz
o
C
W
o
C
mm
Applications
•
Optical blocking
•
Light path redirecting
•
Instrumentation
1.0
0.5
20
35
18
30
45
60
300
DC
5
300**
-5
70
5***
-40
85
Panda PM fiber
65.5x23.4x6.5
* Driver kit is recommended
** Special circuit
*** Continuous operation, for pulse operation call
LASER COMPONENTS GmbH
Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
NanoSpeed
TM
High Power
1x2 Solid-State Fiberoptic PM Switch

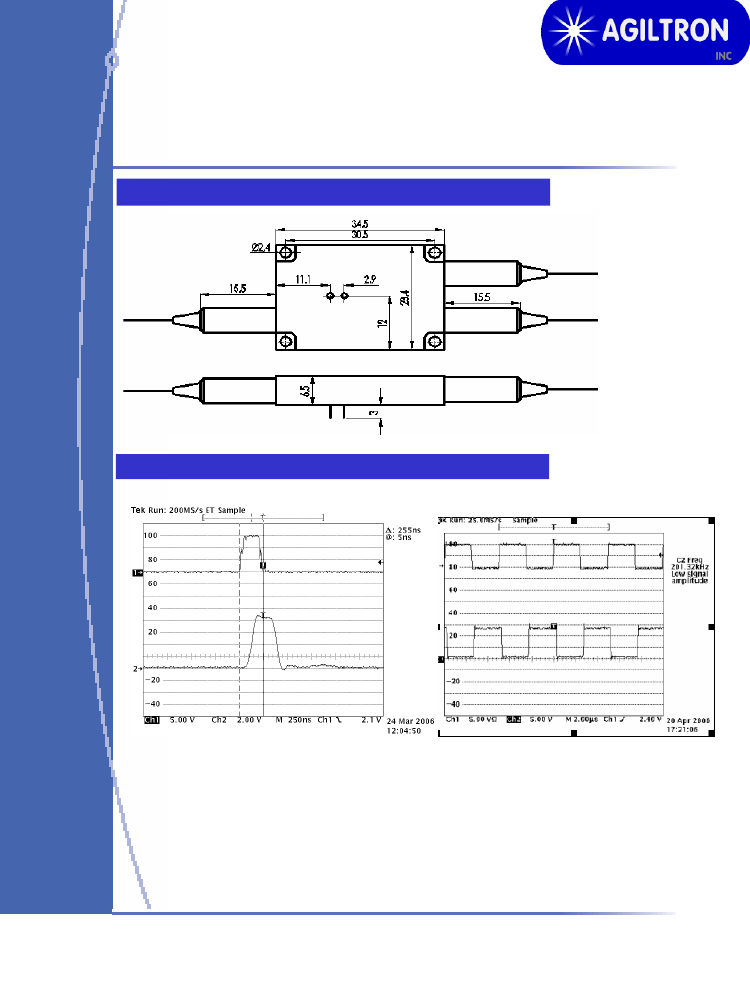

Mechanical Dimensions (mm)
Speed and Repetition Measurement
CH1:Electric
Pulse
→
255
←
CH2:Light Pulse
LASER COMPONENTS GmbH
Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
NanoSpeed
TM
High Power
1x2 Solid-State Fiberoptic PM Switch
Bandwidth Measurement
Typical C
ross Talk Curve for NanoSpeed Sw
itch/VO
A
-20
-21
-22
-23
-24
-25
-26
-27
-28
-29
-30
-31
-32
-33
-34
-35
-36
-37
-38
-39
-40
1
520
1
525
1
530
1
535
1
540
1
545
1
550
1
555
1
560
1
565
1
570
1
575
1
580
Cross Talk (dB)
W Length (nm)
ave
Ordering Information
NHSW-
Type
1X2=12
Wavelength
1550=5
1310=3
Special=0
1
Configuration
1
Package Fiber Type
Panda PM fiber 400=4
Panda PM fiber 250=5
Special=0
Bare fiber =1
900um loose
tube=3
Special=0
Fiber Length
0.25m=1
0.5m=2
1.0 m=3
Special=0
Connector
None=1
FC/PC=2
FC/APC=3
SC/PC=4
SC/APC=5
ST/PC=6
LC=7
Duplex LC=8
Special=0
06/09 / V1 /
IF
/
agiltron
/
pm_schalter
/
ns_pm_switch_1x2_hp.pdf
www.lasercomponents.com
LASER COMPONENTS GmbH
Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
