S54LS20F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> S54LS20F

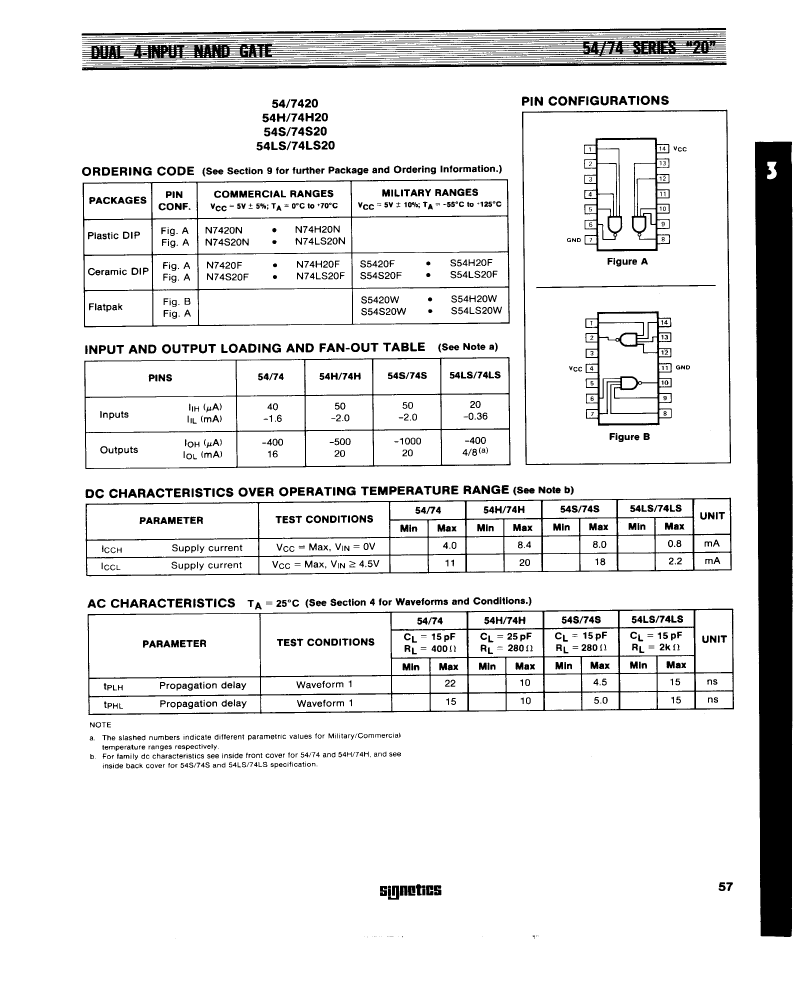

S54LS20F: DescriptionNAND Gate, LS Series, 2-Func, 4-Input, TTL, CDIP14; Categorylogic logic; File Size39KB，1 Pages; ManufacturerSignetics

Download Datasheet Parametric Compare View All

S54LS20F Overview

NAND Gate, LS Series, 2-Func, 4-Input, TTL, CDIP14

S54LS20F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Signetics
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
Load capacitance (CL)	15 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.004 A
Number of functions	2
Number of entries	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	2.2 mA
Prop。Delay @ Nom-Sup	15 ns
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

S54LS20F Related Products

	S54LS20F	S54H20W	S54S20W	N74LS20F	S54H20F	N74S20F	N7420F	S5420W
Description	NAND Gate, LS Series, 2-Func, 4-Input, TTL, CDIP14	NAND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDFP14	NAND Gate, S Series, 2-Func, 4-Input, TTL, CDFP14	NAND Gate, LS Series, 2-Func, 4-Input, TTL, CDIP14	NAND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDIP14	NAND Gate, S Series, 2-Func, 4-Input, TTL, CDIP14	NAND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDIP14	NAND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDFP14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Signetics	Signetics	Signetics	Signetics	Signetics	Signetics	Signetics	Signetics
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
series	LS	TTL/H/L	S	LS	TTL/H/L	S	TTL/H/L	TTL/H/L
JESD-30 code	R-GDIP-T14	R-CDFP-F14	R-CDFP-F14	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14	R-CDFP-F14
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	15 pF	25 pF	15 pF	15 pF	25 pF	15 pF	15 pF	15 pF
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE
MaximumI(ol)	0.004 A	0.02 A	0.02 A	0.008 A	0.02 A	0.02 A	0.016 A	0.016 A
Number of functions	2	2	2	2	2	2	2	2
Number of entries	4	4	4	4	4	4	4	4
Number of terminals	14	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	125 °C	70 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-	-	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	DFP	DIP	DIP	DIP	DIP	DFP
Encapsulate equivalent code	DIP14,.3	FL14,.3	FL14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	FL14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum supply current (ICC)	2.2 mA	20 mA	9 mA	2.2 mA	20 mA	9 mA	11 mA	11 mA
propagation delay (tpd)	15 ns	10 ns	5 ns	15 ns	10 ns	5 ns	15 ns	15 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO	NO	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	NO	NO	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
package instruction	DIP, DIP14,.3	-	DFP, FL14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DFP, FL14,.3
power supply	5 V	-	5 V	5 V	-	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	15 ns	10 ns	5 ns	15 ns	10 ns	5 ns	-	-
