Product sheet
Solenoid valve connectors

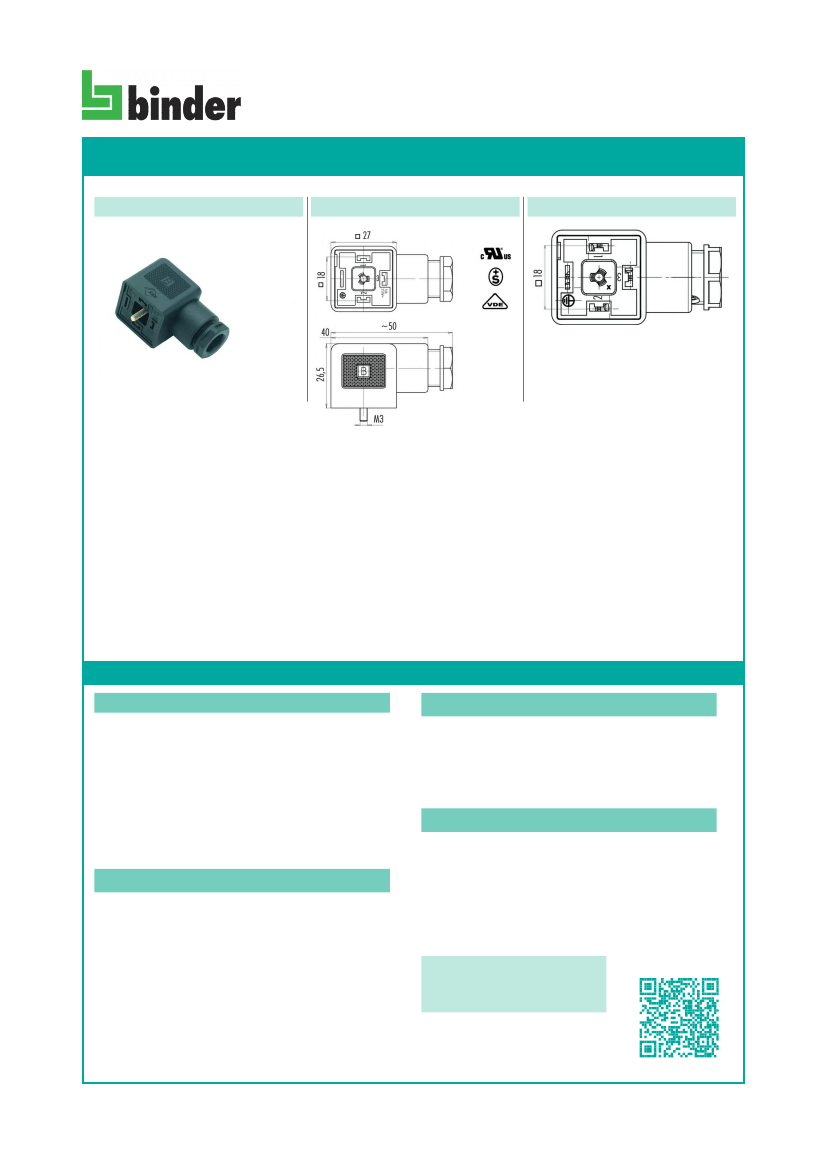

Date: 2013-04-24 - Page 1 of 2
Product
Area
illustration
Female power connector DIN EN 175301-803, low housing, with UL approval, SEV, metric thread M16, Cable outlet 6–102+PE
Pole
mm
Size A
serie 210/A
Article number
43 1700 004 03
scale drawing
Contact Arrangement
You can find the item description on the next page.
Technical data
Common values
Connector Design
Connector locking system
Termination
Wire gauge (mm)
Wire gauge (AWG)
Max. Cable outlet
Upper temperature
Lower temperature
female connector
central screw
screw
min. 0.34 mm², max. 1.5 mm²
min. AWG 22, max. AWG 16
6 - 10 mm
+120 °C
-30 °C
Material
Material of contact
Contact plating
Material of contact body
Material of housing
CuSn (bronce)
Ni (nickel)
PA (UL 94 HB)
PA (UL 94 HB)
Cable data
material housing
insulation single lead
single lead structure
conductor resistance
-
-
-
-
-
-
Electrical values
Rated voltage
Rated impulse voltage
Pollution degree
Overvoltage category
Material group
Rated current (40°C)
Volume resistivity
EMV compliance
Degree of protection
Mechanical operation
250 V
4000 V
3
III
III
10 A
≤ 15 mΩ
not shielded
IP 65
> 50 mating cycles
bending radius cable fixed
bending radius cable movable
Contacs: 2+PE, Female power connector DIN
EN 175301-803, low housing, with UL
approval, SEV, metric thread M16, Cable outlet
6 – 10 mm
43 1700 004 03
Product sheet
Solenoid valve connectors
Date: 2013-04-24 - Page 2 of 2
Product
Area

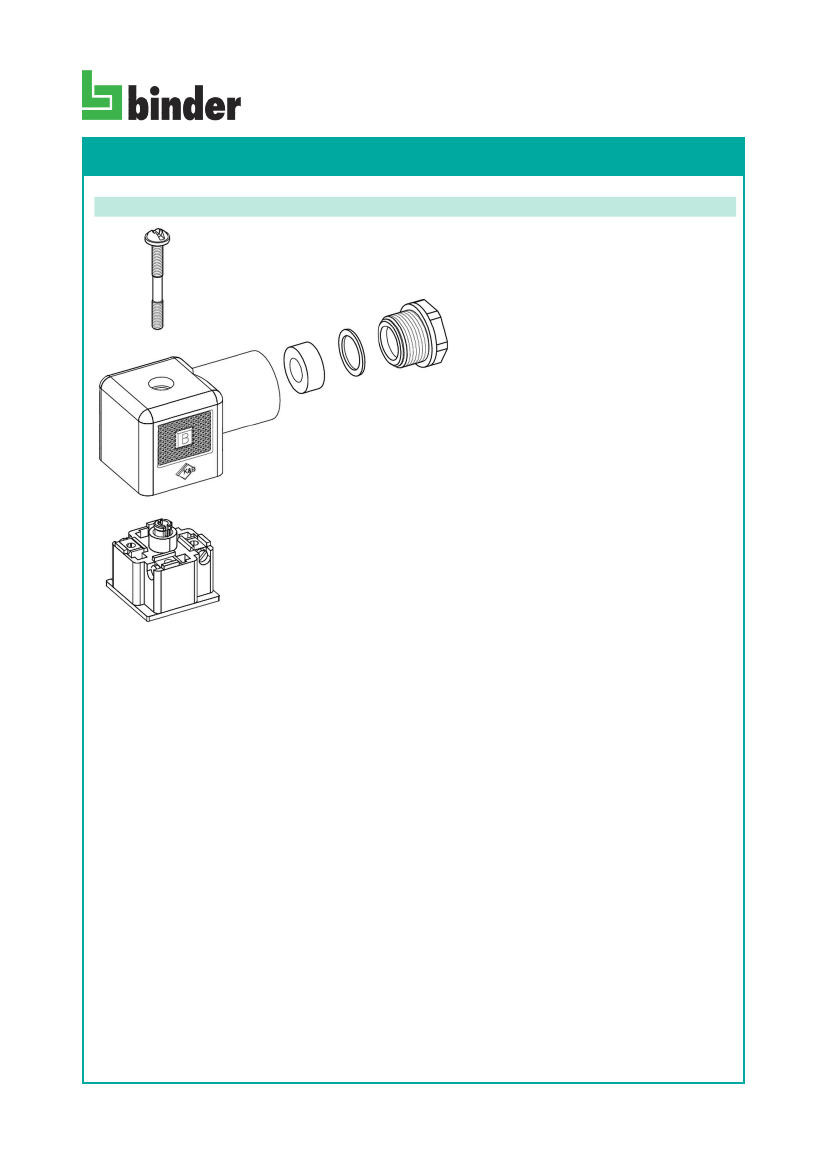

Item description
Female power connector DIN EN 175301-803, low housing, with UL approval, SEV, metric thread M16, Cable outlet 6–102+PE
Pole
mm
Size A
serie 210/A
Article number
43 1700 004 03
43 1700 004 03
