241A11140X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 241A11140X

241A11140X: DescriptionD Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size138KB，2 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric View All

241A11140X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	241A11140X	-	-	View	Buy Now

241A11140X Overview

D Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

241A11140X Parametric

Parameter Name	Attribute value
Maker	CONEC
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITH GROUNDING BRACKET
subject depth	0.61 inch
body length	1.556 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	424VDC V
Filter function	YES
maximum insertion force	3.336 N
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	24
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	2.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal length	0.13 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	15
Evacuation force-minimum value	2.1962 N

Preview

Download Datasheet

View All

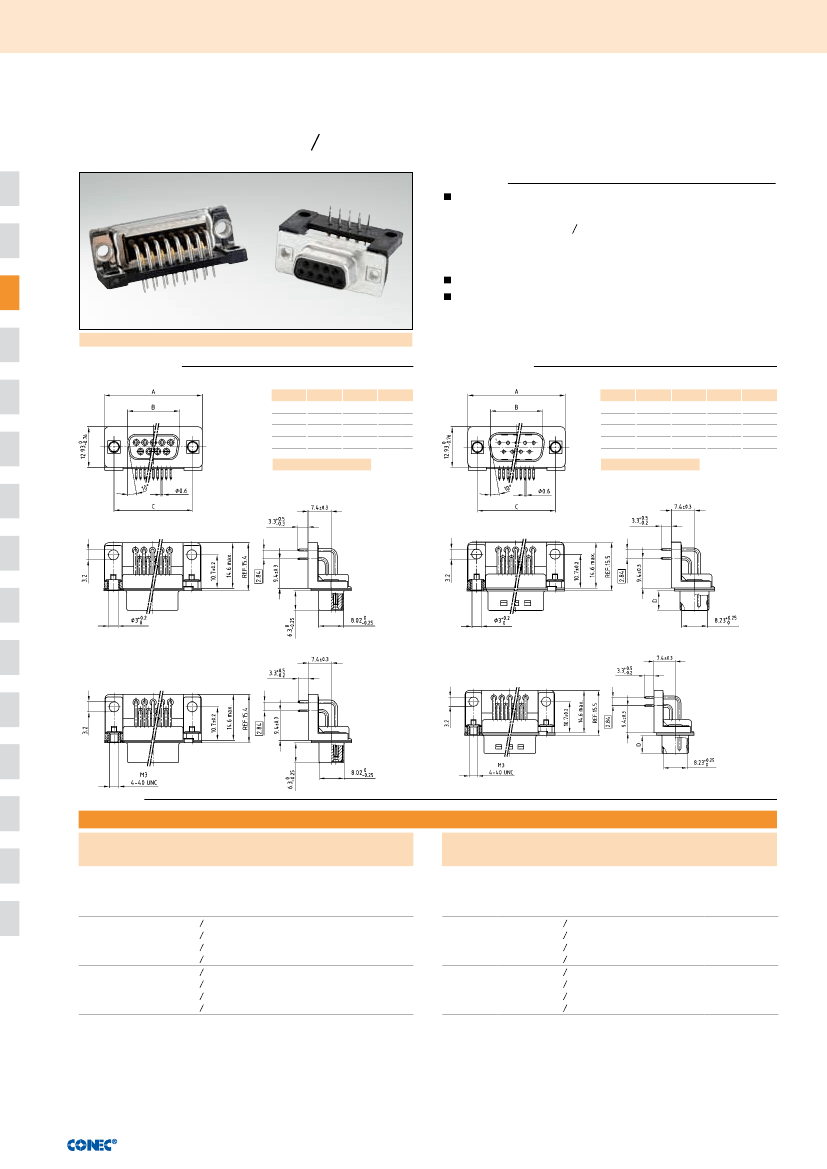

Filt e r D- S UB Co n nec to rs

C-Filter D-SUB Standard

Solder pin – Angled – .370“ 9.4 mm – Precision machined contacts – Plastic bracket

Description

Mounting styles:

- Mounting bracket, grounding strap with

through-hole Ø .118" 3.0 mm

- Mounting bracket, grounding strap with

4-40 UNC or M3 threaded insert

Quality class 3 (also available in quality class 1)

Shell: Steel tin plated (brass tin plated on request)

RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784

Socket connector

No. of pos.

Plug connector

-0.76

31.19

39.52

53.42

69.70

-0.25

16.46

24.79

38.50

54.96

25.00

33.30

47.04

63.50

+ 0.12

- 0.13

+ 0.15

- 0.10

± 0.13

No. of pos.

-0.76

31.19

39.52

53.42

69.70

+0.25

16.79

25.12

38.84

55.30

25.00

33.30

47.04

63.50

+ 0.12

- 0.13

+ 0.15

- 0.10

± 0.13

-0.3

6.12

5.99

PCB layout: Kat1kGGA

PCB layout: Kat1kGHA

Mounting style: Through-hole

Mounting style: Threaded insert

Order data

Capacitance 180 pF

Socket connector

No. of pos. Mounting style

Through-hole

Grounding strap

Plug connector

Part Number

242 A 16780

242 A 16790

242 A 16800

242 A 16810

242 A 16820

242 A 16830

242 A 16840

242 A 16850

242 A 16860

242 A 16870

242 A 16880

242 A 16890

No. of pos. Mounting style

Through-hole

Grounding strap

Part Number

241 A 19400

241 A 19410

241 A 19420

241 A 19430

241 A 19440

241 A 19450

241 A 19460

241 A 19470

241 A 19480

241 A 19490

241 A 19500

241 A 19510

4-40 UNC Threaded insert

M3 Threaded insert

4-40 UNC Threaded insert

M3 Threaded insert

3| 36
