576802B03800G: DescriptionHeat Sink, 27.3ohm, Clip, Aluminum, Anodized, ROHS COMPLIANT; CategoryThermal management products Heat resisting bracing; File Size227KB，2 Pages; ManufacturerBoyd Corporation

Download Datasheet Parametric Compare View All

576802B03800G Overview

Heat Sink, 27.3ohm, Clip, Aluminum, Anodized, ROHS COMPLIANT

576802B03800G Parametric

Parameter Name	Attribute value
Maker	Boyd Corporation
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Main material	ALUMINUM
color	BLACK
structure	CLIP
Surface layer	ANODIZED
high	12.7 mm
length	19.05 mm
Thermal resistance	27.3 Ω
Heat Resistant Support Device Type	HEAT SINK
width	14.48 mm

Preview

Download Datasheet

View All

5/17/12

576802B03800G - Board level heatsinks

Tel (toll-free): +1-855-32-AAVID

Home

Products

Solutions

Aavid Design

Tools & Docs

Contact

Company

Online Store

Board Level Products

576802B03800G

TO-220, TO-220-single gauge (0.020"), TO-262

Need assistance?

Call us: 1-855-32-AAVID

Email:

estore@aavid.com

Help Page

Check Stock

Enter a part number for

pricing and availability.

go!

Plug in style heat sink featuring four spring action clips and single tab for horizontal mounting

This non-electronic component is functionally unaffected by the normal soldering or reflow

processes used for semiconductor circuits. The heat resistance time or heat resistance

temperature is not applicable for the component.

Height: 19.05

Mount Orientation: Horizontal

Finish: Black Anodize

RoHS: compliant

Download PCN

Thermal Resistance: 27.30

Product Return Policy

Terms & Conditions

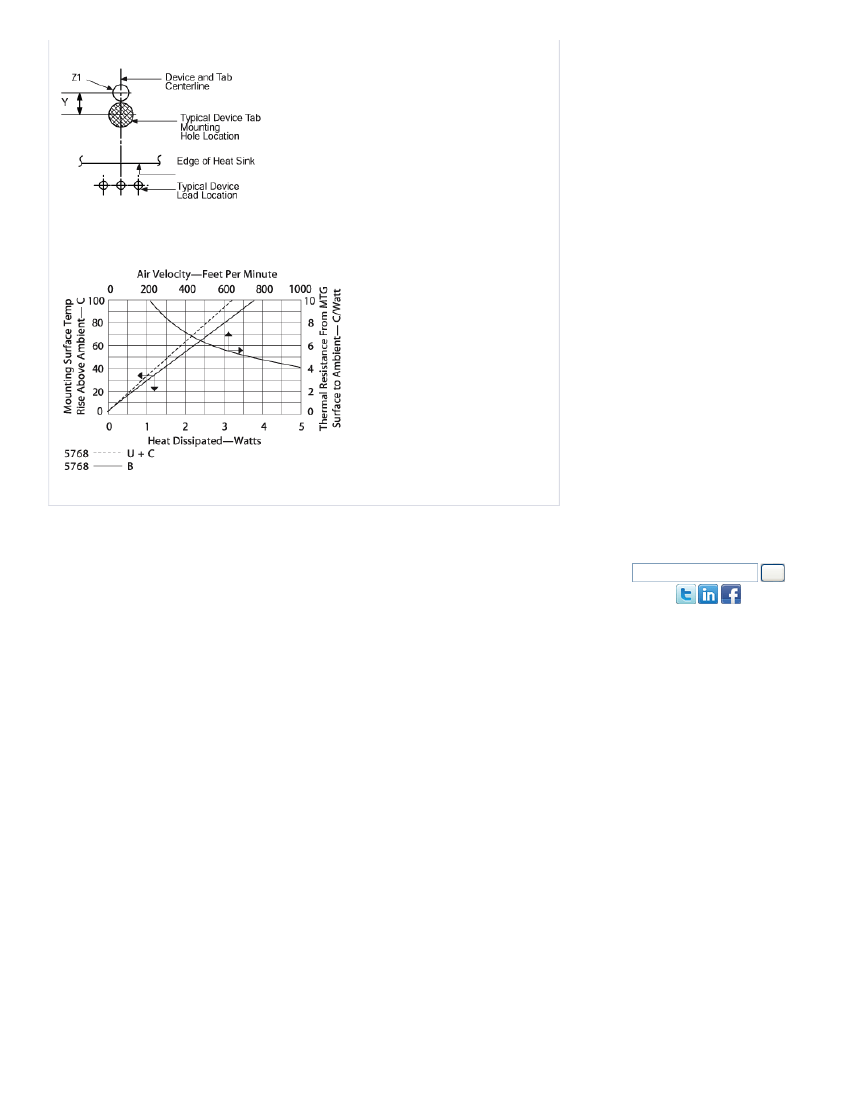

Y Dim: 3.05 (0.120) | Z Dim: 1.40 (0.055)

https://www.aavid.com/products/standard/576802b03800g

1/2

576802B03800G Related Products

	576802B03800G
Description	Heat Sink, 27.3ohm, Clip, Aluminum, Anodized, ROHS COMPLIANT
Maker	Boyd Corporation
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Main material	ALUMINUM
color	BLACK
structure	CLIP
Surface layer	ANODIZED
high	12.7 mm
length	19.05 mm
Thermal resistance	27.3 Ω
Heat Resistant Support Device Type	HEAT SINK
width	14.48 mm
