BL16SMD06726SM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BL16SMD06726SM

BL16SMD06726SM: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size93KB，1 Pages; ManufacturerFischer Elektronik; Environmental Compliance

Download Datasheet Parametric View All

BL16SMD06726SM Overview

Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal

BL16SMD06726SM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fischer Elektronik
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	BL
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	26

Preview

Download Datasheet

View All

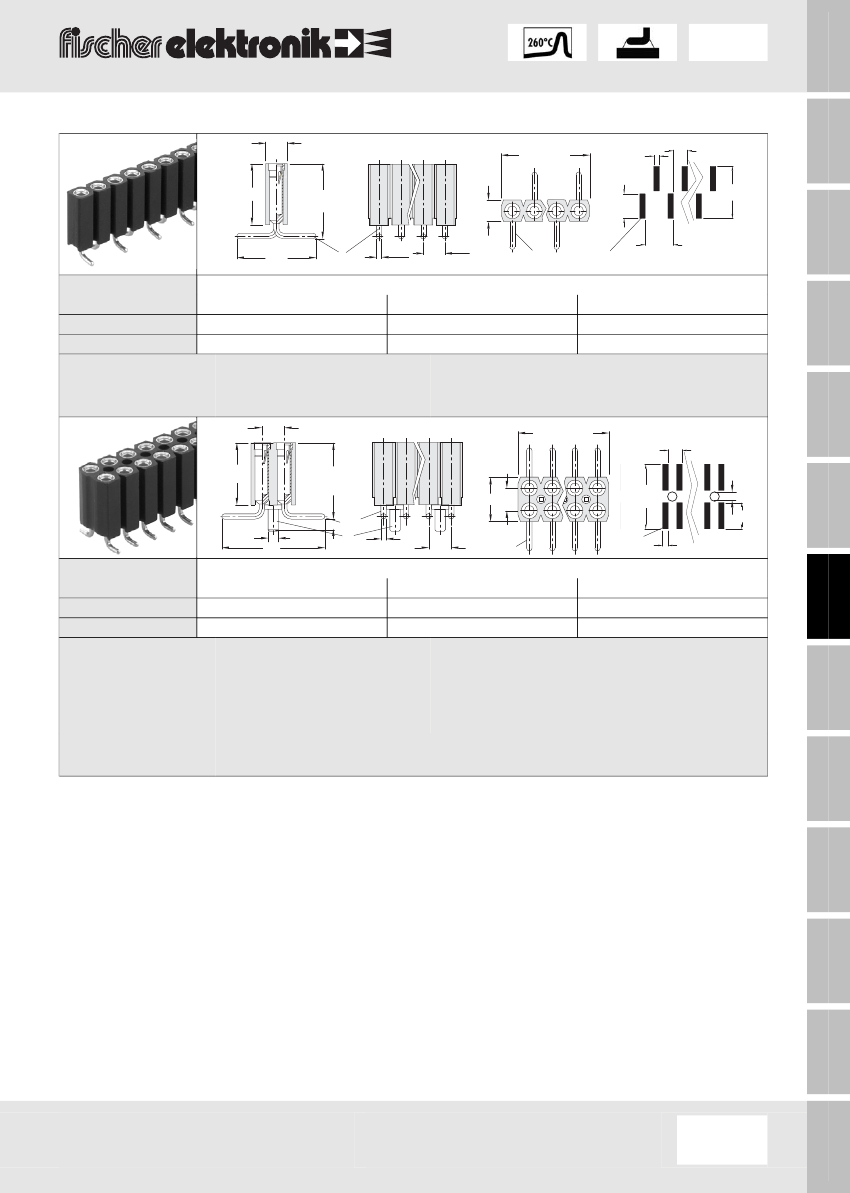

2.54

High-precision female headers in SMD mounting

for

0.635 mm and up to 0.85 mm Ø

2,5

n x 2,54

2,5

8,6

2,5

Pin 1

Ø 0,6

2,54

Pin 1

5,08

art. no.

BL 15 SMD 043...

BL 15 SMD 089...

please indicate:

4.30

8.90

... no. of contacts

one row 4-20

dim. [mm]

5.00

9.50

2.50

4.80

... packing (option)

=bar magazine

B SM =pick and place pad and bar magazine

Ø 1,2 (2x)

n/2 x 2,54

2,54

8,6

2,54

1,4

Ø 1,2

Pin 1

Ø 0,6

2,54

Pin 1

art. no.

BL 16 SMD 067 ...

BL 16 SMD 113 ...

please indicate:

6.70

11.30

... no. of contacts

two rows 4-40

dim. [mm]

7.50

12.00

2.50

4.80

... packing (option)

=bar magazine

B SM =pick and place pad and bar magazine

B TR =pick and place pad and tape and reel

(250 pcs/reel)

... position (option)

PS =locating pin (2 pcs/bar bigger than 6 contacts)

contact shell surface:

tin-plated

contact spring:

gold-plated

No capilliary action when soldering due to protected contact insert.

V-notches permit breaking! Therefore any required number of contacts is available.

... packing (option) - additions:

BL 16 SMD ... B TR: 6-24 contacts

For further informations please see "for automatic assembly" following this series!

Female headers

Fem. head. 2.54

1.27 SMD

2.00 SMD

2.54 press-fit

solder, put through

➔

Technical data

Male headers 2.54 solder

Male headers 2.54 SMD

➔

G 75 - 80

G 37 - 42

G 46
