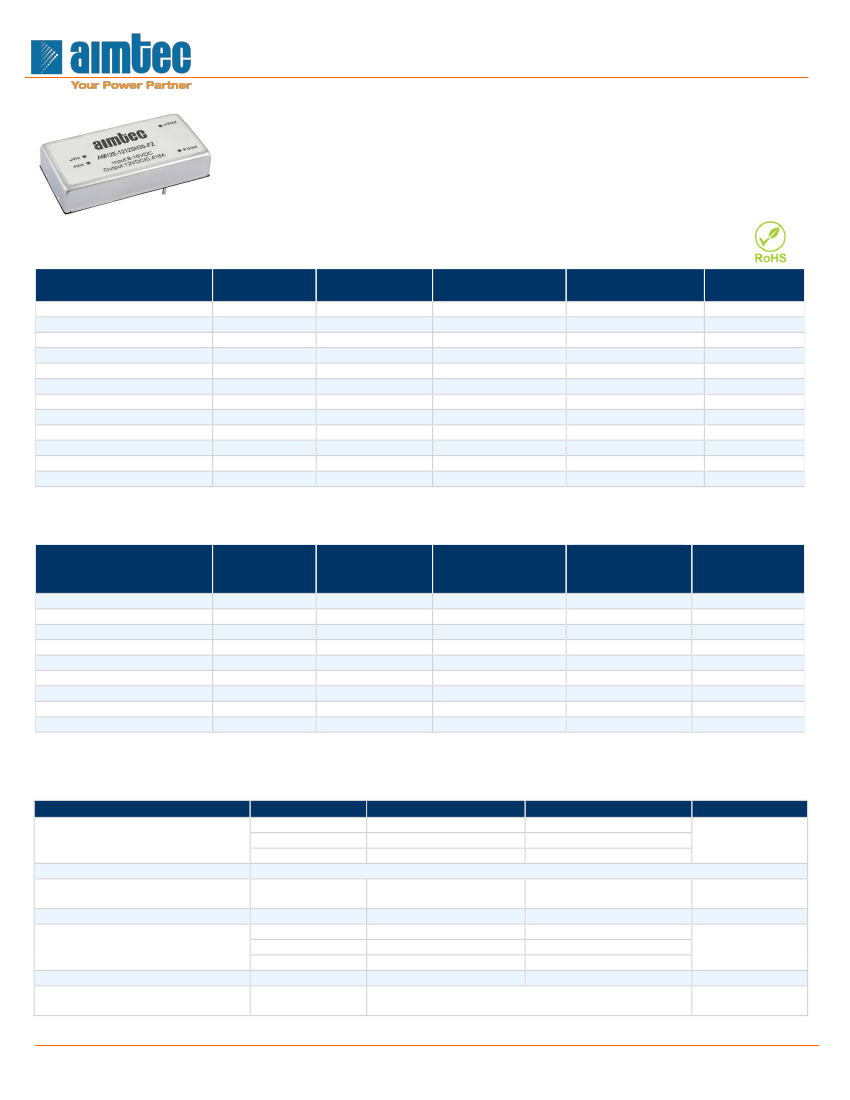

Series AM12E-FZ
12Watt | DC-DC Converter
FEATURES:
•
•
•
•
•
Remote On / Off Control
Wide 2:1 input range
High efficiency up to 87%
Industry Standard Package
No minimum load
•
•
•
•
Operating temperature -40
o
C to + 85
o
C
Input / Output Isolation 3000VDC
Continuous short circuit protection
Over Voltage Protection
Models
Single output
Model
AM12E-1203SH30-FZ
AM12E-1205SH30-FZ
AM12E-1212SH30-FZ
AM12E-1215SH30-FZ
AM12E-2403SH30-FZ
AM12E-2405SH30-FZ
AM12E-2412SH30-FZ
AM12E-2415SH30-FZ
AM12E-4803SH30-FZ
AM12E-4805SH30-FZ
AM12E-4812SH30-FZ
AM12E-4815SH30-FZ
Input Voltage
(V)
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
36-75
36-75
36-75
36-75
Output Voltage
(V)
3.3
5
12
15
3.3
5
12
15
3.3
5
12
15
Output
CurrentMax(mA)
3500
2400
1000
800
3500
2400
1000
800
3500
2400
1000
800
Capacitance
load, max (μF)
4700
3300
680
330
4700
3300
680
330
4700
3300
680
330
Efficiency
(%)
77
82
86
85
77
82
87
86
78
82
87
86
Models
Dual output
Model
Input Voltage
(V)
Output Voltage
(V)
Output Current
Max (mA)
Capacitance
load, max
(μF)
Efficiency
(%)
AM12E-1205DH30-FZ
9-18
±5
±1200
±1000
82
AM12E-1212DH30-FZ
9-18
±12
±500
±220
86
AM12E-1215DH30-FZ
9-18
±15
±400
±200
85
AM12E-2405DH30-FZ
18-36
±5
±1200
±1000
83
AM12E-2412DH30-FZ
18-36
±12
±500
±220
87
AM12E-2415DH30-FZ
18-36
±15
±400
±200
86
AM12E-4805DH30-FZ
36-75
±5
±1200
±1000
83
AM12E-4812DH30-FZ
36-75
±12
±500
±220
87
AM12E-4815DH30-FZ
36-75
±15
±400
±200
86
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified.
Input Specifications
Parameters
Voltage range
Filter
Transient response time
(50% load step)
Start up time
Absolute Maximum Rating
Peak Input Voltage time
Remote Control Pin
ON
OFF
12 Vin
24 Vin
48 Vin
Nominal
12
24
48
Typical
9-18
18-36
36-75
π(PI )
2000
550
-0.7-25
-0.7-50
-0.7-100
Maximum
Units
VDC
µs
ms
VDC
ms
Vdc
100
Open or 3.5V ~12V, <0.2mA
Short or 0V ~ 1.2V, <3mA
www.aimtec.com
F 051e R12.C
Tel: +1 514 620 2722
1 of 4
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
Series AM12E-FZ
12Watt | DC-DC Converter
Input Specifications (continued)
Parameters
No Load Input Current
Input reflected current
Nominal
Typical
130
Maximum
31
Units
mA
mAp-p
Isolation Specifications
Parameters
Tested I/Ovoltage
Resistance
Capacitance
Conditions
3 sec
Typical
> 1000
500
Rated
3000
Units
VDC
MOhm
pF
Output Specifications
Parameters
Voltage accuracy
Short Circuit protection
Short circuit restart
Over load protection
Line voltage regulation
Load voltage regulation
Temperature coefficient
Ripple & Noise
Rising time
Over Voltage Protection
(Zener Diode)
Conditions
(full load)
Typical
±1
Continuous
Auto Recovery
150
±0.5
±1
±0.5
±0.5
±5
±0.02
100
10
Maximum
Units
%
% of full load
HL-LL
0% to 25%
25% to 100%
Balanced Load (Dual)
Unbalanced 25-100% FL
20MHz Bandwidth
3.3V model
5V model
12V model
15V model
%
%
%
%
o
C
mVp-p
ms
3.9V
6.2V
15V
18V
VDC
General Specifications
Parameters
Switching frequency
Operating temperature
Storage temperature
Maximum case temperature
Cooling
Humidity
Case material
Potting Material
Weight
Dimensions
(L x W x H)
MTBF
Maximum soldering temperature
Conditions
100% load
See derating chart
Typical
300
Maximum
-40 to +85
Units
KHz
o
C
o
C
o
C
-55 to +105
100
Free air convection
95
%
Nickel coated copper
UL94V-0 rated
30
g
Tolerance ±0.5mm
2.00 x 1.00 x 0.40 inches
50.80 x 25.40 x 10.2 mm
o
> 1,960,000 hrs. (MIL-HDBK -217F, Ground Benign, t=+25 C)
o
C
1.5mm from case max 10 sec
260
Pin Out Specifications
Pin
1
2
3
4
5
6
Single
+V Input
-V Input
+V Output
Trim
-V Output
Remote On/Off
Dual
+V Input
-V Input
+V Output
Common.
-V Output
Remote On/Off
www.aimtec.com
F 051e R12.C
Tel: +1 514 620 2722
2 of 4
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
Series AM12E-FZ
12Watt | DC-DC Converter

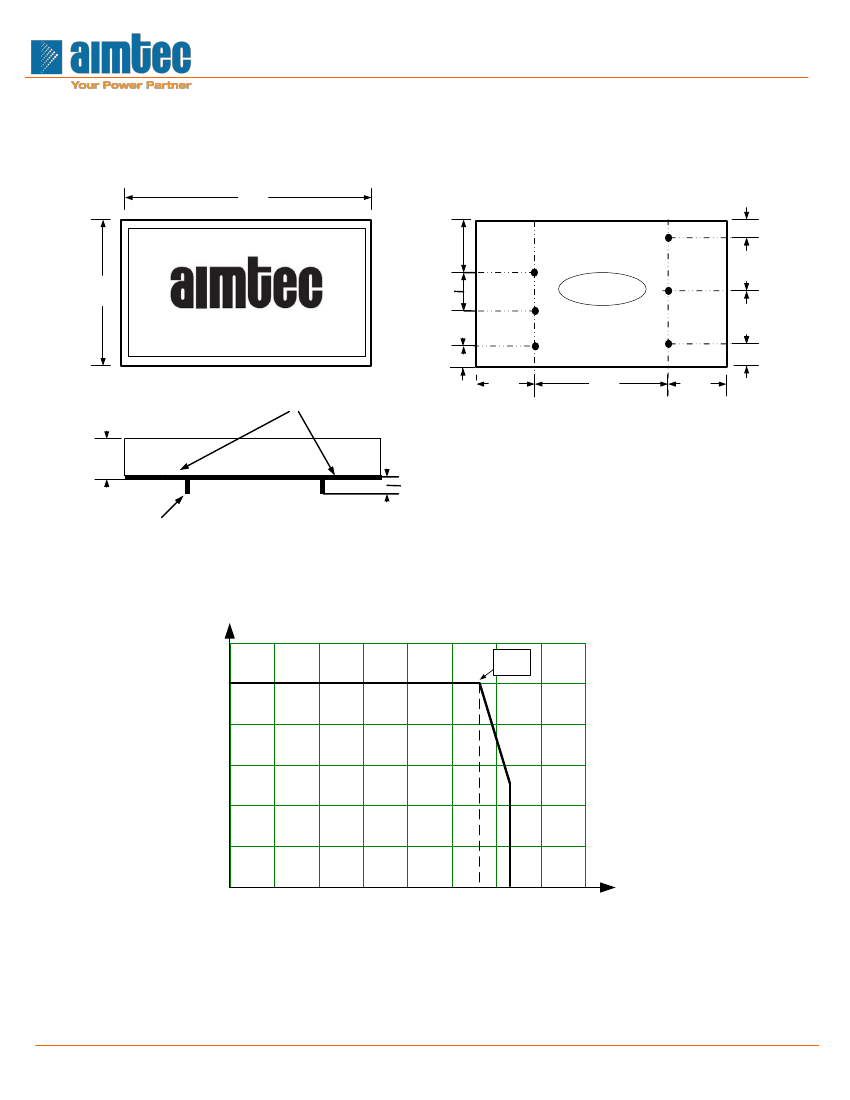

Dimensions
50.80
(2.00)
10.16
(0.40)
2.54
(0.10)
3
1
10.16
(0.40)
North America only
25.40
(1.00)
7.62 5.08
(0.31) (0.20)
Bottom View
2
6
15.24
(0.60)
20.32
(0.80)
4
5
15.24
(0.60)
Isolative Plastic base
plate
2.54
(0.10)
DIA
1.00
(0.04)
Derating
Free Air Convection
71 º C
100
80
Output Power (%)
60
40
Safe Operating Area
20
0
- 40
- 20
0
20
40
60
71
5.08
(0.20)
Min
Notes:
All dimensions are typical
in millimeters (inches).
Tolerance ±0.5 (±0.02)
10.16
(0.40)
80
85
100
Ambient Temperature
ºC
www.aimtec.com
F 051e R12.C
Tel: +1 514 620 2722
3 of 4
Toll free: + 1 888 9 AIMTEC (924 6832)
2.54
(0.10)
10.16
(0.40)
Series AM12E-FZ
12Watt | DC-DC Converter
TRIM Function
Vo+
R1
TRIM
Vo-
AM12E-FZ
TRIM UP
3.3 V Output
Percentage
10%
7.5%
5%
2.5%
-10%
-7.5%
-5%
-2.5%
R1( kΩ)
0
7.83
28.25
89.49
10.63
27.92
62.5
166.26
R2( kΩ)
10%
7.5%
5%
2.5%
-10%
-7.5%
-5%
-2.5%
Vo+
TRIM
Vo-
AM12E-FZ
TRIM DOWN
5 V Output
Percentage
R1( kΩ)
0
3.86
14.8
47.59
0
1.08
12.28
45.89
R2( kΩ)
R2
12 V Output
Percentage
10%
7.5%
5%
2.5%
-10%
-7.5%
-5%
-2.5%
R1( kΩ)
0
4.74
16.11
50.22
39.19
61.01
104.64
235.53
R2( kΩ)
10%
7.5%
5%
2.5%
-10%
-7.5%
-5%
-2.5%
15 V Output
Percentage
R1( kΩ)
0
5.33
17
52
59
88.17
146.5
321.5
R2( kΩ)
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
