440-072
EMI/RFI Dual Banding Adapter
Self-Locking Rotatable Coupling - Standard Profile
440 F S 072 NF 16 12-8 K P
440
CONNECTOR
DESIGNATORS
Product Series
Connector Designator
Angle and Profile
H = 45
J = 90
S = Straight
Basic Part No.
Polysulfide (Omit for none)
B = 2 Bands
K = 2 Precoiled Bands
(Omit for none)
Length: S only
(1/2 inch increments,
e.g. 8 = 4.000 inches)
Cable Entry (Table IV)
A-F-H-L-S
SELF-LOCKING
ROTATABLE
COUPLING
Finish (Table II)
Length ± .060 (1.52)
Min. Order Length 2.0 inch
A Thread
(Table I)
Shell Size (Table I)
Length ± .060 (1.52)
Min. Order Length 1.5 Inch
(See Note 3)
E Typ.
(Table I)

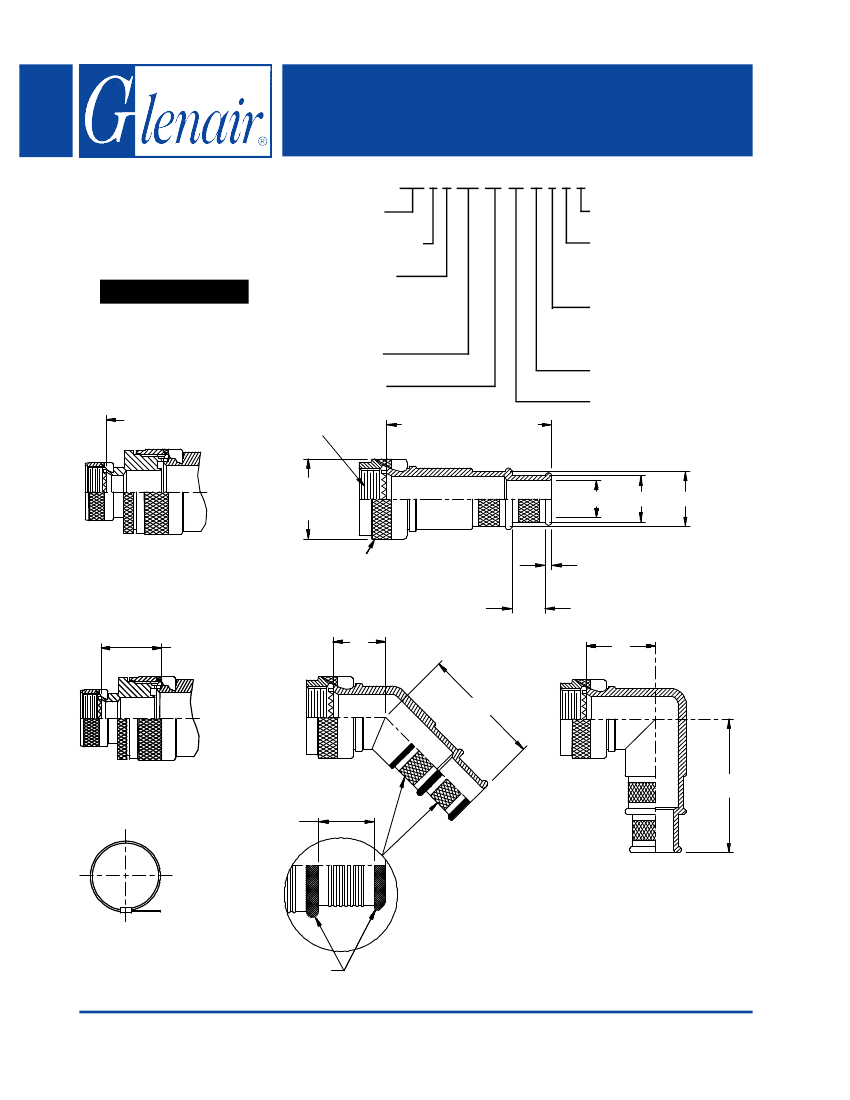

STYLE 2
(STRAIGHT
See Note 1)
K*
L*
M*
* (Table IV)
Anti-Rotation
Device (Typ.)
.060 (1.5) Typ.
.380 (9.7) Typ.
1.00 (25.4)
Max
F
(Table III)
H
(Table III)
G (Table III)
STYLE 2
(45° & 90°
See Note 1)
Termination Areas
Free of Cadmium.
Knurl or Ridges
Mfr's Option
J (Table III)
Band Option
(K Option Shown -
See Note 4)
© 2005 Glenair, Inc.
Polysulfide Stripes
P Option
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 440 - Page 38
Self-Locking Rotatable Coupling - Standard Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
H
A-F-L-S
09
08
11
10
13
12
15
14
17
16
19
18
21
20
23
22
25
24
F
Max
.795 (20.2)
.820 (20.8)
.844 (21.4)
.861 (21.9)
.888 (22.6)
.904 (23.0)
.929 (23.6)
.956 (24.3)
.979 (24.9)
G
Max
1.328 (33.7)
1.358 (34.5)
1.378 (35.0)
1.408 (35.8)
1.428 (36.3)
1.438 (36.5)
1.458 (37.0)
1.498 (38.0)
1.528 (38.8)
H
Max
.906 (23.0)
.966 (24.5)
1.026 (26.1)
1.076 (27.3)
1.136 (28.9)
1.176 (29.9)
1.236 (31.4)
1.296 (32.9)
1.356 (34.4)
J
Max
1.438 (36.5)
1.498 (38.0)
1.558 (39.6)
1.628 (41.4)
1.688 (42.9)
1.708 (43.4)
1.768 (44.9)
1.848 (46.9)
1.918 (48.7)
TABLE IV: CABLE ENTRY
M
K
L
Dash
Dia
Dia
Dia
No.
.312 (7.9)
.125 (3.2)
.250 (6.4)
02
.375 (9.5)
.188 (4.8)
.312 (7.9)
03
.438 (11.1)
.250 (6.4)
.375 (9.5)
04
.500 (12.7)
.312 (7.9)
.438 (11.1)
05
.562 (14.3)
.375 (9.5)
.500 (12.7)
06
.625 (15.9)
.438 (11.1) .562 (14.3)
07
.688 (17.5)
.500 (12.7) .625 (15.9)
08
.750 (19.1)
.562 (14.3) .688 (17.5)
09
.812 (20.6)
.625 (15.9) .750 (19.1)
10
.875 (22.2)
.688 (17.5) .812 (20.6)
11
.938 (23.8)
.750 (19.1) .875 (22.2)
12
.812 (20.6) .938 (23.8) 1.000 (25.4)
13
.875 (22.2) 1.000 (25.4) 1.062 (27.0)
14
.938 (23.8) 1.062 (27.0) 1.125 (28.6)
15
16 1.000 (25.4) 1.125 (28.6) 1.188 (30.2)
17 1.062 (27.0) 1.188 (30.2) 1.250 (31.8)
18 1.125 (28.6) 1.250 (31.8) 1.312 (33.3)
20 1.250 (31.8) 1.375 (34.9) 1.438 (36.5)
22 1.375 (34.9) 1.500 (38.1) 1.562 (39.7)
24 1.500 (38.1) 1.625 (41.3) 1.688 (42.9)
1. When maximum cable entry (page
21) is exceeded, Style 2 will be
supplied. Dimensions F, G, H and J
will not apply. Please consult
factory.
2. Metric dimensions (mm) are indi-
cated in parentheses.
3. Consult factory for shorter lengths
on straight backshells.
4. Backshells supplied with 600-052-*
band, see Glenair Series 600 Tool
Catalog for installation.
