M85049/77-14X02 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> M85049/77-14X02

M85049/77-14X02: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size121KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049/77-14X02 Overview

Connector Accessory

M85049/77-14X02 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	M85049/77

Preview

Download Datasheet

View All

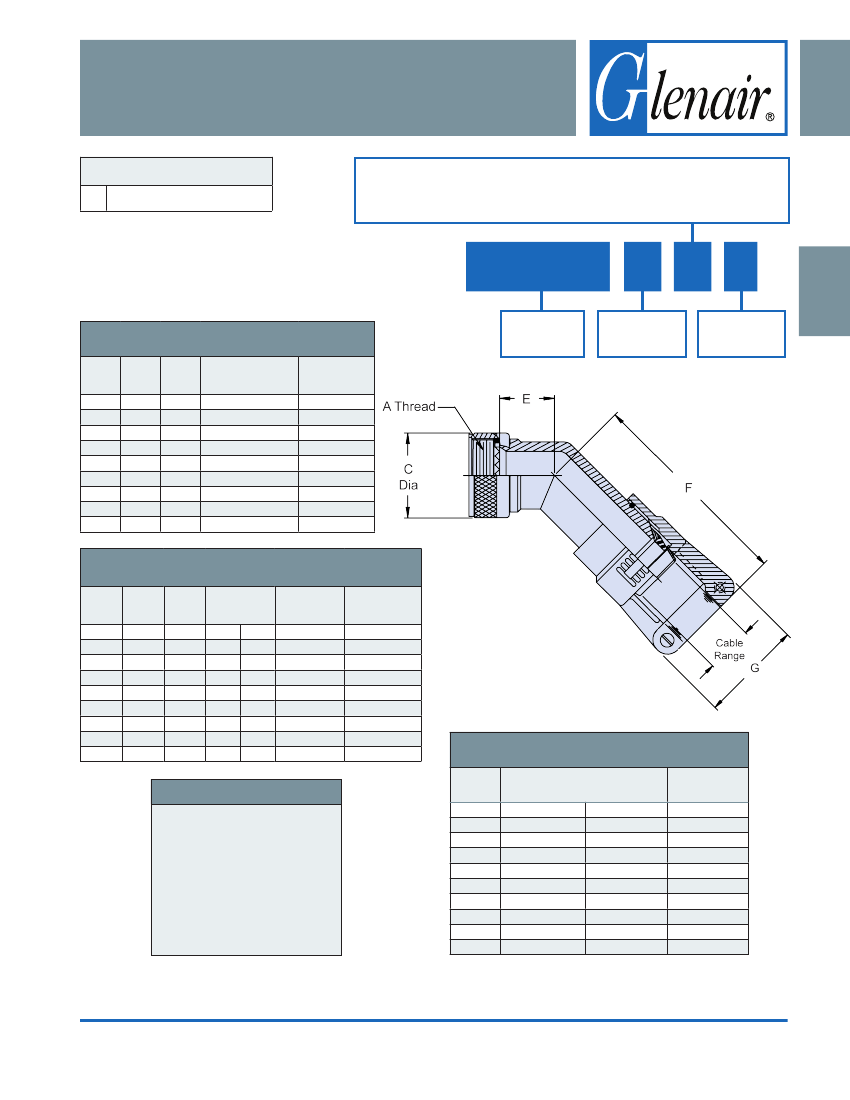

AS85049/77

45° EMI/RFI Environmental Backshell

CONNECTOR DESIGNATOR:

MIL-DTL-38999 Series I and II

= Electroless Nickel

= 1,000 Hr. Cadmium Olive Drab

over Electroless Nickel

Finish

= Aluminum, Nickel Flurocarbon Polymer

= Aluminum, Zinc-Nickel, Black

M85049/77

TABLE I: Shell Size,

Thread and Dimensions

Dash

No.

Series I

Clamp Size

(Tables II & III)

Basic

Part Number

C Dia

Max

Dash Number

(Table I)

Shell

Size

Series II

Shell

Size

A Thread

Class 2B

.438 - 28 UNEF

.562 - 24 UNEF

.688 - 24 UNEF

.813 - 20 UNEF

.938 - 20 UNEF

1.063 - 18 UNEF

1.188 - 18 UNEF

1.313 - 18 UNEF

1.438 - 18 UNEF

.750

.850

1.000

1.150

1.250

1.400

1.550

1.650

1.850

(19.1)

(21.6)

(25.4)

(29.2)

(31.8)

(35.6)

(39.4)

(41.9)

(47.0)

TABLE II: Shell Size, Series 1 Reference,

Clamp Size and Dimensions

Dash

No.

Series I

Shell

Size

Series II

Shell

Size

Clamp Size

Min Max

±.062 (1.6)

.398

.458

.518

.588

.678

.868

.958

(10.1)

(11.6)

(13.2)

(14.9)

(17.2)

(22.0)

(24.3)

±.062 (1.6)

3.088

3.148

3.208

3.298

3.408

3.598

3.748

(78.4)

(80.0)

(81.5)

(83.8)

(86.6)

(91.4)

(95.2)

Clamp

Size

TABLE III: Clamp Size,

Cable Range and Dimensions

Min

.062

.125

.250

.375

.500

.625

.750

.875

1.000

1.125

Cable Range

Max

.125

.250

.375

.500

.625

.750

.875

1.000

1.125

1.250

(3.2)

(6.4)

(9.5)

(12.7)

(15.9)

(19.1)

(22.2)

(25.4)

(28.6)

(31.8)

Max

.800

1.000

1.100

1.200

1.250

1.400

1.500

1.650

1.750

1.900

(20.3)

(25.4)

(27.9)

(30.5)

(31.8)

(35.6)

(38.1)

(41.9)

(44.5)

(48.3)

(1.6)

(3.2)

(6.4)

(9.5)

(12.7)

(15.9)

(19.1)

(22.2)

(25.4)

(28.6)

APPLICATION NOTES

For complete dimensions

see the applicable Military

Specification.

Metric dimensions (mm) are in

parentheses.

Cable Range is defined as

the accommodation range

for the wire bundle or cable.

Dimensions shown are not

intended for inspection criteria.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-91

E-Mail: sales@glenair.com

AS85049
