02.5WR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 02.5WR

02.5WR: DescriptionElectric Fuse, ELECTRIC FUSE, 2.5A, 32VAC, 32VDC, 50A (IR), SURFACE MOUNT, HALOGEN FREE AND ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size120KB，4 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

02.5WR Overview

Electric Fuse, ELECTRIC FUSE, 2.5A, 32VAC, 32VDC, 50A (IR), SURFACE MOUNT, HALOGEN FREE AND ROHS COMPLIANT

02.5WR Parametric

Parameter Name	Attribute value
Maker	Littelfuse
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

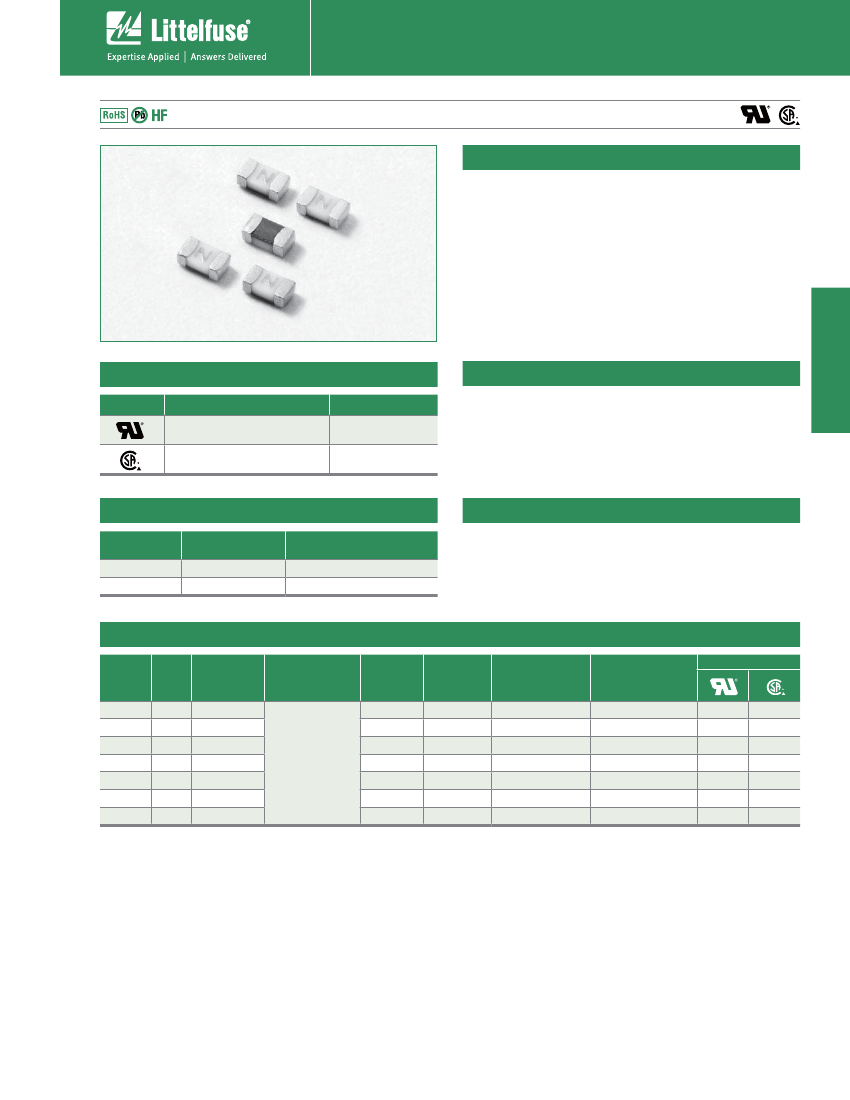

Surface Mount Fuses

Ceramic Fuse > 441 Series

441 Series – 0603 High I

t Fuse

Description

This 100% Lead-free, RoHS compliant and Halogen-free

fuse series has been designed specifically to provide over

current protection to circuits that see high working ambient

temperatures (up to 150ºC) and high inrush currents.

The general design ensures excellent temperature stability

and performance reliability.

This high I²t fuse series is designed to have ultra high inrush

current withstand capability to avoid nuisance fuse open.

Agency Approvals

AGENCY

AGENCY FILE NUMBER

E10480

Pending

AMPERE RANGE

2A - 6A

Features

from -55ºC to 150ºC

RoHS compliant

and lead-free reflow /

wave soldering

Electrical Characteristics

% of Ampere

Rating

100%

350%

Ampere Rating

2A - 6A

Opening Time at 25ºC

4 Hours Minimum

5 Seconds Maximum

Applications

Electrical Specifications by Item

Ampere

Rating

(A)

2.5

3.5

Notes:

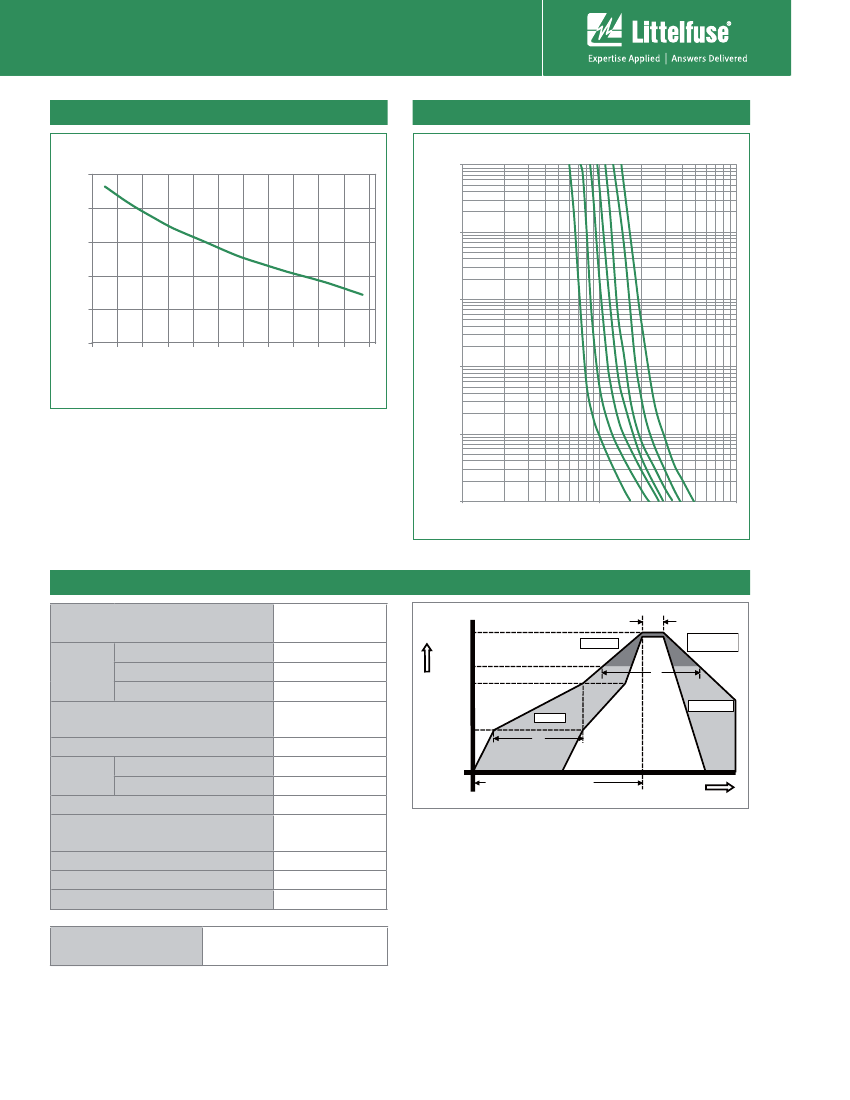

1. DC Interrupting Rating tested at rated voltage with time constant < 0.8 msecs.

2. Nominal Resistance measured with < 10% rated current.

3. Nominal Melting I²t measured at 1 msec. opening time.

4. Nominal Voltage Drop measured at rated current after temperature has stabilized.

Devices designed to carry out rated current for 4 hours minimum. It is recommended that

devices be operated continuously at no more than 80% rated current. See “Temperature

Rerating Curve”for additional rerating information.

Devices designed to be mounted with marking code facing up.

Amp Max. Voltage

Code

Rating (V)

002.

02.5

003.

03.5

004.

005.

006.

Interrupting

Rating

Nominal

Resistance Melting I

Sec.)

(Ohms)

0.0320

0.0200

0.0158

0.3103

0.5520

0.8165

0.9438

1.2659

1.6287

2.6049

Nominal Voltage

Drop At Rated

Current (V)

0.0551

0.0534

0.0531

0.0468

0.0475

0.0472

0.0464

Nominal Power Agency Approvals

Dissipation At

Rated Current (W)

0.110

0.134

0.159

0.164

0.190

0.236

0.278

50 A @ 32 VDC

0.0117

0.0097

0.0073

0.0056

Specifications are subject to change without notice.

Please refer to www.littelfuse.com/series/441.html for current information.

Revised: May 17, 2010

441 Series

02.5WR Related Products

	02.5WR	SMCJ170AQ	003.WR	HGL26070C	MFR-50DTC72370R	MFR-50FBD72383R	005.WR
Description	Electric Fuse, ELECTRIC FUSE, 2.5A, 32VAC, 32VDC, 50A (IR), SURFACE MOUNT, HALOGEN FREE AND ROHS COMPLIANT	Surface Mount Transient Voltage Suppressor Diodes	Electric Fuse, ELECTRIC FUSE, 3A, 32VAC, 32VDC, 50A (IR), SURFACE MOUNT, HALOGEN FREE AND ROHS COMPLIANT	Circuit breaker, PowerPact H, thermal magnetic, 70A, 2 pole, 600V, 18kA, 100% rated	Fixed Resistor, Metal Film, 0.5W, 370ohm, 350V, 0.5% +/-Tol, -15,15ppm/Cel,	Fixed Resistor, Metal Film, 0.5W, 383ohm, 350V, 1% +/-Tol, -25,25ppm/Cel,	Electric Fuse, ELECTRIC FUSE, 5A, 32VAC, 32VDC, 50A (IR), SURFACE MOUNT, HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code	unknown	-	unknow	-	compliant	compliant	unknown
