0209004.DRT1P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 0209004.DRT1P

0209004.DRT1P: DescriptionElectric Fuse, Time Lag Blow, 4A, 100A (IR), 2AG,; CategoryCircuit protection Circuit protection; File Size421KB，4 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

0209004.DRT1P Overview

Electric Fuse, Time Lag Blow, 4A, 100A (IR), 2AG,

0209004.DRT1P Parametric

Parameter Name	Attribute value
Maker	Littelfuse
Reach Compliance Code	unknown
Fusing characteristics	TIME LAG
body height	14.48 mm
Body length or diameter	4.5 mm
Circuit protection type	Electric Fuse
Fuse size	2AG
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
physical size	4.5mm x 14.48mm
Pre-discharge rating	148 A2/s
Rated breaking capacity	100 A
Rated current	4 A
Rated voltage	350 V
Guideline	CE, PSE, UL
Terminal shape	END CAP
Disconnect time or delay	14400 s

Preview

Download Datasheet

View All

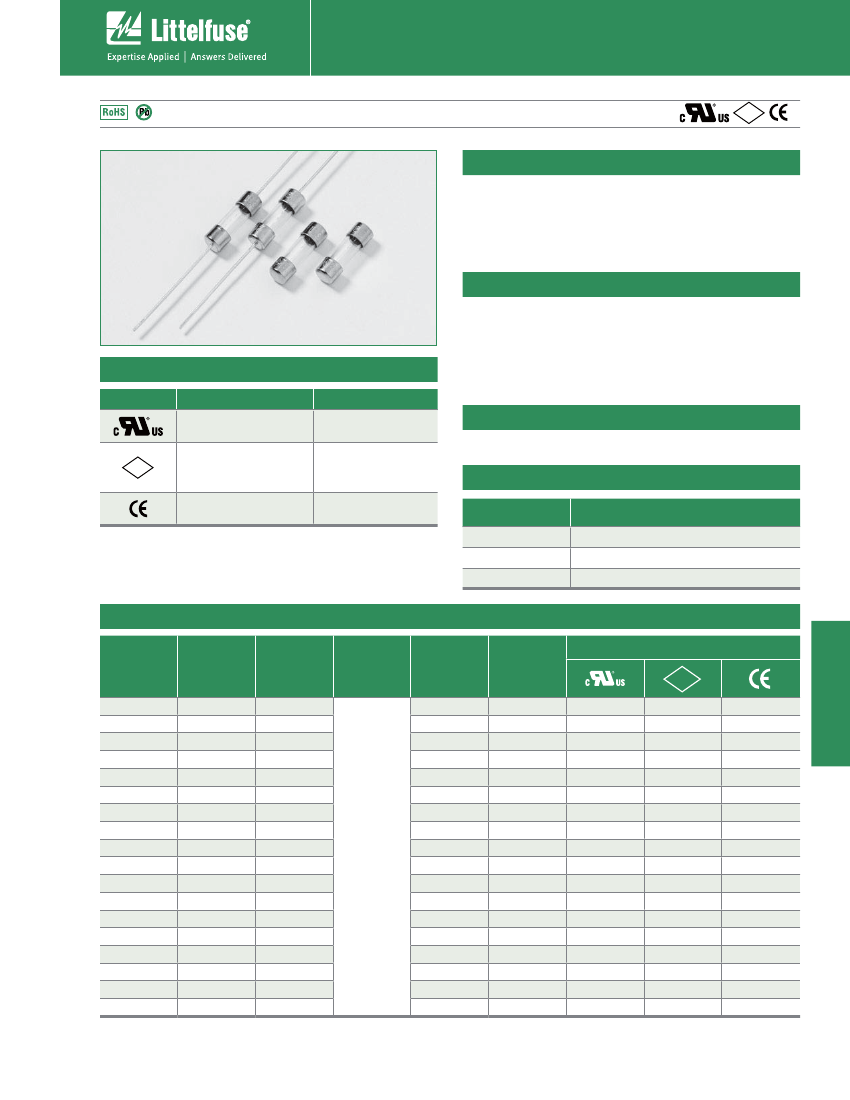

Axial Lead & Cartridge Fuses

2AG > Time Lag > 209 Series

209 Series

Lead-Free 2AG, Slo-Blo

(Time-Lag) Fuse

Description

Littelfuse 209 Series (2AG) 350V, Time-Lag (Slo-Blo

) Fuses

are available in cartridge form or with axial leads. This

series provides the same performance characteristics as

its 3AG counterpart, while occupying one-third the space.

Sleeved fuses are available.

Features

with Underwriter’s

Laboratories Standard

UL 248-14

Agency Approvals

and axial lead form and

Agency

Agency File Number

Ampere Range

with various forming

dimensions

Lead-free

E10480

250mA-7A

Applications

NBK210405-E10480G/H

NBK210405-E10480C/D

NBK210405-E10480E/F

1A-7A

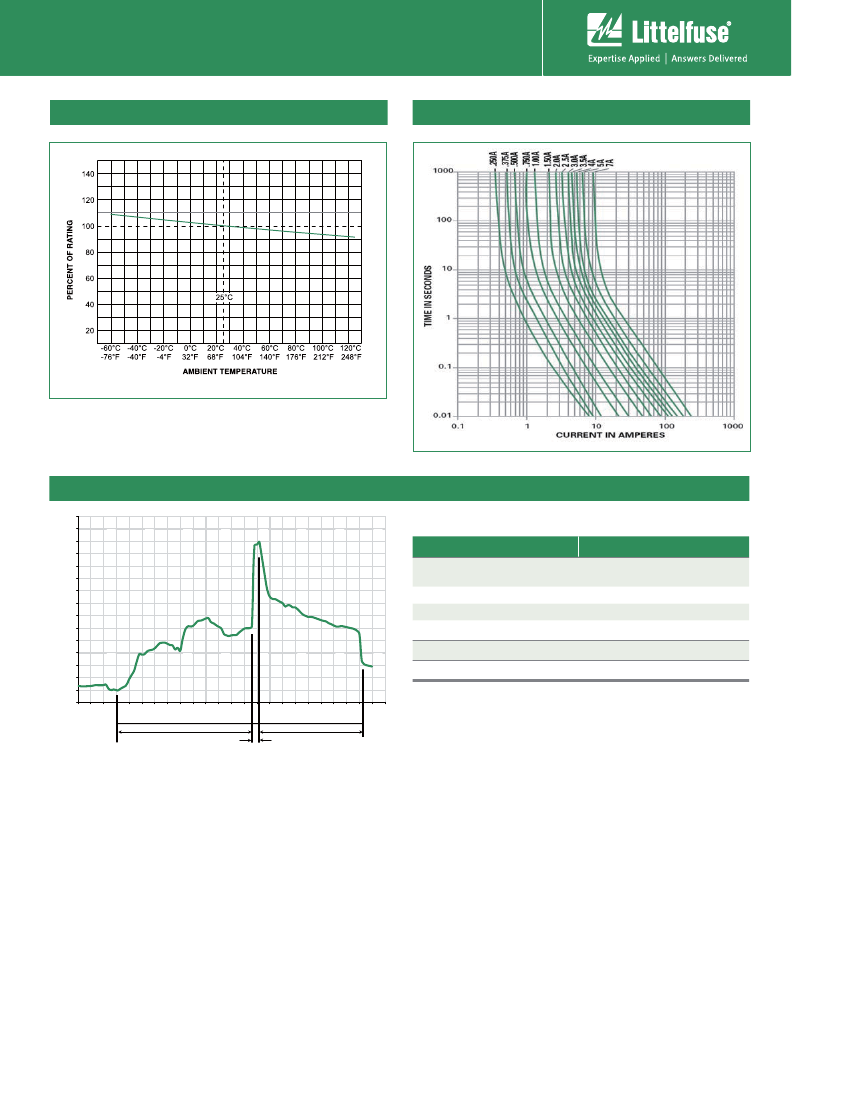

Electrical Characteristics for Series

% of Ampere

Rating

100%

135%

200%

Opening Time

4 Hours,

Min.

1 Hour,

Max.

3 Sec.

Min.

; 20 Sec.

Max.

250mA-7A

Electrical Characteristic Specifications by Item

Amp

Code

.250

.375

.500

.600

.750

.800

001.

1.25

01.5

002

2.25

02.5

003

03.5

004

005

006

007

Specifications are subject to change without notice.

Please refer to www.littelfuse.com/series/209.html for current information.

Ampere

Rating

(A)

0.25

0.375

0.5

0.6

0.75

0.8

1.25

1.5

2.25

2.5

3.5

Voltage

Rating

(V)

350

Nominal Cold

Interrupting

Resistance

Rating

(Ohms)

2.410

1.170

0.688

0.477

0.340

0.304

0.210

0.1460

100A @

350Vac

0.1077

0.0689

0.0567

0.0502

0.0383

0.0312

0.0258

0.0186

0.0141

0.0116

Nominal

Melting

t (A

sec)

0.216

0.580

1.160

1.750

2.950

3.450

5.640

9.80

15.0

30.0

39.0

50.0

110

148

267

380

464

209 Series

251

Revised: June 25, 2010

209 Series

Agency Approvals

0209004.DRT1P Related Products

	0209004.DRT1P	0209002.DRT1P	0209003.DRT1P	0209005.DRT1P	020901.5DRT1P	020902.5DRT1P	020903.5DRT1P	02091.25DRT1P	0209006.DRT1P
Description	Electric Fuse, Time Lag Blow, 4A, 100A (IR), 2AG,	Electric Fuse, Time Lag Blow, 2A, 100A (IR), 2AG,	Electric Fuse, Time Lag Blow, 3A, 100A (IR), 2AG,	Electric Fuse, Time Lag Blow, 5A, 100A (IR), 2AG,	Electric Fuse, Time Lag Blow, 1.5A, 100A (IR), 2AG,	Electric Fuse, Time Lag Blow, 2.5A, 100A (IR), 2AG,	Electric Fuse, Time Lag Blow, 3.5A, 100A (IR), 2AG,	Electric Fuse, Time Lag Blow, 1.25A, 100A (IR), 2AG,	Electric Fuse, Time Lag Blow, 6A, 100A (IR), 2AG,
Maker	Littelfuse	Littelfuse	Littelfuse	Littelfuse	Littelfuse	Littelfuse	Littelfuse	Littelfuse	Littelfuse
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
Fusing characteristics	TIME LAG	TIME LAG	TIME LAG	TIME LAG	TIME LAG	TIME LAG	TIME LAG	TIME LAG	TIME LAG
body height	14.48 mm	14.48 mm	14.48 mm	14.48 mm	14.48 mm	14.48 mm	14.48 mm	14.48 mm	14.48 mm
Body length or diameter	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm
Circuit protection type	Electric Fuse	Electric Fuse	Electric Fuse	Electric Fuse	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	Electric Fuse
Fuse size	2AG	2AG	2AG	2AG	2AG	2AG	2AG	2AG	2AG
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
physical size	4.5mm x 14.48mm	4.5mm x 14.48mm	4.5mm x 14.48mm	4.5mm x 14.48mm	4.5mm x 14.48mm	4.5mm x 14.48mm	4.5mm x 14.48mm	4.5mm x 14.48mm	4.5mm x 14.48mm
Pre-discharge rating	148 A2/s	30 A2/s	77 A2/s	267 A2/s	15 A2/s	50 A2/s	110 A2/s	9.8 A2/s	380 A2/s
Rated breaking capacity	100 A	100 A	100 A	100 A	100 A	100 A	100 A	100 A	100 A
Rated current	4 A	2 A	3 A	5 A	1.5 A	2.5 A	3.5 A	1.25 A	6 A
Rated voltage	350 V	350 V	350 V	350 V	350 V	350 V	350 V	350 V	350 V
Guideline	CE, PSE, UL	CE, PSE, UL	CE, PSE, UL	CE, PSE, UL	CE, PSE, UL	CE, PSE, UL	CE, PSE, UL	CE, PSE, UL	CE, PSE, UL
Terminal shape	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP
Disconnect time or delay	14400 s	14400 s	14400 s	14400 s	14400 s	14400 s	14400 s	14400 s	14400 s
