RJA03-164-2410 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> RJA03-164-2410

Preview

RJA03-164-2410: DescriptionTelecom and Datacom Connector, 6 Contact(s), Female, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size121KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

RJA03-164-2410 Overview

Telecom and Datacom Connector, 6 Contact(s), Female, Right Angle, Solder Terminal

RJA03-164-2410 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SHIELDED
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE POLYESTER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	RJA03
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN LEAD
Shell material	COPPER ALLOY
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

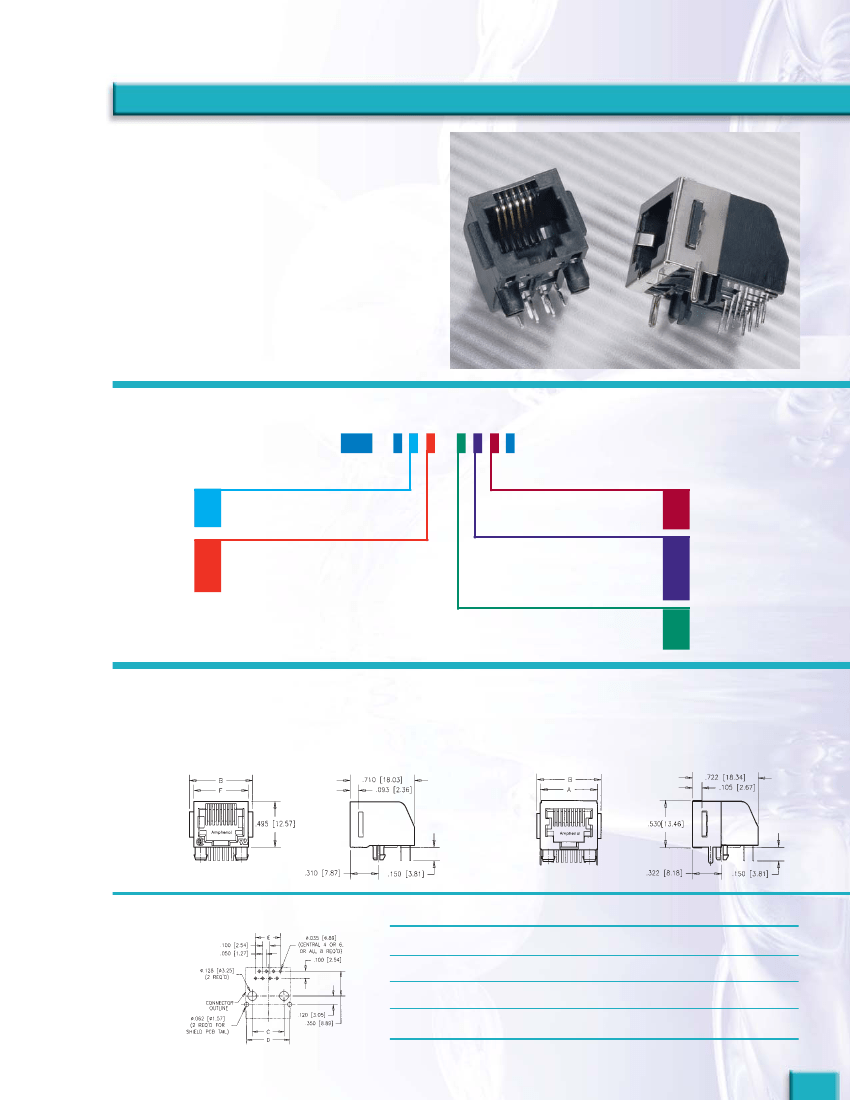

RJA03 Series

LOW PROFILE - SINGLE PORT

Material Specifications

PHYSICAL

Housing:

Contacts:

Contact Plating:

Shield:

High Strength Thermoplastic

Polyester Flammability Rating

UL94V-0

Phosphor Bronze

Gold Over Nickel On Mating

Area, Tin-Lead Alloy On Tails

Copper Alloy, Tin-Lead Alloy

Plated

E136228

ELECTRICAL

UL File # :

Ordering Information

RJA03

–

1 X X

–

X X X 0

X

NUMBER OF POSITIONS

8 - 8 position

6 - 6 position

NUMBER OF CONTACTS

8 - 8 contacts (8 position)

6 - 6 contacts (6 position)

4 - 4 contacts (4 or 6 position)

OPTIONS

1 - without flanged

2 - flanged

GOLD PLATING

1 - 6 µ inches gold

2 - 15 µ inches gold

3 - 30 µ inches gold

4 - 50 µ inches gold

SHIELDING

0 - no shield

2 - partial shield (must have flange)

X

Single Port (8 & 6 Position)

NON-SHIELDED

PARTIAL SHIELD

PCB LAYOUT

Number

Number of

of positions contacts

6

4

6

8

6

8

A

.544

[13.83]

.544

[13.21]

.624

[15.24]

B

.620

[15.75]

.620

[15.75]

.700

[17.78]

C

.400

[10.16]

.400

[10.16]

.450

[11.43]

D

.533

[13.54]

.533

[13.54]

.613

[15.57]

E

.150

[3.81]

.250

[6.35]

.350

[8.89]

F

.520

[13.21]

.520

[13.21]

.600
