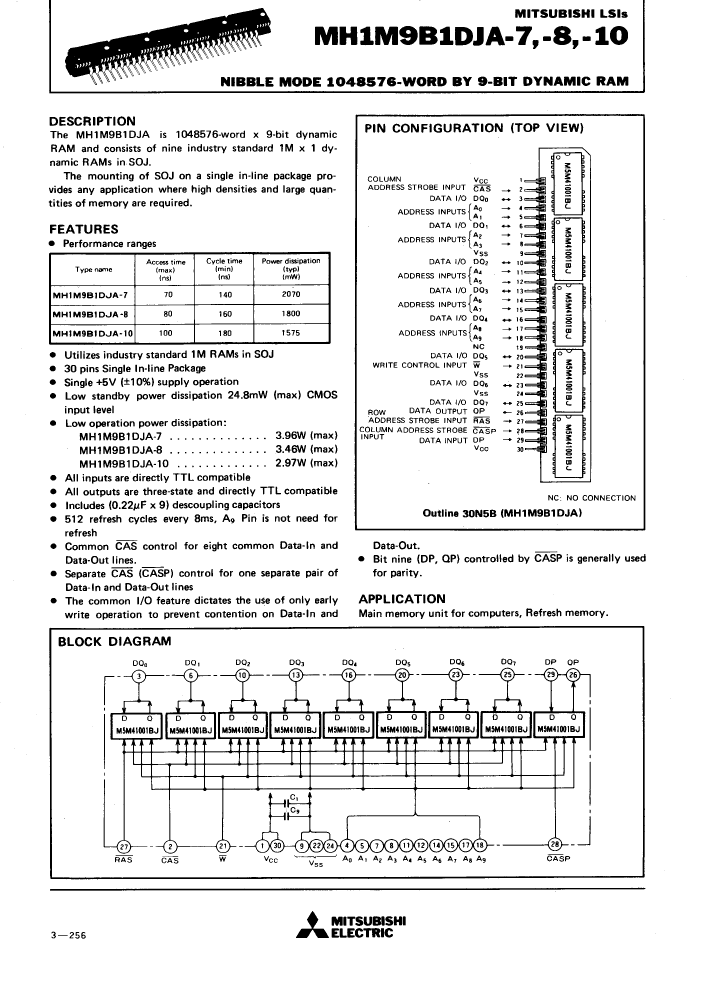

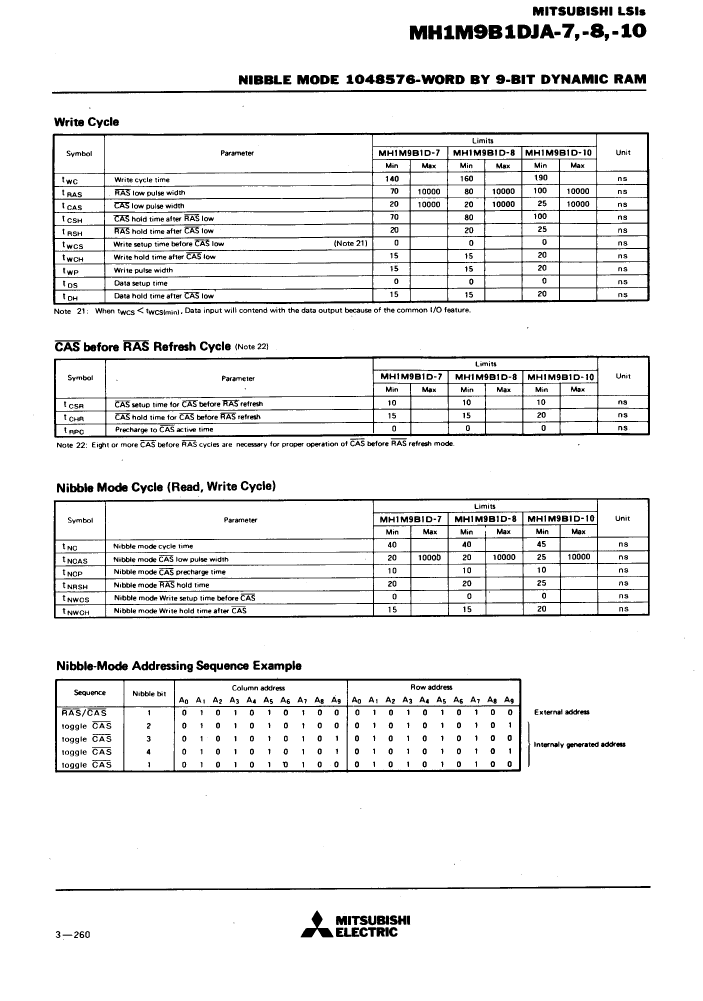

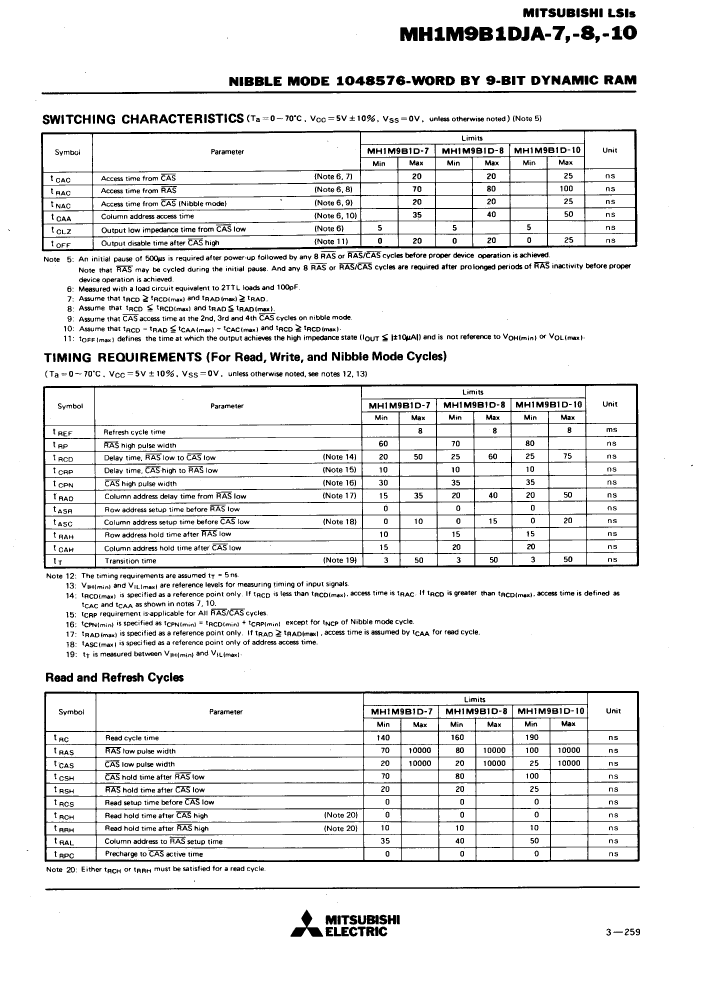

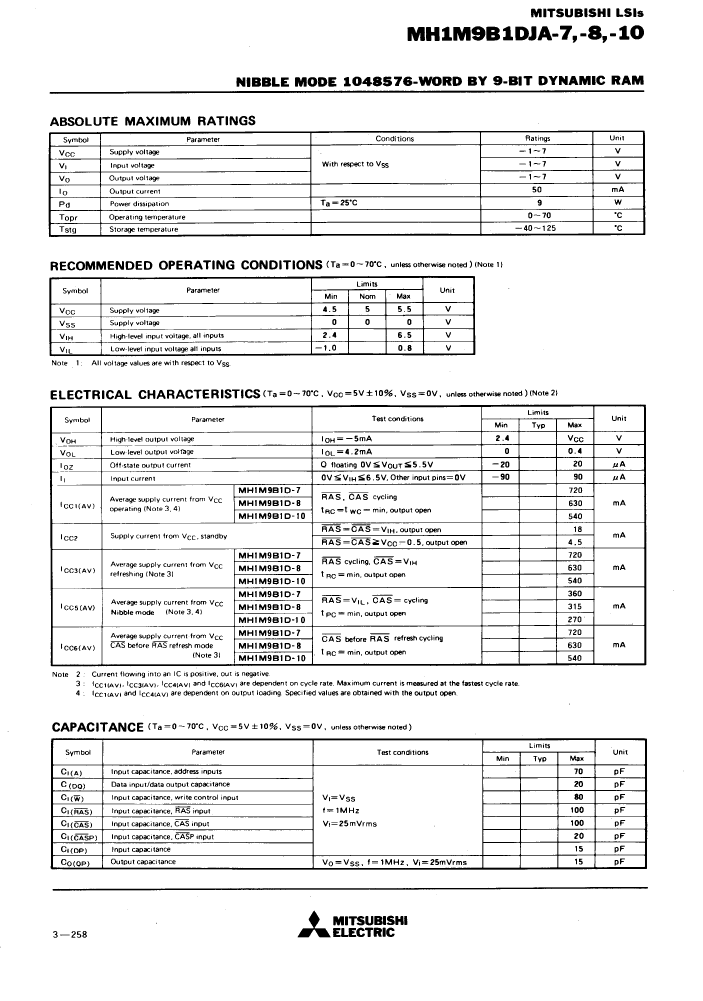

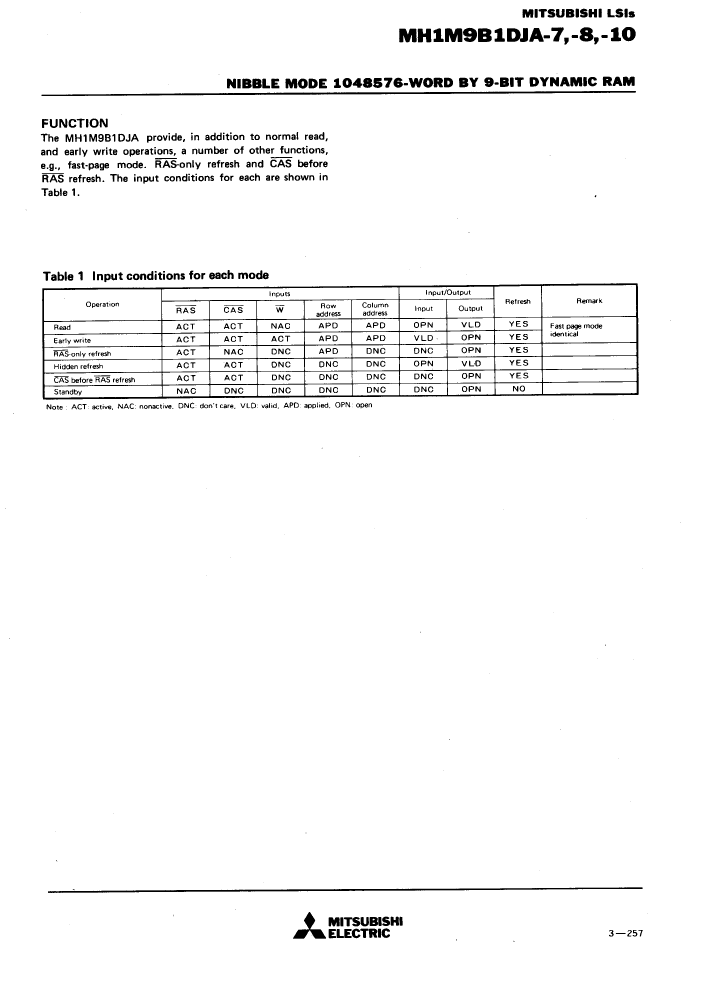

MH1M9B1DJA-10: DescriptionDRAM Module, 1MX9, 100ns, CMOS, SIMM-30; Categorystorage storage; File Size326KB，11 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

MH1M9B1DJA-10 Overview

DRAM Module, 1MX9, 100ns, CMOS, SIMM-30

MH1M9B1DJA-10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mitsubishi
Parts packaging code	SIMM
package instruction	, SIP30,.2
Contacts	30
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	NIBBLE
Maximum access time	100 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-XSMA-T30
JESD-609 code	e0
memory density	9437184 bit
Memory IC Type	DRAM MODULE
memory width	9
Number of functions	1
Number of ports	1
Number of terminals	30
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX9
Output characteristics	3-STATE
Package body material	UNSPECIFIED
Encapsulate equivalent code	SIP30,.2
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
refresh cycle	512
Maximum seat height	12.7 mm
Maximum standby current	0.0045 A
Maximum slew rate	0.54 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer
