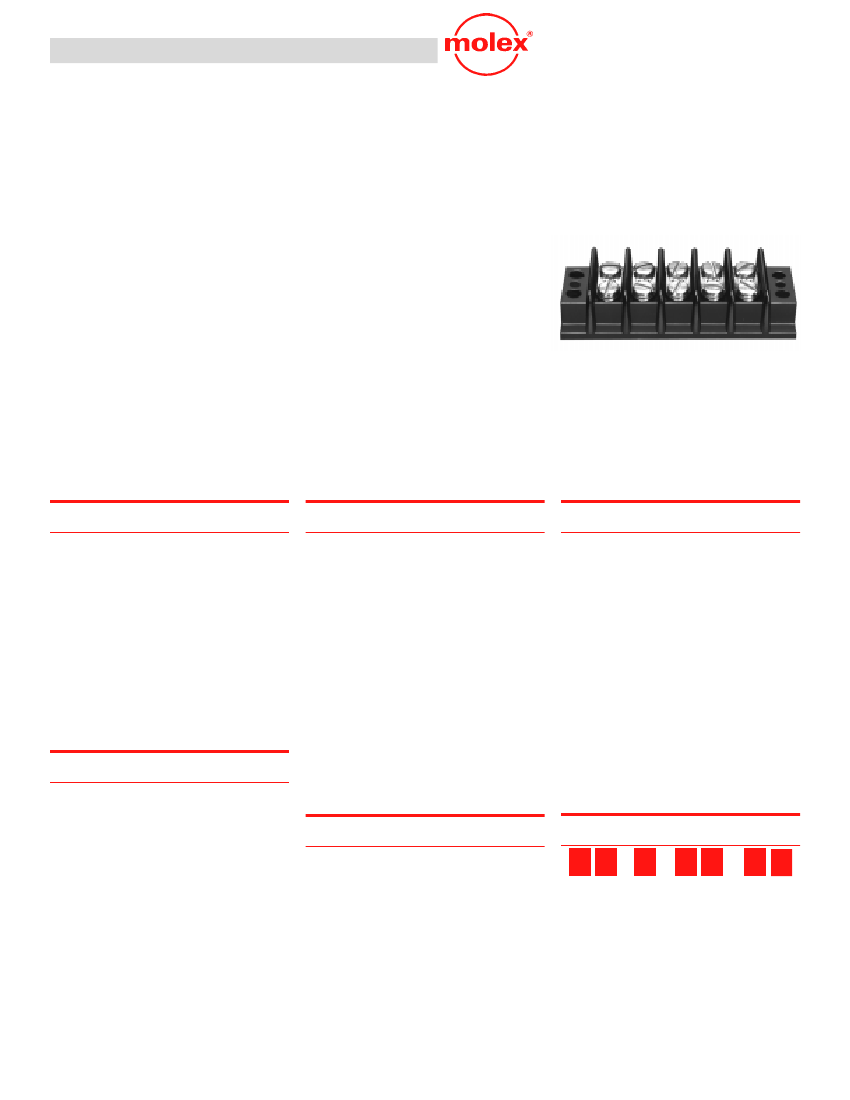

SERIES 18
BEAU Terminal Blocks
.438" Double Row Phenolic Barrier Terminal Strip
Description
The series 18 phenolic double row
terminal strip is one of our most versatile
products. The terminal block is offered in
feed-thru and open bottom designs and is
available in a variety of terminal and
screw styles.
The 150° C temperature rating and
robust terminal design make the series 18
the choice for your most demanding
applications.
Made in the USA, all Beau terminal
blocks embody the highest quality
standards in the industry-using the finest
materials and world class manufacturing
processes. They meet or exceed all
applicable industry standards.
Features
•
Snap-On covers
meet UL touch safe
requirements. The low-cost optional
covers are an economical way to
prevent accidental shock.
High temperature phenolic
insulator
out performs many thermoplastic
compounds.
Wide variety of options.
Our broad
range of screw, terminal, hardware
and mounting options allows us to
save you assembly costs and improve
interconnect performance.
•
•
PRODUCT RATINGS
#6-32 BINDING HEAD SCREW
UL
Class B
15 Amps @ 300 V 14 AWG
Class C
10 Amps @ 300 V 14 AWG
CSA
Class B
Class C
20 Amps @ 300 V 14 AWG
20 Amps @ 300 V 14 AWG
TECHNICAL SPECIFICATIONS
ELECTRICAL
DWV
IR
MECHANICAL
Tightening torque
Maximum torque
Wire strip length
Wire range
OPTIONS
-45
-45-56
-47
-49
-50
-58
-59
-60
-61
-66
-C
Slotted screw
Stainless steel screw, slotted
Screws up, wire ready
Brass, phillips/slotted screw
Clamp washer, phillips/slotted screw
No screws, barrier only
Screws supplied unassembled
One row screws supplied
unassembled
One row screws not supplied
Bonded marker strip
No mounting ends
7500 VDC
>5000 Megohms
12 in-lbs.
13 in-lbs.
5/16"
12 to 22 AWG
#6-32 WIRE CLAMP SCREW
UL
Class B
20 Amps @ 300 V 12 AWG
Class C
10 Amps @ 300 V 12 AWG
CSA
Class B
Class C
20 Amps @ 300 V 12 AWG
20 Amps @ 300 V 12 AWG
ENVIRONMENTAL
Continuous Use Temp
RTI electrical
RTI mechanical w/o impact
150
o
C
150
o
C
AGENCY LISTINGS
UL
CSA
File No. E48521
Guide No. XCFR2
File No. 025562
MATERIALS
Insulator
Terminal
Screws
General purpose phenolic,
UL94VO, black
Brass, nickel plate
#6-32, phillips/slotted, steel,
zinc chromate plate

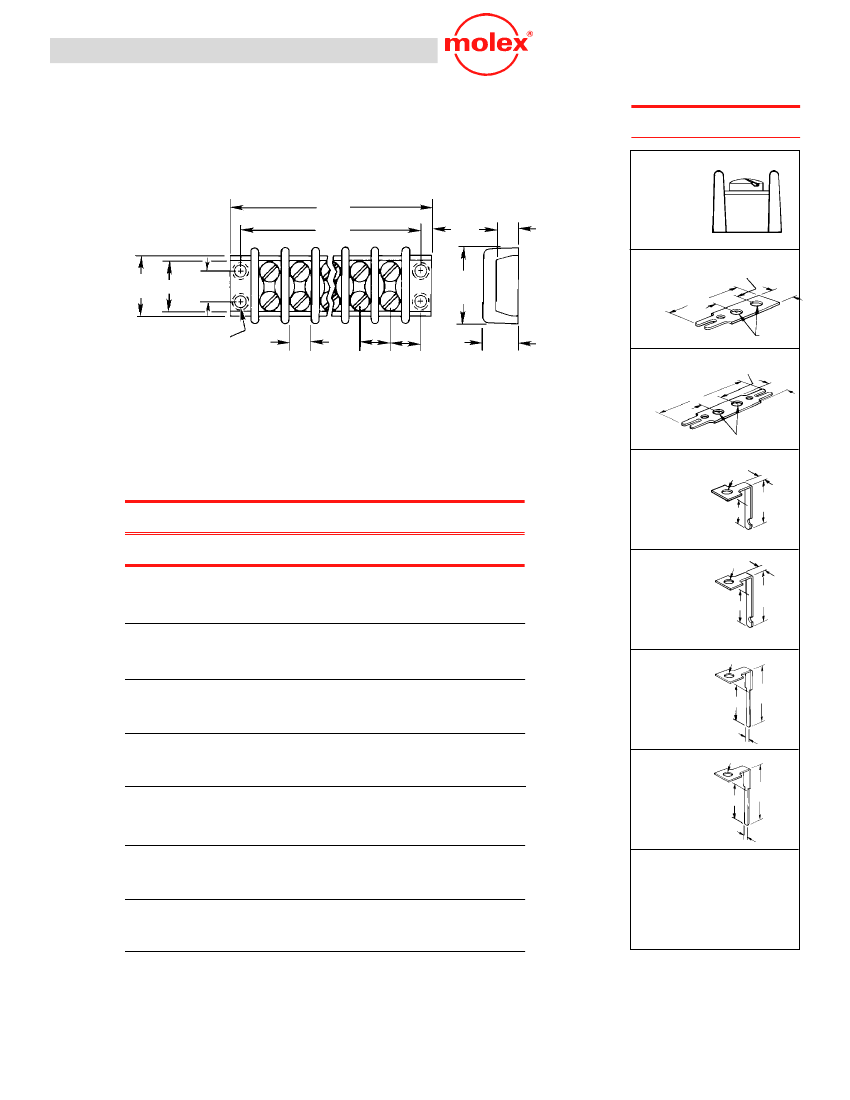

HOW TO ORDER
1 8
SERIES
X
TERMINAL
STYLE
012
356
7
X X - X X
NO. OF
POLES
2 to 30
(Dash #s above
and
opposite page)
OPTIONS
*Consult factory for combinations of screw options.
Molex Industrial Division
New England Operations
Gilford, NH 03246-6600
Phone
(603) 524-5101
Fax
(603) 524-1627
Internet www.beauint.com
