ED430825

Description
Silicon Controlled Rectifier, 393A I(T)RMS, 250000mA I(T), 800V V(DRM), 800V V(RRM), 2 Element, POW-R-BLOK-7
CategoryAnalog mixed-signal IC    Trigger device
File Size73KB,4 Pages
ManufacturerPOWEREX
Websitehttp://www.pwrx.com/Home.aspx
Download Datasheet Parametric Compare View All

ED430825 Overview

Silicon Controlled Rectifier, 393A I(T)RMS, 250000mA I(T), 800V V(DRM), 800V V(RRM), 2 Element, POW-R-BLOK-7

ED430825 Parametric

Parameter NameAttribute value
MakerPOWEREX
package instructionFLANGE MOUNT, R-XXFM-X7
Contacts7
Reach Compliance Codeunknown
Shell connectionISOLATED
ConfigurationSERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum DC gate trigger current150 mA
Maximum DC gate trigger voltage3 V
Quick connection description2G-2GR
Description of screw terminalsA-K-AK
JESD-30 codeR-XXFM-X7
Maximum leakage current50 mA
On-state non-repetitive peak current6500 A
Number of components2
Number of terminals7
Maximum on-state current250000 A
Maximum operating temperature130 °C
Minimum operating temperature-40 °C
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum rms on-state current393 A
Off-state repetitive peak voltage800 V
Repeated peak reverse voltage800 V
surface mountNO
Terminal formUNSPECIFIED
Terminal locationUNSPECIFIED
Trigger device typeSCR

ED430825 Preview

ED43_ _25

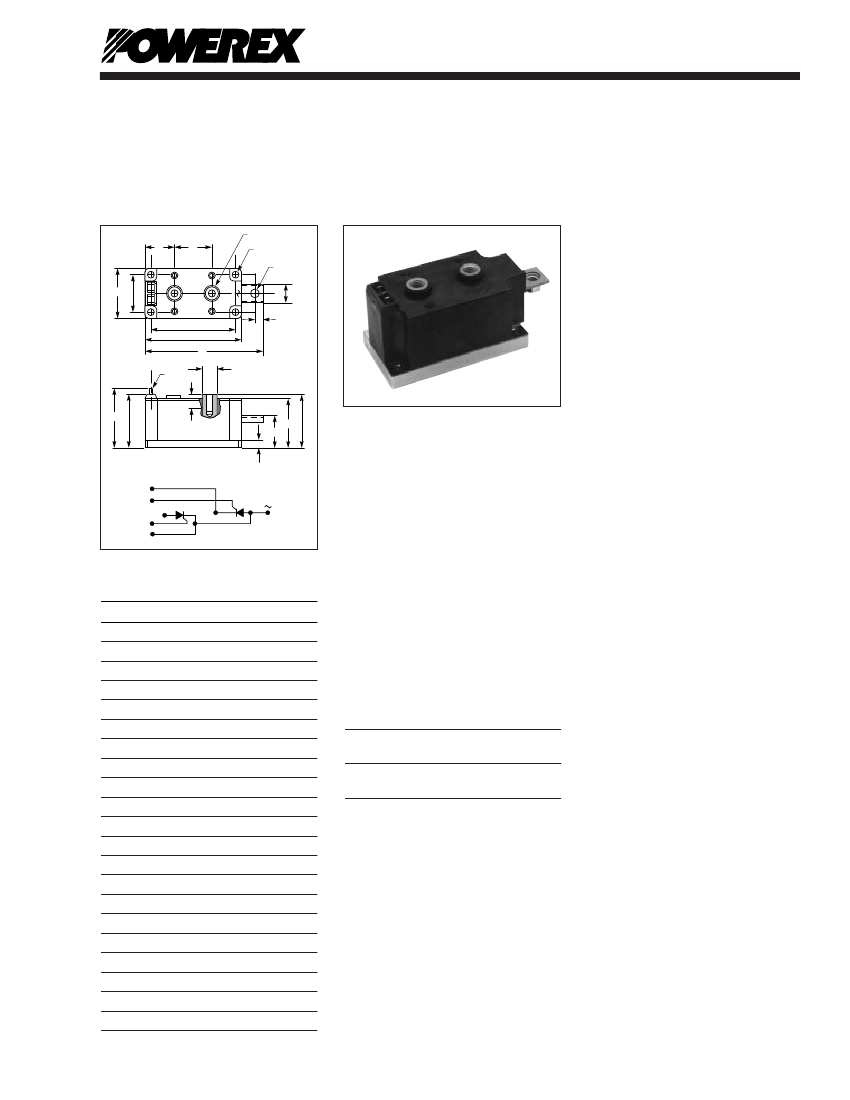

Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
Dual SCR Isolated
POW-R-BLOK™ Module
250 Amperes/600-1600 Volts
OUTLINE DRAWING
D
C
K THD. (2)
H DIA. (4)
S DIA.
E
F
A
K
+
J
L
G
B
A
V
U
R
Q
T
N
O
M
CONNECTION DIAGRAMS
K1
G1
G2
K2
SCR 2
SCR 1
+
P
ED43_ _25
Dual SCR Isolated
POW-R-BLOK™ Module
250 Amperes/600-1600 Volts
AK
Outline Drawing
Dimension
A
B
C
D
E
F
G
H
J
K
L
M
N
O
P
Q
R
S
T
U
V
Inches
4.57
3.66
1.38
1.12
1.97
1.50
3.15
0.22
0.71
0.35
2.05
1.93
1.34
0.394
2.16
0.55
2.09
0.110 x 0.032
0.54
Millimeters
116
93
35
28.5
50
38
80
5.5
18.0
M8
9
52
49
34
10.0
55
14
M8
53.1
2.8 x 0.8
14
Ordering Information:
Select the complete eight digit
module part number you desire
from the table below.
Example: ED431625 is a
1600 Volt, 250 Ampere Dual SCR
Isolated POW-R-BLOK™ Module.
Type
ED43
Voltage
Volts (x100)
06
08 thru 16
Current Rating
Amperes (x10)
25
Description:
The POW-R-BLOK™ combines
multiple power semiconductor
devices in a single, electrically
isolated module. POW-R-BLOK™
can serve as the essential circuit
element in many industrial applica-
tions, such as motor speed control
and battery chargers. This dual
SCR module is available for use in
120, 240, 480 or 575 volt power
line applications.
POW-R-BLOK™ features a self
contained electrical isolation
system. By using high thermal
conductivity BeO ceramic
isolators, excellent circuit-to-
baseplate isolation (
2500 volts
RMS) has been achieved, while
maintaining efficient cooling of the
semiconductors. All ED Series
SCRs use the “di/Namic” gate
structure for ease of triggering
and high di/dt capability.
Features:
Compression Bonded
Elements
Isolated Baseplate
Insulated Package
Low Thermal Impedance
Metal Baseplate
Benefits:
No Additional insulating
Conponents Required
Easy installation
Reduced Engineering Time
Improved Heat Transfer
Voltage Stability
2
1
AK
R-73
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
ED43_ _25
Dual SCR Isolated
POW-R-BLOK™ Module
250 Amperes/600-1600 Volts
Absolute Maximum Ratings
Characteristics
Peak Forward Blocking Voltage
Peak Reverse Blocking Voltage
Transient Peak Reverse Blocking Voltage (Non-Repetitive) t
<
5ms
DC Reverse Blocking Voltage
RMS On-State Current
Average On-State Current
Peak One-Cycle Surge (Non-Repetitive) On-State Current (60Hz)
Peak Three-Cycle Surge (Non-Repetitive) On-State Current (60Hz)
Peak Ten-Cycle Surge (Non-Repetitive) On-State Current (60Hz)
I2t (for Fusing), 8.3 milliseconds
Critical Rate-of Rise of On-State Current (Non-Repetitive)*
Peak Gate Power Dissipitation
Average Gate Power Dissipitation
Peak Forward Gate Voltage
Peak Reverse Gate Voltage
Peak Forward Gate Current
Storage Temperature
Operating Temperature
Maximum Mounting Torque M6 Mounting Screw
Maximum Mounting Torque M8 Terminal Screw
V Isolation
*Per JEDEC STD RS-397, 5.2.2.6.
With Recommended Gate Drive.
Symbol
VDRM
VRRM
VRSM
VR(DC)
IT(RMS)
IT(AV)
ITSM
ITSM
ITSM
I2t
di/dt
PGM
PG(AV)
VGFM
VGRM
IGFM
TSTG
Tj
VRMS
Conditions
ED43_ _25
1600
1600
1800
1600
393
250
6500
4685
4040
175,000
800
16
3.0
10
5.0
4.0
-40 to 150
-40 to 130
50
130
2500
Units
Volts
Volts
Volts
Volts
Amperes
Amperes
Amperes
Amperes
Amperes
A2sec
Amperes/ s
Watts
Watts
Volts
Volts
Amperes
°C
°C
lb.-in.
lb.-in.
Volts
R-74
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
ED43_ _25
Dual SCR Isolated
POW-R-BLOK™ Module
250 Amperes/600-1600 Volts
Electrical and Thermal Characteristics,
Tj = 25°C unless otherwise specified
Characteristics
Blocking State Maximums
Forward Leakage Current, Peak
Reverse Leakage Current, Peak
Conducting State Maximums
Peak On-State Voltage
Switching Minimums
Critical Rate-of-Rise of Off-State Voltage
Turn-Off Time (Typical)
Symbol
IDRM
IRRM
VTM
dv/dt
tq
Test Conditions
Tj = 130°C, VDRM = Rated
Tj = 130°C, VRRM = Rated
ITM = 625A
Tj = 130°C, VD = 2/3 VDRM
Tj = 130°C, IT = 250A
Reapplied dv/dt = 20V/ s
Linear to 0.8 VDRM
ITM = 100A, VD = 100V
Per Module
Per Module
VD = 12V
VD = 12V
Tj = 130°C, VD = 1/2 VDRM
ED43_ _25
50
50
1.30
500
150
Units
mA
mA
Volts
Volts/ s
s
Turn-On Time (Typical)
Thermal Maximums
Thermal Resistance, Junction-to-Case
Thermal Resistance, Case-to-Sink (Lubricated)
Gate Parameters Maximums
Gate Current-to-Trigger
Gate Voltage-to-Trigger
Non-Triggering Gate Voltage
ton
R (J-C)
R (C-S)
IGT
VGT
VGDM
7
0.09
0.03
150
3
0.15
s
°C/Watt
°C/Watt
mA
Volts
Volts
WARNING:
Internal insulation used is Beryllium Oxide.
User should avoid grinding, crushing, or abrading these portions.
Care must be exercised in properly disposing of unwanted devices.
R-75
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
ED43_ _25
Dual SCR Isolated
POW-R-BLOK™ Module
250 Amperes/600-1600 Volts

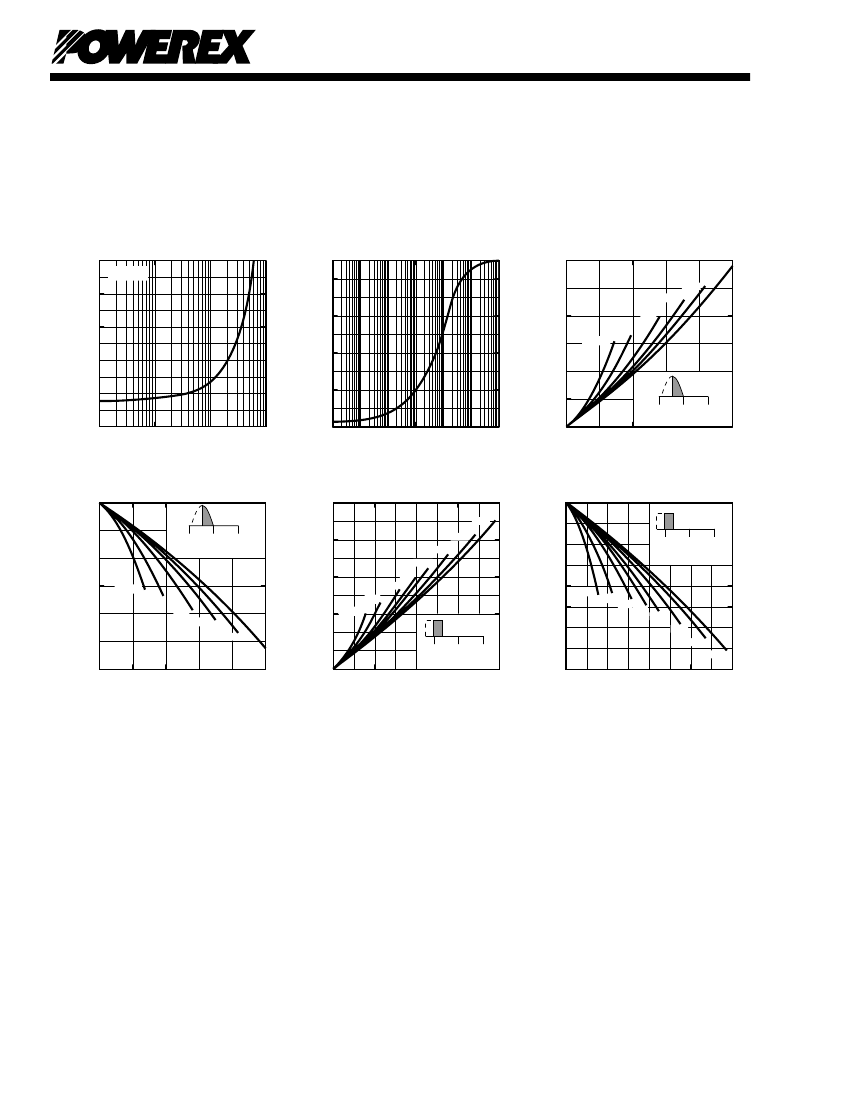

MAXIMUM ON-STATE FORWARD
VOLTAGE DROP
MAXIMUM TRANSIENT THERMAL
IMPEDANCE (JUNCTION-TO-CASE)
(PER SCR)
MAXIMUM POWER DISSIPATION, P
AV(MAX)
, (WATTS)
MAXIMUM ON-STATE POWER DISSIPATION
(SINUSOIDAL WAVEFORM)
(PER SCR)
5
T
j
= 130
o
C
THERMAL IMPEDANCE, R
(J-C)
, (
o
C/W)
ON-STATE VOLTAGE, V
TM
, (VOLTS)
0.18
0.16
0.14
0.12
0.10
0.08
0.06
0.04
0.02
300
180
o
4
250
90
o
120
o
60
o
= 15
o
30
o
200
150
100
50
3
2
1
0
o
180
o
360
o
CONDUCTION ANGLE
0
10
1
10
2
10
3
10
4
0
10
-4
0
0
50
100
150
200
250
AVERAGE ON-STATE CURRENT, I
T(AV)
,
(AMPERES)
10
-3
10
-2
10
-1
10
0
10
1
10
2
INSTANTANEOUS ON-STATE CURRENT, I
TM
,
(AMPERES)
TIME, t, (SECONDS)
MAXIMUM ALLOWABLE CASE TEMPERATURE
(SINUSOIDAL WAVEFORM)
MAXIMUM POWER DISSIPATION, P
AV(MAX)
, (WATTS)
MAXIMUM ON-STATE POWER DISSIPATION
(RECTANGULAR WAVEFORM)
(PER SCR)
MAXIMUM ALLOWABLE CASE TEMPERATURE
(RECTANGULAR WAVEFORM)
130
MAXIMUM CASE TEMPERATURE, T
C
, (
o
C)
450
MAXIMUM CASE TEMPERATURE, T
C
, (
o
C)
130
360
o
270
o
180
o
120
o
90
o
60
o
30
o
=
15
o
400
350
300
250
200
150
100
50
0
0
100
200
300
120
110
100
90
80
70
0
50
100
= 15
o
30
o
120
110
100
90
80
70
60
50
0
100
200
= 15
o
0
o
180
o
360
o
CONDUCTION ANGLE
0
180
360
CONDUCTION ANGLE
o
o
o
30
o
60
o
60
o
90
o
90
o
120
o
180
o
120
o
180
o
270
o
360
o
0
o
180
o
360
o
CONDUCTION ANGLE
150
200
250
400
300
400
AVERAGE ON-STATE CURRENT, I
T(AV)
,
(AMPERES)
AVERAGE ON-STATE CURRENT, I
T(AV)
,
(AMPERES)
AVERAGE ON-STATE CURRENT, I
T(AV)
,
(AMPERES)
R-76

ED430825 Related Products

ED430825 ED431225
Description Silicon Controlled Rectifier, 393A I(T)RMS, 250000mA I(T), 800V V(DRM), 800V V(RRM), 2 Element, POW-R-BLOK-7 Silicon Controlled Rectifier, 393A I(T)RMS, 250000mA I(T), 1200V V(DRM), 1200V V(RRM), 2 Element, POW-R-BLOK-7
Maker POWEREX POWEREX
package instruction FLANGE MOUNT, R-XXFM-X7 FLANGE MOUNT, R-XXFM-X7
Contacts 7 7
Reach Compliance Code unknown unknown
Shell connection ISOLATED ISOLATED
Configuration SERIES CONNECTED, CENTER TAP, 2 ELEMENTS SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum DC gate trigger current 150 mA 150 mA
Maximum DC gate trigger voltage 3 V 3 V
Quick connection description 2G-2GR 2G-2GR
Description of screw terminals A-K-AK A-K-AK
JESD-30 code R-XXFM-X7 R-XXFM-X7
Maximum leakage current 50 mA 50 mA
On-state non-repetitive peak current 6500 A 6500 A
Number of components 2 2
Number of terminals 7 7
Maximum on-state current 250000 A 250000 A
Maximum operating temperature 130 °C 130 °C
Minimum operating temperature -40 °C -40 °C
Package body material UNSPECIFIED UNSPECIFIED
Package shape RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT
Certification status Not Qualified Not Qualified
Maximum rms on-state current 393 A 393 A
Off-state repetitive peak voltage 800 V 1200 V
Repeated peak reverse voltage 800 V 1200 V
surface mount NO NO
Terminal form UNSPECIFIED UNSPECIFIED
Terminal location UNSPECIFIED UNSPECIFIED
Trigger device type SCR SCR
Is this MOS tube drawn wrong?
[i=s]This post was last edited by jishuaihu on 2015-5-22 13:27[/i] Is this MOS tube drawn wrong? As shown in the figure, the function of the circuit is also explained. When looking at this figure, I f...
jishuaihu Integrated technical exchanges
Hercules DIY Week 5 (Content is incorrect)
[font=Helvetica, Arial, sans-serif][size=12px]Sorry, I didn't mean to post the post I submitted in the fifth week, but I made some mistakes. I am revising it recently. But thank you all the same!! The...
Sur Microcontroller MCU
How to modify the project name in evc
I want to change the name of an existing evc project without affecting the normal operation of the project. What should I do? Thank you!...
berryfan Embedded System
High fanout solution
Fanout is the number of lower-level modules directly called by a module. If this value is too large, it will directly manifest as a large net delay in the FPGA, which is not conducive to timing conver...
eeleader FPGA/CPLD
When TMR2≥CCPR1L, the PWM function pin starts to output a low level.
When TMR2≥CCPR1L, the PWM function pin starts to output a low level.When TMR2≥PR2, TMR2=0, another cycle count starts again, and the PWM function pin starts to output a high level. How do I write thes...
a372708078 Microchip MCU
Unforgettable 2017, work, work
I am not in good health, so I often take a break after working for a while. In 2017, I took a break until July, when I started looking for a job. It was a company that made water meters and electricit...
chenbingjy Talking

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 2160  1680  2753  2495  617  44  34  56  51  13
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
