DTSM-65K-V-T/R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> DTSM-65K-V-T/R

DTSM-65K-V-T/R: DescriptionKeypad Switch, 0.05A, 12VDC, Solder Terminal, Surface Mount-straight,; CategoryMechanical and electronic products switch; File Size1MB，1 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric View All

DTSM-65K-V-T/R Overview

Keypad Switch, 0.05A, 12VDC, Solder Terminal, Surface Mount-straight,

DTSM-65K-V-T/R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	APEM
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator color	BLACK
Actuator length	0.236 inch
Actuator type	PUSHBUTTON
body width	6.1976 mm
body height	3.5052 mm
Body length or diameter	6.1976 mm
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	200000 Cycle(s)
Installation features	SURFACE MOUNT-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
surface mount	NO
Switch type	KEYPAD SWITCH
Termination type	SOLDER

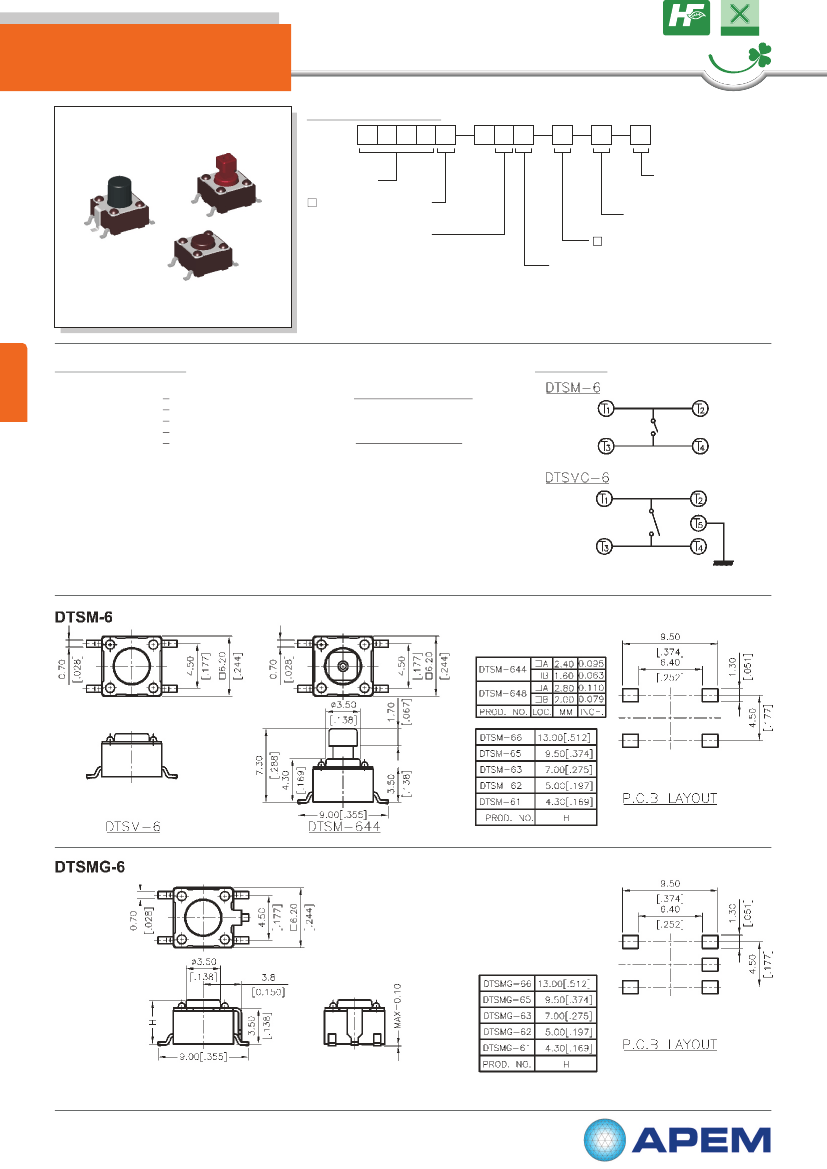

DTSM-65K-V-T/R Preview

DTSM(G)-6

SERIES

6x6 Surface Mounting Type

(Ground Terminal Optional)

HOW TO ORDER

Halogen Free

LEAD FREE

RoHS

Compliant

SMT

=Without Ground Terminal

G=S.M.T & Ground Terminal

Height:

1=4.3mm

2=5.0mm

3=7.0mm

44=7.3mm (SQ.)x2.4mm

48=7.3mm (SQ.)x2.8mm

5=9.5mm

6=13mm

Package:

B=Tube

T/R=Tape&Reel

V=RoHS & Lead Free Solderable

Q=Halogen Free

=Phosphor Bronze Dome

S=Stainless Steel Dome

Operating Force :

K=Black, 100gf

N=Brown, 160gf

R=Red, 260gf

S=Salmon, 320gf

>Not Available For Halogen Free

Y=Yellow , 520gf

SPECIFICATION

MECHANICAL

Operation Force: 520 + 130gf Yellow (Y)

320 + 80gf Salmon (S)

260 + 50gf Red (R)

160 + 50gf Brown (N)

100 + 50gf Black (K)

Stroke: 0.25 +0.2mm / -0.1mm

ENVIRONMENTAL

Operation Temperature: -25C to +70C

Storage Temperature: -30C to +80C

ELECTRICAL

Electrical Life: *Phosphor Bronze Dome

50,000 cycles for 320gf, 520gf

100,000 cycles for 260gf

200,000 cycles for 100gf, 160gf

*Stainless Steel Dome

300,000 cycles for 320gf, 520gf

500,000 cycles for 260gf

1,000,000 cycles for 100gf, 160gf

Rating: 50mA , 12VDC

PACKAGE

DTSM(G)-61:1000 pcs/reel

DTSM-62:900 pcs/reel

DTSMG-62:1000 pcs/reel

DTSM(G)-63, 64:700 pcs/reel

DTSM(G)-65:380 pcs/reel

DTSM-66:200 pcs/reel

77 pcs/tube

CIRCUIT

TACT SWITCH

www.dip.com.tw

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
