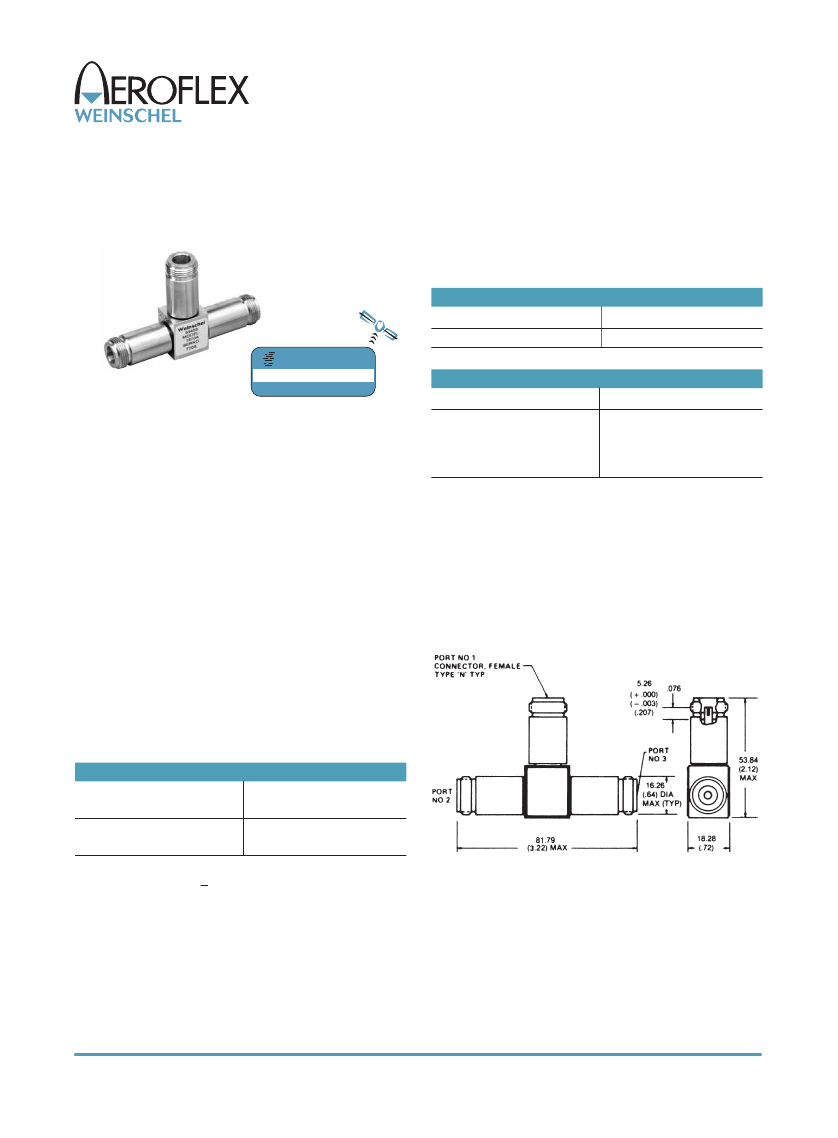

Power Splitters & Dividers
Model 1870A
Broadband Resistive Power Splitter
(Matching), Precision N Connectors
dc to 18.0 GHz
1 Watt
RoHS
MAXIMUM INPUT SWR:
Frequency (GHz)
dc - 18
www.argosysales.com
800-542-4457
Maximum SWR
1.30
EXPRESS
EQUIVALENT OUTPUT SWR (Port 2 & 3):
Frequency (GHz)
Maximum SWR
1.05
1.07
1.10
1.15
dc - 2
2-4
4-8
8 - 18
* When used in a leveling or ratio system.
Features
These resistive power splitters are intended for RF and
wireless applications in which one of the two outputs is
included in a leveling loop or is used as a reference in a
ratio system, for the purpose of providing an output signal
whose source impedance is essentially matched to 50Ω.
Some examples are:
o
A dual channel insertion loss measuring system
(ratio).
o
A parallel IF substitution insertion loss measuring
system (ratio or ALC loop).
o
A precision power source (ratio or ALC loop).
TEST DATA:
Insertion Loss, SWR, and Tracking measure-
ments performed across the frequency band. Test data
available at additional cost.
CONNECTORS:
Type N female connectors per MIL-STD-
348 interface dimensions - mate nondestructively with
MIL-C-39012 connectors.
WEIGHT:
Net 170 g (6 oz)
PHYSICAL DIMENSIONS:
Specifications
NOMINAL IMPEDANCE:
50
Ω
FREQUENCY RANGE:
dc to 18.0 GHz
INSERTION LOSS:
6 dB nominal, 7.5 dB maximum
(Between Input and either output).
MAXIMUM INPUT POWER:
1 watt average, 1 kilowatt
peak (Input connector only)
OUTPUT TRACKING (Between Ports):
Frequency (GHz)
dc - 8
8 -18
Tracking
(maximum dB)
0.15
0.20
NOTE:
All dimensions are given in mm (inches) and are maximum,
unless otherwise specified.
PHASE TRACKING:
+2° nominal between output ports
POWER COEFFICIENT:
< 0.005 dB/dB/watt
TEMPERATURE COEFFICIENT:
<0.0004 dB/dB/°C
TEMPERATURE RANGE:
-55°C to +85°C
CONSTRUCTION:
Nickel plated brass body; stainless
steel connectors; gold plated beryllium copper contacts.
156
5305 Spectrum Drive, Frederick, MD 21703-7362
s
TEL: 301-846-9222, 800-638-2048
s
Fax: 301-846-9116
web: www.aeroflex.com/weinschel
s
email: weinschel-sales@aeroflex.com
Revision Date: 9/30/2012
