MC-42512AA40B-10 datasheet, PDF

Datasheet> All Categories > storage> storage> MC-42512AA40B-10

MC-42512AA40B-10: Description512K X 40 FAST PAGE DRAM MODULE, 100 ns, SMA72, SIMM-72; Categorystorage storage; File Size460KB，20 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

MC-42512AA40B-10 Overview

512K X 40 FAST PAGE DRAM MODULE, 100 ns, SMA72, SIMM-72

MC-42512AA40B-10 Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	SIMM
package instruction	,
Contacts	72
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	100 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
JESD-30 code	R-XSMA-N72
memory density	20971520 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	40
Number of functions	1
Number of ports	1
Number of terminals	72
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX40
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
refresh cycle	512
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	SINGLE

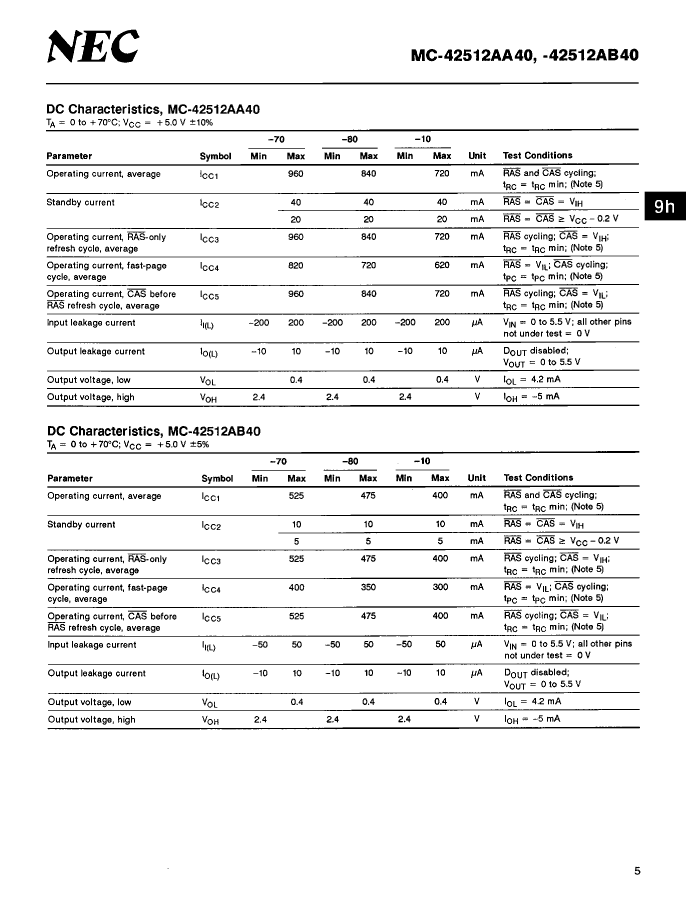

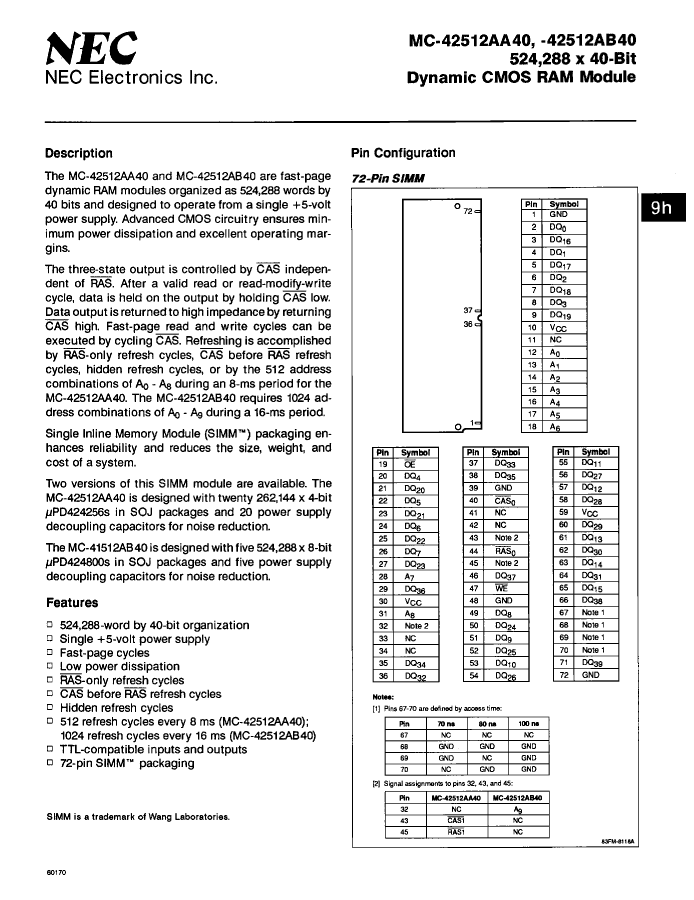

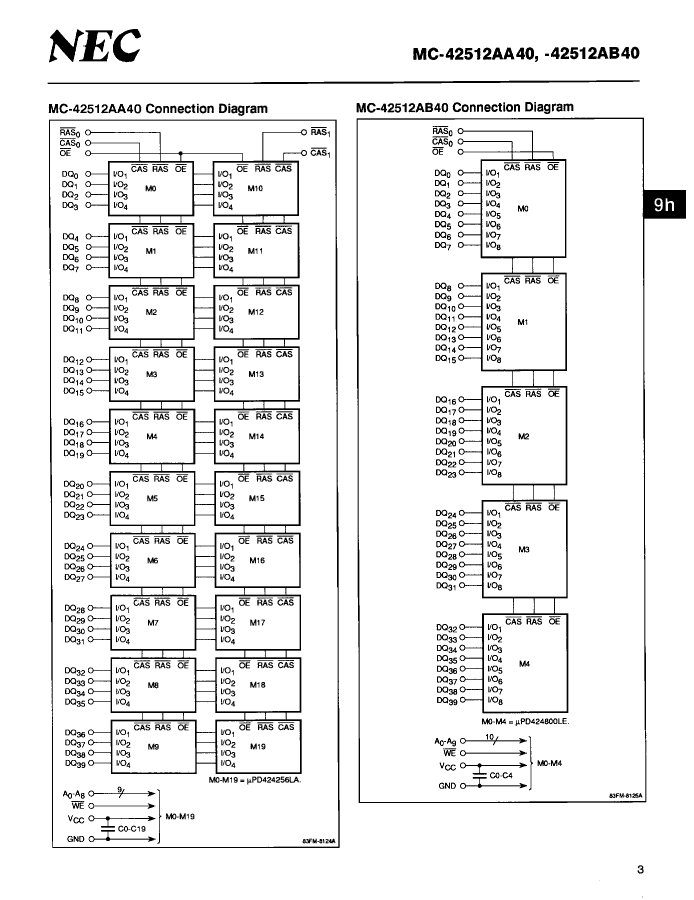

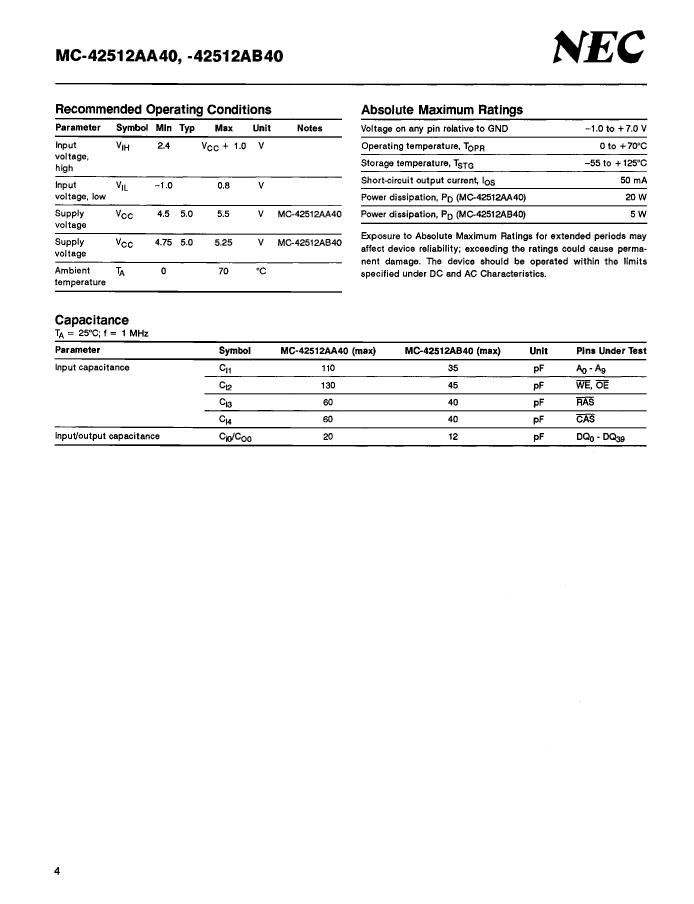

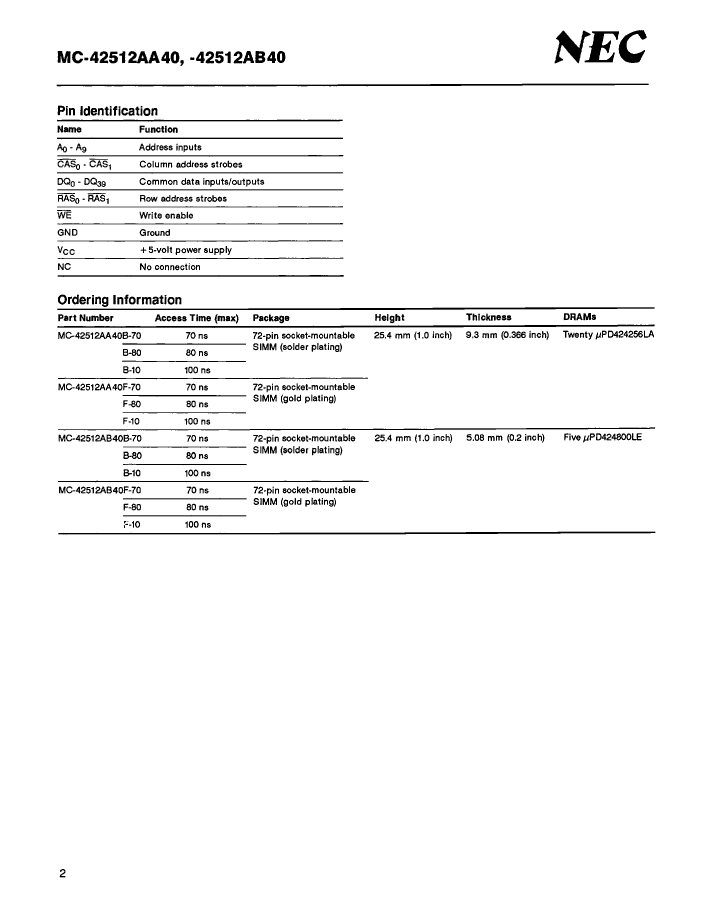

Preview

Download Datasheet

View All

MC-42512AA40B-10 Related Products

	MC-42512AA40B-10	MC-42512AA40B-80	MC-42512AB40B-70	MC-42512AA40F-70
Description	512K X 40 FAST PAGE DRAM MODULE, 100 ns, SMA72, SIMM-72	512KX40 FAST PAGE DRAM MODULE, 80ns, SMA72, SIMM-72	MEMORY MODULE,DRAM,FAST PAGE,512KX40,CMOS,SSIM,72PIN,PLASTIC	MEMORY MODULE,DRAM,FAST PAGE,512KX40,CMOS,SSIM,72PIN,PLASTIC
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	SIMM	SIMM	SIMM	SIMM
Contacts	72	72	72	72
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	100 ns	80 ns	70 ns	70 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
JESD-30 code	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72
memory density	20971520 bit	20971520 bit	20971520 bit	20971520 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	40	40	40	40
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	72	72	72	72
word count	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	512KX40	512KX40	512KX40	512KX40
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	512	512	1024	512
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.25 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.75 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
