REVISION S
DO NOT
SCALE FROM
THIS PRINT
.060 1.52
02
IPT1-1XX-XX-XX-D-XXX
No OF POS PER ROW
-02 THRU -50
((No OF POS x .1000 [2.540])
+ .0200[.508]) .010[.25]
LEAD STYLE
SEE TABLE 1, SHEET 2
OPTION
(SEE NOTE 11)
-POL: POSITION #1 REMOVED
(USE IPT1-XX-D-P)
-FL: FRICTION LOCK [POS -05 THRU -25]
(USE IPT1-XX-D-FL-X & T-1S64-XX-X)
.100 2.54 REF
01
.200 5.08
C
L
REF
ROW SPECIFICATION
(SEE NOTE 11)
-D: DOUBLE (USE IPT1-XX-D-XX-X)
PLATING SPECIFICATION
-S: SELECTIVE, 30 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
-SM: SELECTIVE, 30 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
-L: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
SEE NOTE 8
"A"
IPT1-50-D
(SEE NOTE 11)
SEE TABLE 1
.250 6.35
REF
.085 2.16
C1
.020 0.51
REF
.155 3.94
REF
"A"
.025 0.64 SQ
REF
.100 2.54
2 MAX SWAY
(TYP)
(IPT1-150-01-XX-D-XXX SHOWN)
FIG.1
NOTES:
SECTION "A"-"A"
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAXIMUM ALLOWABLE CUT FLASH: .010[.25].
3. MINIMUM TERMINAL PUSH OUT FORCE: 2 lbs.
4. MAXIMUM VARIATION BETWEEN PIN ROWS: .005[.13].
5. "END WALLS" AFTER CUTTING SHOULD BE .015+/-.003[.38+/-.08].
6. PARTS TO BE BULK PACKAGED.
7. ALL DIMENSIONS TO BE ABOUT CENTERLINE WITHIN +/-.005[.13].
8. PRESENCE OF VOIDS IS OPTIONAL AND PATTERN TO WHICH THEY
OCCUR IS VARIABLE.
9. -T PLATING OPTION AVAILABLE FOR EXISTING CUSTOMERS ONLY.
10. NOTE DELETED.
11. STANDARD BODIES CAN BE CUT TO POSITION.
FOR -POL & -FL OPTIONS, BODIES MUST BE MOLDED TO POSITION.
-FL: FRICTION LOCK OPTION
(IPT1-110-01-X-D-FL SHOWN)
-POL: POLARIZED OPTION
(IPT1-110-01-X-D-POL SHOWN)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
MATERIAL:
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
DECIMALS
ANGLES
02
20
2
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.4
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
01
19
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
CONTACT: PHOS BRONZE, 510, 3/4 HARD

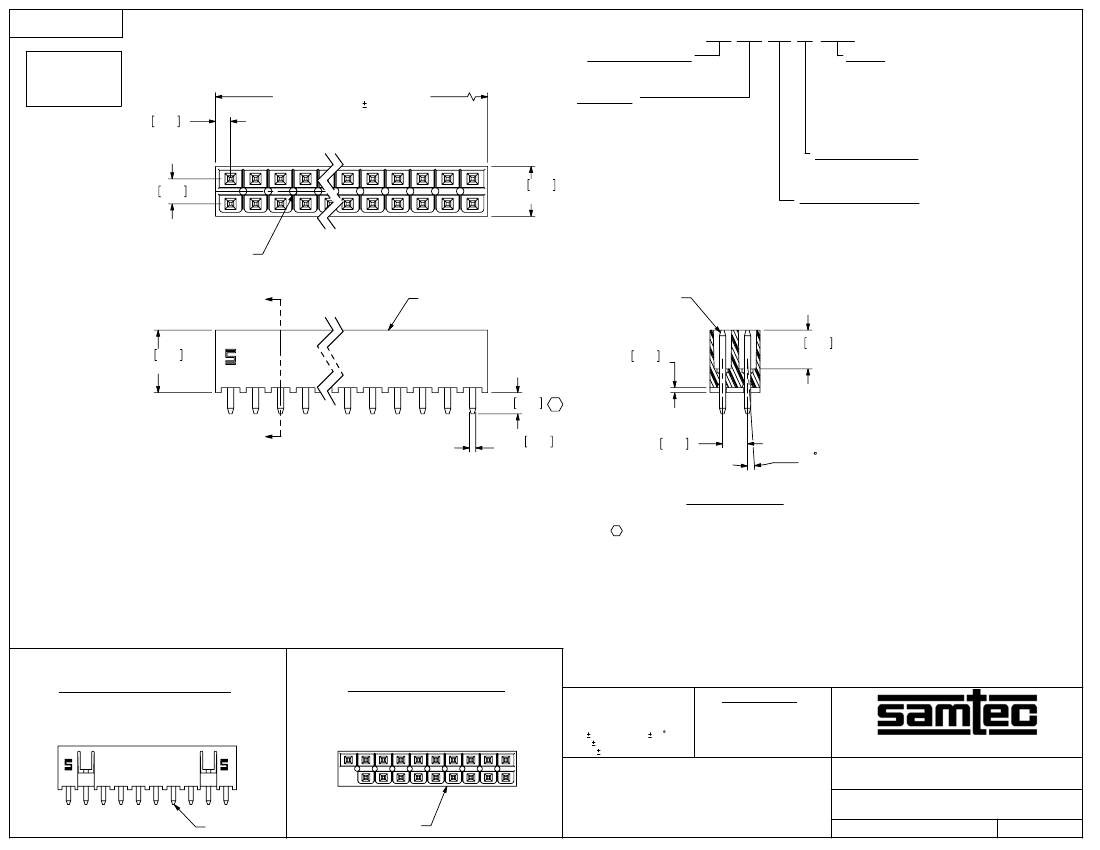

.100 DOUBLE ROW SHROUDED TERMINAL ASSEMBLY
DWG. NO.
T-1S64-06-X
IPT1-XX-D-P
IPT1-1XX-XX-XX-D-XXX
11-05-2002
SHEET
1
OF
2
F:\DWG\MISC\MKTG\IPT1-1XX-XX-XX-D-XXX-MKT.SLDDRW
BY:
DEAN P
REVISION S
IPT1-XX-D-XX-X
"B"
.155 3.94
REF
HTSW-50-D-LCP
"B"
C2
"C"
"B"
(IPT1-110-02-XX-D-XXX SHOWN)
FIG.2
SEE TABLE1
SECTION "B"-"B"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1

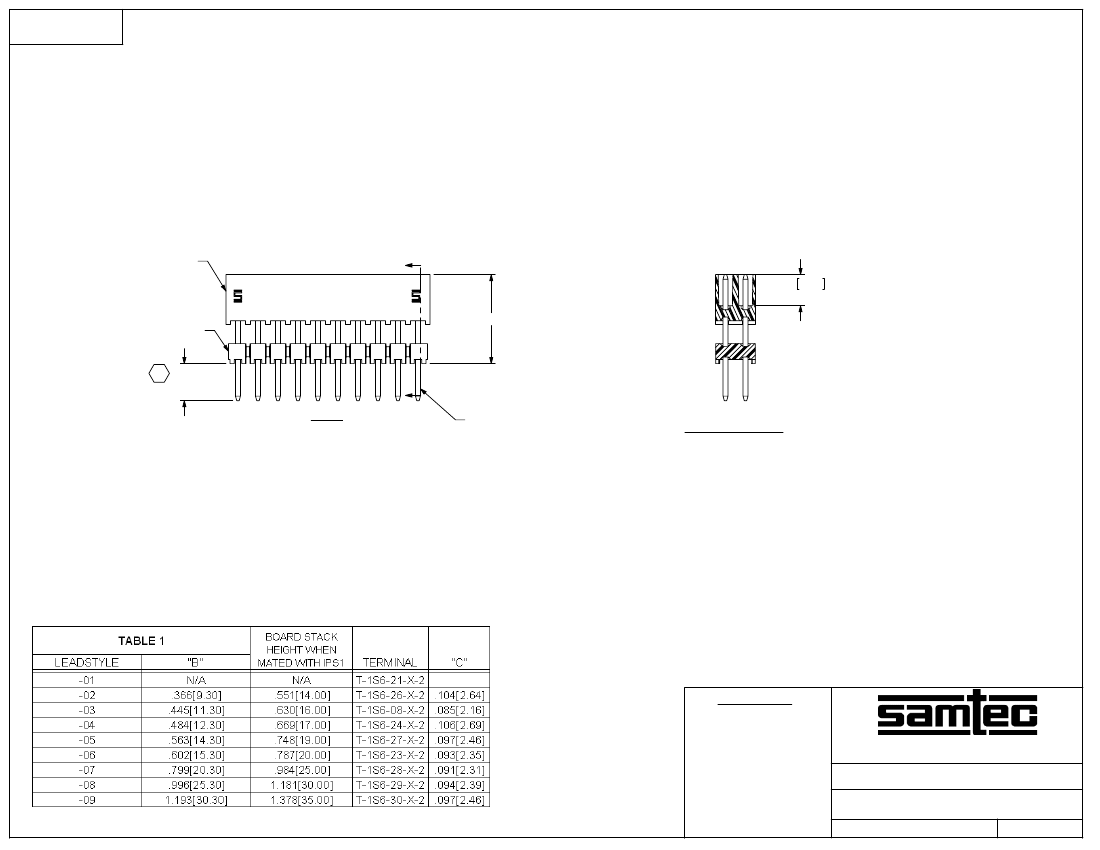

.100 DOUBLE ROW SHROUDED TERMINAL ASSEMBLY
IPT1-1XX-XX-XX-D-XXX
11-05-2002
SHEET
2
OF
2
F:\DWG\MISC\MKTG\IPT1-1XX-XX-XX-D-XXX-MKT.SLDDRW
BY:
DEAN P
