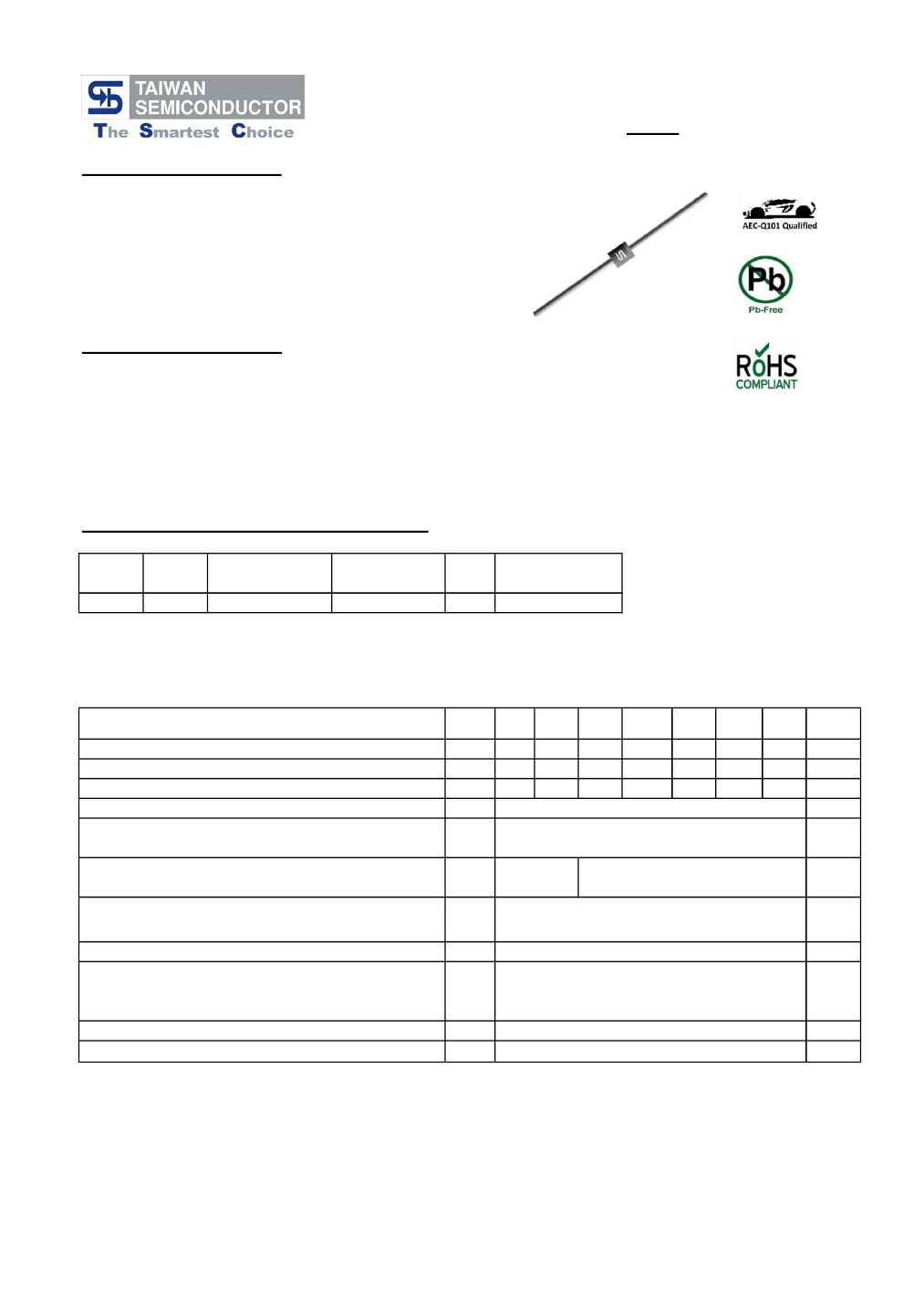

2.0 AMPS. Glass Passivated Rectifiers
DO-15
Features
Glass passivated chip junction
High efficiency, Low VF
High current capability
High reliability
High surge current capability
Low power loss
Green compound with suffix "G" on packing
code & prefix "G" on datecode
2A01G - 2A07G

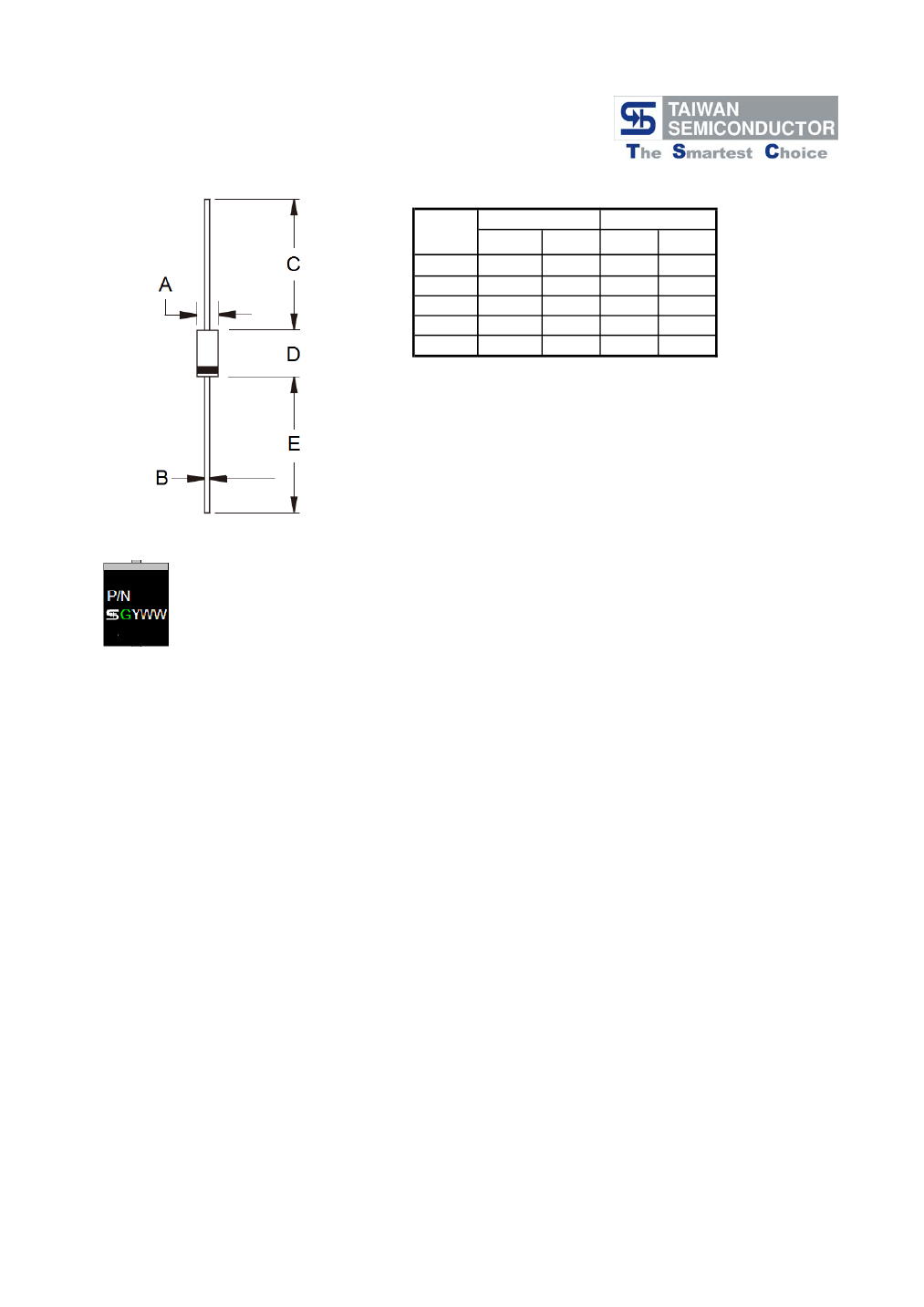

Mechanical Data
Cases: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Pure tin plated, lead free, solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: Color band denotes cathode
High temperature soldering guaranteed: 260℃/10s
/.375", (9.5mm) lead lengths at 5 lbs, (2.3kg) tension
Weight: 0.40 grams

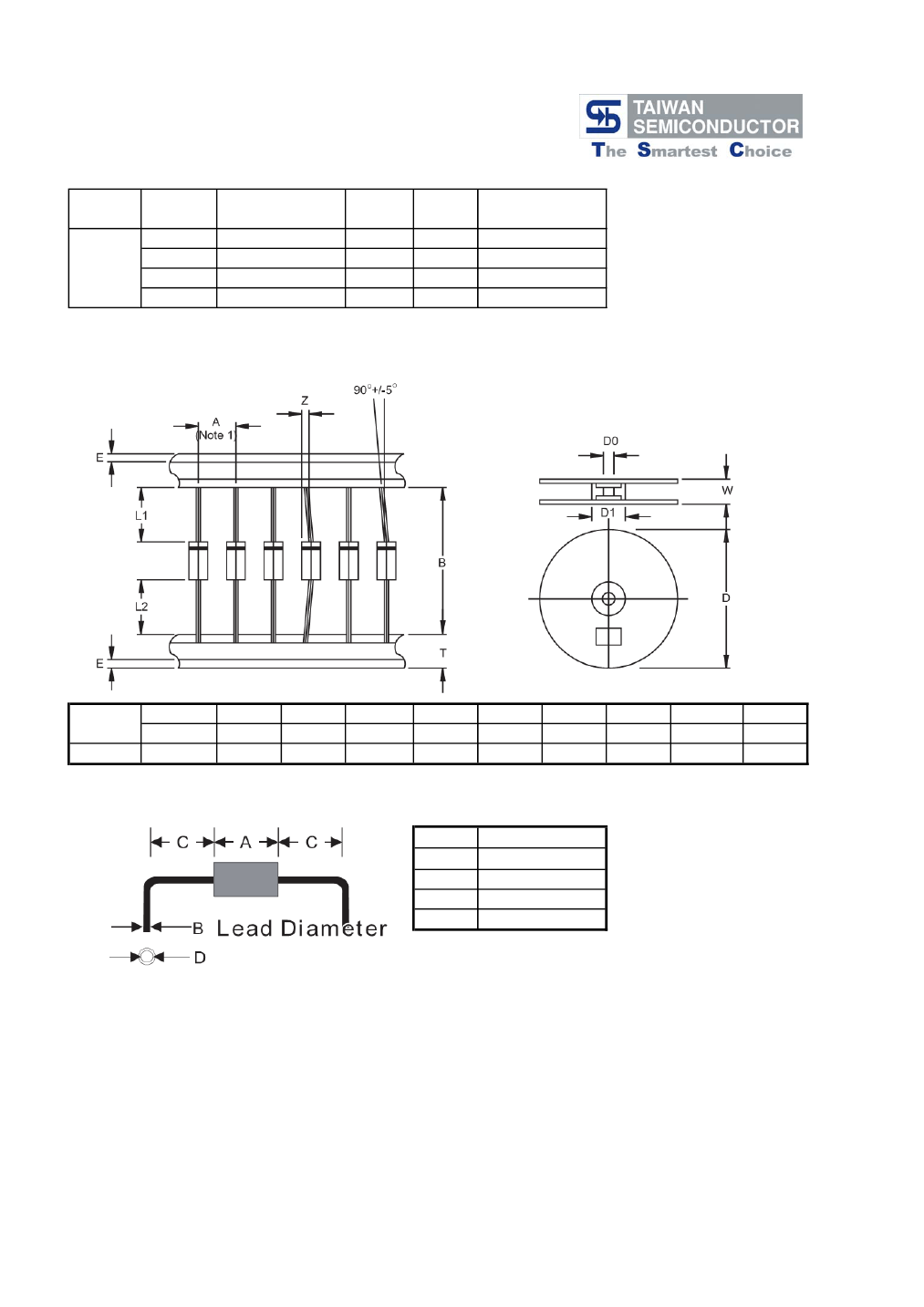

Ordering Information (example)
Part No.
2A01G
Package
DO-15
Packing
1.5K / AMMO box
INNER
TAPE
52mm
Packing
code
A0
Green Compound
Packing code
A0G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1 )
@2A
Maximum DC Reverse Current at
Rated DC Blocking Voltage
@ T
A
=25
℃
@ T
A
=125℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Cj
R
θJA
R
θJL
R
θJC
T
J
T
STG
2A
01G
50
35
50
2A
02G
100
70
100
2A
03G
200
140
200
2A
04G
400
280
400
2
70
2A
05G
600
420
600
2A
06G
800
560
800
2A
07G
1000
700
1000
Units
V
V
V
A
A
1.1
5
100
15
60
25
22
1.0
V
uA
uA
pF
O
Typical Junction Capacitance (Note 2)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note1: Pulse Test with PW=300 usec, 1% Duty Cycle
C/W
O
O
- 65 to + 150
- 65 to + 150
C
C
Note2: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:G12

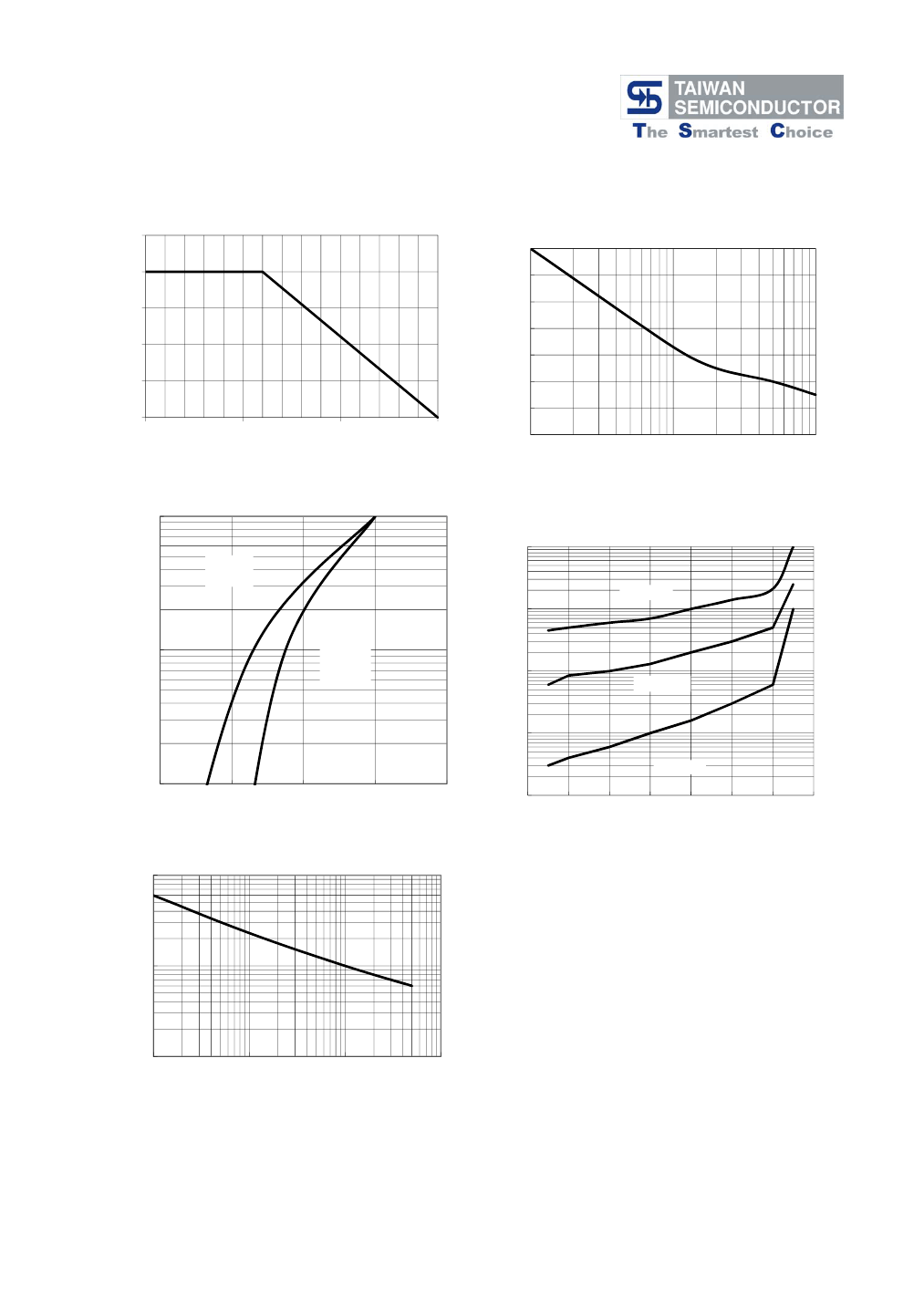

RATINGS AND CHARACTERISTIC CURVES (2A01G THRU 2A07G)
FIG.1 MAXMUM FORWARD CURRENT DERATING
CURVE
2.5
70
PEAK FORWARD SURGE CURRENT(A)
60
50
40
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 2 MAXIMUM FORWARD SURGE CURRENT
AVERAGE FORWARD CURRENT
(A)
2
1.5
1
0.5
0
0
50
100
150
AMBIENT
TEMPERATURE(
o
C)
Fig. 3 TYPICAL FORWARD CHARACTERISTICS
10
100
INSTANTANEOUS FORWARD CURRENT (A)
2A01G -
2A02G
REVERSE LREAKAGE CURRENT (uA)
TA=125℃
10
FIG. 4 MAXIMUM REVERSE LEAKAGE
CHARACTERISTICS
1
2A03G -
2A07G
1
TA=75℃
0.1
TA=25℃
0.01
0
20
40
60
80
100
120
140
PERCENTAGE OF VR (%)
0.1
0.6
0.8
1
FORWARD VOLTAGE (V)
1.2
1.4
FIG. 5 TYPICAL JUNCTION CAPACITANCE
100
JUNCTION CAPACITANCE
(pF)
10
1
0.1
1
10
100
REVERSE VOLTAGE (V)
