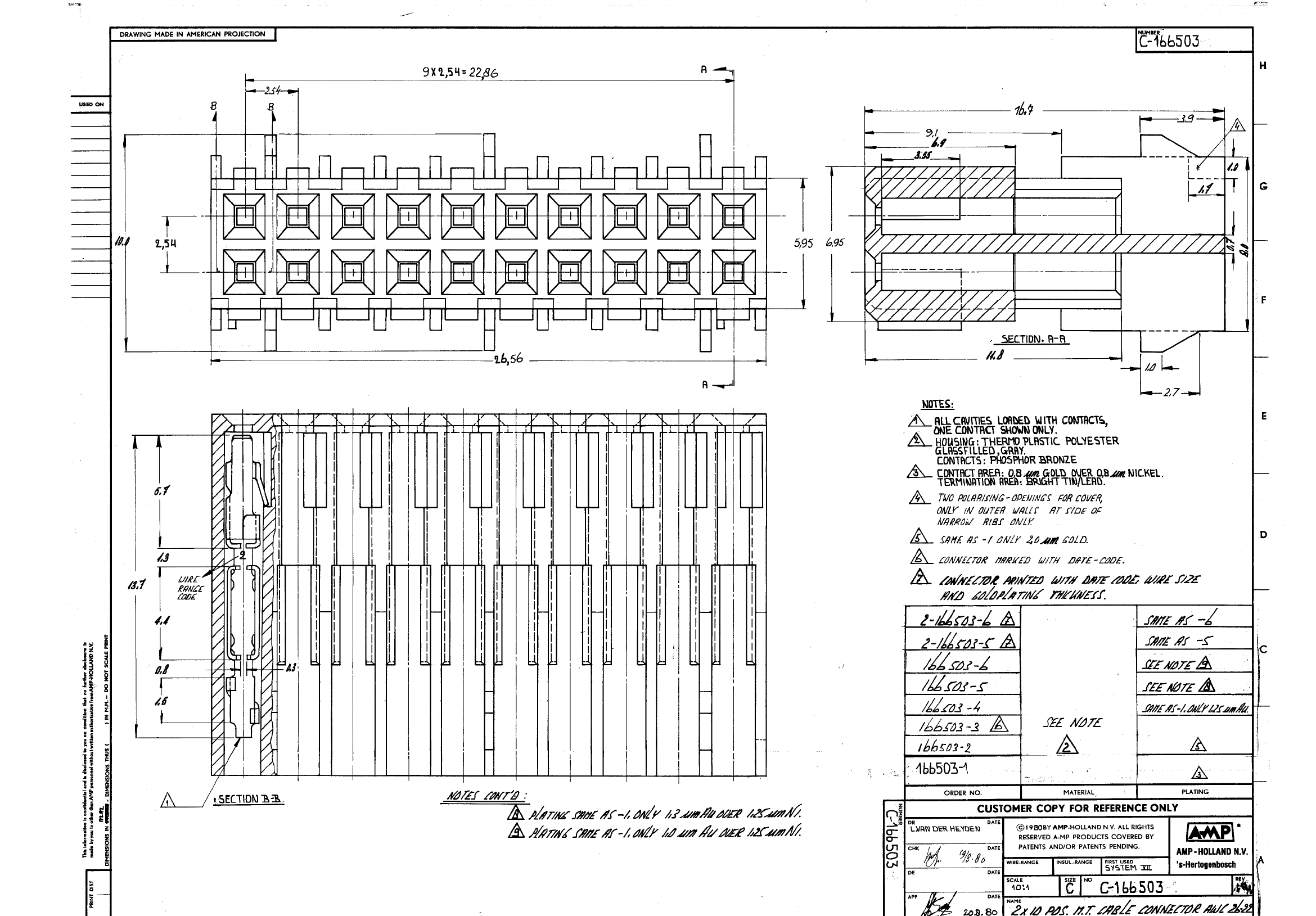

20 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC
| Parameter Name | Attribute value |
| Maker | TE Connectivity |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | POLARIZED |
| body width | 0.394 inch |
| subject depth | 0.657 inch |
| body length | 1.046 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contactor design | PREASSEM CONN |
| Contact to complete cooperation | AU |
| Contact completed and terminated | TIN/LEAD |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 12 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 2.9468 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | GRAY |
| MIL compliance | NO |
| Manufacturer's serial number | 166503 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Mixed contacts | NO |
| Installation type | CABLE |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -65 °C |
| Options | GENERAL PURPOSE |
| Plating thickness | 79u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 3 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Termination type | IDC |
| Total number of contacts | 20 |
| UL Flammability Code | 94V-0 |
| Maximum wire diameter | 22 AWG |
| Minimum wire diameter | 26 AWG |
| Evacuation force-minimum value | .3892 N |
| 166503-2 | 166503-3 | 166503-4 | 2-166503-5 | 166503-5 | 2-166503-6 | 166503-6 | |
|---|---|---|---|---|---|---|---|
| Description | 20 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC | 20 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC | 20 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC | 20 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC | 20 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC | 20 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC | 20 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC |
| Reach Compliance Code | unknown | unknow | unknow | unknow | unknow | unknow | unknow |
| Other features | POLARIZED | POLARIZED | POLARIZED | POLARIZED | POLARIZED | POLARIZED | POLARIZED |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | 166503 | 166503 | 166503 | 166503 | 166503 | 166503 | 166503 |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO |
| Installation type | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Termination type | IDC | IDC | IDC | IDC | IDC | IDC | IDC |
| Total number of contacts | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| ECCN code | EAR99 | EAR99 | - | - | - | EAR99 | EAR99 |
| body width | 0.394 inch | 0.394 inch | - | - | - | 0.394 inch | 0.394 inch |
| subject depth | 0.657 inch | 0.657 inch | - | - | - | 0.657 inch | 0.657 inch |
| body length | 1.046 inch | 1.046 inch | - | - | - | 1.046 inch | 1.046 inch |
| Body/casing type | PLUG | PLUG | - | - | - | PLUG | PLUG |
| Contactor design | PREASSEM CONN | PREASSEM CONN | - | - | - | PREASSEM CONN | PREASSEM CONN |
| Contact to complete cooperation | AU | AU | - | - | - | AU ON NI | AU ON NI |
| Contact completed and terminated | TIN/LEAD | TIN/LEAD | - | - | - | TIN/LEAD | TIN/LEAD |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | - | - | - | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | - | - | - | RECTANGULAR | RECTANGULAR |
| Contact resistance | 12 mΩ | 12 mΩ | - | - | - | 12 mΩ | 12 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | - | - | - | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | - | - | - | 1000VAC V | 1000VAC V |
| maximum insertion force | 2.9468 N | 2.9468 N | - | - | - | 2.9468 N | 2.9468 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | - | - | - | 1000000000 Ω | 1000000000 Ω |
| Insulator color | GRAY | GRAY | - | - | - | GRAY | GRAY |
| Plug contact pitch | 0.1 inch | 0.1 inch | - | - | - | 0.1 inch | 0.1 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | - | - | - | 0.1 inch | 0.1 inch |
| Maximum operating temperature | 105 °C | 105 °C | - | - | - | 105 °C | 105 °C |
| Minimum operating temperature | -65 °C | -65 °C | - | - | - | -65 °C | -65 °C |
| Plating thickness | 79u inch | 79u inch | - | - | - | 39u inch | 39u inch |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | - | - | - | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 3 A | 3 A | - | - | - | 3 A | 3 A |
| Guideline | UL, CSA | UL, CSA | - | - | - | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | - | - | - | COMMERCIAL | COMMERCIAL |
| Maximum wire diameter | 22 AWG | 22 AWG | - | - | - | 22 AWG | 22 AWG |
| Minimum wire diameter | 26 AWG | 26 AWG | - | - | - | 26 AWG | 26 AWG |
| Evacuation force-minimum value | .3892 N | .3892 N | - | - | - | .3892 N | .3892 N |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 | 1 |
