T3165290101-001 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Connector bracket> T3165290101-001

Preview

T3165290101-001: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size215KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

T3165290101-001 Overview

Connector Accessory

T3165290101-001 Parametric

Parameter Name	Attribute value
Objectid	8343566484
Reach Compliance Code	unknown
Connector bracket type	CONNECTOR ACCESSORY

Preview

Download Datasheet

View All

4

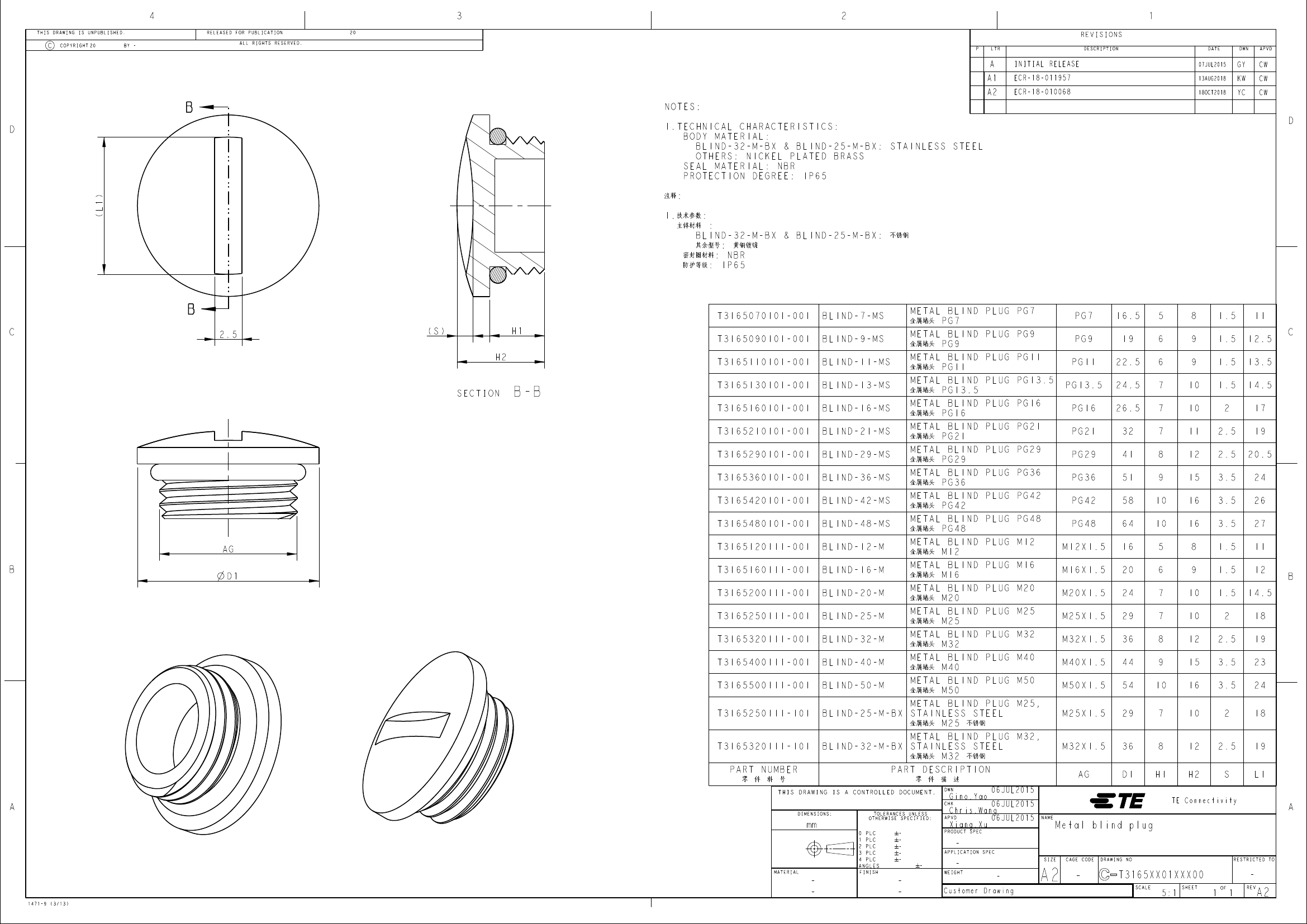

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

A1

A2

NOTES:

1.TECHNICAL CHARACTERISTICS:

BODY MATERIAL:

BLIND-32-M-BX & BLIND-25-M-BX: STAINLESS STEEL

OTHERS: NICKEL PLATED BRASS

SEAL MATERIAL: NBR

PROTECTION DEGREE: IP65

(L1)

:

1.

:

BLIND-32-M-BX & BLIND-25-M-BX:

:

: NBR

: IP65

:

A

INITIAL RELEASE

ECR-18-011957

ECR-18-010068

07JUL2015

13AUG2018

18OCT2018

GY

KW

YC

CW

D

T3165070101-001

BLIND-7-MS

BLIND-9-MS

BLIND-11-MS

BLIND-13-MS

BLIND-16-MS

BLIND-21-MS

BLIND-29-MS

BLIND-36-MS

BLIND-42-MS

BLIND-48-MS

BLIND-12-M

BLIND-16-M

BLIND-20-M

BLIND-25-M

BLIND-32-M

BLIND-40-M

BLIND-50-M

BLIND-25-M-BX

BLIND-32-M-BX

C

2.5

(S)

H2

H1

METAL BLIND PLUG PG7

PG7

METAL BLIND PLUG PG9

PG9

PG7

PG9

PG11

PG13.5

PG16

PG21

PG29

PG36

PG42

PG48

M12X1.5

M16X1.5

M20X1.5

M25X1.5

M32X1.5

M40X1.5

M50X1.5

M25X1.5

M32X1.5

AG

16.5

19

22.5

24.5

26.5

32

41

51

58

64

16

20

24

29

36

44

54

29

36

D1

5

6

7

8

9

10

5

6

7

8

9

10

7

8

H1

8

9

10

11

12

15

16

8

9

10

12

15

16

10

12

H2

1.5

2

2.5

3.5

1.5

2

2.5

3.5

2

2.5

S

11

12.5

13.5

14.5

17

19

20.5

24

26

27

11

12

14.5

18

19

23

24

18

19

L1

T3165090101-001

T3165110101-001

C

SECTION

B-B

T3165130101-001

T3165160101-001

T3165210101-001

T3165290101-001

T3165360101-001

T3165420101-001

T3165480101-001

METAL BLIND PLUG PG13.5

PG13.5

METAL BLIND PLUG PG16

PG16

METAL BLIND PLUG PG11

PG11

METAL BLIND PLUG PG36

PG36

METAL BLIND PLUG PG42

PG42

METAL BLIND PLUG PG29

PG29

METAL BLIND PLUG PG21

PG21

AG

T3165120111-001

T3165160111-001

T3165200111-001

T3165250111-001

T3165320111-001

T3165400111-001

T3165500111-001

T3165250111-101

T3165320111-101

PART NUMBER

METAL BLIND PLUG M12

M12

METAL BLIND PLUG M16

M16

METAL BLIND PLUG PG48

PG48

B

METAL BLIND PLUG M32

M32

METAL BLIND PLUG M40

M40

METAL BLIND PLUG M25

M25

METAL BLIND PLUG M20

M20

B

PART DESCRIPTION

DWN

CHK

DIMENSIONS:

METAL BLIND PLUG M32,

STAINLESS STEEL

M32

METAL BLIND PLUG M25,

STAINLESS STEEL

M25

METAL BLIND PLUG M50

M50

THIS DRAWING IS A CONTROLLED DOCUMENT.

A

Gino.Yao

Chris.Wang

06JUL2015

NAME

TE Connectivity

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

A

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

PRODUCT SPEC

Xiang.Xu

Metal blind plug

CAGE CODE

DRAWING NO

RESTRICTED TO

APPLICATION SPEC

-

1471-9 (3/13)

-

WEIGHT

-

Customer Drawing

A2

SIZE

-

T3165XX01XXX00

SCALE

5:1

SHEET

1

OF

1

REV

-

A2
