AZ946-2CH-3DE Overview

MINIATURE PC BOARD RELAY

AZ946-2CH-3DE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	compli
ECCN code	EAR99
body width	16 mm
body height	16.5 mm
Body length or diameter	21.7 mm
Coil operating voltage (DC)	2.4 V
Coil resistance	15 Ω
Maximum coil voltage (DC)	4.2 V
Nominal coil voltage	3 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	1385VA@300VAC
Contact (AC) maximum rated R load	6A@300VAC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	6 A
Contact (DC) maximum rated power R load	180W@150VDC
Contact (DC) maximum rated R load	6A@150VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	300 V
Maximum contact voltage (DC)	150 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1000 Vrms
Dielectric strength between breaking contacts	750 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Cadmium Oxide
End contact plating	GOLD
Input switching control type	Random
Insulation resistance	100000000 Ω
JESD-609 code	e3
Number of terminals	8
operating hours	5 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
PCB hole count	8
physical size	21.7mm x 16mm x 16.5mm
Guideline	UL
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	5 ms
seal	EPOXY
Terminal surface	Ti
Terminal length	0.0035 inch
Termination type	SOLDER
weight	12 g

Preview

Download Datasheet

View All

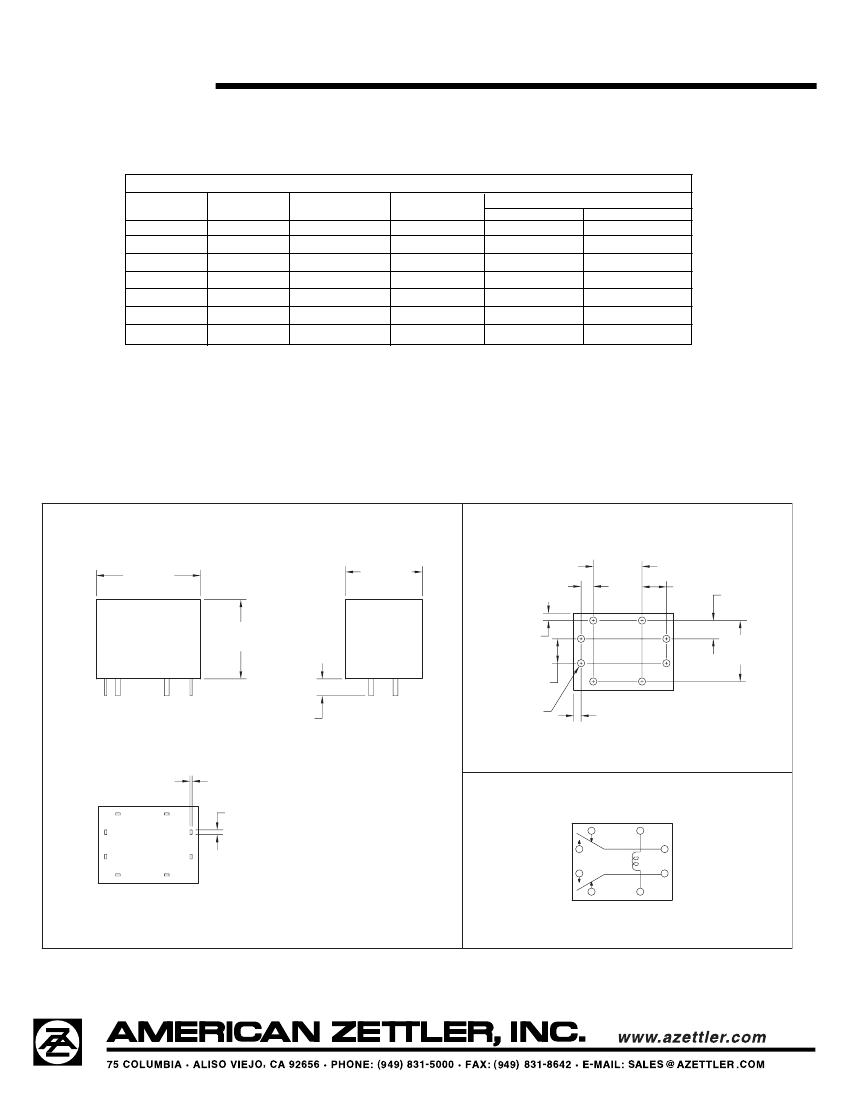

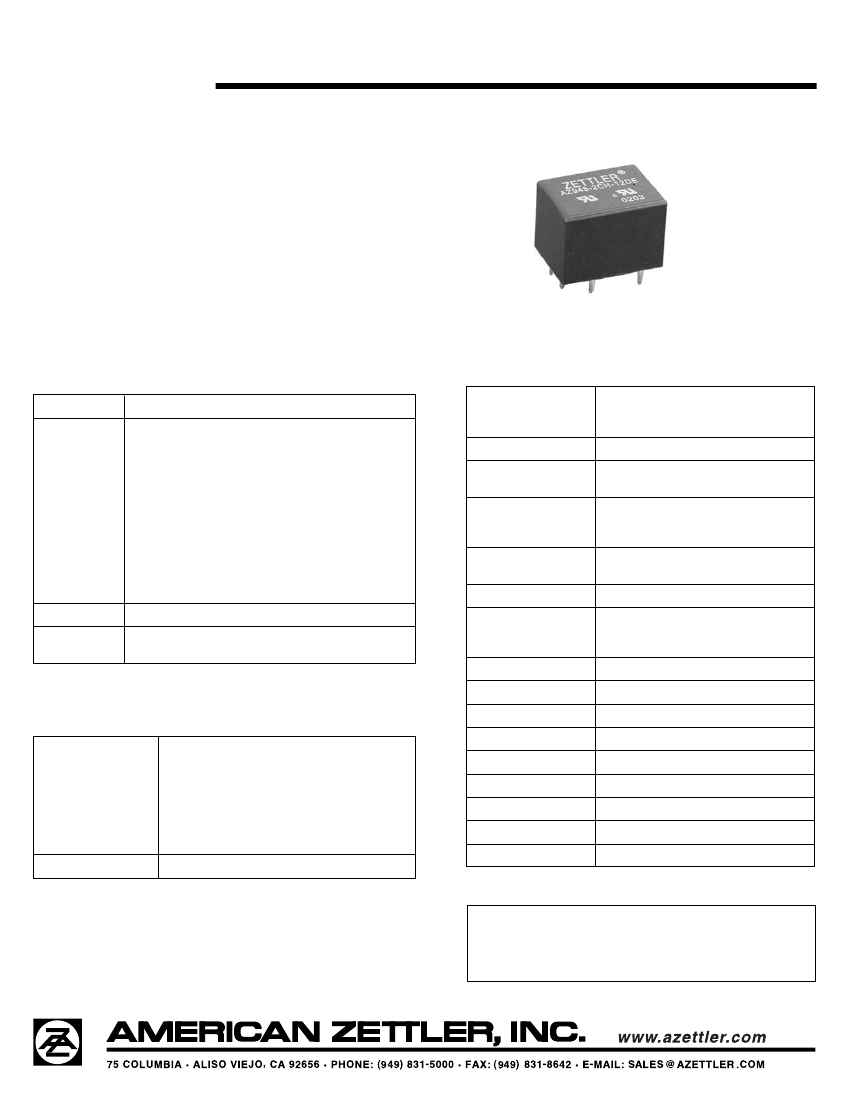

AZ946

MINIATURE

PC BOARD RELAY

FEATURES

•

Subminiature size

Coils to 48 VDC

Epoxy sealed for automatic wave soldering

Contacts rated at 6 Amps

Life expectancy to 20 million operations

Extremely low cost

UL, CUR file E43203

CONTACTS

Arrangement

Max. Ratings

2 Form C (DPDT)

Noninductive load:

Max. switched power:

180 W or 1385 VA

Max. switched current: 6 A

Max. switched voltage: 150* VDC or 300 VAC

UL Rating:

5 A at 30 VDC resistive, 100k cycles

5 A at 277 VAC general use

(100k cycles)

6 A at 30 VDC resistive

6 A at 125 VAC resistive

* If switching voltage is greater than 30 VDC

special precautions must be taken. Please

contact the factory

Material

Resistance

Silver Cadmium Oxide, gold plated

100 milliohms max.

(6 V 1 A method)

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Release Time (typical)

Dielectric Strength

(at sea level for 1 min.)

Minimum operations

2 x 10

1 x 10

5 A 277 VAC Res.

5 ms at nominal coil voltage

(with no coil suppression)

1000 Vrms coil to contact

750 Vrms between open contacts

1000 Vrms contact set to contact set

100 megohms min. at 20°C, 500 VDC,

50% RH

Greater than 10% of nominal coil voltage

At nominal coil voltage

-10°C (14°F) to 60°C (140°F)

-10°C (14°F) to 105°C (221°F)

0.062" DA at 5–55 Hz

10 g

P.B.T. polyester

Tinned copper alloy, P. C.

270°C (518°F)

5 seconds

80°C (176°F)

30 seconds

12 grams

Insulation

Resistance

Dropout

Ambient Temperature

Operating

Storage

Vibration

Shock

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Max. Temperature

384 mW

1.2 W at 20°C (68°F)

Enclosure

Terminals

Max. Solder Temp.

Max. Solder Time

Max.Solvent Temp.

35°C (63°F)

105°C (221°F)

Max. Immersion Time

Weight

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

4. Unsealed relays should not be dipped cleaned

5/20/04W
