AZ948-1AET-6DE

Description
POWER/SIGNAL RELAY
CategoryMechanical and electronic products    relay
File Size73KB,2 Pages
ManufacturerAZETTLER
Websitehttp://www.azettler.com/
Environmental Compliance
Download Datasheet Parametric View All

AZ948-1AET-6DE Overview

POWER/SIGNAL RELAY

AZ948-1AET-6DE Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAZETTLER
Reach Compliance Codecompli
body width16 mm
body height10.5 mm
Body length or diameter22 mm
Coil operating voltage (DC)4.8 V
Coil resistance180 Ω
Maximum coil voltage (DC)18 V
Nominal coil voltage6 V
Coil/Input Power TypeDC
Contact (AC) maximum rated power R load4432VA@277VAC
Contact (AC) maximum rated R load16A@277VAC
Maximum contact current (AC)16 A
Maximum contact current (DC)16 A
Contact (DC) maximum rated power R load480W@125VDC
Contact (DC) maximum rated R load16A@125VDC
Contact resistance50 mΩ
Maximum contact voltage (AC)277 V
Maximum contact voltage (DC)125 V
Contact/Output Power TypeAC/DC
Dielectric strength between coil and contacts1500 Vrms
Dielectric strength between breaking contacts1000 Vrms
Electrical life100000 Cycle(s)
End contact materialSilver Tin Oxide
Input switching control typeRandom
Insulation resistance100000000 Ω
JESD-609 codee3
Number of terminals4
operating hours10 ms
Maximum operating temperature70 °C
Minimum operating temperature-40 °C
PCB hole count4
physical size22mm x 16mm x 10.5mm
GuidelineUL
Relay actionLATCHED
Relay style1 FORM A
Relay functionSPST
Relay typePOWER/SIGNAL RELAY
release time4 ms
sealEPOXY
Terminal surfaceTi
Terminal length0.004 inch
Termination typeSOLDER
weight8 g

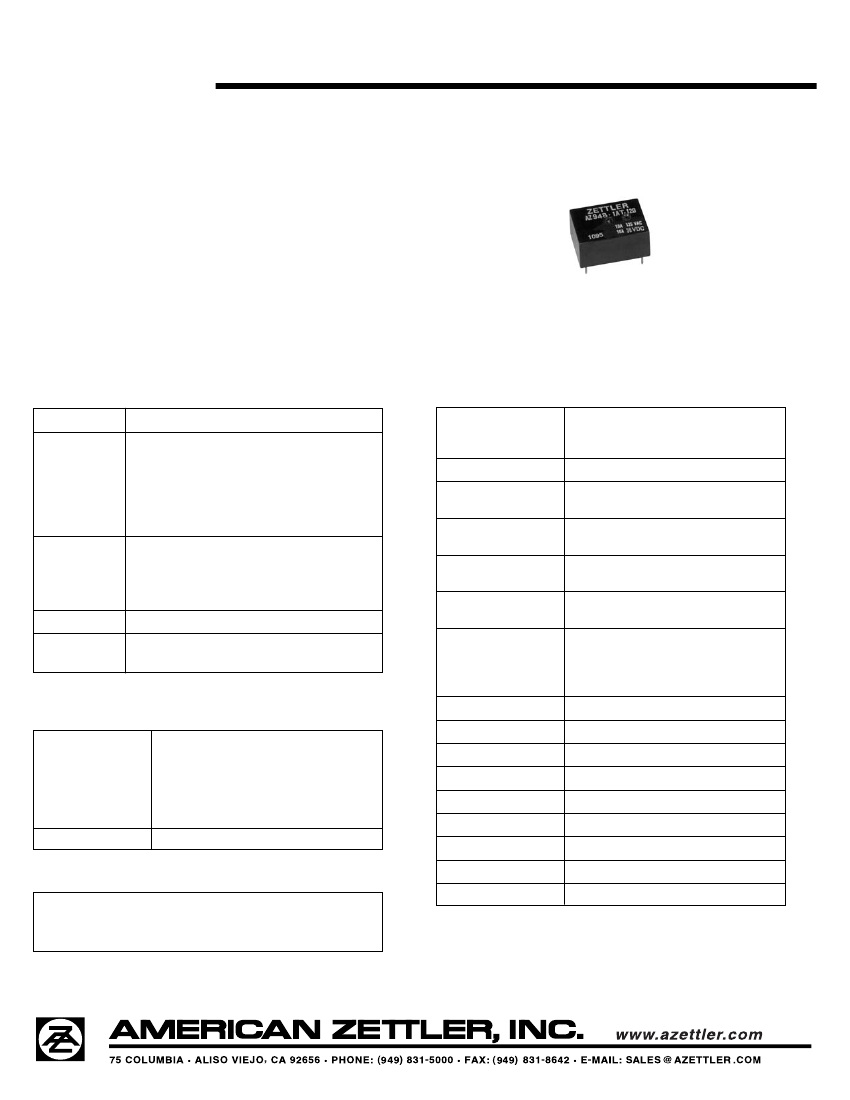

AZ948
16 AMP LOW PROFILE
POWER RELAY
FEATURES
High power switching (4000 VA)
High sensitivity, 128 mW pickup
Low profile (less than .5" height)
SPST (1 Form A)
Epoxy sealed versions available
DC coils up to 100 VDC
UL file E44211
CONTACTS
Arrangement
Ratings
Heavy Duty
SPST (1 Form A)
Resistive load:
Max. switched power: 480 W, 4432 VA
Max. switched current: 16 A
Max. switched voltage: 277 VAC/125 VDC*
*Note: If switching voltage is greater than 30VDC,
special precautions must be taken. Please contact
the factory.
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
1 x 10
7
1 x 10
5
10 A 250 VAC Res.
10 ms at nominal coil voltage
4 ms at nominal coil voltage
(with no coil suppression)
Rated Load
UL
Dielectric Strength
1500 Vrms coil to contact
(at sea level for 1 min.)
1000 Vrms contact to contact
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
100 megohms min. at 20°C, 500 VDC,
50% RH
Greater than 10% of nominal coil voltage
100 V coil
6 VDC
At nominal coil voltage
-40°C (-40°F) to 70°C (158°F) 3-48 V coils
-40°C (-48°F) to 60°C (140°F) 100 V coil
-40°C (-40°F) to 115°C (239°F)
0.062" DA at 10–55 Hz
10 g
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
8 grams
10 A at 30 VDC, 100k cycles
16 A at 277 VAC, 100k cycles
1
/
10
HP at 125 VAC, 250 VAC or 277 VAC,
100k Cycles
Silver tin oxide
< 50 milliohms initially
(24 V, 1 A voltage drop method)
Material
Resistance
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
128 mW
1.8 W at 20°C (68°F)
1.3 W at 40°C (104°F)
16°C (29°F) at nominal coil voltage
Max. 115°C (239°F)
Vibration
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
Max. Immersion Time
Weight
6/28/05W
