CTE9000 / CTU9000 Series
OEM pressure transmitters for industrial media
FEATURES
· 0...0.35 to 0...35 bar, 0...5 to 0...500 psi
gage
1
or absolute
10
· 0...10 V, 0.5...4.5 V, 0...5 V, 1...6 V or
4...20 mA output
· Field interchangeable
· For industrial use
· All welded stainless steel diaphragm
construction
MEDIA COMPATIBILITY
Wetted materials:
stainless steel 1.4404 (316)
9
Housing:
stainless steel, protection class IP 64 (according to
DIN EN 60529) respectively NEMA 4X
1
SPECIFICATIONS
11,12
Maximum ratings
Supply voltage (reverse polarity protection)
CTE(M)/CTU9...0
12...32 V
CTE(M)/CTU9...1, ...6, ...7
9...32 V
2
9...32 V
CTE(M)/CTU9...4
Maximum load current (source)
CTE(M)/CTU9...0, ...1, ...6, ...7
Temperature limits
Storage
Operating
Compensated
Humidity limits
Vibration (5 to 500 Hz)
Mechanical shock
Proof pressure
3
CTEM9350...
CTU9005...
all others

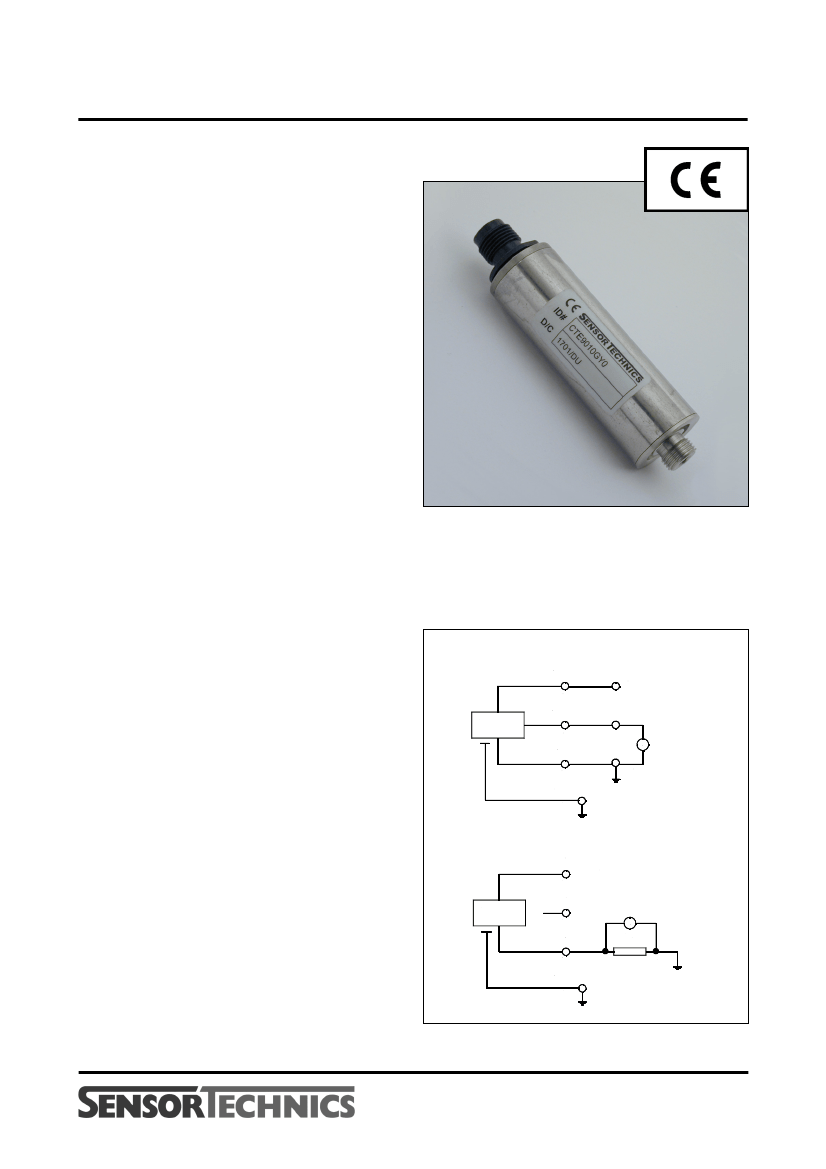

ELECTRICAL CONNECTION
0...10 V, 0.5...4.5 V, 0...5 V, 1...6 V output
+Vs
1
Vout
2
-Vs
4
case
3
V
12 (9) to 32 V
sensor
1 mA
GND
-55 to 100°C
-40 to 100°C
0 to 70°C
0 - 98 %RH
10 g
RMS
50 g
4...20 mA output
+Vs
1
N/C
2
-Vs
4
case
3
9 to 32 V
sensor
V
R
L
GND
1000 mbar
15 psi
2 x rated pressure
December 2008 / 509
1/6
www.sensortechnics.com
CTE9000 / CTU9000 Series
OEM pressure transmitters for industrial media
COMMON PERFORMANCE CHARACTERISTICS
Characteristics
Operating pressure
CTEM9350...
CTE9001...
CTE9N01...
CTE9P01...
CTE9002...
CTE9003...
CTE9005...
CTE9010...
CTE9016...
CTE9020...
CTE9035...
CTU9005...
CTU9015...
CTU9N15...
CTU9P15
CTU9030...
CTU9050...
CTU9100...
CTU9300...
CTU9500...
Thermal effects
(0 to 70°C)
4
Thermal effects
(-40 to 0°C, 70 to 100°C)
Offset
Span
Offset
Span
Min.
0
0
-1
-1
0
0
0
0
0
0
0
0
0
-15
-15
0
0
0
0
0
Typ.
Max.
0.35
1
1
0
2
3
5
10
16
20
35
5
15
15
0
30
50
100
300
500
Unit
bar
p si
±0.02
±0.02
±0.03
±0.03
±0.2
±0.1
±0.05
±0.05
%FSO/°C
Non-linearity and hysteresis (BSL)
5
Repeatability
Long term stability
6
Output noise (0 < f < 1 kHz)
Response time (10 to 90 %)
Power supply rejection
Offset
Span
CTE(M)/CTU9...4
all others
CTE(M)/CTU9...4
all others
±0.5
%FSO
±0.1
±0.04
1
±0.05
±0.002
±0.08
±0.002
%FSO/V
ms
December 2008 / 509
2/6
www.sensortechnics.com
CTE9000 / CTU9000 Series
OEM pressure transmitters for industrial media
INDIVIDUAL PERFORMANCE CHARACTERISTICS
0...10 V output
(V
S
= 15 V, R
L
> 100 kΩ, t
amb
= 25°C)
Characteristics
Zero pressure offset
Full scale span
7
Output impedance
Current consumption (no load)
CT...9N...
all others
CT...9N...
all others
Min.
4.9
-0.1
4.9
9.9
Typ.
5
0
5
10
4
Max.
5.1
0.1
5.1
10.1
25
9.5
Unit
V
Ω
mA
0.5...4.5 V output
(V
S
= 15 V, R
L
> 100 kΩ, t
amb
= 25°C)
Characteristics
Zero pressure offset
Full scale span
7
Output impedance
Current consumption (no load)
CT...9N...
all others
CT...9N...
all others
Min.
2.45
0.45
1.95
3.95
Typ.
2.5
0.5
2
4
4
Max.
2.55
0.55
2.05
4.05
25
8.5
Unit
V
Ω
mA
0...5 V output
(V
S
= 15 V, R
L
> 100 kΩ, t
amb
= 25°C)
Characteristics
Zero pressure offset
Full scale span
7
Output impedance
Current consumption (no load)
CT...9N...
all others
CT...9N...
all others
Min.
2.45
-0.05
2.45
4.95
Typ.
2.5
0
2.5
5.0
4
Max.
2.55
0.05
2.55
5.05
25
8.5
Unit
V
Ω
mA
1...6 V output
(V
S
= 15 V, R
L
> 100 kΩ, t
amb
= 25°C)
Characteristics
Zero pressure offset
Full scale span
7
Output impedance
Current consumption (no load)
CT...9N...
all others
CT...9N...
all others
Min.
3.45
0.95
2.45
4.95
Typ.
3.5
1
2.5
5.0
4
Max.
3.55
1.05
2.55
5.05
25
8.5
Unit
V
Ω
mA
4...20 mA output
(V
S
= 15 V, R
L
=
100
Ω,
t
amb
= 25°C)
Characteristics
Zero pressure offset
Full scale span
7
Power consumption (I
L
= 20 mA)
December 2008 / 509
Min.
CT...9N...
all others
CT...9N...
all others
11.8
3.8
7.8
15.8
Typ.
12.0
4.0
8.0
16.0
260
Max.
12.2
4.2
8.2
16.2
Unit
mA
mW
3/6
www.sensortechnics.com
CTE9000 / CTU9000 Series
OEM pressure transmitters for industrial media
Specification notes:
1.
IP 64 protection is given when the connector is locked. For proper function the gage port is vented to the atmosphere through
the connector/cable assembly. Thus the cable end must have access to the ambient pressure.
2.
The minimum supply voltage is directly proportional to the load resistance seen by the transmitter. For more details see the
load limitation diagram.
3.
Proof pressure is the maximum pressure which may be applied without causing damage to the sensing element.
4.
Thermal effects tested and guaranteed from 0 to 70°C relative to 25°C. All specifications shown are relative to 25°C.
5.
Non-linearity refers to the
Best Straight Line
fit measured for offset, full scale span and 1/2 full scale span.
6.
Long term stability is the change in output after one year or 1 million pressure cycles.
7.
Span is the arithmetic difference in transmitter output signal measured at zero pressure and the maximum operating pressure.
8.
Tests are in accordance with EN61000-6-2, April 1999.
9.
When using devices with optional nickel plated fittings, consider the media compatibility of the fittings also.
10.
Available for pressure ranges from 1 bar (15 psi) absolute upwards only.
11.
CE-labelling is in accordance with 89/336/EEC.
12.
The pressure transmitters must not be used as safety accessories according to article 1, 2.1.3 of the directive 97/23/EC.
OUTLINE DRAWING
NOM 85.0 (3.35)
6.5
(0.26)
65.0 (2.56)
4
vent hole¹
21.8 (0.86)
diam.
G 1/8"
(BSP)
1
3
M12 x 1
2
Detail A
Detail A
Output
4.0 (0.16)
diam.
0...10 V
Pin
1
2
3
4
0.5...4.5 V
0...5 V, 1...6 V
+V
S
Vout
case
-Vs
4...20 mA
+V
S
NC
case
-Vs
o-ring grove for
o-ring 11.8 x 1.8
(0.456 x 0.071)
(ZA004029)
mass:
82 g
dimensions in mm (inches)
December 2008 / 509
4/6
www.sensortechnics.com
CTE9000 / CTU9000 Series
OEM pressure transmitters for industrial media

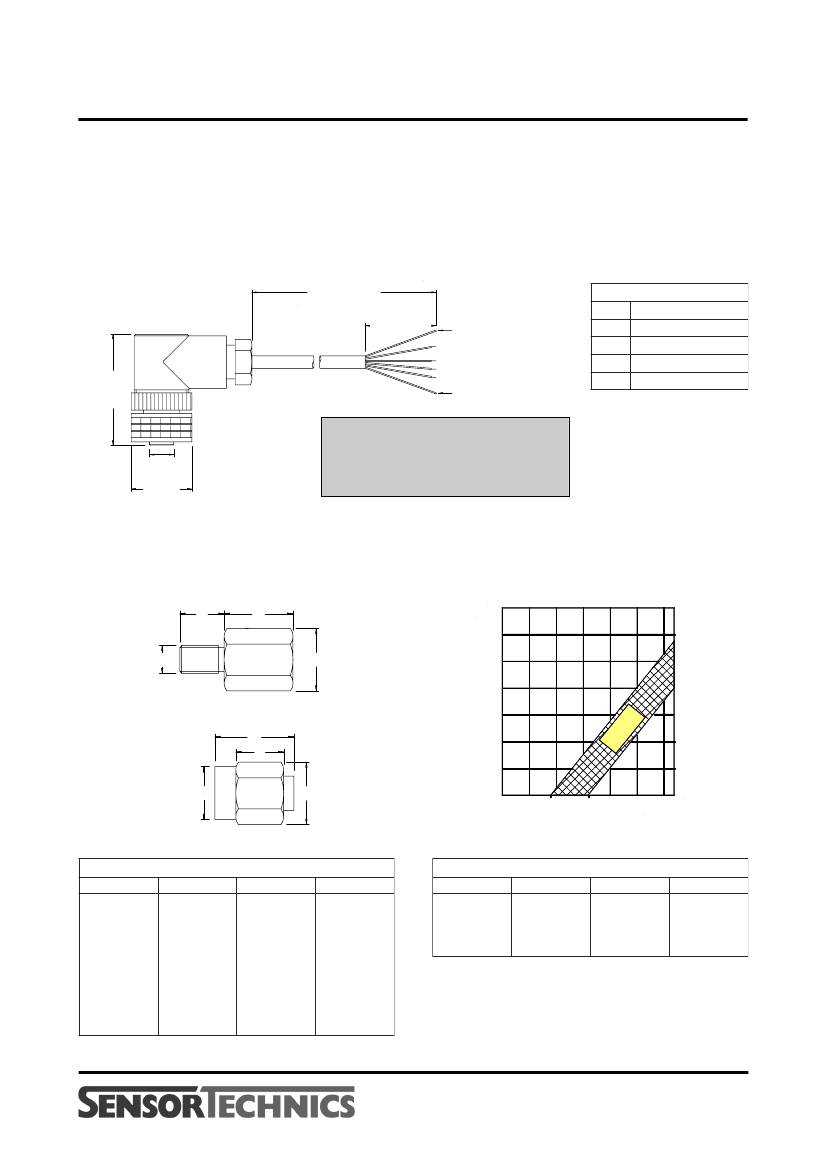

RECOMMENDED ACCESSORY (not included in delivery)
ZK000101:
ZP000112-B:
Connector/cable assembly (different cable lenghts available)
Mating Connector (without cable)
NOM 2 m
(other cable lenghts on request)
PIN CONNECTION
Pin
Flying lead end
Brown
Green
White and shield
Yellow
NOM 60
Shield
1
2
3
36.5
4
Vent tube
M12x1
Ø 20
Note:
For proper function of all gage
devices the vent tube must have
access to the ambient atmosphere.
dimensions in mm
OPTIONAL PRESSURE FITTINGS
(brass, nickel plated)
Male
fittings
A
B
C
LOAD LIMITATION
4...20 mA output version
1400
Ohm
1200
D
1000
800
op
e
ra ratin
ng g
e
600
Female
fittings
E
G
F
H
400
200
0
5
9
16 20
25 30 32 V
supply voltage
Dimensions in mm (inches)
A
1/8" BSPT
1/4" BSPT
3/8" BSPT
1/2" BSPT
1/8" BSP
1/4" BSP
3/8" BSP
1/8" NPT
1/4" NPT
B
8 (0.315)
12 (0.472)
11.5 (0.453)
16 (0.630)
12.5 (0.492)
8.5 (0.335)
12.5 (0.492)
10 (0.394)
14 (0.551)
C
13 (0.512)
5.5 (0.217)
5 (0.197)
7 (0.276)
11 (0.433)
5 (0.197)
7 (0.276)
13 (0.512)
6 (0.236)
D (Hex.)
14 (9/16")
14 (9/18")
17 (11/16")
22 (7/8")
14 (9/16")
19 (3/4")
22 (7/8")
17 (11/16")
22 (7/8")
E
1/8" BSP
1/4" BSP
3/8" BSP
1/2" BSP
Dimensions in mm (inches)
F
5 (0.197)
7 (0.276)
6 (0.236)
18 (0.707)
G
15 (0.591)
20 (0.787)
20 (0.787)
23 (0.906)
H (Hex.)
14 (9/16")
17 (11/16")
22 (7/8")
24 (15/16")
December 2008 / 509
5/6
www.sensortechnics.com
