TSCDA22L: Description2.0A Low Profile Chip Schottky Rectifier; File Size188KB，4 Pages; ManufacturerTAITRON Components; Websitehttp://www.taitroncomponents.com/

Download Datasheet Compare View All

TSCDA22L Overview

2.0A Low Profile Chip Schottky Rectifier

Preview

Download Datasheet

View All

2.0A Low Profile Chip

Schottky Rectifier

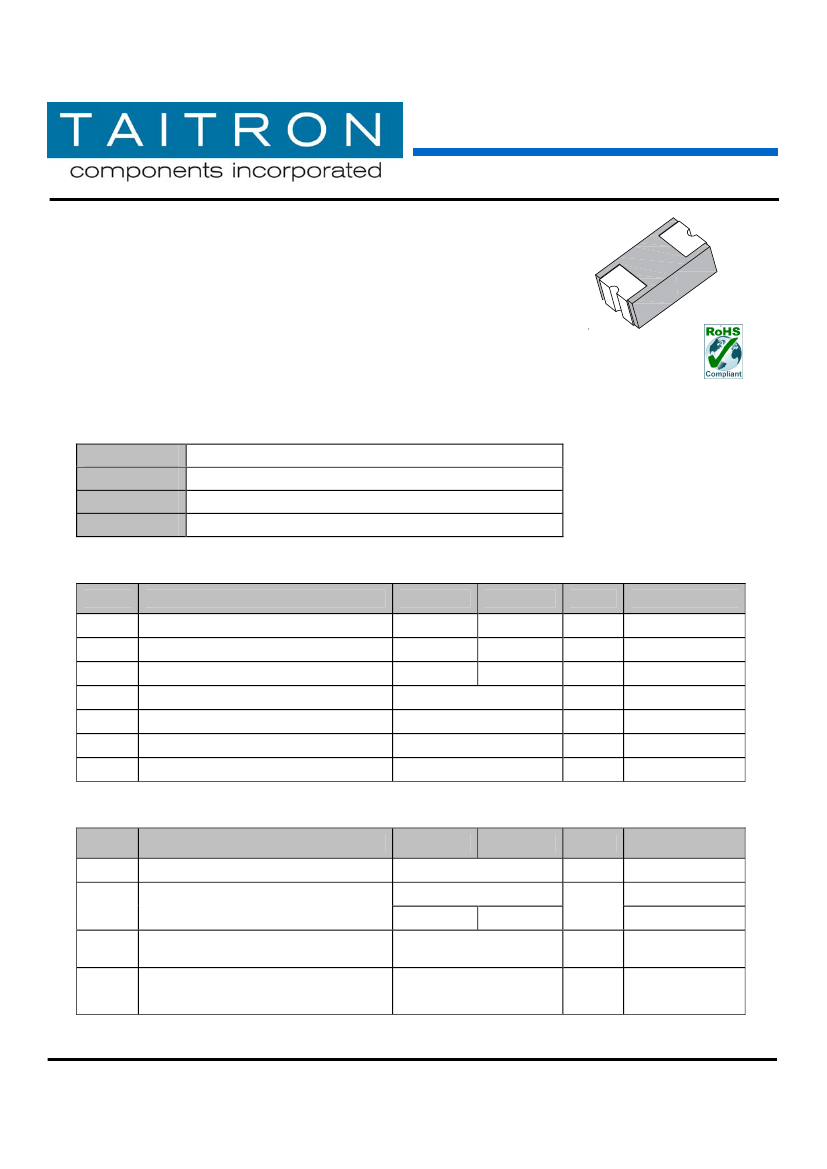

TSCDA22L-TSCDA24L

2.0A Low Profile Chip Schottky Rectifier

Features

•

Low Profile with Chip Package for Surface Mount Application

Low Power Loss , High Efficiency

High Surge Current Capability

Super Very Low Forward Voltage

Plastic Package has Underwriters Laboratory Flammability

Classification 94V-0

•

RoHS Compliant

C2010

(SMA)

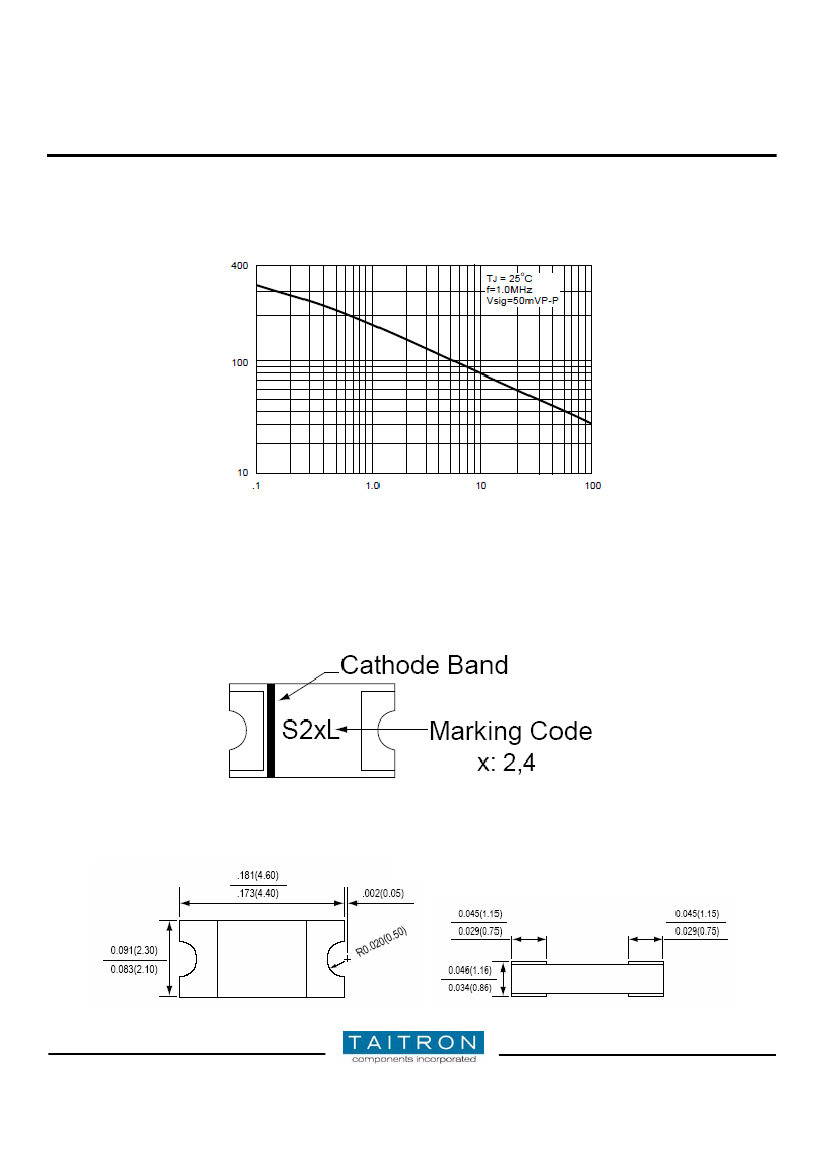

Mechanical Data

Case:

Terminals:

Polarity

Weight:

2010 SMD package (Equivalent to SMA), Plastic Molding

Pure Tin plated, solderable per MIL-STD-750, Method 2026

Laser cathode band marking

0.02 gram

Maximum Ratings

Ambient

=25ºC unless noted otherwise)

Symbol

Marking Code

Reverse Voltage

Repetitive Peak Reverse Voltage

Forward Rectified Current

Non-repetitive Peak Forward Surge Current

Operating Junction temperature range

Storage Temperature Range

Description

TSCDA22L

S22L

2.0

-55 to +125

-55 to +150

TSCDA24L

S24L

°C

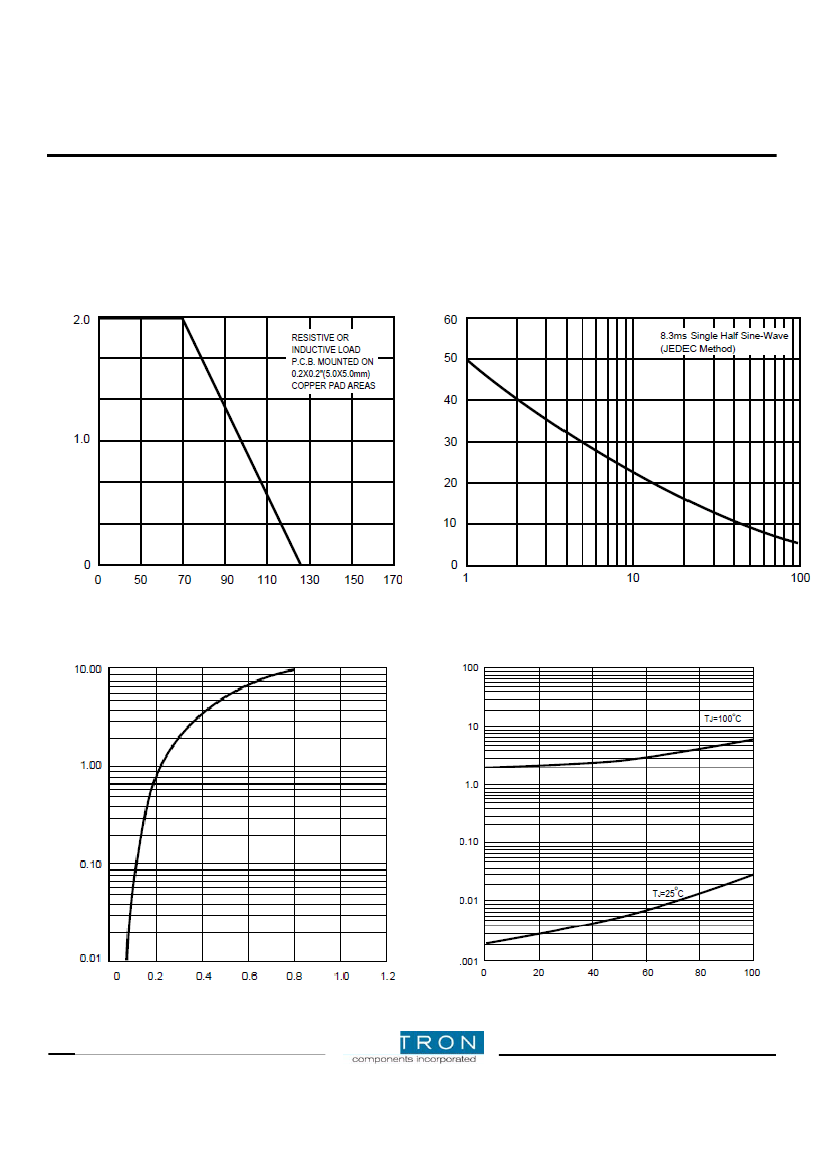

See Fig 1

JEDEC Method

Unit

Conditions

RRM

F(AV)

FSM

STG

Electrical Characteristics

Ambient

=25ºC unless noted otherwise)

Symbol

Description

Forward Voltage

Reverse Current

@ V

= Max. V

RRM

(Note)

TSCDA22L

TSCDA24L

Unit

120

Tj =100 °C

f=1.0 MHz and

r = 4.0 V

PCB mounted with

copper pad area of

0.2" x 0.2" (5x5mm)

Conditions

0.40

1.0

F= 2.0 A

Tj = 25 °C

(Note)

θ-JA

Typical Junction Capacitance

Maximum Thermal Resistance

° C/W

TAITRON COMPONENTS INCORPORATED

www.taitroncomponents.com

Tel: (800)-TAITRON

Fax: (800)-TAITFA

(800)-824-8766

(800)-824-8329

(661)-257-6060

(661)-257-6415

Rev. A/JJ 2007-06-15

Page 1 of 4
