XC3142-3TQ100C datasheet, PDF - EEWORLD Datasheet

XC3142-3TQ100C: DescriptionField Programmable Gate Array, 144 CLBs, 3000 Gates, 270MHz, 144-Cell, CMOS, PQFP100, PLASTIC, TQFP-100; CategoryProgrammable logic devices Programmable logic; File Size2MB，60 Pages; ManufacturerXILINX; Websitehttps://www.xilinx.com/

Download Datasheet Parametric View All

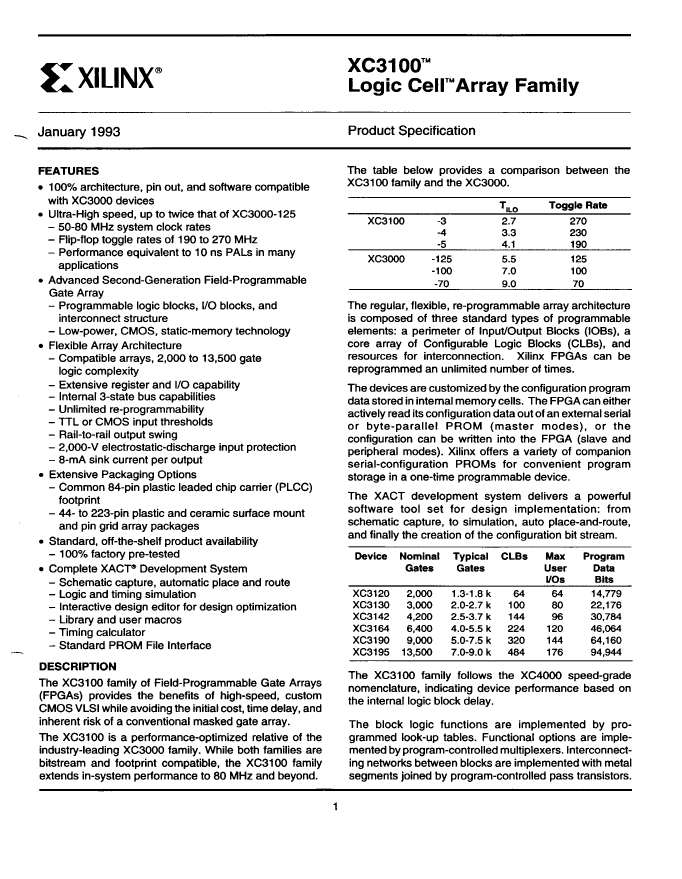

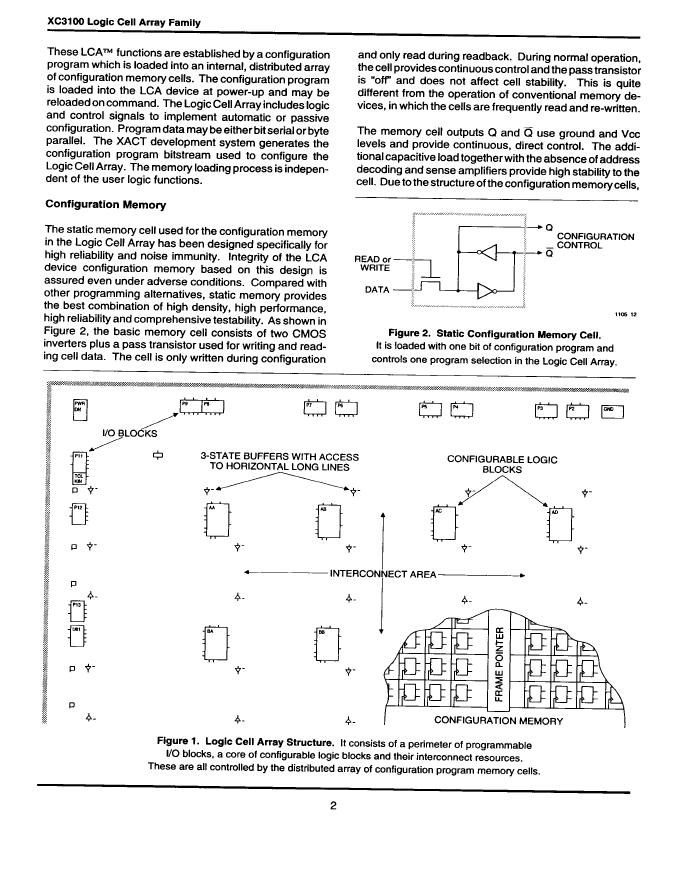

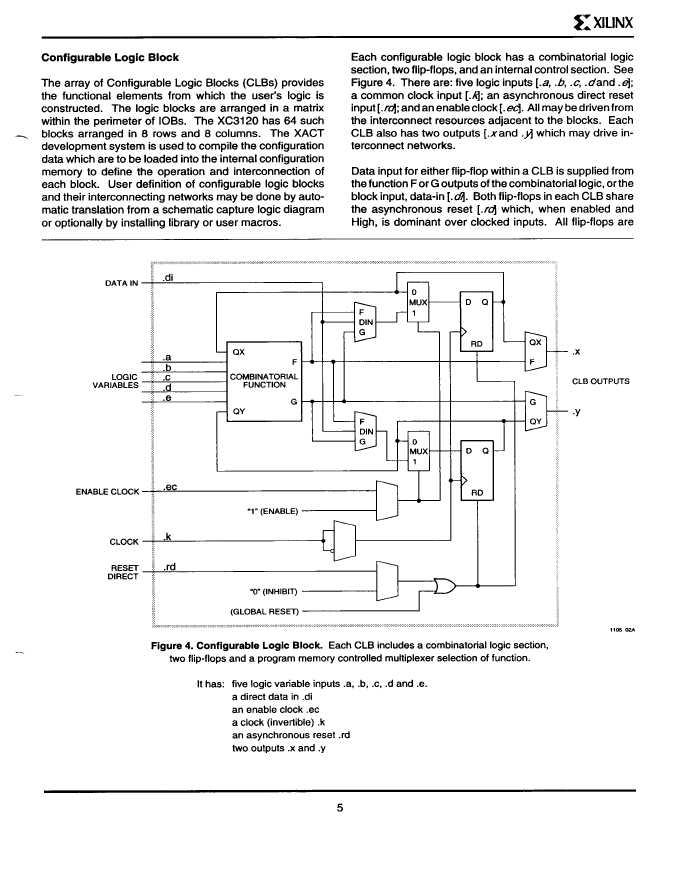

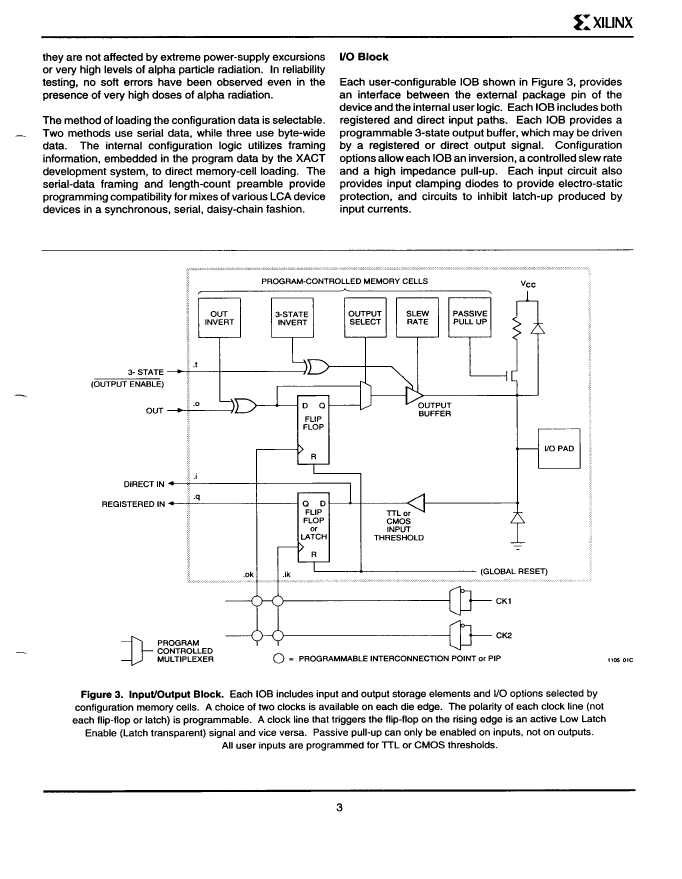

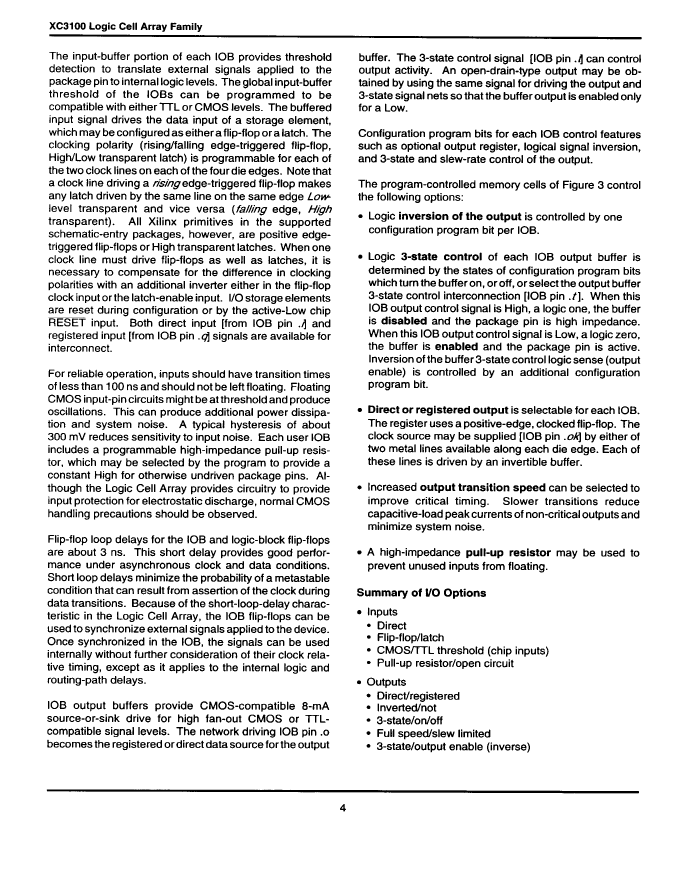

XC3142-3TQ100C Overview

Field Programmable Gate Array, 144 CLBs, 3000 Gates, 270MHz, 144-Cell, CMOS, PQFP100, PLASTIC, TQFP-100

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	XILINX
Parts packaging code	QFP
package instruction	PLASTIC, TQFP-100
Contacts	100
Reach Compliance Code	_compli
ECCN code	EAR99
Factory Lead Time	1 week
Other features	MAX. 96 I/OS; 480 FLIP-FLOPS; TYP. GATES = 3000 - 3700
maximum clock frequency	270 MHz
Combined latency of CLB-Max	2.7 ns
JESD-30 code	S-PQFP-G100
JESD-609 code	e0
length	14 mm
Humidity sensitivity level	3
Configurable number of logic blocks	144
Equivalent number of gates	3000
Number of entries	82
Number of logical units	144
Output times	82
Number of terminals	100
Maximum operating temperature	70 °C
Minimum operating temperature
organize	144 CLBS, 3000 GATES
Package body material	PLASTIC/EPOXY
encapsulated code	FQFP
Encapsulate equivalent code	QFP100,.63SQ,20
Package shape	SQUARE
Package form	FLATPACK, FINE PITCH
power supply	5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	14 mm
