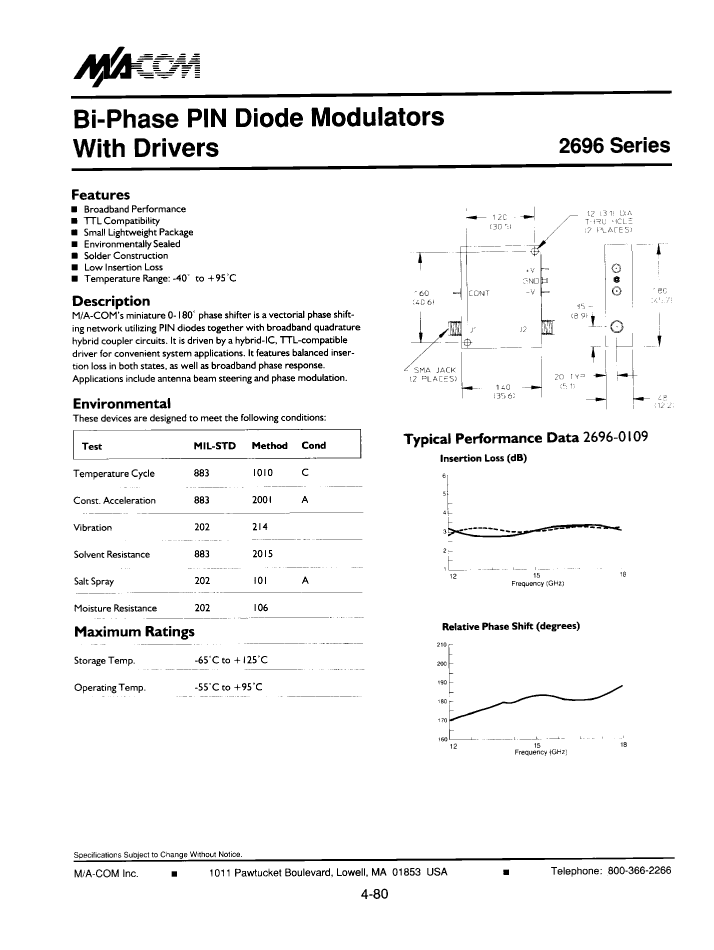

2696-0101-22 Overview

2000MHz - 4000MHz, 0deg - 180deg RF/MICROWAVE DIGITALLY CONTROLLED PH SHFTR

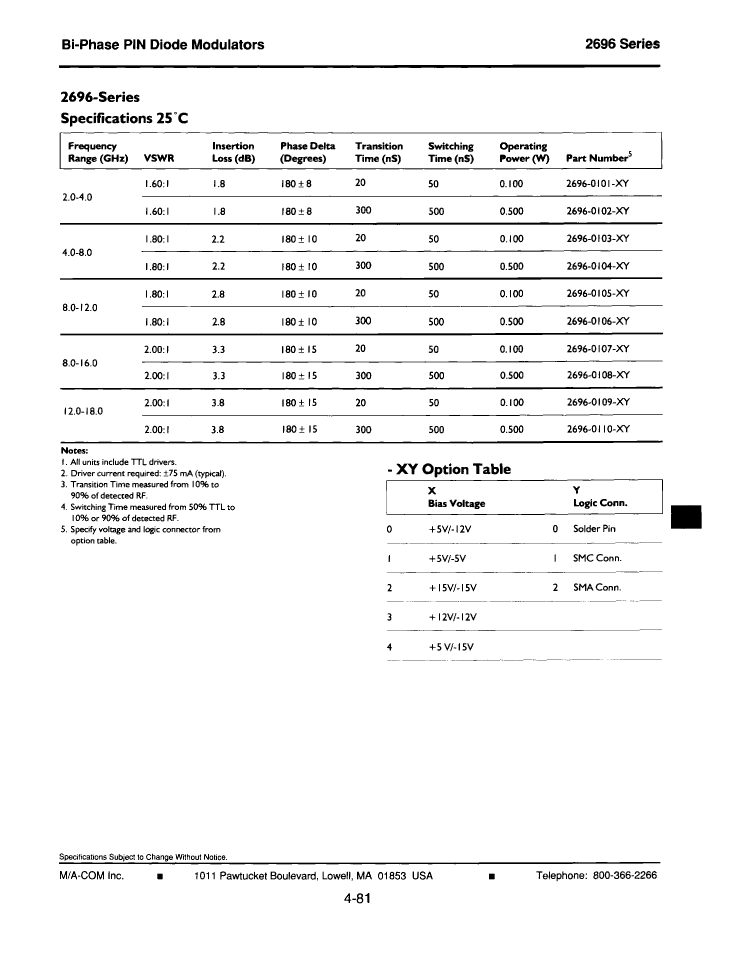

Parameter Name	Attribute value
Objectid	1442677821
Reach Compliance Code	unknown
structure	MODULE
Maximum input power (CW)	20 dBm
Maximum insertion loss	1.8 dB
Maximum operating frequency	4000 MHz
Minimum operating frequency	2000 MHz
Maximum operating temperature	95 °C
Minimum operating temperature	-55 °C
maximum phase shift	180 deg
minimum phase shift
RF/Microwave Device Types	COAXIAL MECHANICAL PHASE SHIFTER
Maximum voltage standing wave ratio	1.6
