CXA1207 datasheet, PDF - EEWORLD Datasheet

CXA1207: Description8 mm VCR LUMINANCE SIGNAL PROCESSING; File Size984KB，45 Pages; ManufacturerSONY; Websitehttp://www.sony.co.jp

Download Datasheet Compare View All

CXA1207 Overview

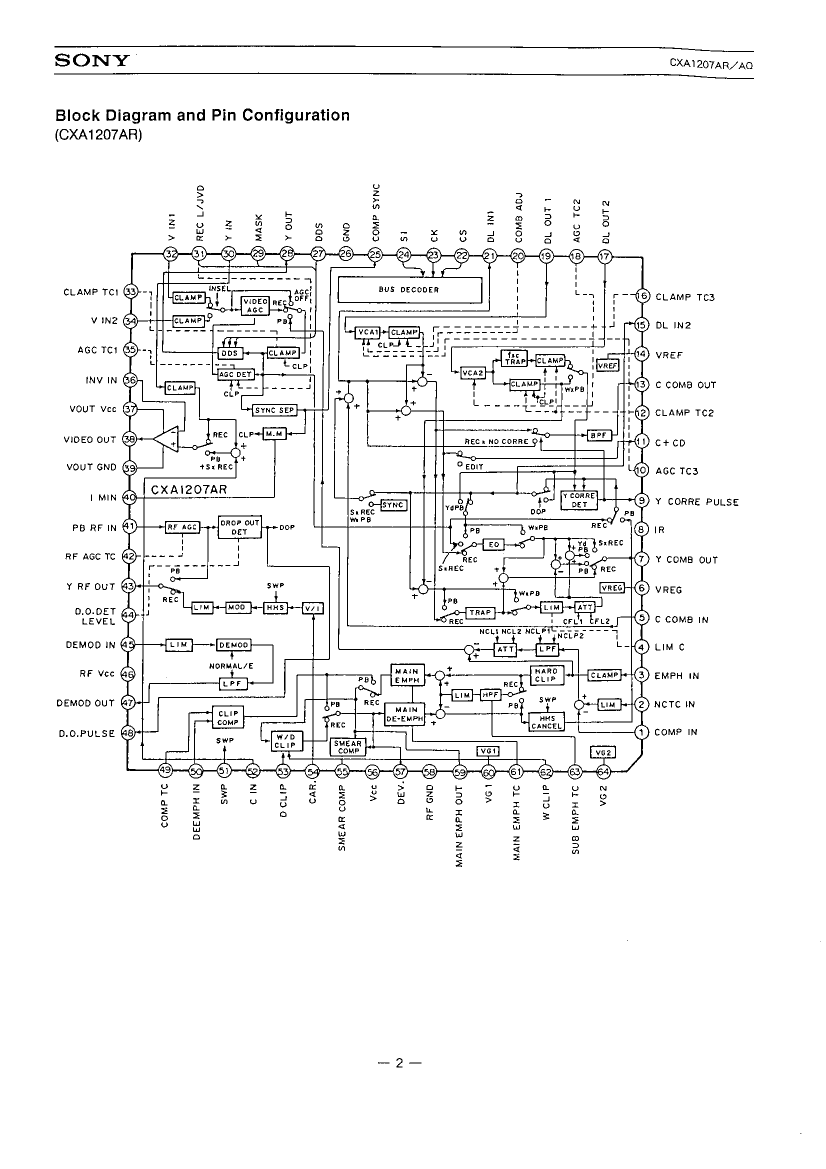

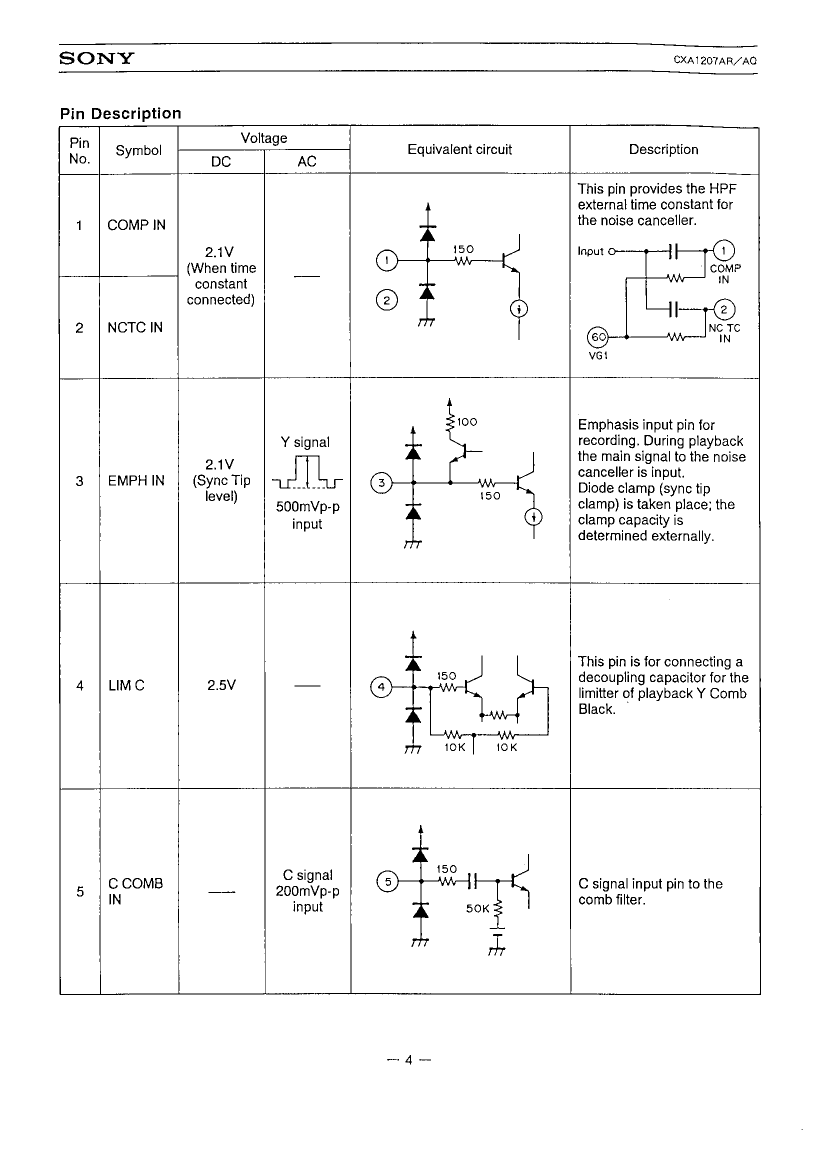

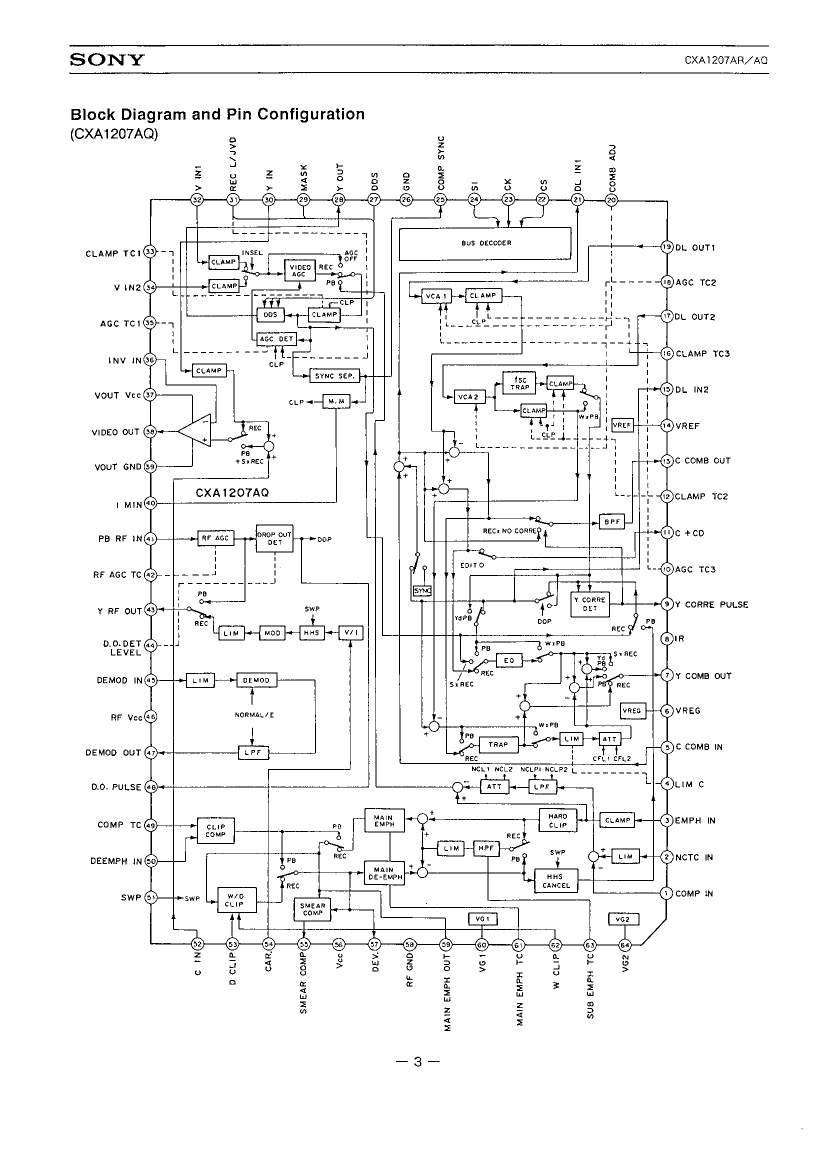

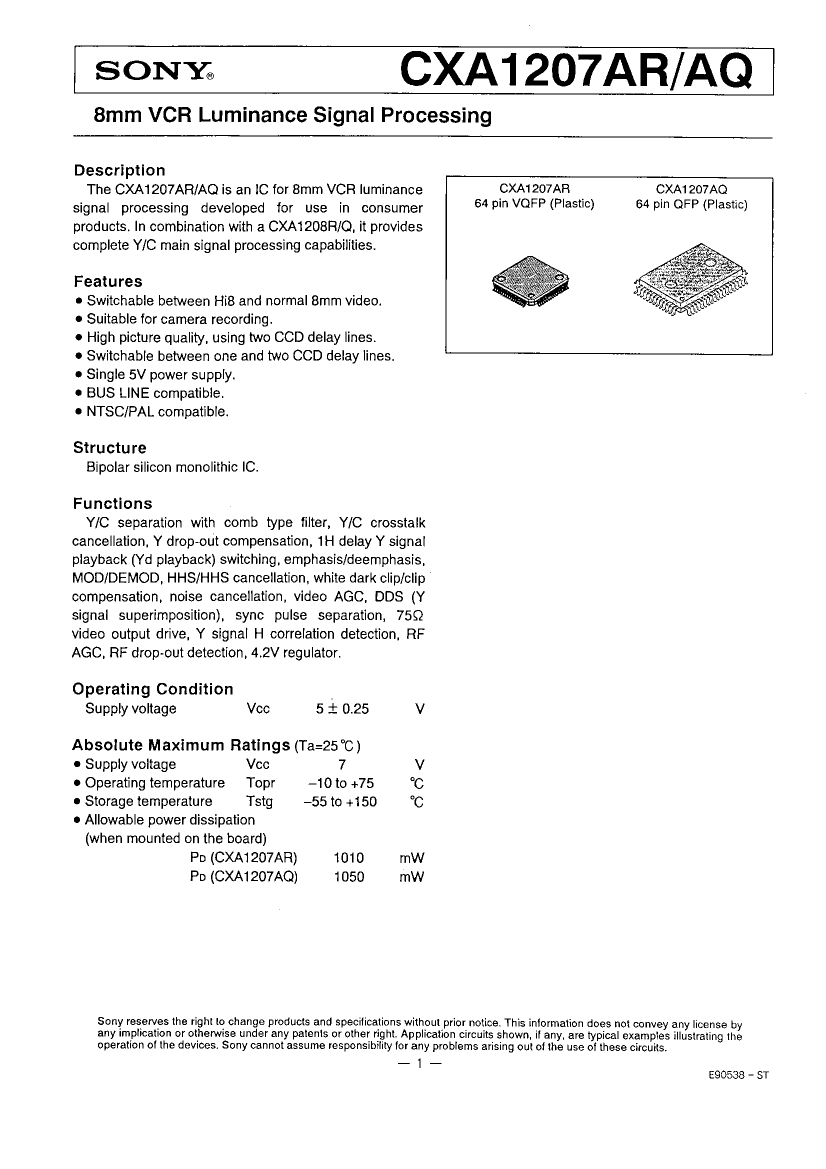

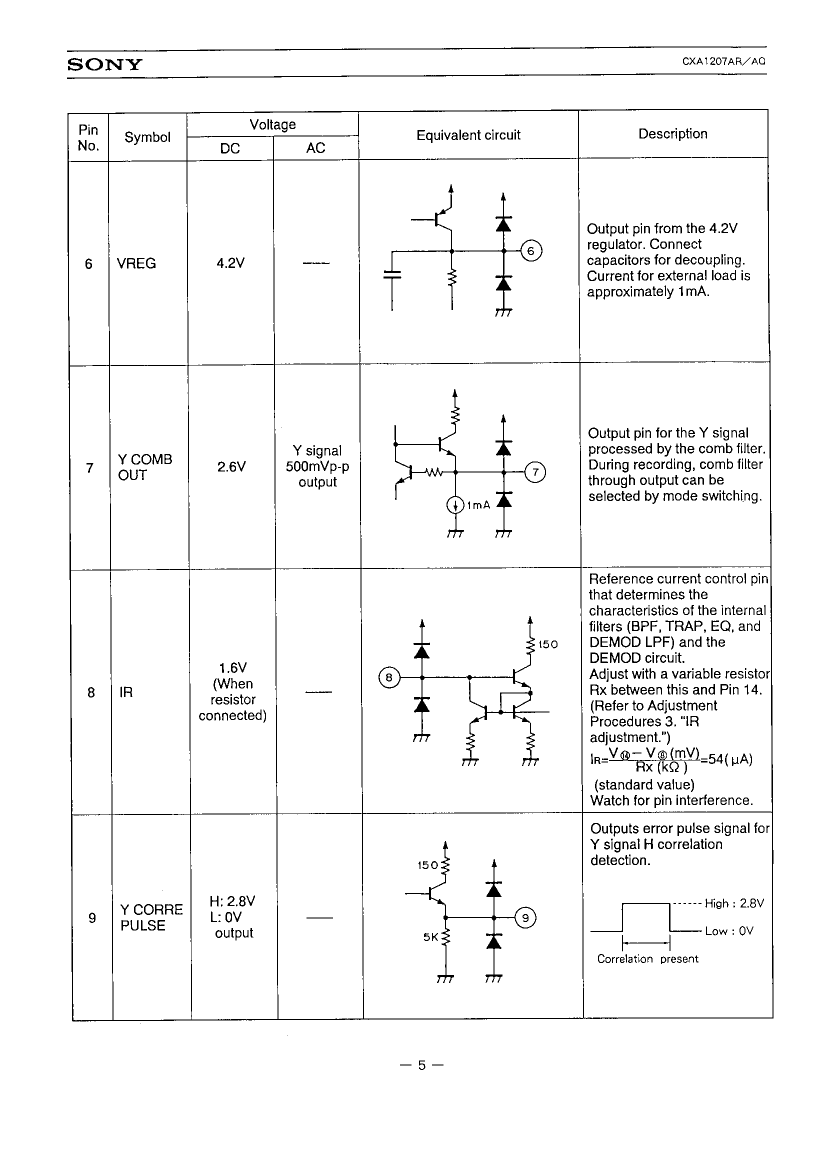

8 mm VCR LUMINANCE SIGNAL PROCESSING

	CXA1207	CXA1207AQ	CXA1207AR
Description	8 mm VCR LUMINANCE SIGNAL PROCESSING	8 mm VCR LUMINANCE SIGNAL PROCESSING	8 mm VCR LUMINANCE SIGNAL PROCESSING
Is it lead-free?	-	Contains lead	Contains lead
Is it Rohs certified?	-	incompatible	incompatible
Maker	-	SONY	SONY
Parts packaging code	-	QFP	QFP
package instruction	-	QFP, QFP64,.7X.95,40	LFQFP, QFP64,.47SQ,20
Contacts	-	64	64
Reach Compliance Code	-	unknow	unknow
Commercial integrated circuit types	-	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	-	R-PQFP-G64	S-PQFP-G64
JESD-609 code	-	e0	e0
length	-	20 mm	10 mm
Number of functions	-	1	1
Number of terminals	-	64	64
Maximum operating temperature	-	75 °C	75 °C
Minimum operating temperature	-	-10 °C	-10 °C
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	QFP	LFQFP
Encapsulate equivalent code	-	QFP64,.7X.95,40	QFP64,.47SQ,20
Package shape	-	RECTANGULAR	SQUARE
Package form	-	FLATPACK	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED
power supply	-	5 V	5 V
Certification status	-	Not Qualified	Not Qualified
Maximum seat height	-	3.1 mm	1.7 mm
Maximum slew rate	-	78 mA	78 mA
Maximum supply voltage (Vsup)	-	5.25 V	5.25 V
Minimum supply voltage (Vsup)	-	4.75 V	4.75 V
surface mount	-	YES	YES
technology	-	BIPOLAR	BIPOLAR
Temperature level	-	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	-	GULL WING	GULL WING
Terminal pitch	-	1 mm	0.5 mm
Terminal location	-	QUAD	QUAD
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED
width	-	14 mm	10 mm
