This document was generated on 04/16/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0507528000
Active
Crimp Terminal 50752, 22-28 AWG, Reel
Documents:
3D Model
Drawing (PDF)
Product Specification PS-51103-007 (PDF)
Product Specification PS-51103-024 (PDF)
Product Specification PS-51163-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Crimp Terminals
50752
Yes
N/A

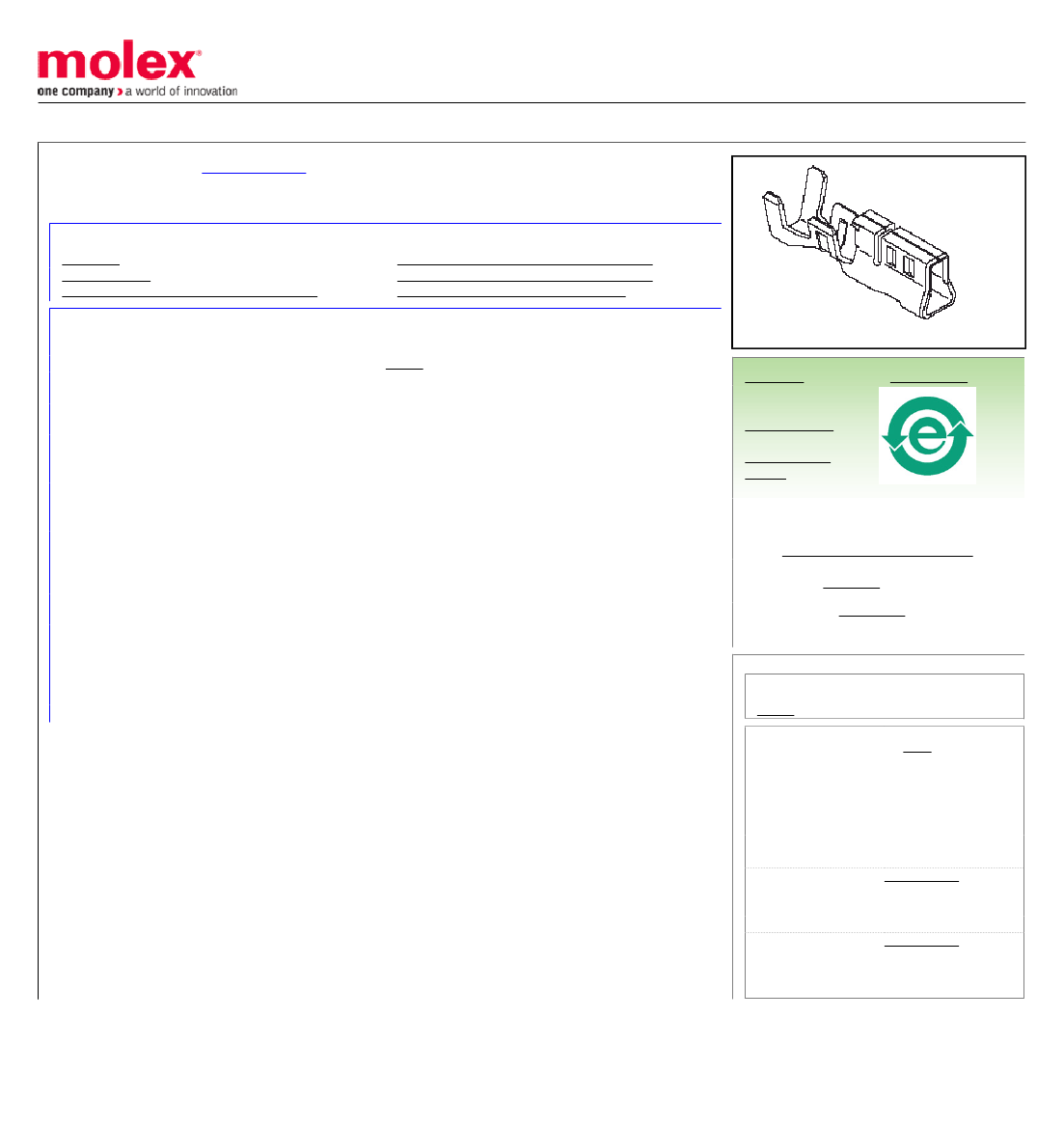

image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Product Name
Physical
Gender
Material - Metal
Material - Plating Mating
Packaging Type
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Phosphor Bronze
Tin
Reel
Crimp or Compression
1.15-1.80mm (.045-.071")
22, 24, 26, 28
N/A
Material Info
Reference - Drawing Numbers
Product Specification
PS-51103-007, PS-51103-024, PS-51163-001,
RPS-500292-001, RPS-51103-028, RPS-51103-030,
RPS-51103-031, RPS-51103-035, RPS-51103-045,
RPS-51103-049, RPS-51103-057, RPS-51163-001,
RPS-51163-003

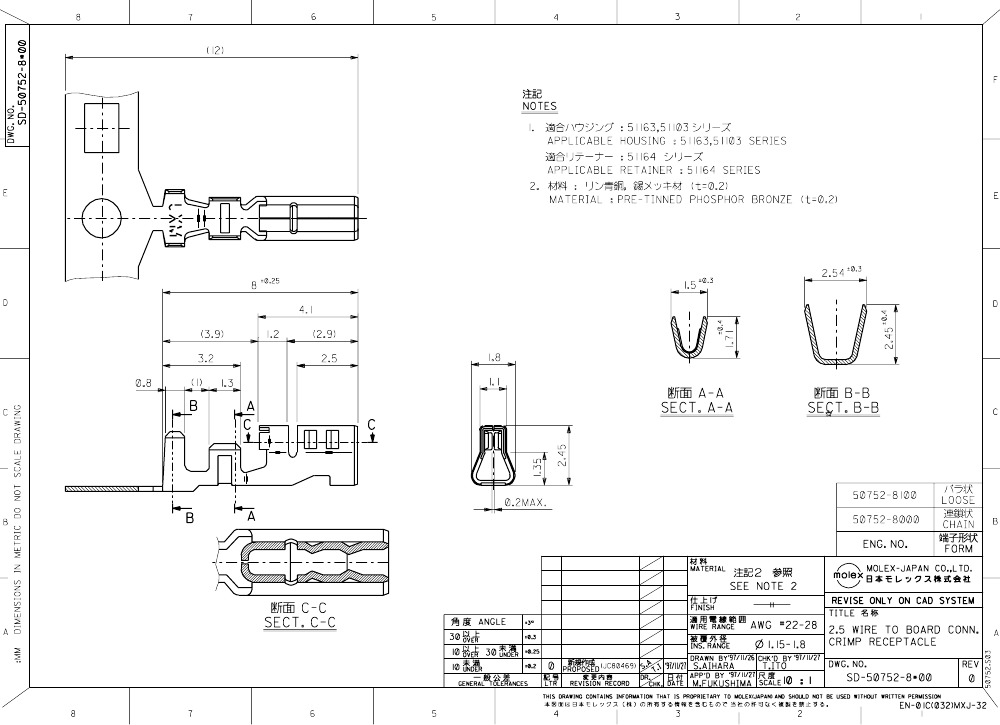

SD-50752-8*00
Sales Drawing
Search Parts in this Series
50752Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
FineAdjust™
0638605000
Applicator
Japan
Description
Product #
Applicator for M211A 0573853000
Bench Press, 22-28
AWG, for 50752
Crimp Terminal
This document was generated on 04/16/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
