Part Number:
Status:
Description:
0513470400
Active
3.30mm (.130") Pitch Wire-to-Board and Wire-to-Wire Receptacle Housing, Positive
Lock, Single Row, 4 Circuits, White
Documents:
Drawing (PDF)
Product Specification PS-51284-001 (PDF)
Product Specification PS-51284-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Crimp Housings
51347
N/A
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Product Name
Physical
Circuits (maximum)
Color - Resin
Gender
Glow-Wire Compliant
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
4
Natural
Female
No
Yes
Nylon
1
Bag
No
0.130 In
3.30 mm
Yes
No
-25°C to +85°C
Electrical
Current - Maximum per Contact
4A
Material Info
Reference - Drawing Numbers
Product Specification
PS-51284-001, PS-51284-002, RPS-51284-003,
RPS-51284-004, RPS-51284-005, RPS-51284-006,
RPS-51284-007, RPS-51284-008, RPS-51284-009,
RPS-51284-011
SD-51347-001, SD-51347-002
Search Parts in this Series
51347Series
Mates With
55883s , 51346-0400
Use With
51348 , 56187

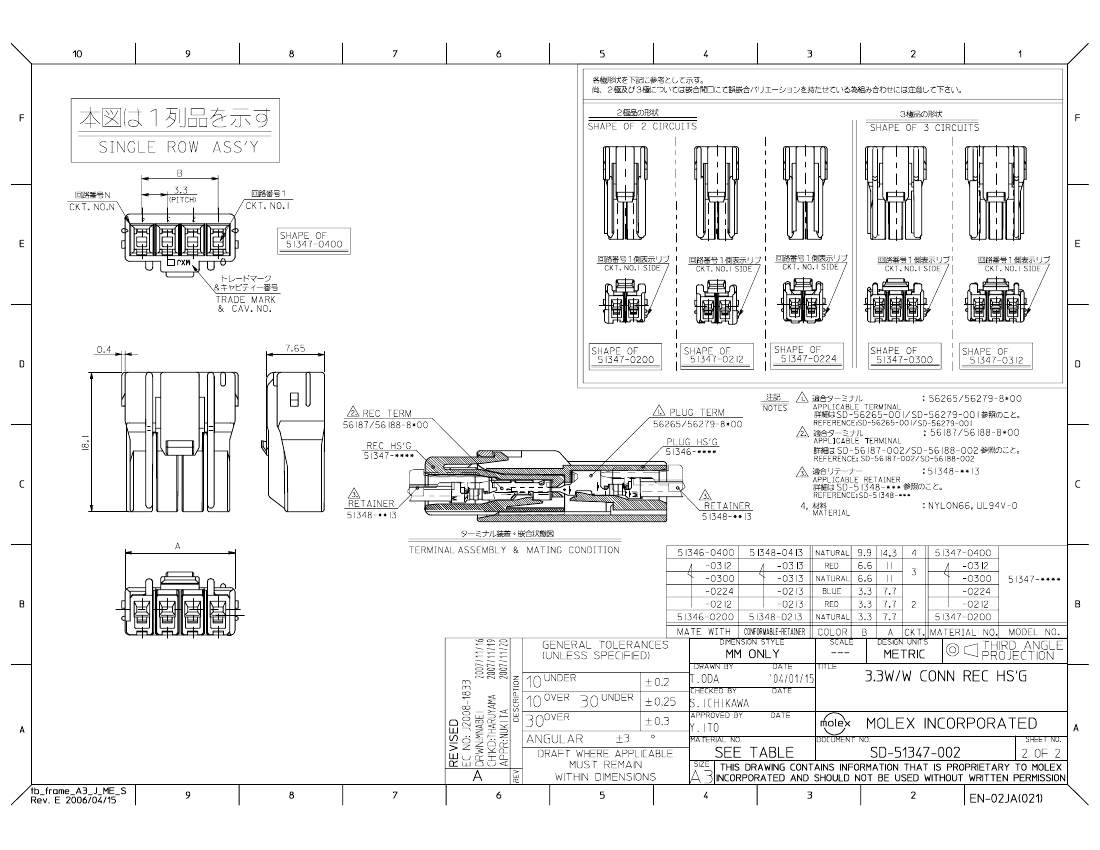

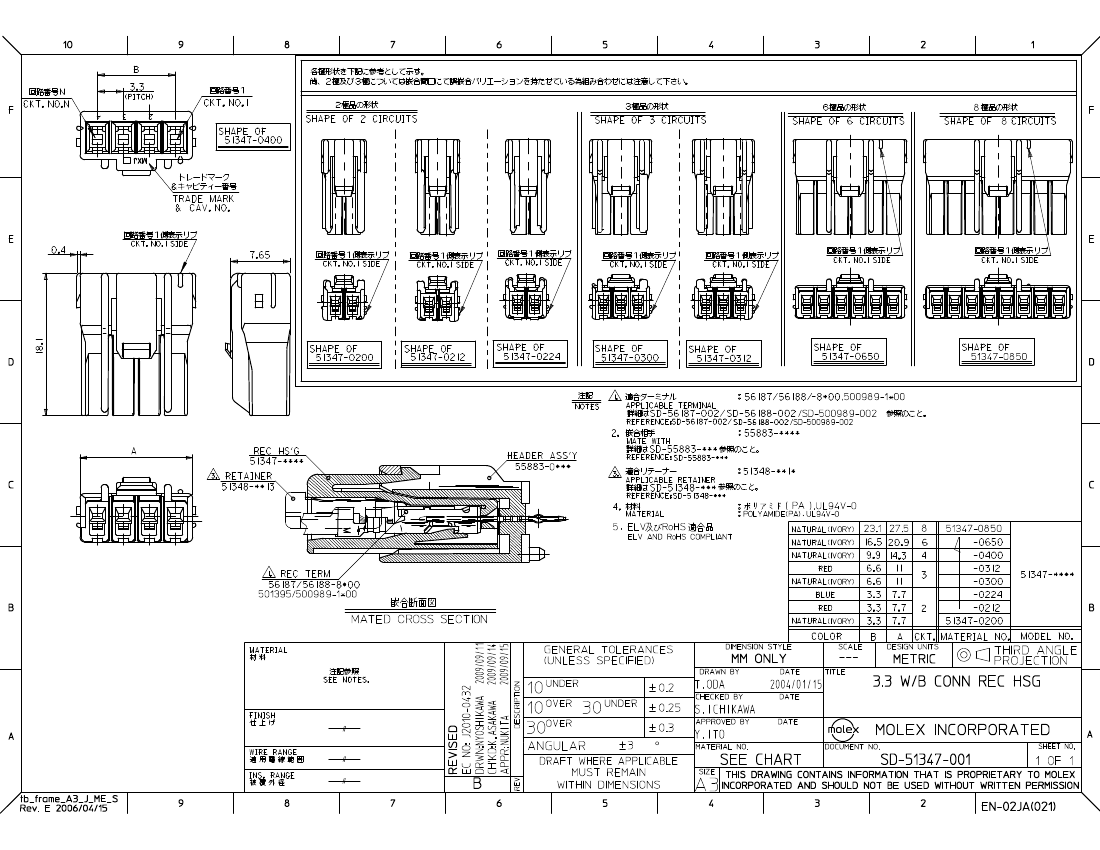

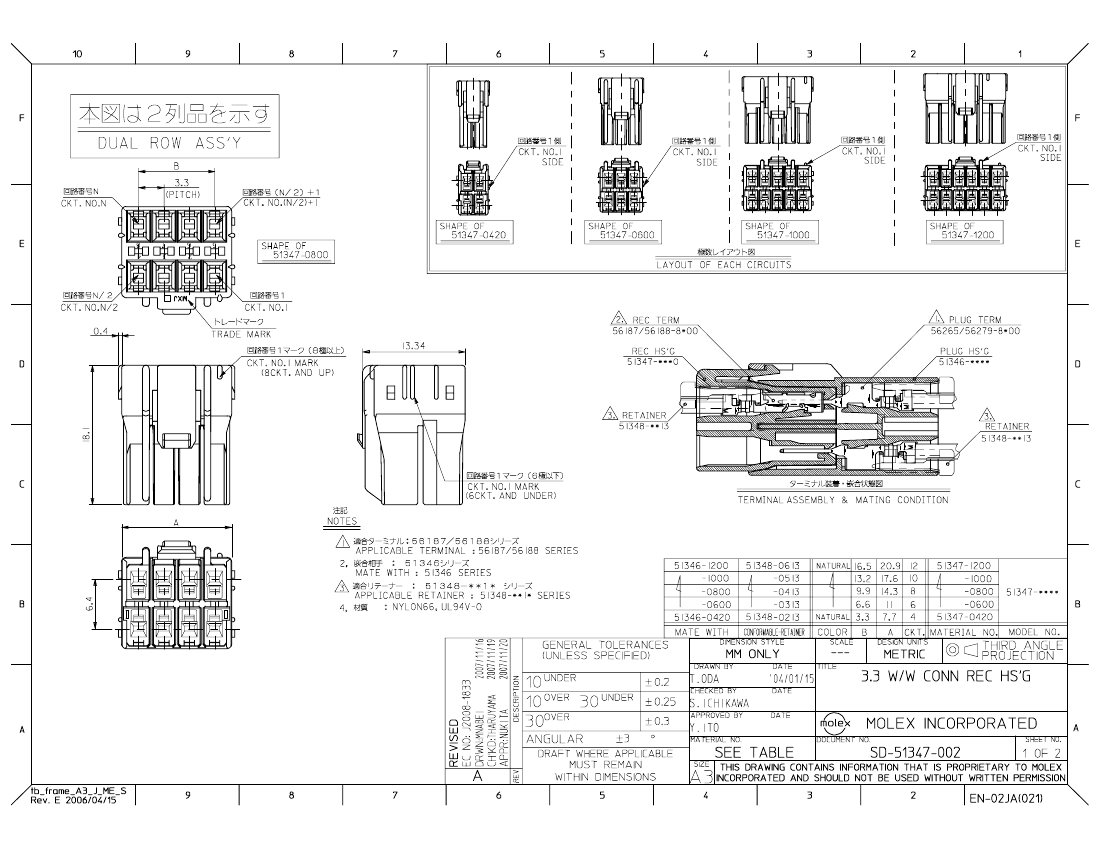

Sales Drawing
