520C212M250CH2BP datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 520C212M250CH2BP

520C212M250CH2BP: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 250V, 20% +Tol, 20% -Tol, 2100uF, Stud Mount, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size358KB，7 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

520C212M250CH2BP Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 250V, 20% +Tol, 20% -Tol, 2100uF, Stud Mount, CAN, ROHS COMPLIANT

520C212M250CH2BP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	2100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	64.11 mm
dielectric materials	ALUMINUM (WET)
ESR	54.2 mΩ
leakage current	2.17371 mA
length	67.442 mm
Manufacturer's serial number	520C
Installation features	STUD MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Screw Ends
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	250 V
ripple current	8200 mA
series	520C
surface mount	NO
Terminal pitch	28.58 mm
Terminal shape	BINDING POST

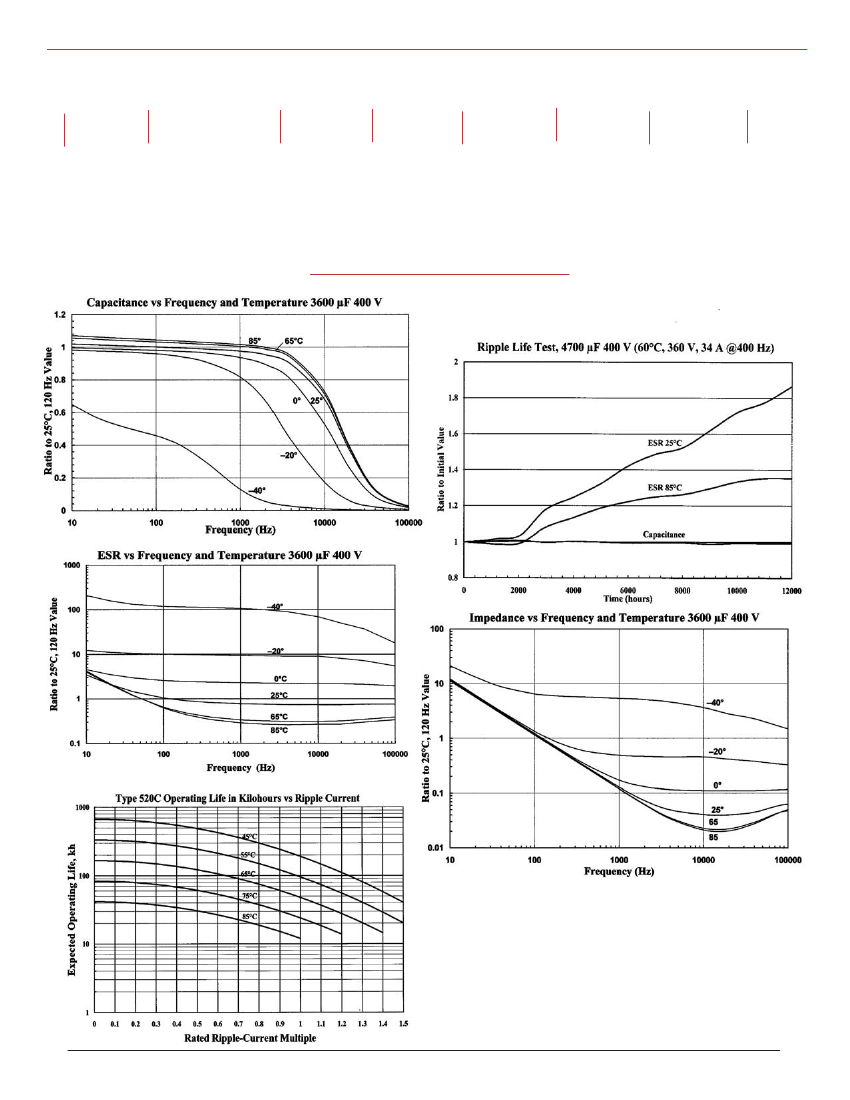

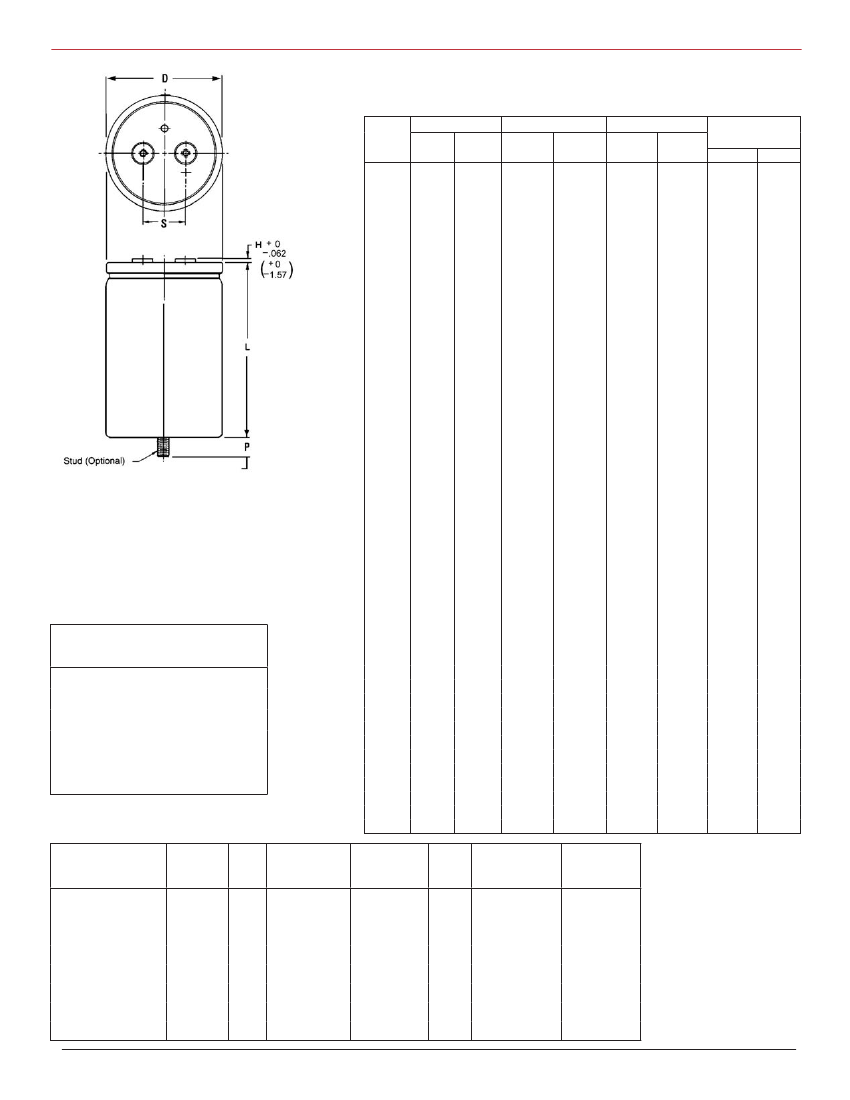

Preview

Download Datasheet

View All

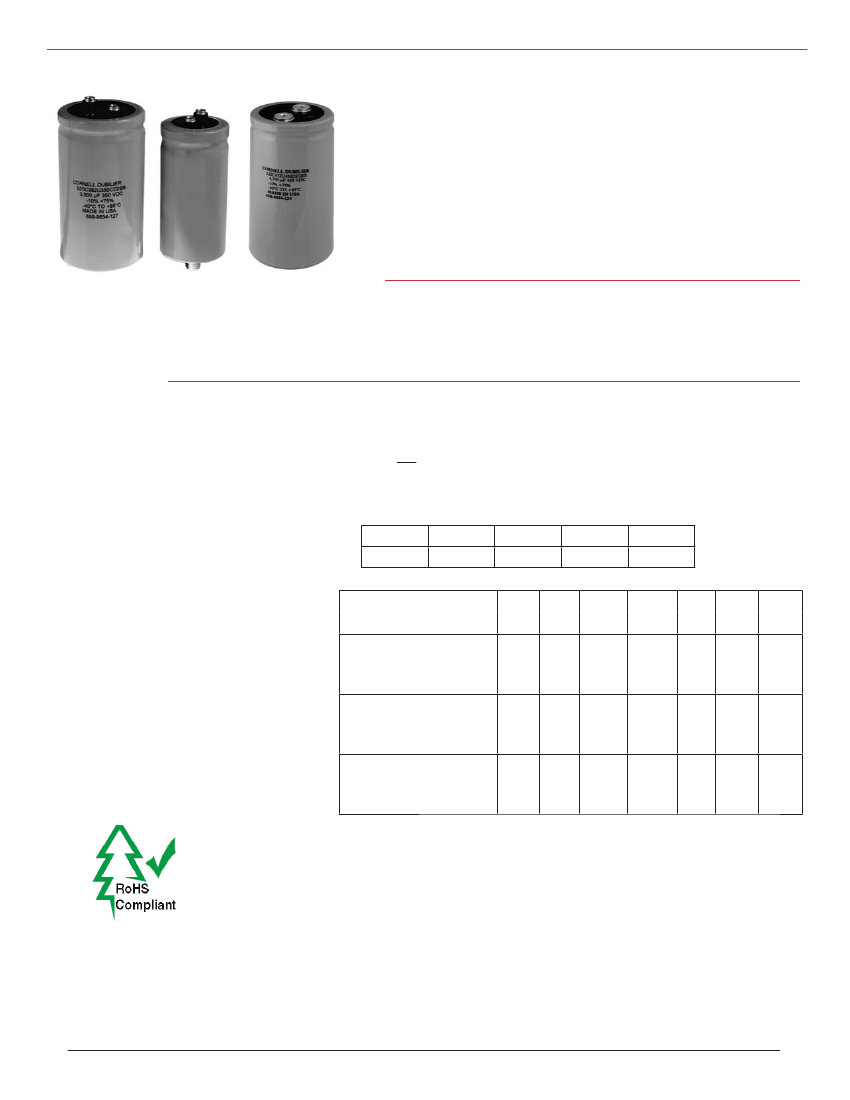

Ultra-Ripple, Long-life, Inverter Grade, 85 ºC

Type 520C

85 °C Long-life, Inverter Grade, Aluminum

Best Value High Ripple Type

Type 520C is the 85 °C version of the Type 550C Inverter-

Grade capacitor. It delivers the ripple-current capability and

exceptional life needed for motor-drive bus capacitors and

approaches the performance of the 550C at lower cost. It is

rated for 8000 hours life with full ripple current, rated voltage,

85 °C and 100 lfm airﬂow while mounted horizontally.

Horizontal mounting is more severe than vertical mounting.

The extended cathode foil of the 520C assures heat ﬂow

from the capacitor element to the can in all orientations.

• 8,000 hour load life

• Ripple current to 55 amps

• ESRs to 8 mΩ

• Best value high ripple current

• Thermal-Pak™ extended cathode construction

–40 °C to +85 °C

200 to 500 Vdc

84 µF to 39,000 µF

–10% +50%

≤3√CV (µA) 5 mA max., 5 minutes

–20 °C multiple of 25 °C Z ≤3

Ambient Temperature

45 °C

1.80

55 °C

1.63

65 °C

1.45

75 °C

1.25

85 °C

1.00

10 kHz

50 Hz 60 Hz 120 Hz 360 Hz 1 kHz 5 kHz

1 3/8” & 1 3/4” Diameters

200 to 350 V

400 to 500 Vx

2” & 2 1/2” Diameters

200 to 350 V

400 to 500 V

3” & 3 1/2” Diameters

200 to 350 V

400 to 500 V

0.84

0.79

0.88

0.84

1.00

1.12

1.18

1.17

1.26

1.20

1.31

1.20

1.32

0.78

0.77

0.83

0.82

1.00

1.20

1.22

1.29

1.33

1.34

1.39

1.35

1.40

0.76

0.81

1.00

1.24

1.36

1.37

1.43

1.44

1.45

& up

Highlights

Speciﬁcations

Operating Temperature:

Rated Voltage:

Capacitance:

Capacitance Tolerance:

Leakage Current:

Cold Impedence:

Ripple Current Multipliers:

Frequency

EIA Ripple Life:

8,000 h at full load @ +85 °C per EIA IS-749

∆Capacitance ±20%

ESR 200% of limit

DCL 100% of limit

Life Test:

10,000 h at rated voltage and 85 °C

Complies with the EU Directive

∆ Capacitance: ±20%

2002/95/EC requirement restricting

ESR: 200% of limit

the use of Lead (Pb), Mercury (Hg),

Cadmium (Cd), Hexavalent chromium

DCL: 100% of limit

(Cr(VI)), PolyBrominated Biphenyls

Shelf Life:

500 h @ 85 °C, capacitance, ESR and DCL, initial require-

(PBB) and PolyBrominated Diphenyl

ments

Ethers (PBDE).

Vibration:

10 to 55 Hz, 0.06” and 10 g max, 1.5 h ea. of 2 axis

CDM Cornell Dubilier

•

140 Technology Place

•

Liberty, SC 29657

•

Phone: (864)843-2277

•

Fax: (864)843-3800

•

www.cde.com
