550C332T450DE2BS datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 550C332T450DE2BS

550C332T450DE2BS: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 50% +Tol, 10% -Tol, 3300uF, Chassis Mount, ROHS COMPLIANT; CategoryPassive components capacitor; File Size388KB，7 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric Compare View All

550C332T450DE2BS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	550C332T450DE2BS	-	-	View	Buy Now

550C332T450DE2BS Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 50% +Tol, 10% -Tol, 3300uF, Chassis Mount, ROHS COMPLIANT

550C332T450DE2BS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	3300 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	76.81 mm
dielectric materials	ALUMINUM (WET)
ESR	22.7 mΩ
leakage current	3.65582 mA
length	130.942 mm
Manufacturer's serial number	550C
Installation features	CHASSIS MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Screw Ends
polarity	POLARIZED
positive tolerance	50%
Rated (DC) voltage (URdc)	450 V
ripple current	6912 mA
series	550C
surface mount	NO
Terminal pitch	31.75 mm
Terminal shape	BINDING POST

Preview

Download Datasheet

View All

click here to see hardware and mounting options

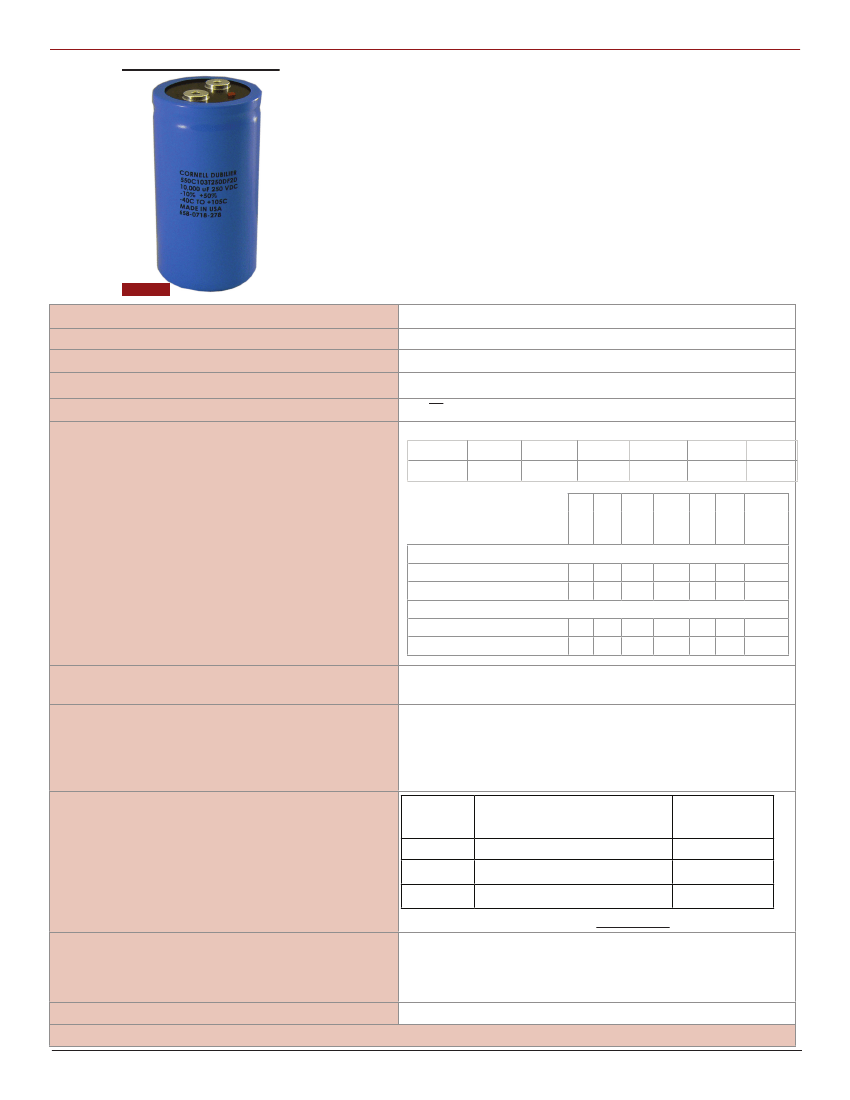

Type 550C 105 °C High Ripple, Inverter Grade, Aluminum

Ultra-Ripple, Long Life Screw Terminal Type

Type 550C is the standard for motor drive and other high-ripple, long-

life applications. It boasts more than 25% extra ripple capability per

can size, but less capacitance than Type 520C. Expected operating

life is more than 100,000 hours in typical applications. Type 550C is

rated for 20,000 h life with full ripple current, rated voltage, 85 ºC and

100 lfm airflow while mounted horizontally. Horizontal mounting is

more severe than vertical mounting. The extended cathode foil of the

550C assures heat flow from the capacitor element to the can in all

orientations.

Highlights

Specifications

Temperature Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Leakage Current

Ripple Current Multipliers

- Load life up to 20,000 hours at 85 ºC

- High ripple current

- ESRs to 7 mΩ

–40 °C to +105 °C

200 Vdc to 500 Vdc

680 µF to 35,000 µF

–10% +50%

≤3 √CV µA, 4 mA max, 5 minutes

Ambient Temperature

45 ºC

1.66

Frequency

55 ºC

1.52

65 ºC

1.37

75 ºC

1.20

85 ºC

1.00

95 ºC

0.75

105 ºC

0.36

50 60 120 360

Hz Hz Hz Hz

1 3/8” & 2 1/2” Diameters

200 to 350 V

0.77 0.82 1.00 1.21

400 to 500 V

0.73 0.78 1.00 1.33

3” & 3 1/2” Diameters

200 to 350 V

0.80 0.85 1.00 1.17

400 to 500 V

0.73 0.79 1.00 1.31

5 10 kHz

kHz kHz & up

1.32 1.37 1.38

1.53 1.66 1.68

1.24 1.28 1.29

1.51 1.63 1.65

Low Temperature Characteristics

Endurance Life Test

Impedance ratio: Z

–20⁰C

∕ Z

+25⁰C

≤ 3 (200–500 Vdc)

5,000 hr. load life at 85 ºC

10,000 hr. load life at 105 ºC

∆ Capacitance ±20%

ESR 200% of limit

DCL 100% of limit

Diameter

2½” (66)

3” (77)

3½ (90)

Rated Voltage and Ripple Current

@105 ºC (hours)

15000

Rated Voltage

@105 ºC (hours)

18000

Operating Life

Load life up to 20000 hours at 105 ºC with 90% VDC

Shelf Life Test

500 h at 105 °C

Capacitance 100% of limit

ESR 100% of limit

DCL 100% of limit

10 to 55 Hz, 0.06” and 10 g max, 1.5 h each of two axis

RoHS Compliant

Vibration

CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800

550C332T450DE2BS Related Products

	550C332T450DE2BS	550C332T450DE2B	943C	550C402T450DP2B	550C502T450FF2D	550C142T450BF1B
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 50% +Tol, 10% -Tol, 3300uF, Chassis Mount, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 50% +Tol, 10% -Tol, 3300uF, Chassis Mount, CAN, ROHS COMPLIANT	Polypropylene Capacitors, for High Pulse, Snubber	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 50% +Tol, 10% -Tol, 4000uF, Chassis Mount, CAN, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 50% +Tol, 10% -Tol, 5000uF, Chassis Mount, CAN, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 50% +Tol, 10% -Tol, 1400uF, Chassis Mount, CAN, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]	CDE [ CORNELL DUBILIER ELECTRONICS ]	-	CDE [ CORNELL DUBILIER ELECTRONICS ]	CDE [ CORNELL DUBILIER ELECTRONICS ]	-
Reach Compliance Code	compli	compliant	-	compliant	compliant	compliant
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99
capacitance	3300 µF	3300 µF	-	4000 µF	5000 µF	1400 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	-	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	76.81 mm	76.81 mm	-	76.81 mm	89.51 mm	51.41 mm
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	-	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
ESR	22.7 mΩ	22.7 mΩ	-	19.2 mΩ	15.1 mΩ	53.3 mΩ
leakage current	3.65582 mA	3.65582 mA	-	4.02493 mA	4.5 mA	2.381 mA
length	130.942 mm	130.942 mm	-	149.992 mm	143.642 mm	143.642 mm
Manufacturer's serial number	550C	550C	-	550C	550C	550C
Installation features	CHASSIS MOUNT	CHASSIS MOUNT	-	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT
negative tolerance	10%	10%	-	10%	10%	10%
Number of terminals	2	2	-	2	2	2
Maximum operating temperature	105 °C	105 °C	-	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	-	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Package form	Screw Ends	Screw Ends	-	Screw Ends	Screw Ends	Screw Ends
polarity	POLARIZED	POLARIZED	-	POLARIZED	POLARIZED	POLARIZED
positive tolerance	50%	50%	-	50%	50%	50%
Rated (DC) voltage (URdc)	450 V	450 V	-	450 V	450 V	450 V
ripple current	6912 mA	6912 mA	-	7848 mA	9540 mA	3672 mA
series	550C	550C	-	550C	550C	550C
surface mount	NO	NO	-	NO	NO	NO
Terminal pitch	31.75 mm	31.75 mm	-	31.75 mm	31.75 mm	22.23 mm
Terminal shape	BINDING POST	BINDING POST	-	BINDING POST	BINDING POST	BINDING POST
