1N5624 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N5624

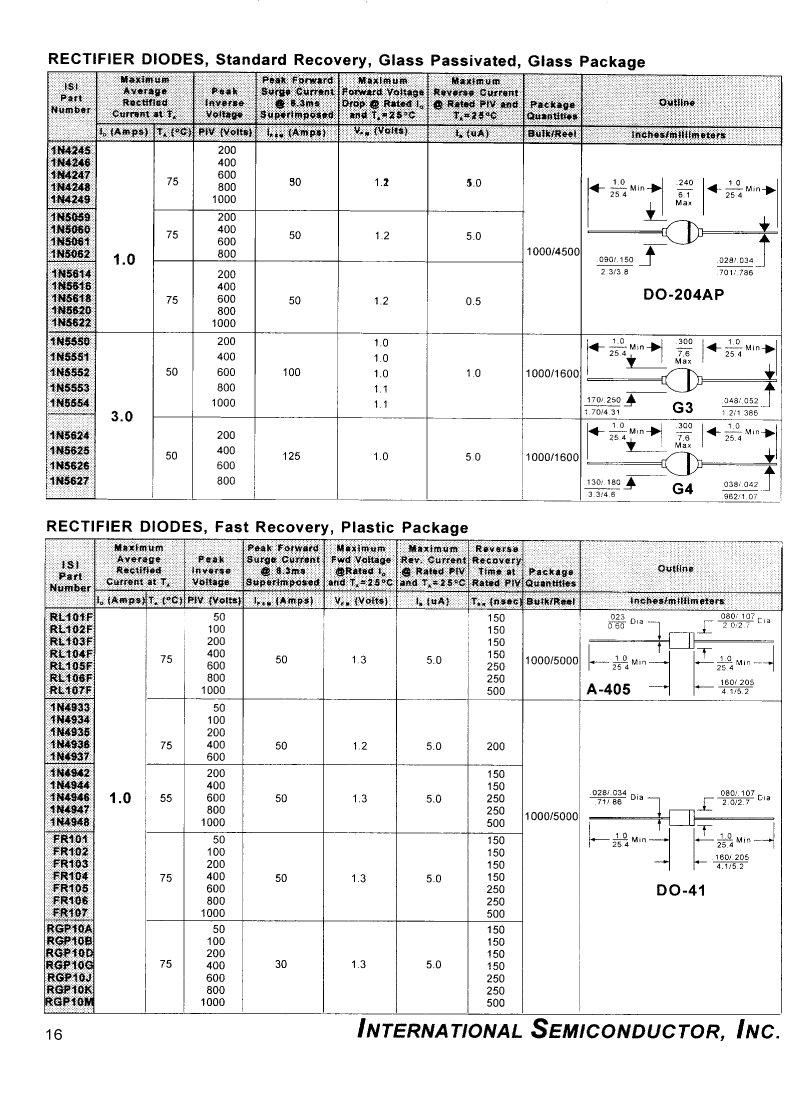

1N5624: DescriptionRectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size115KB，1 Pages; ManufacturerInternational Semiconductor Inc

Download Datasheet Parametric Compare View All

1N5624 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N5624	-	-	View	Buy Now

1N5624 Overview

Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon

1N5624 Parametric

Parameter Name	Attribute value
Maker	International Semiconductor Inc
Reach Compliance Code	unknow
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	O-LALF-W2
Maximum non-repetitive peak forward current	125 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	3 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

1N5624 Related Products

	1N5624	RL101F	1N5552	1N5554	1N5620	RGP10J	RGP10K	RGP10M	RL104F	RL105F
Description	Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon	Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, PLASTIC, A-405, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon	Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon	Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-204AP, GLASS PACKAGE-2	Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, PLASTIC, A-405, 2 PIN	Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, PLASTIC, A-405, 2 PIN
Maker	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc
Reach Compliance Code	unknow	unknown	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-LALF-W2	O-PALF-W2	O-LALF-W2	O-LALF-W2	E-LALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum output current	3 A	1 A	3 A	3 A	1 A	1 A	1 A	1 A	1 A	1 A
Package body material	GLASS	PLASTIC/EPOXY	GLASS	GLASS	GLASS	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ELLIPTICAL	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	50 V	600 V	1000 V	800 V	600 V	800 V	1000 V	400 V	600 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum forward voltage (VF)	1 V	-	1.2 V	1.3 V	1.2 V	1.3 V	1.3 V	1.3 V	-	-
Maximum operating temperature	175 °C	-	175 °C	175 °C	200 °C	175 °C	175 °C	175 °C	-	-
package instruction	-	O-PALF-W2	O-LALF-W2	O-LALF-W2	E-LALF-W2	O-PALF-W2	O-PALF-W2	PLASTIC PACKAGE-2	O-PALF-W2	O-PALF-W2
Contacts	-	2	-	-	2	2	2	2	2	2
ECCN code	-	EAR99	-	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum reverse recovery time	-	0.15 µs	2 µs	2 µs	2 µs	0.25 µs	0.25 µs	0.5 µs	0.15 µs	0.25 µs
