0908140320 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0908140320

0908140320: Description1.27mm; CategoryThe connector The connector; File Size239KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0908140320 Overview

1.27mm

0908140320 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compli
Other features	POLARIZED
Board mount options	PEG
body width	0.197 inch
subject depth	0.293 inch
body length	1.149 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	15 mΩ
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.6958 N
Insulation resistance	1000000000 Ω
MIL compliance	NO
Plug contact pitch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
polarization key	POLARIZING PEG
Rated current (signal)	2.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
UL Flammability Code	94V-0
Evacuation force-minimum value	.2502 N

Preview

Download Datasheet

View All

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0908140320

Active

picoflex

1.27mm (.050") Pitch Picoflex® PF-50 Header, Vertical, Low Profile, Surface Mount,

Tin, 20 Circuits, Glow Wire Compatible

Documents:

3D Model

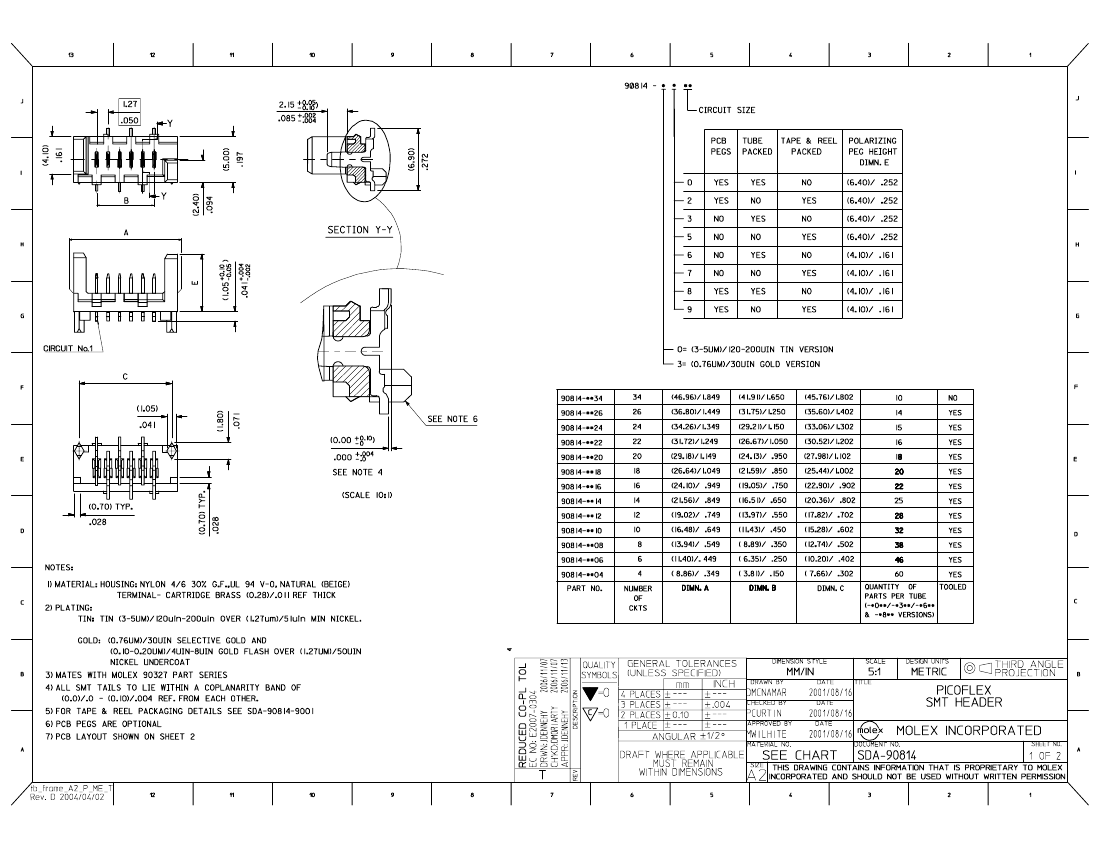

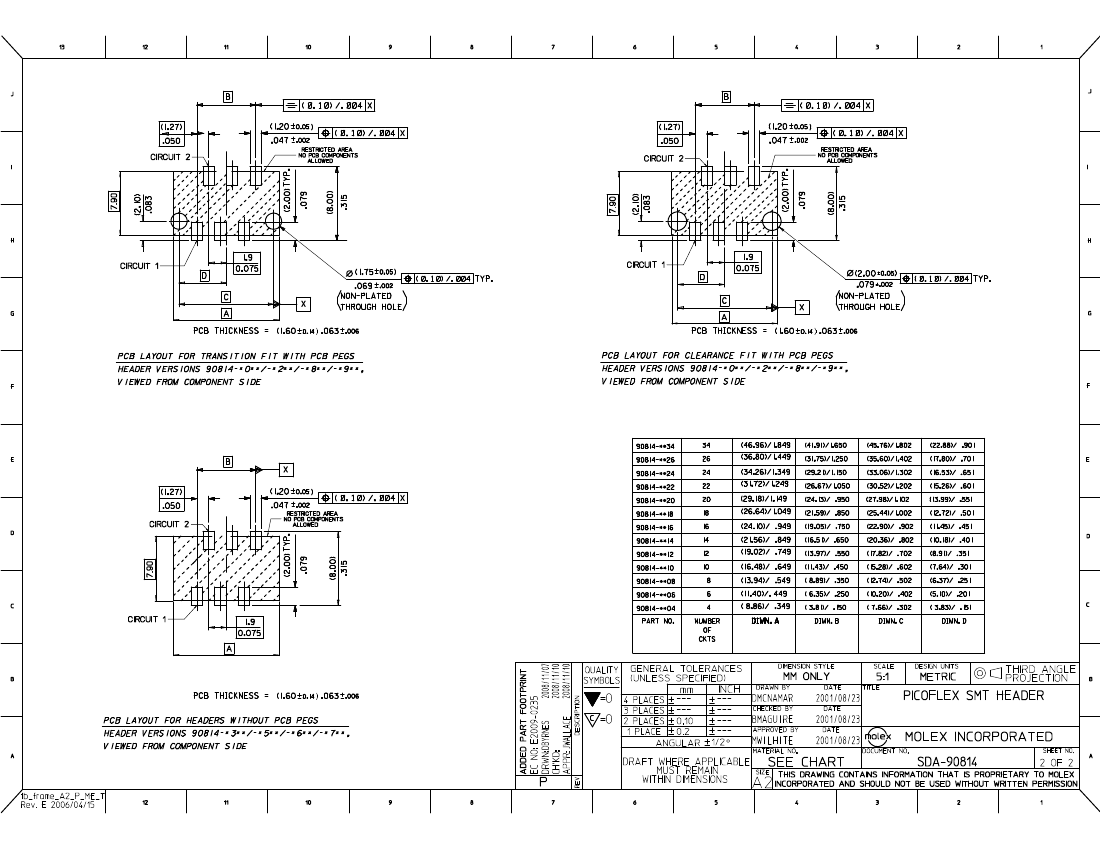

Drawing (PDF)

Product Specification PS-99020-0011 (PDF)

RoHS Certificate of Compliance (PDF)

Series

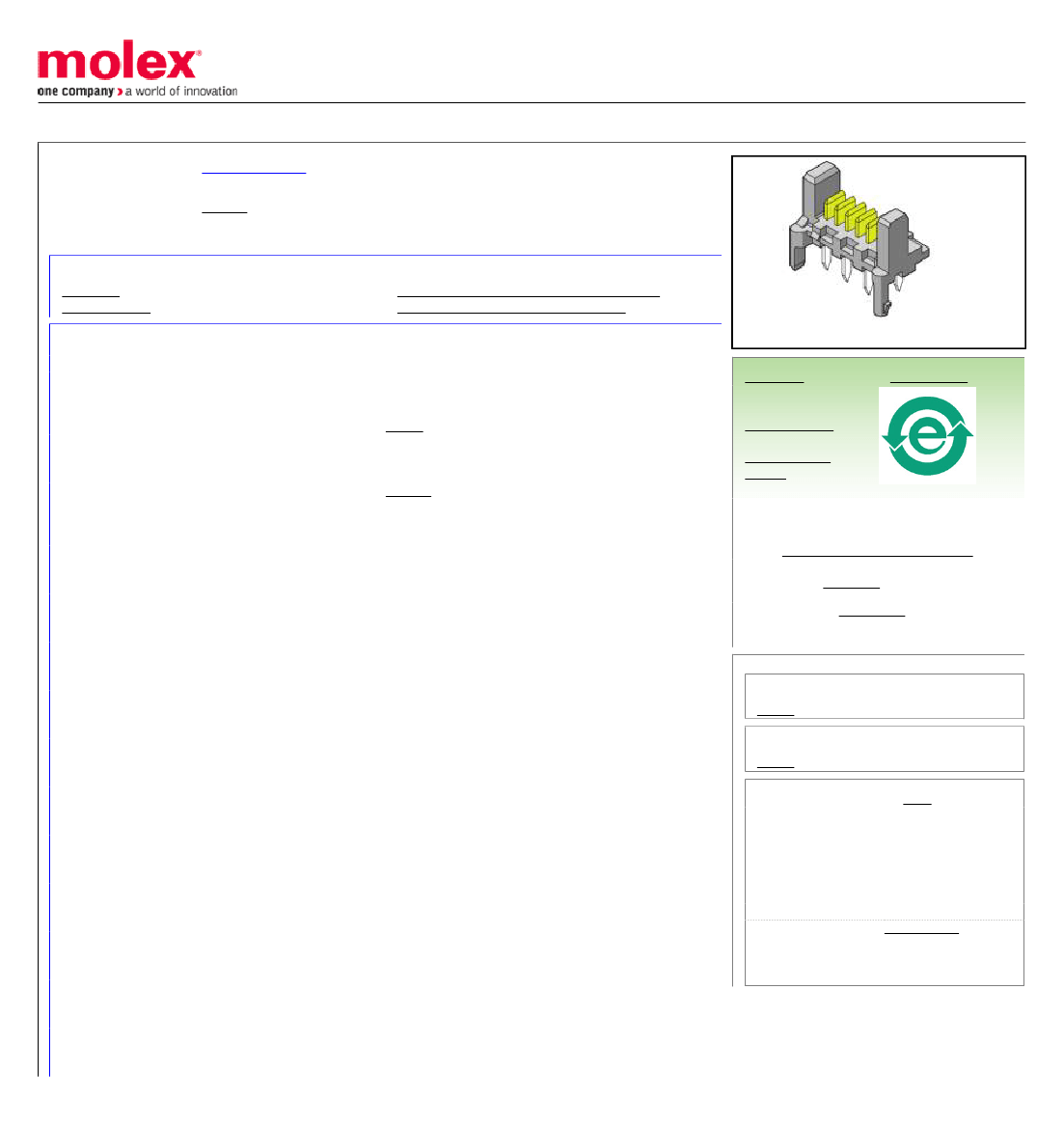

image - Reference only

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

General

Product Family

Series

Application

Application Tooling Part Link

Comments

Overview

Product Name

PCB Headers

90814

Wire-to-Board

690081070

Low Profile SMT

picoflex

Picoflex®

Physical

Breakaway

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Natural

94V-0

Yes

None

Yes

Brass

Tin

High Temperature Thermoplastic

Vertical

Yes

None

0.062 In

1.60 mm

Tube

0.050 In

1.27 mm

0.050 In

1.27 mm

120

Yes

N/A

Search Parts in this Series

90814Series

Mates With

90327 IDT Connector

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Extraction Tool

0690081070

(Plastic) for 90327

Connector, 4-26

Circuit
