HCTS86HMSR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> HCTS86HMSR

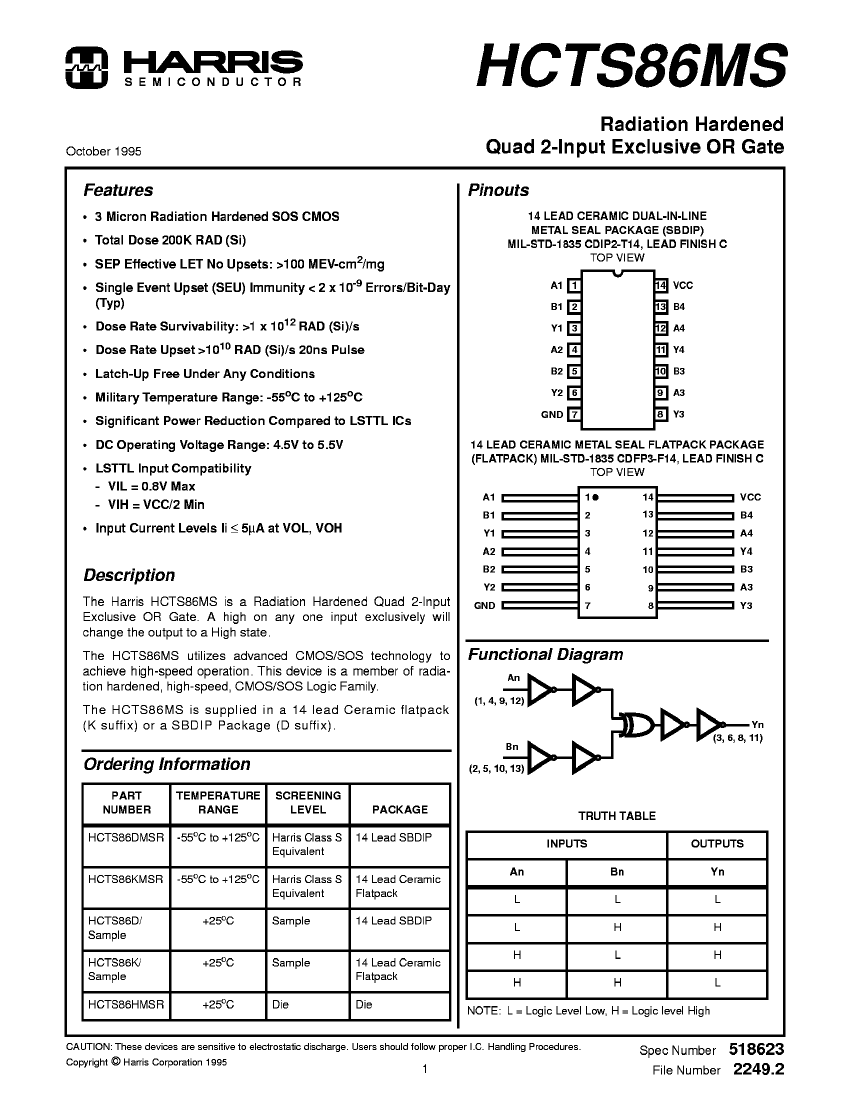

HCTS86HMSR: DescriptionXOR Gate, HCT Series, 4-Func, 2-Input, CMOS; Categorylogic logic; File Size209KB，8 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HCTS86HMSR Overview

XOR Gate, HCT Series, 4-Func, 2-Input, CMOS

HCTS86HMSR Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	DIE,
Reach Compliance Code	unknow
series	HCT
JESD-30 code	X-XUUC-N14
Load capacitance (CL)	50 pF
Logic integrated circuit type	XOR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	UPPER

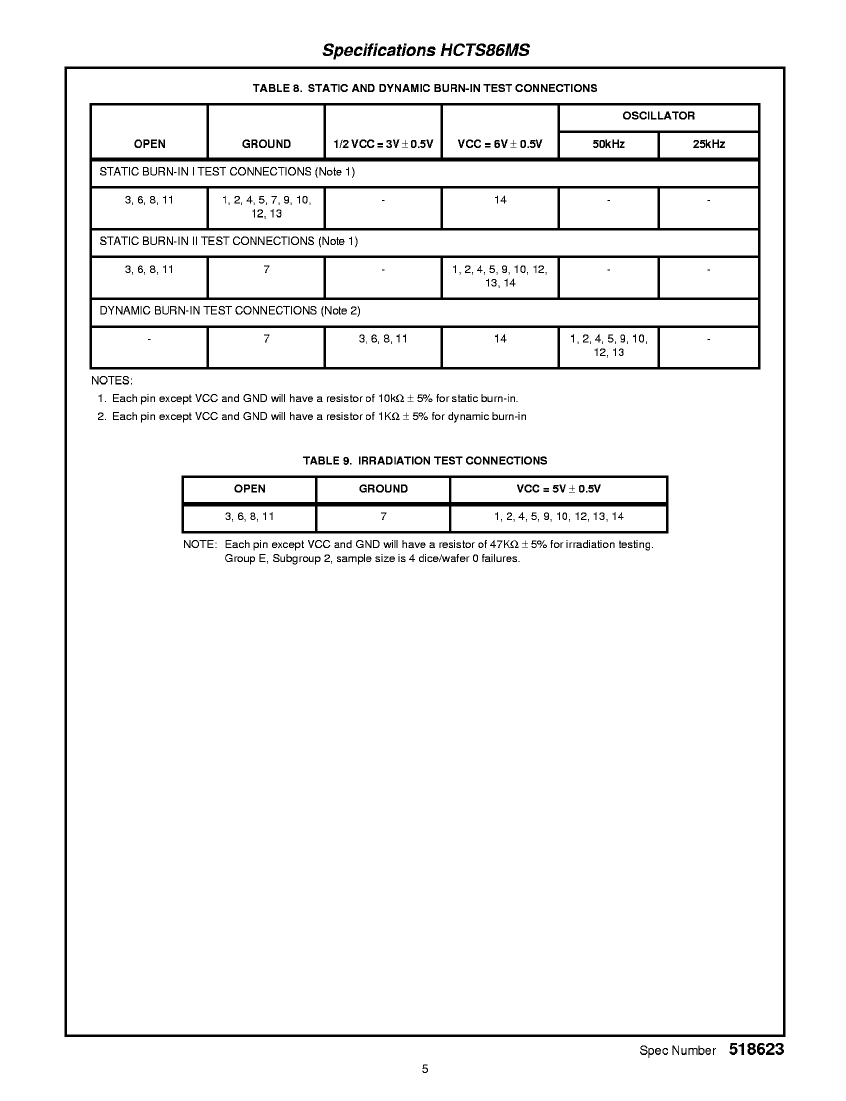

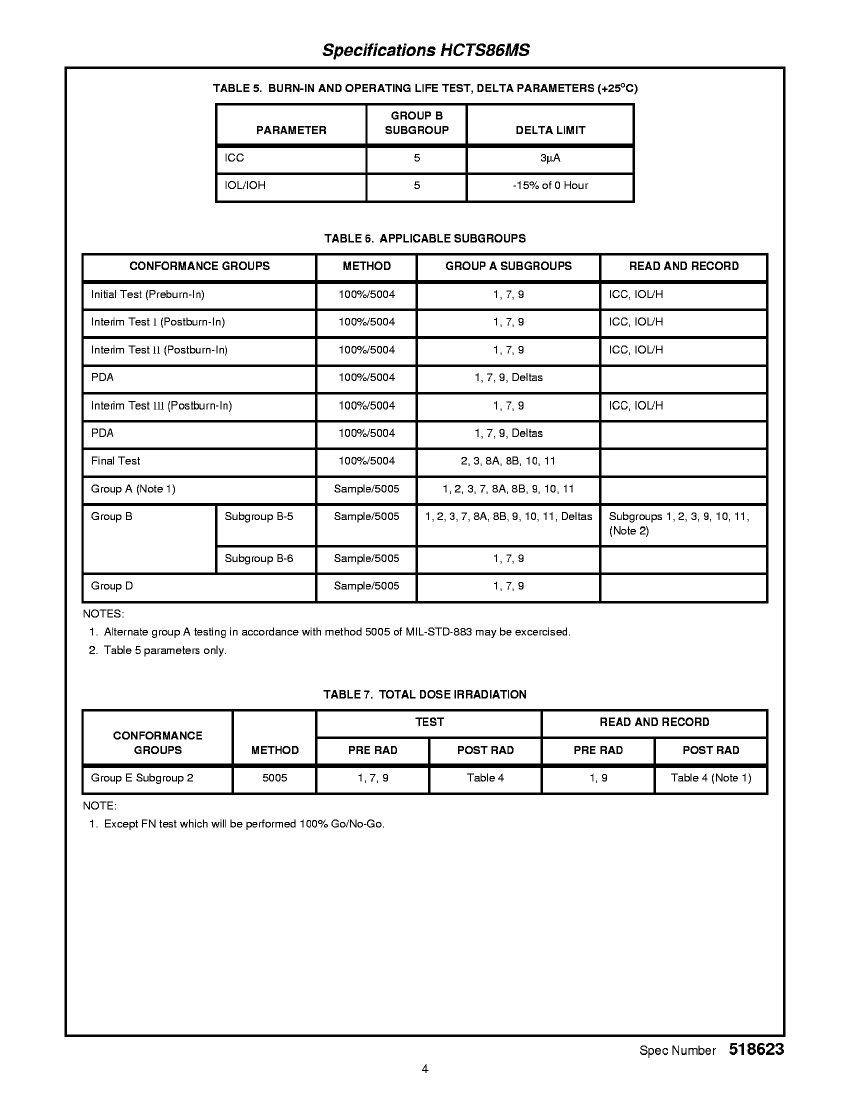

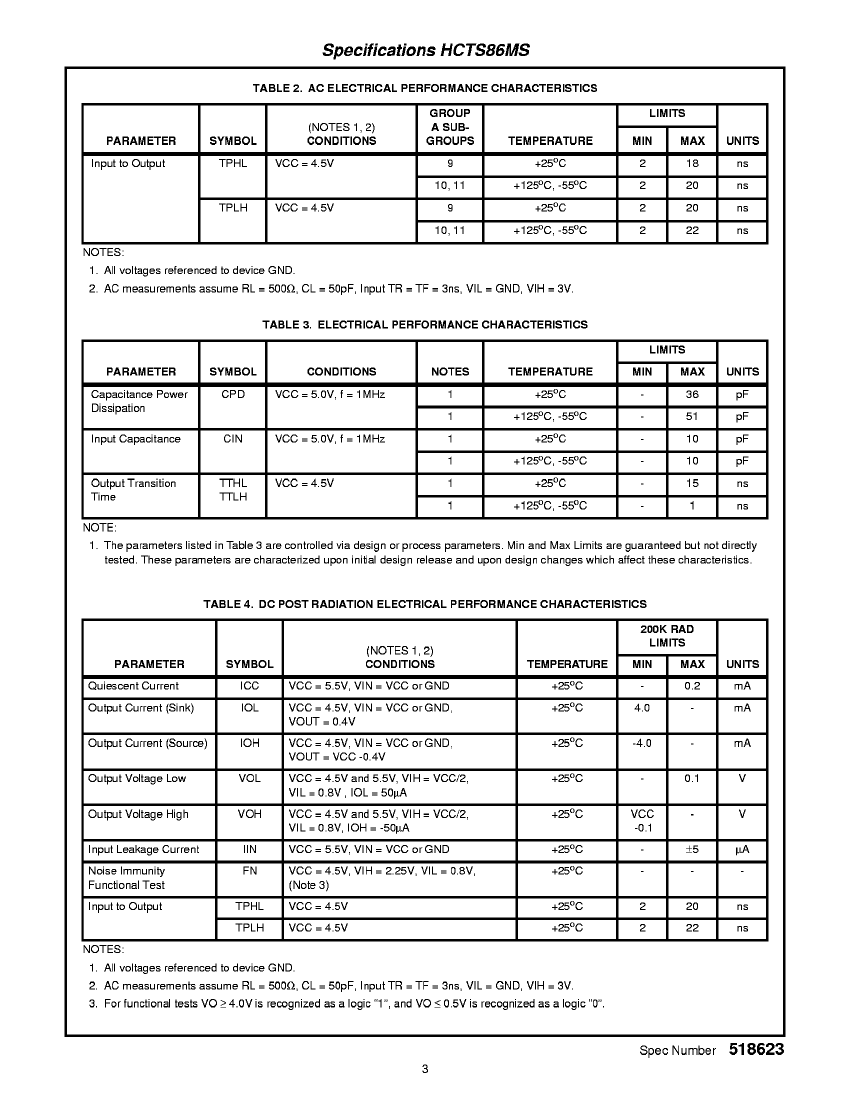

Preview

Download Datasheet

View All

HCTS86HMSR Related Products

	HCTS86HMSR	5962R9581401VXC	5962R9581401VCC	HCTS86D/SAMPLE	HCTS86K/SAMPLE	HCTS86DMSR	HCTS86KMSR
Description	XOR Gate, HCT Series, 4-Func, 2-Input, CMOS	XOR Gate, HCT Series, 4-Func, 2-Input, CMOS, CDFP14	XOR Gate, HCT Series, 4-Func, 2-Input, CMOS, CDIP14	XOR Gate, HCT Series, 4-Func, 2-Input, CMOS, CDIP14	XOR Gate, HCT Series, 4-Func, 2-Input, CMOS, CDFP14	XOR Gate, HCT Series, 4-Func, 2-Input, CMOS, CDIP14	XOR Gate, HCT Series, 4-Func, 2-Input, CMOS, CDFP14
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown
series	HCT	HCT	HCT	HCT	HCT	HCT	HCT
JESD-30 code	X-XUUC-N14	R-CDFP-F14	R-CDIP-T14	R-CDIP-T14	R-CDFP-F14	R-CDIP-T14	R-CDFP-F14
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE
Number of functions	4	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14	14
Package body material	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	FLATPACK	IN-LINE	IN-LINE	FLATPACK	IN-LINE	FLATPACK
propagation delay (tpd)	20 ns	20 ns	20 ns	20 ns	20 ns	20 ns	20 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	NO LEAD	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT
Terminal location	UPPER	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Harris	-	Harris	Harris	Harris	Harris	Harris
Maximum operating temperature	125 °C	125 °C	125 °C	-	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-	-55 °C	-55 °C
Temperature level	MILITARY	MILITARY	MILITARY	-	-	MILITARY	MILITARY
JESD-609 code	-	e4	e4	-	-	e0	e0
Terminal surface	-	GOLD	GOLD	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
total dose	-	100k Rad(Si) V	100k Rad(Si) V	-	-	200k Rad(Si) V	200k Rad(Si) V
